6 t/hr Factory Price Water Softening Plant for Steam Boiler

FOB Reference Price:Get Latest Price
$1,000.00 - $100,000.00 / Set | 1 Set/Sets Water Softening Plant (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China
Brand Name:
XiXi
Model Number:
XX-WS--6000L
Material:
tainless steel / FRP (tanks)
Source of water:
Tap water, well water, river etc
Type:
Water Softening Plant
Production:
6000 L / H
Power:
100-240V/50-60Hz
Diameter of water opening:
DN20 DN25
Water-in Pressure:
0.2-0.3Mpa
Max. Pressure:
0.6Mpa
Water-in hardness:
<8mmol/L
Water-out hardness:
<0.13mmol/L
Supply Ability
Supply Ability:
100 Set/Sets per Month Water Softening Plant
Packaging & Delivery
Packaging Details
Strech film, carton, wooden case for Water Softening Plant
Port
Chongqing/Shenzhen/Guangzhou/Shanghai/Tianjing
Lead Time :
5-7 working days ; 15-30 working days
Product Description

Main Construction:

* Resin pot
* Control Valve (auto. or manual type for optiona)
* Brine Tank

Introduction of water softening palnt.
The filter element of water softening is resin (we use it to soften water). When water flow into equipment , the resin will automatically absorb impurities calcium and magnesium ions in original / source water. But it will be saturation gradually after using for some time. ,so then we need saline to restore and regeneration to make resin work again .


Function of water softening plant.
Get rid of calcium and magnesium ions in original / source water, reduce water hardness.
No incrustation after water boiling. It’s good for life water using such as showering , cosmetics , washing clothes, water heater and household appliance wall-hanging stove etc.

1.Supply to USA,Europe,and Austrilia
2.Matrial:356T6/ADC12
3.Professional Perfomance Auto parts supplier
4.Ford Engines


Key points for full auto water softner construction and installment
1.Install stress support for pipeline to avoid forcing control valve.
2.Set up backflow preventer when equipment water inlet connect to domestic/household water pipe.
3.Need pressure device/ water booster system when the water entrance pressure is < 0.15Mpa.
4.No valve for waste water pipe shorter than 6m. Exit is lower than vale body, terminal opening , avoid siphon.
5. Local power 220V, use liquamatic (hydraulic drive) multi-tandem valve.
6. Use industry Calcic salt as regenerant.

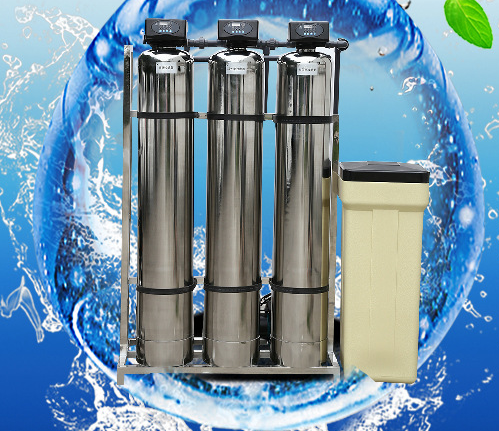

Product Name
Water Softening Plant
Model No.
XX-WS-1000L
Material
Stainless steel / FRP (tanks)
Specification
1000 L / H
Source of water
Tap water, well water, river etc
Power
100-240V/50-60Hz
Min. pressure
0.2Mpa
Diameter of water opening
DN20 DN25
Water-in Pressure
0.2-0.3Mpa
Max. Pressure
0.6Mpa
Water-in hardness
<8mmol/L
Water-out hardness
<0.13mmol /L
Softening resin
25L/25KG
 Brain tank dimensio
Diameter * Height 360 * 710MM
Regeneration and cleaning
Auto / Manual
Periodical salt consumption
About 3KG
Water-in temperature
5-45℃

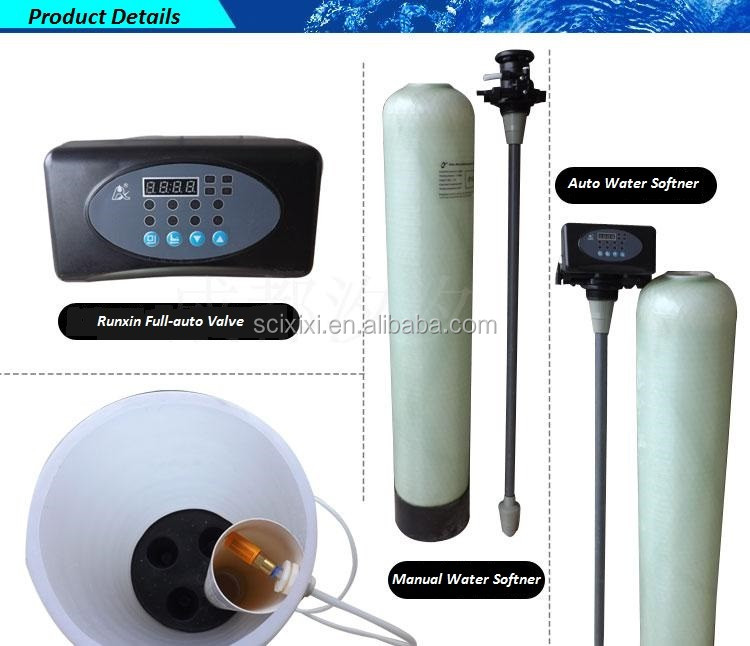

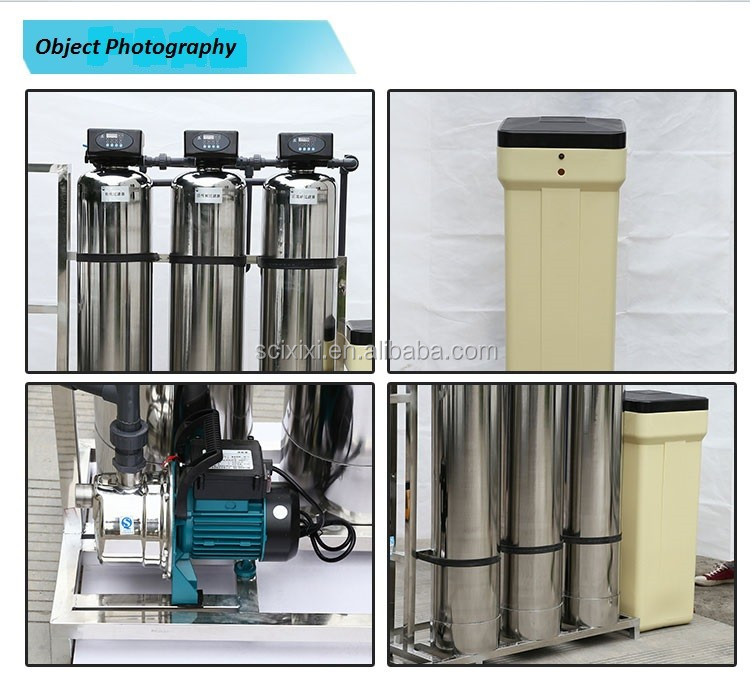

Detailed Images

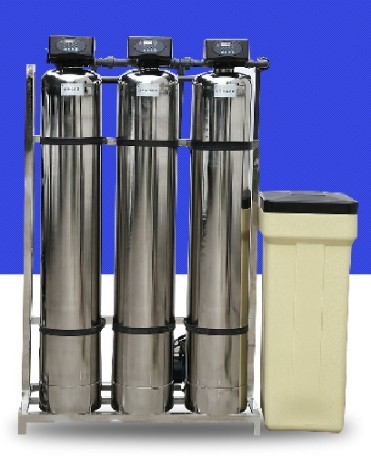

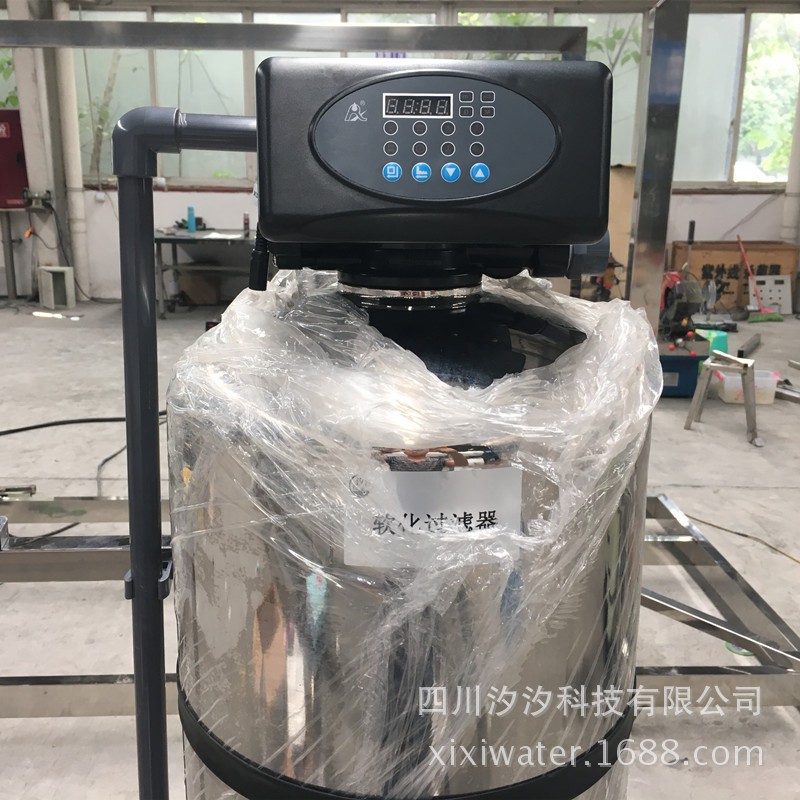

                                     Auto-Valve

                                Cost higher than manual one

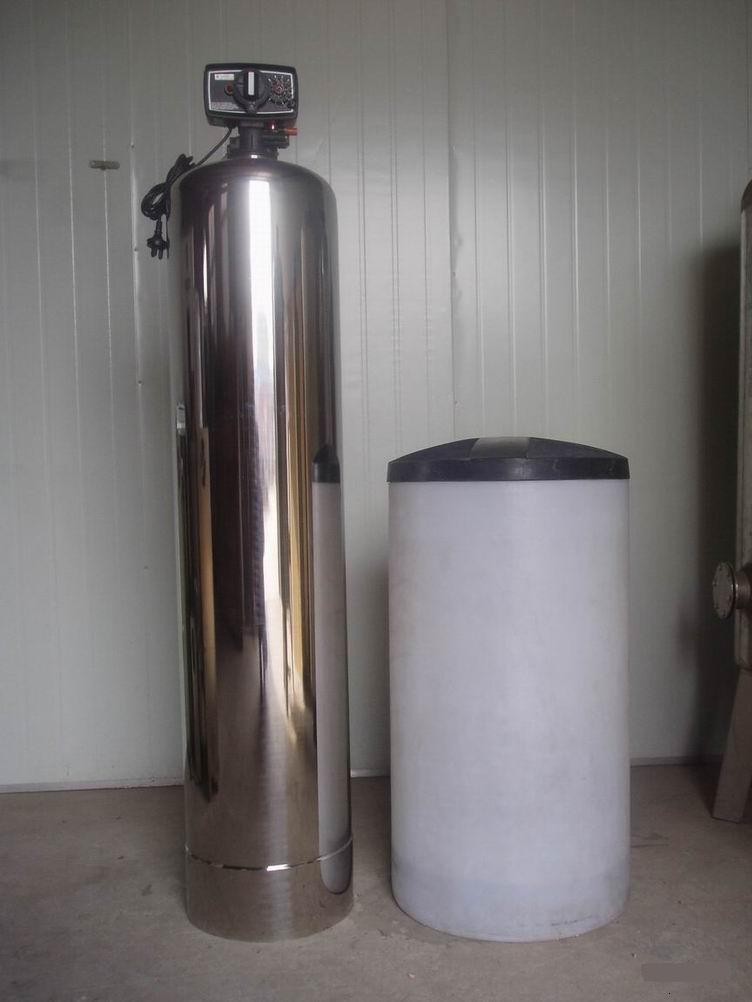

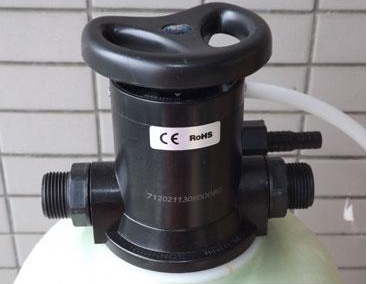

                              Manual Valve

                                             Cost low

Application Cases


Water Softenning Treatment Unit

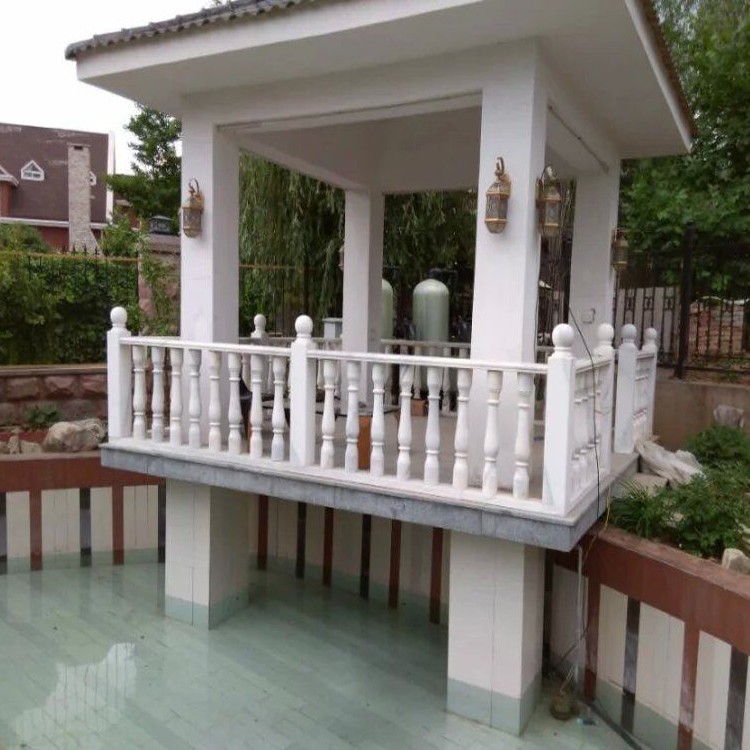

Swiming Pool Water Recyclying & Softening

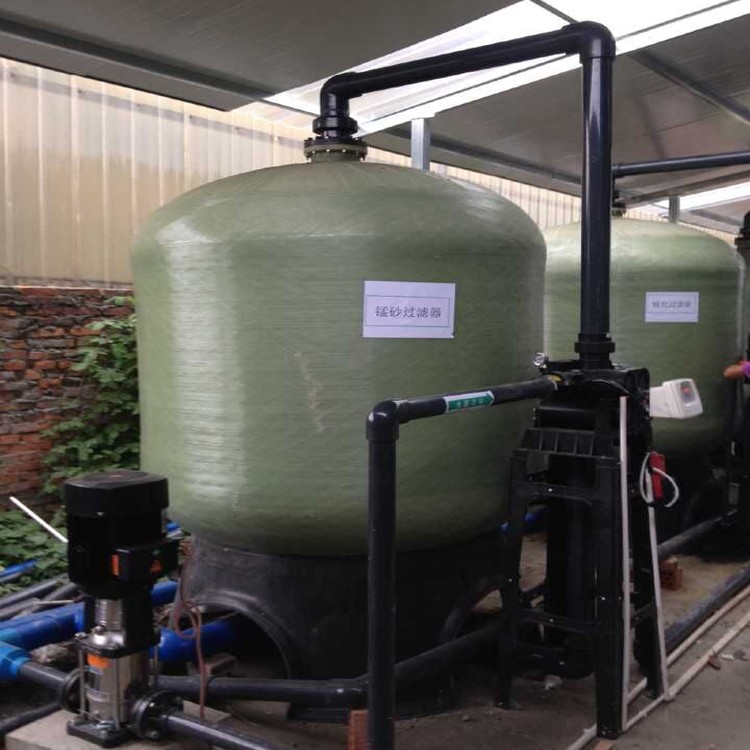

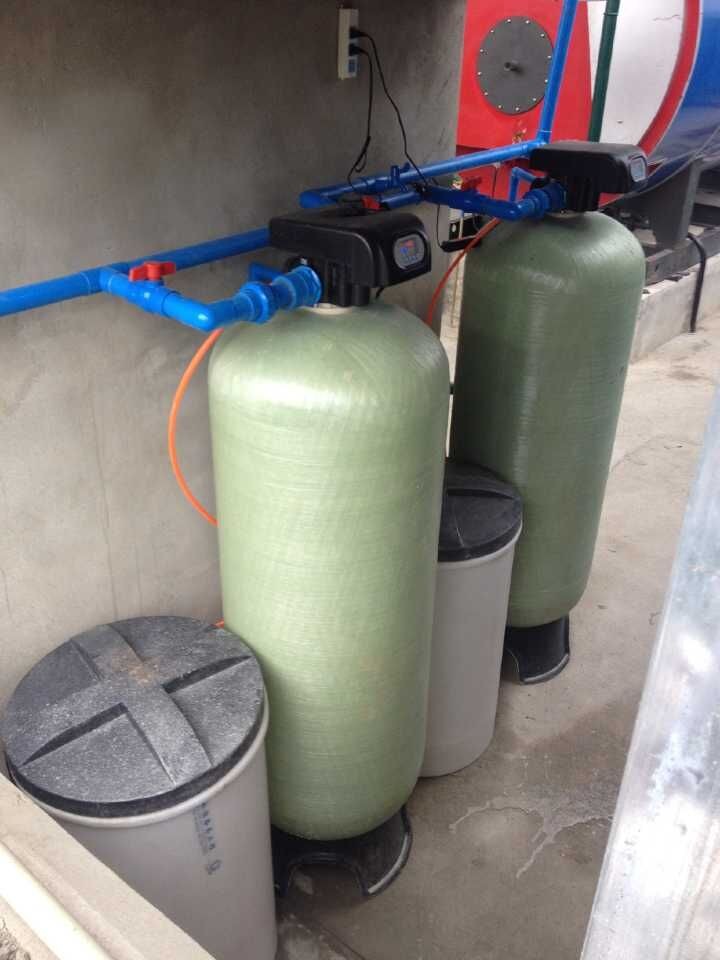

10 T / H water softner units

For car washing using in the garage.

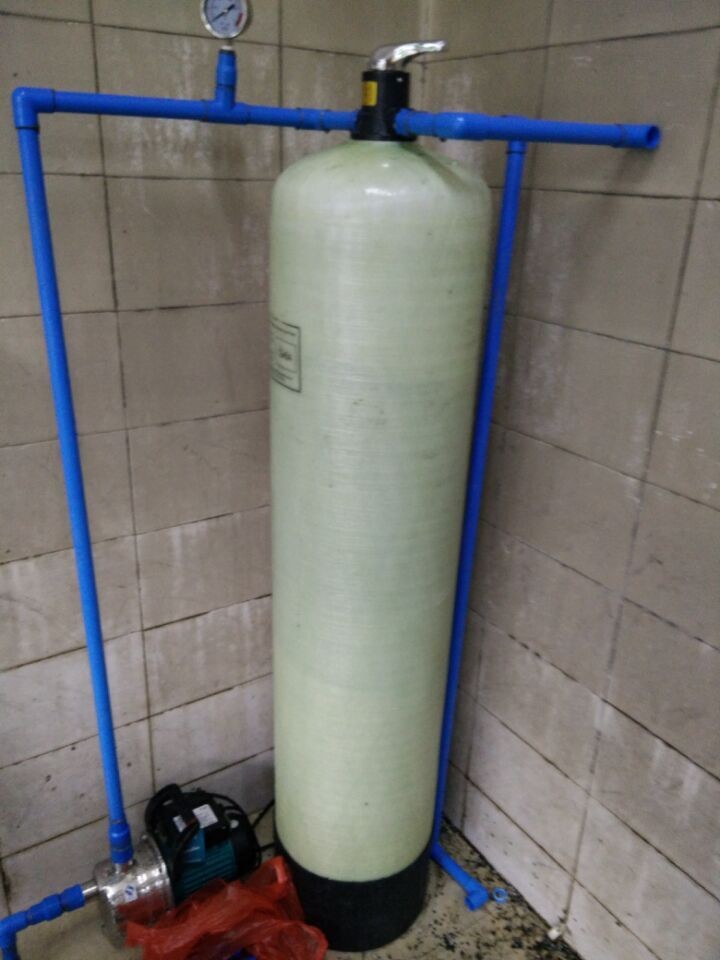

Installing water softner in the garage.

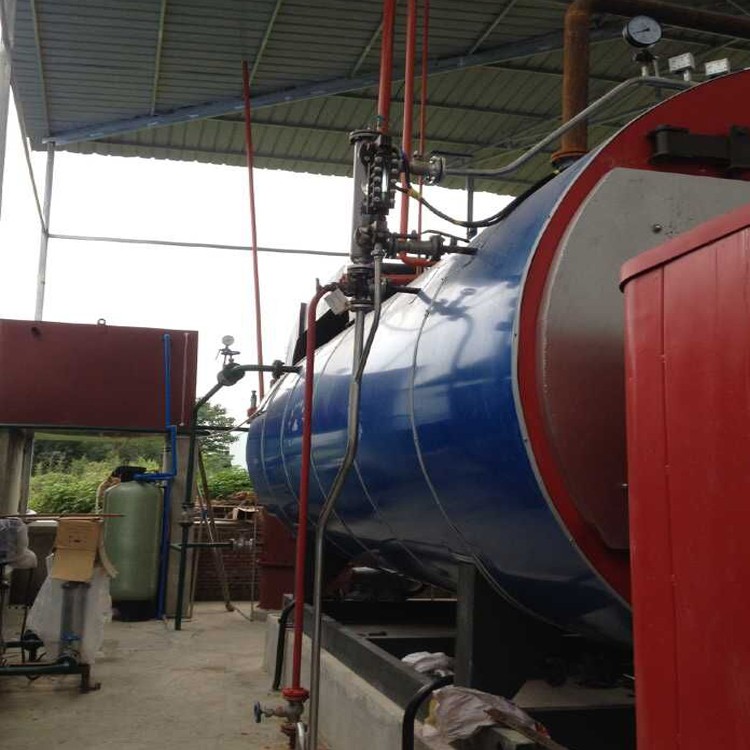

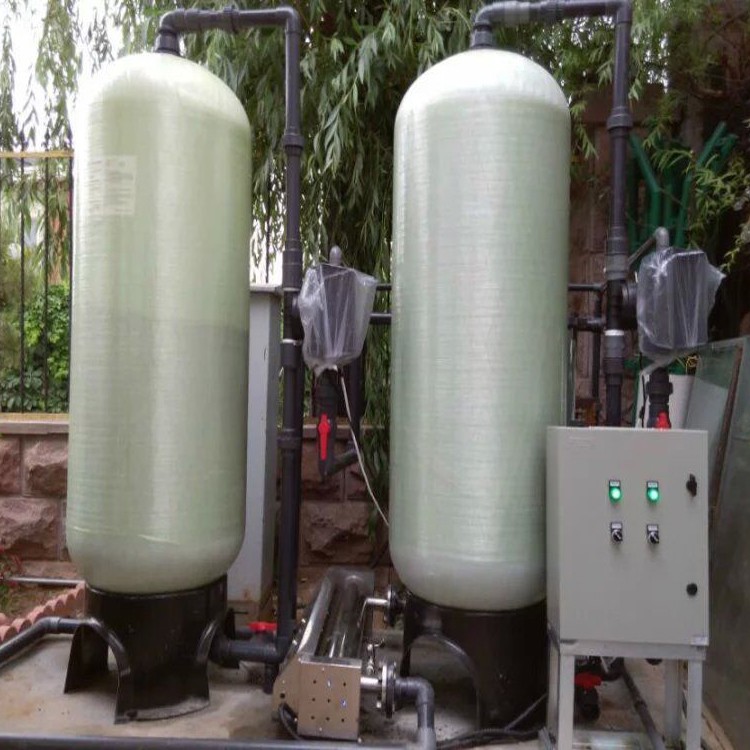

Boiler Water Softner

50 tons per hour - two-stage softening twith two FRP tanks

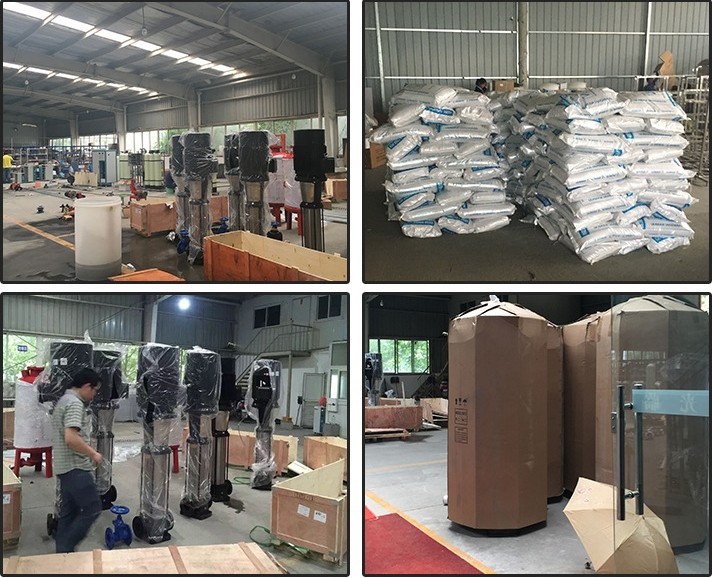

Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Our Company

Sichuan Xixi Science and Technology Co., Ltd. is one of the professional water treatment manufacturer in China, which has been engaged in wide range of  water treatment applience for more than 10 years.

With good quality product , considerable sale service and exclusive innovation, XiXi get very good reputation, we are well-known and renowned in China.

Although we are "new company" at Alibaba.com , our R&D team is not new .They all have been working in this line for years , most of them have 10 years more experience.


Innovation is our goal and pursuit, we are different !

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons and wooden cases. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment ?
A: For amount ≤US$5,000. 100% T/T in advance. For For amount > us$5,000. 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages even live video once request before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 5-7 days for sample order and15-30 working days for bulking order after receiving payment. The specific delivery time depends on the proeject items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes,100% test before delivery

Q6: How do you make our business long-term and good relationship?
A1. We keep good quality and competitive price to ensure our customers benefit ;
A2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come. We are partner .

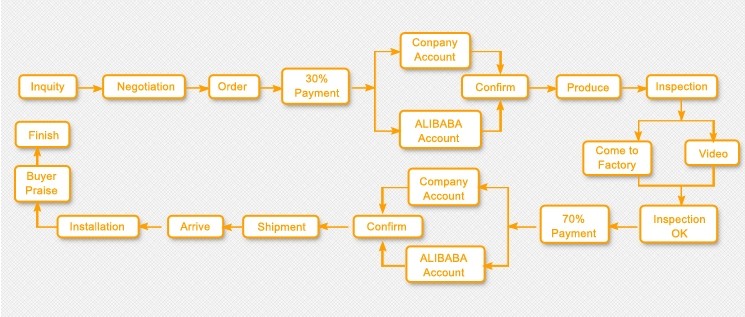

Q7. How do i order ?
