65hp Magnetic Motor for Electric Car Suv

FOB Reference Price:Get Latest Price
$89.00 - $1,089.00 / Set | 1 Set/Sets (Min. Order)
Output Power:
50kW
Lead Time:
Quantity(Sets) 1 - 10 11 - 100 >100
Est. Time(days) 10 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
3months-1year
Place of Origin:
China
Brand Name:
Uni
Model Number:
50kW PMSM Motor
Type:
Synchronous Motor
Frequency:
50 Hz
Phase:
Three-phase
Protect Feature:
Waterproof
AC Voltage:
220V/380V/400V
Efficiency:
IE 4
Application:
Electric Car Vehicle or Boat
Rated Power:
50kW
Max. Power:
100kW
Rated Voltage:
220V / 380V / 400V
Rated Speed:
3000 r/min
Max. Speed:
6000 r/min
Max. Torque:
420 N.m
Protection Grade:
IP 65
Weight:
60kg
Name:
50kW PMSM Motor Driving Kit for Electric Vehicle
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Seaworthy packing
Port
Foshan, Guanhzhou or Shenzhen
Lead Time :
Quantity(Sets) 1 - 10 11 - 100 >100
Est. Time(days) 10 20 To be negotiated
About Us

Foshan Uni Technology Co., Ltd. is a high-tech enterprise specializing in providing environmentally-friendly, energy-saving, green-power 3kW to 50kW driving system for electric car (electric tricycle, passenger car, logistics car) or boat. "Courtesy, sincerity and profession" as the company principles, are kept in our minds.


Our team members:
1. Managers with a comprehensive understanding of the market
2. Experienced engineers who have engaged in electric vehicle industry for more than 10 years with full proficiency in technology
3. Energetic and motivated colleagues
After years of development, the supply & sales chain was adjusted and improved constantly and now became a completed system. We can provide comprehensive service from pre-sales introduction to after-sales technical support.

Our products:
1. AC driving system (3kw-15kw): AC motor and motor controller
2. PMSM driving system (3kw-100kw): PMSM motor and motor controller
3. Transmission assembly: rear axle, front live shaft, reducer, and rear/front drive assembly
4. Power supply system: battery charger and Lithium battery

5. Other components: DC-DC converter, dashboard, pedal, encoder and brake


Both AC motor system and PMSM motor system have their advantages and disadvantages. Through continuous experimentation and practice, we found that PMSM motor is more energy-saving comparing with AC motor, but the latter is also irreplaceable in some places or occasion (see FAQ Q1 for more information about the differences between AC motor and PMSM motor).  If you are not sure what type of motor and what power to be used in your equipment, fee free to contact us. We have a whole team to give you support.


Product Description

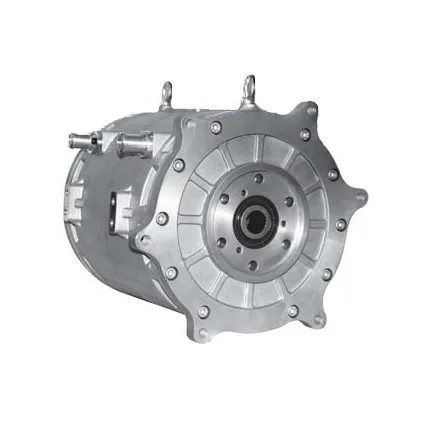

AC and PMSM Motor for Electric Car or Boat


Features:

1. Simple in structure

2. High reliability

3. Free maintenance

4. Big torque and high efficiency

5. Pure copper winding

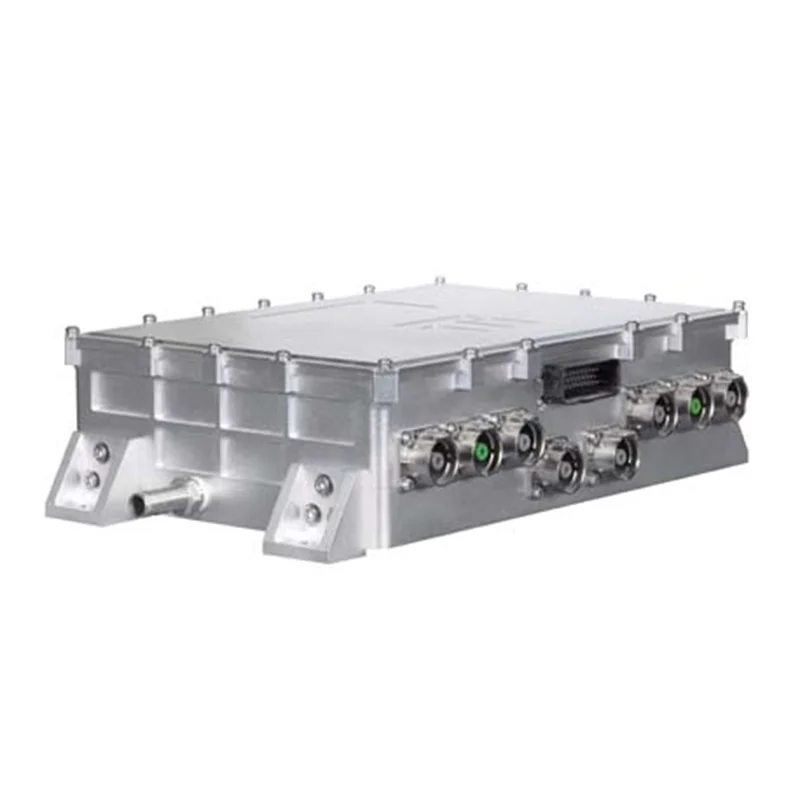

AC and PMSM Motor Controller for Electric Car or Boat


Features:

1. DSP chip

2. High temperature adaptability

3. Programmable

4. Anti-rollback function

5. Regenerative braking effect

6. Multiple protections (under-voltage and over-voltage and high temperature)


Rear Axle Assembly for Electric Car


Features:

1. High torque

2. improvement in efficiency

3. Space-saving

4. Strong load bearing capacity


Specification
AC Motor
Rated Power: 3kW-15kW
Rated Voltage: 48V-144V
Max. Torque: 65N.m-120N.m
PMSM Motor
Rated Power: 3kW-100kW
Rated Voltage: 48V-576V
Max. Torque: 65N.m-1000N.m
AC Motor Controller
Rated Power: 3kW-15kW
Rated Voltage: 48V-144V
Max. Current: 250-500a
PMSM Motor Controller
Rated Power: 3kW-100kW
Rated Voltage: 48V-576V
Max. Current: 300-500a
Gearbox
Ratio:6:1/8:1/10:1/12:1
Torque Capacity:180N.m
Net Weight:15~30kg
Rear Axle
Ratio:6.5/8.6/10.5/12.31/14.5/18.6/21/25
Torque Capacity:300N.m~500N.m
Net Weight:15~90kg

Electric Vehicle Power System Training Platform

Cases

Convert Fuel Car to Electric Car (18T Scrubber)

After calculation, we use the following driving system.

Motor Power
95/150
Torque (N.m)
900/1800
Speed (rpm)
1000/3000
Rated Voltage (V)
DC540
Max. Efficiency
94%
Working Voltage (V)
DC350-750
Battery Voltage (V)
DC540
Battery Capacity (kwh)
225
Gears
4
Ratio
4.406/2.446/1.481/1

Motor plus four-speed gearbox can drive the 18T sweeping car well.

Production & Service

R&D Department


We have a strong R&D team with many years of experience in areas such as electrical, electronics, software, machinery, automation, etc.

Production Center

A full set of processing equipment can guarantee the accuracy;

Advanced automatic wire embedding system is to ensure the consistency;

Semi-automatic production line will improve the productivity.



Motor Production
Semi-automatic production line: more than 80% automation
60 sets in a single shift; annual production: 15,000; max. annual production: 45,000 sets

Controller Production
Semi-automatic controller production line: more than 80% automation
100 units in a single shift

Quality Management
The quality assurance department will supervise the production process and the test equipment can insure the product quality.

Certifications
Packing & Delivery

Normal package is wooden box and it will be fumigated. Sometimes cartons will be chosen if by air. If there are any special requirements, please talk to our sales person.

FAQ

Q1: What is the difference between AC motor and PMSM motor?


AC motor is simple in structure, easy to manufacture, of high reliability and large start torque. At the same time, it can withstand harsh environment. While PMSM motor, with higher efficiency, small size and light weight saves more than 20% energy compared with AC motor. Both space and energy do matter, but it can not tolerate high temperature. These two types of motor have their advantages and disadvantages. They are suitable for different environments. Please talk to our persons and we will take many factors like car weight, max. speed required, terrain, climate into consideration to suggest the right driving system.

Besides, some parameters can be customized. It is highly recommended to talk to us. The more information we get, the better solution we will provide, which will directly lead to cost-reduction.
