- Place of Origin:
-
CHINA
- Brand Name:
-
SHUGUANG, Shuguang fuse
- Model Number:
-
XRNT-12
- Usage:
-
High Voltage
- Breaking Capacity:
-
High, 50kA
- Safety Standards:
-
IEC
- Model:
-
XRNT FUSE
- Standard:
-
IEC certificate
- Material:
-
Porcelain/ceramic
- Rated Voltage:
-
12kV
- Rated current:
-
3.15-250A
- Color:
-
White/brown
- Length:
-
292/442
- Type:
-
High Voltage Fuse Link
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 55X35X15 cm
- Single gross weight:
- 6.0 kg
- Package Type:
- Standard export package
- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 7 To be negotiated

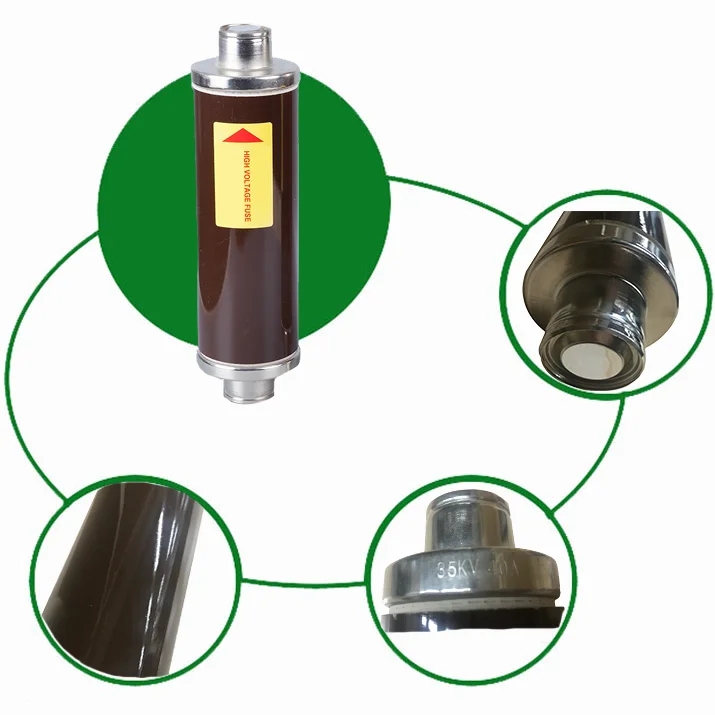

7.2- 40.5kV hv fuse for transformer
The product can be used in system with AC50Hz and rated voltage of 10KV,used together with other protection facilities(such as loading
switches).It ccan protect electric transformers and other electric facilities against overloading or circuit break.It is mainly used in American
box type transformers as backup protection.
TYPE | RATED VOLTAGE (KV) | RATD CURRENT (A) | MAIN DIMENSION (mm) | RATED CUT-OFF CURRENT (KA) |
| |
LENGTH |
DIAMETER
|
| WEIGHT (KG) | |||
SDO*J |
7.2 | 3.15,6.3,10,16 | 192 | 51 |
50
| 1.47 |
SFO*J | 20,25,31.5,40,50,63 | 192 | 76 | 3.15 | ||
SDL*J |
12 | 3.15,6.3,10,16,20,25, 31.5,40,50,63 | 292 | 51 | 1.47 | |
SFL*J | 50,63,80,100 | 292 | 76 | 3.15 | ||
SKL*J | 125 | 292 | 76 | 3.15 | ||
SXL*J | 160,200 | 292 | 88 | 4.15 | ||
SDM*J | 6.3,10,16,20, | 442 | 51 |
| ||
25,31.5,40,50,63 | 442 | 63 | ||||
SFM*J | 63,80,100, | 442 | 76 |
| ||
| 125,160 | 442 | 88 | |||
SXM*J | 200,250 | 442 | 88 |
| ||
SDL*J |
24 | 3.15,6.3,10,16 | 292 | 51 |
| |
SFL*J | 20,25,31.5,40,50,63 | 292 | 76 |
| ||
SDM*J | 3.15,6.3,10,16,20,25,31.5,40 | 442 | 51 | 2.7 | ||
SFM*J | 50,63,80,100 | 442 | 76 | 4.5 | ||
SXM*J | 125,160 | 442 | 88 | 5.4 | ||
SDQ*J |
40.5 | 10,16,20 | 537 | 51 |
31.5 | 2.9 |
SFQ*J | 25,31.5,40,50 | 537 | 76 | 5.51 | ||
SXQ*J | 63,80 | 537 | 88 | 6.5 | ||
