7.5KW & 11KW solar pump inverter with MPPT controller for solar water pumping system

Feedback Ratings
$388.00 - $485.00 / Set | 1 Set (Min. Order)
Output Power:
7.5KW
$388.00
- +
available
11KW
$485.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Samples - $388.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
solar pump inverter
Model Number:
YCSBH3PH75
Output Type:
Triple
Size:
340*310*160mm
Weight:
10KG
Input Voltage:
560V
Output Voltage:
380V 3 phase
Type:
DC/AC Inverters
Output Frequency:
50Hz/60Hz
Output Current:
21A & 28A
Usage:
solar water pump inverter
Application:
Solar water pump system
MPPT voltage efficiency:
98%
MPPT voltage range:
300-750V DC
Start:
variable frequency drive
Private label:
YES
Certificate:
RoHS & CE
Altitude:
<1000m
Operating temperaure:
-10℃ ~ +40℃
Warranty:
1 year

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X33X17 cm
Single gross weight:
11.0 kg
Package Type:
Standard export package
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 100 >100
Est. Time(days) 7 To be negotiated

7.5KW & 11KW solar pump inverter with MPPT controller for solar water pumping system

Product Description
What is solar water pump inverter?

Solar water pump controller(inverter) is integrate MPPTand frequency conversion control technology,and support the fixed rotor double plastic package motor, high efficiency asynchronous induction motor and high speed switch reluctance motor with DC, permanent magnetism, brushless, and no-position sensor to drive the pump.



7.5KW & 11KW solar pump inverter specification

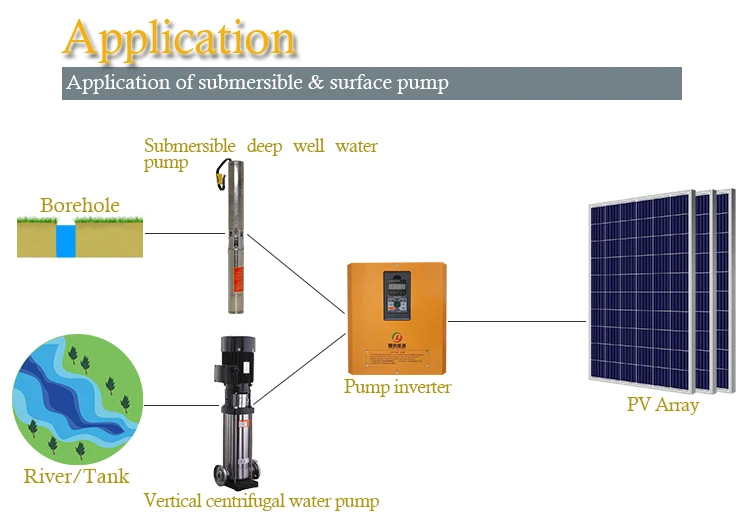

YAOCHUANG solar pump controller does not only converter DC 560V to AC 380V or 220V, but also controlling pump working condition, anti- dry pumping, and remote monitoring. It is highly welcomed in solar water pump irrigation system, and livestock water supply.





Our Services

 YAOCHUANG ENERGY DEVELOPMENT is not only solar pump inverter manufacturer, but also solar water pump system integrator & installer. We can offer One-stop solar water pump system solution.



Some projects show
