8 Channel Ethernet Relay Module With Network RJ45 RS232 TCP IP Program Development Board DIY Smart Home

  • 1-9 Sets
  • 10-49 Sets
  • 50-99 Sets
  • >=100 Sets
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customized logo (Min. Order: 100 Sets)
Customized packaging (Min. Order: 100 Sets)


Graphic customization (Min. Order: 100 Sets) Less
Contact Supplier
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Model Number:
Electromagnetic Relay
Protect Feature:
Contact Load:
High Power
Product name:
zigbee switch module
Security Channels:
communication port:
Network control mode:
LAN (Local:Withour Internet) OR WAN
Provide control sample source code:
C++, VB, Delphi, Python, iOS, Android
Provide communication protocol documents:
Supporting Programmable Control Mode:
Technical Support Mode:
Email, Telephone,Teamview
switch module
Max Current:

Packaging & Delivery

Selling Units:
Single item
Single package size:
28X12X6 cm
Single gross weight:
1.000 kg
Package Type:
carton or according to your requirement. bluetooth relay switch module
Lead Time :
Quantity(Sets) 1 - 50 >50
Est. Time(days) 5 To be negotiated
Video Description
Products Description
zigbee switch module

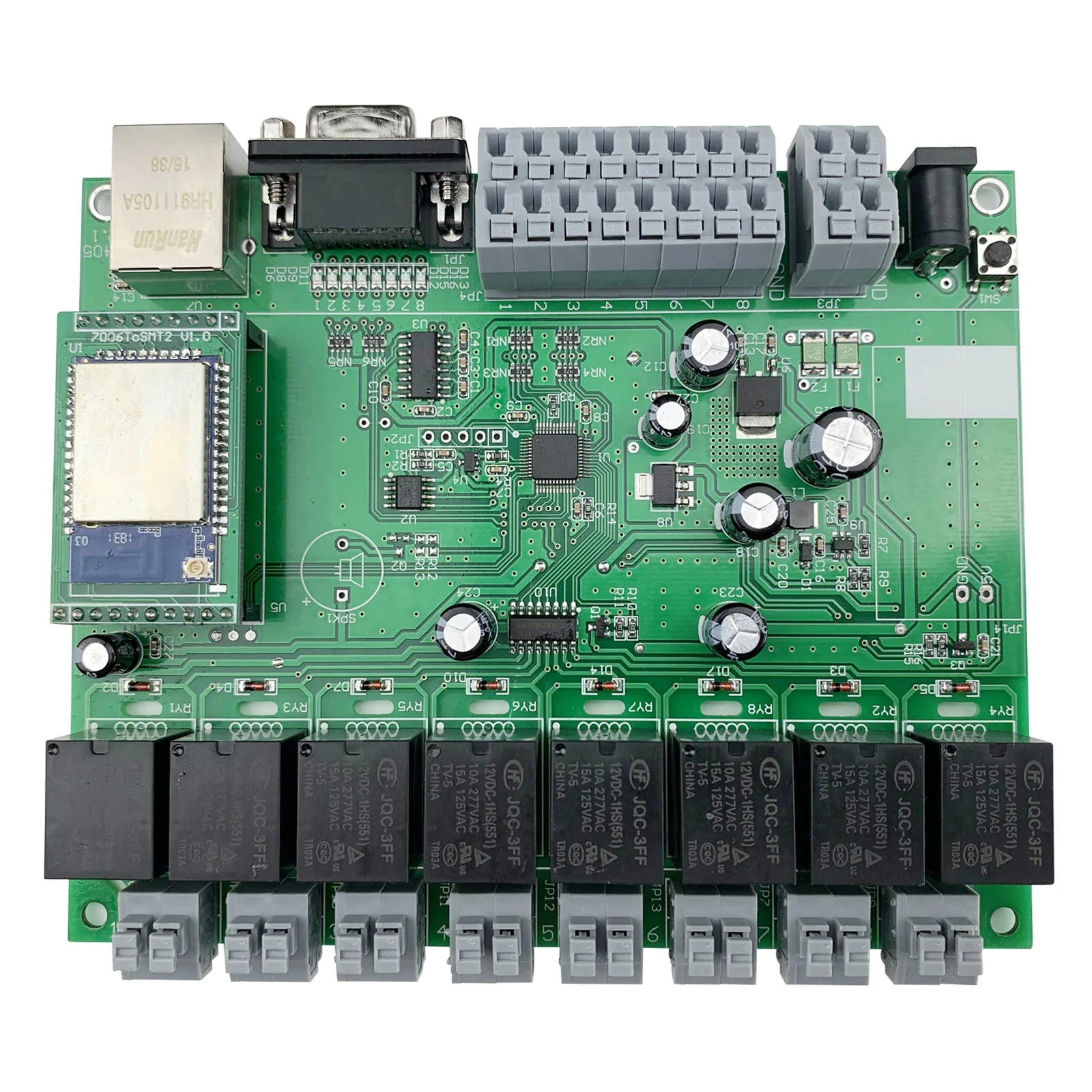

This KC868-H8's without shell versoin. This PCB board's function as same as KC868-H8.
switch module

The following information introduces KC868-H8 controller. KC868-H4, KC868-H2, KC868-H8, KC868-H32 controller are KC868 series of KinCony's products, so phone APP and PC software are compatible. There are only different input and output channel.

bluetooth relay switch module



Working Voltage

DC 12V


Fire resistance ABSmetal shell

Working Temp


Working Humidity

20%RH ~ 80%RH

Output Load

each 250V/10A

Communication modE


Input port qty

8 ports

Output port qty

8 ports

Product packaging

bluetooth relay switch module

Products Function:

1. Supporting RS232 and Ethernet communication mode

2. Remote controlling the opening/closing of 8 routes or 8 groups’ circuits.

3. Supporting 8 ports input of sensor switching value.

4. Supporting secondary development

5. Supporting APP remote controlling

6. Widely used for lights controlling of kinds of occasion (like Indoor, theater or Amusement Park etc) and switching of mechanical equipments, and management of the computers in the cyber bar and so on.


Products Features:

1. Highly reliable connection column, independent and isolated route,Make sure the products more stable and safe.

2. Relay output pole connection method as shown below, each color represents one route, each route is equal an independent switch.

3. Adopting ARM core chip as the core processor, industrial stability and good anti-jamming.

4. Professional shell design, fixed through the positioning hole, or fixed on the guide rail directly.

5. Perfect power input filter, ensuring adequate capacitance.

6. Adopting advanced and stable communication protocol, providing reliable and smooth communication procedures.

7. Providing the upgrade tool, the products can be upgraded by the users; Or can be upgraded by the device supplier through the network.

8. Providing 1 year technical maintenance and free new edition host computer software


Products Usage Instructions

Wiring and Installation

1. Connecting network line or RS232 serial port

2. Connecting the lamp and power into the corresponding output pole, according to      below diagram.

3. When need to control one group or groups lights, connecting the line into the corresponding output poles.

4. Connecting the 12V power adapter to charge.

5. When the detection sensors are available, connecting them into the input port.


C868-H8 Interface Definition Diagram

KC868-H8 Application Solution -- Smart Lighting Control

If the load is larger than 2000W, the power expansion can be achieved by using solid state relay. Its working principle is as follows:

Intelligent Remote Pumping & Irrigation Solution

Servers Restart Remote Controlling Solution


Power Strip Intelligent Controlling Solution

Cameras Restart Remote Controlling Solution

Remote Access Controlling Solution

Security and Intelligent Linkage Control Solution

Intelligent Power Distribution Box Solution

Every KC868-Hx's input can remote control every KC868-Hx's output

The newest Andorid Software , Download form our webpage(not in Google Play): https://www.kincony.com/download/Smart-Home_Eng.apk

This is PC software for KC868-H8, It can control by LAN (local control) or WAN (remote control)



new software support CCTV (only use for KinCony's ipcamera product). When you see the video control the relay switch.


This is config manu, The title and copyright and all relays' name can be changed by yourself.

If you connect with "KC868 Voice Assistant" module, controller can control voice control by Amazon Alexa or Google Home Speaker or Amazon Alexa or Google Home phone APP.

Some Smart Control application cases used by KC868-Controller

Remote control AC380V power for pump

Use 4G/3G GPRS connect with KC868 Controller

Remote control 6 channel AC220V & 2 channel AC380V power

Remote control 1 channel AC380V power

32 Channel Relays control

32 Channel Relays control

Software Operation

1. Opening the network debugging tool to detect the IP address and port of the device (see below figure)

2. Clicking【Device】, see below figure


3. Double clicking 【the Name】, set up the network parameter of the device


4. Choosing the working mode, TCP is for local area network setting or secondary development; UDP is for APP controlling.

Secondary Development Communication Protocol

1. Relay Controlling(SET):


 RETURN: RELAY-SET-x(1bytepack_num),x(1byterelayserialnumber),x(1byteaction0/1),



 2. Relay Status(READ):


RETURN: RELAY-READ-x(1bytepack_num),x(1byterelayserialnumber),x(1bytestatus0/1),OK/ERROR

3. Input Status(GET_INPUT):


RETURN: RELAY-GET_INPUT-x(1bytepack_num),x(1bytestatus),OK/ERROR


4. Trigger Alarm(ALARM):



Re: Without receiving the RETURN, ALARM will be re-triggered every 3 seconds, totally re-triggered 3 times.


5. Scanning(SCAN_DEVICE):




6. Serial Number acquisition(HOST):

RELAY-HOST-NOW(under TCP working mode)

RETURN: HOST-CHKLIC-97813679bd8cc4c42ddb6c27(return host serial number)


7. Relay Groups Controlling(SET_ALL):


RETURN: RELAY-SET_ALL-x(1bytepack_num),D0,OK/ERROR


8. Relay Groups Status(STATE):


RETURN: RELAY-STATE-x(1bytepack_num),D0,OK/ERROR


9. Status Testing(TEST):



Re: under this status, the pack_num isn’t working.


Secondary Development Program Toolkit

We supply complete source program Toolkit of VS2005(Microsoft Visual Studio 2005) , and we give the controlling examples through RS232 serial port and Ethernet socket, to help customers carrying on the secondary development.

The PC software can control the relay switch, and also show the input state.

Details showed from below screenshots.

We can supply the DEMO code of C++Builder, Delphi, VB.Net, Python , Andorid and iOS versoins.

This is a Hello World hareware verion of Demo code.

Follows are our demo video on youtube can help you(The video is KC868-H32 for 32 relays. Because of  KC868-H8 and KC868-H32 using the same communication protocol, so you can refer to the videos below. KC868-H8 have 8 relays, KC868-H32 have 32 relays):

KC868-H32 Control in LAN by PC VB.net demo video: https://youtu.be/bzGqjfezX74

KC868-H32 Remote Control by APP video: https://youtu.be/hPWLbGwdGmM

Manual Control Board work with KC868-H32 video: https://youtu.be/poH3PHd_yQ8

How to use web browser send http string control relay video: https://youtu.be/RVWvRN8yKWs

kc868-h8's input port connect with push swithch demo-1 video: https://youtu.be/QM8E4NF2NNE

kc868-h8's input port connect with push swithch demo-2 video: https://youtu.be/HlxVVIB2yXk

KC868-H8 control Building model by PC: https://youtu.be/mcVRVmfB2tE

KC868-H8 control Building model by APP: https://youtu.be/Lu1F06ZosCU

How to DIY Smart Power Distribution by KC868-H8: https://youtu.be/nV82j-AleMk

How to Produce KC868-H32's PCB: https://youtu.be/XKu-aDMa9ws

Following is the introduction and solutions of KC868-H8/KC868-H32 controller which we plan to introduce in January-December 2019 on "Radio Magazine" in China. There are only Chinese language,but some of them will be translated into English language. You can visit our website www.kincony.com for viewing.We will continue to update.

This is a sample code for Turn ON/Off 's Hello World demo.

This is anlysis KC868-H32&KC868-H8 Controller's communication protocol

how to remote control relay by http string

This is smart lighting control system implementation case

We also writed some kinds of Smart Home DIY books to help people learn IOT knowledge.

More documents,APP&PC software and tools for download :  https://www.kincony.com/document

Videos List on YouTube:

KC868-H32 Remote Control by phone APP via ethernet WAN                                         https://youtu.be/hPWLbGwdGmM
KC868-H32 Local Control by VB PC software via LAN                                                     https://youtu.be/bzGqjfezX74
KC868-H32 Remote Control by web browser send http string via ethernet WAN             https://youtu.be/RVWvRN8yKWs
KC868-H32 Remote Control by PC software via ethernet WAN                                       https://youtu.be/r19RnDqlDi8
KC868-H8 Remote Control Building model by phone APP via ethernet WAN                  https://youtu.be/Lu1F06ZosCU
KC868-H8 Remote Control Building model by PC via ethernet WAN                               https://youtu.be/mcVRVmfB2tE
KC868-H32 Remote Control Building model by PC via ethernet WAN                             https://youtu.be/wuxG8v1XXPU
KC868-H8/H32 Local control by manual keyboard or wire switch panel or remoter         https://youtu.be/poH3PHd_yQ8
How to DIY Smart Power Distribution by KC868-H8                                                         https://youtu.be/nV82j-AleMk
Smart Power Switch Distribution Box phone APP control demo                                       https://youtu.be/5S1CUpvzD98
Home security CO Gas Sensor Carbon Monoxide Poisoning Alarm Detector work with KC868-H8      https://youtu.be/AHtYNctg-V0
Home security Door & Window Sensor Alarm Detector work with KC868-H8                                        https://youtu.be/-SGc8JNVdlw
Home security Pir Sensor Alarm Detector work with KC868-H8                                                             https://youtu.be/4lucpvvKdRs
Home security Water leak sensor Alarm Detector work with KC868-H8                                                 https://youtu.be/FDcQvbWgahs
Home security light sensor Alarm Detector work with KC868-H8                                                           https://youtu.be/Sq1s_MSwO6Q
Home security smoke sensor Alarm Detector work with KC868-H8                                                       https://youtu.be/Q8clt8TGbiQ
Home security Power Failure Monitor Sensor Alarm Detector work with KC868-H8                              https://youtu.be/XzHY_9Yk79A
DIY Home security Water level sensor Alarm Detector Monitor work with KC868-H8                            https://youtu.be/jJKBb0Kry9w
KinCony wall touch switch of ZigBee wireless smart home solution                                                       https://youtu.be/Fi29T3O936A
KinCony wall touch dimmer of ZigBee wireless smart home solution                                                     https://youtu.be/DPvQyMUk07M
How 2-3 Zigbee Light Switch Panels control one light                                                                            https://youtu.be/kfl4oeCQkzA
How to Produce KC868-H32's PCB                                                                                                        https://youtu.be/XKu-aDMa9ws
Controllers Specification Parameters









Relay Control



Wired Sensor














Embedded IR






Cloud Storage

Self Program

Sample Code

Technical Support







ZigBee Device





ZigBee Amplifier







KC868-G/KC868-S/KC868-H8/KC868-H32 Mobile Phone APP download :



The following are FCC and RoHS certificates

Installation Instructions


A. Before Sale Service

Q1. How many applications can the device KC868-H32 control?

Answer: 32 ways applications


Q2. How many inputs are there in the device KC868-H32?

Answer: 6-way input


Q3. How many inputs are there in the device KC868-H32?

Answer: You can add 2pcs kc868-h32 in app. Then you can control 64 relays. Also if you add 3pcs of kc868-h32, then you can control 96 relays.and so on. All controllers will be add in one app account , not need to change app account to login and control device.


Q4.what is the maximum load per channel for the device kc868-h32?

Answer: 250V/5A each channel


Q5.What if the load power is greater than the rated power?

Answer: if it is overloaded, the external high power AC relay can be connected to crease the total load power


Q6.What type of equipment can be connected to the input of the kc868-h32 control box?

Answer: the equipments with switching value signal output


Q7.What is the size of the kc868-h32 control box? What are the fixed installation methods?

Answer: 272x117x40mm; to fix by hanging on the rail directly or to fix by screw


Q8.What is the interfaces the kc868-h32 control box supports?

Answer: support RS232 and Ethernet interface


Q9. Is there the version of Ethernet?

Answer: Yes. It’s the KC868-H32.


Q10. What are the network control methods for KC868-H32 control boxes?

Answer: Mobile phone APP remote control, PC local or remote control


Q11.What kind of software and user manuals can be provided?

Answer: Network configuration tool, Demo software, Or Instructions and Secondary development protocol etc. For more details, pls visit www.kincony.com/document to download

              Local Control: PC software; Control by yourself(use controller communication protocol)
              Remote Control: PC software;Mobile APP; Control by yourself(Mode A: http www web command  Mode B:coding by yourself according your app account to login)

Q12. When there is no internet, how to remote control the device KC868-H32?

Answer: under local network, using the PC to achieve local remote control; or using the wireless internet router to provide wired network or Wi-Fi signals to achieve controlling.


Q13. Where the mobile phone APP software can be easily downloaded from?

Answer: For IOS, log in to Apple app store, searches 【Kincony smart home】 to download;  for Android, log in Google app store, searches【Kincony smart home】 to download or visit the official website to scan the QR for downloading


B. Development By Yourself

Q1. Is it supporting the users to write their own programs to control the device?

Answer: Yes, supporting. And the related program example is avialble.


Q2. Is it supporting to control the device through a browser?

Answer: Yes, supporting. And one relevant case can be provided.


Q3. What are the ways to remote control the device when the users program themselves?

Answer: the PC software, the browser for controlling.


Q4. Is it provided the source code of the secondary development package example?

Answer: Yes, providing the detail information.


C. After sale service

Q1. Where to download the relevant information after purchasing?

Answer: From the Chinese website www.hificat.com/services/

And the English website www.kincony.com/document

Details Images
