1. KC868-H8 is a 8-gang switch and 8-gang security alarm smart home system with DIN rail mounting. 8-gang switch supports to connect and control 8 electrical appliances. Which can be turn ON/OFF separately by extended manual control panel or iOS/Andorid APP or PC software.

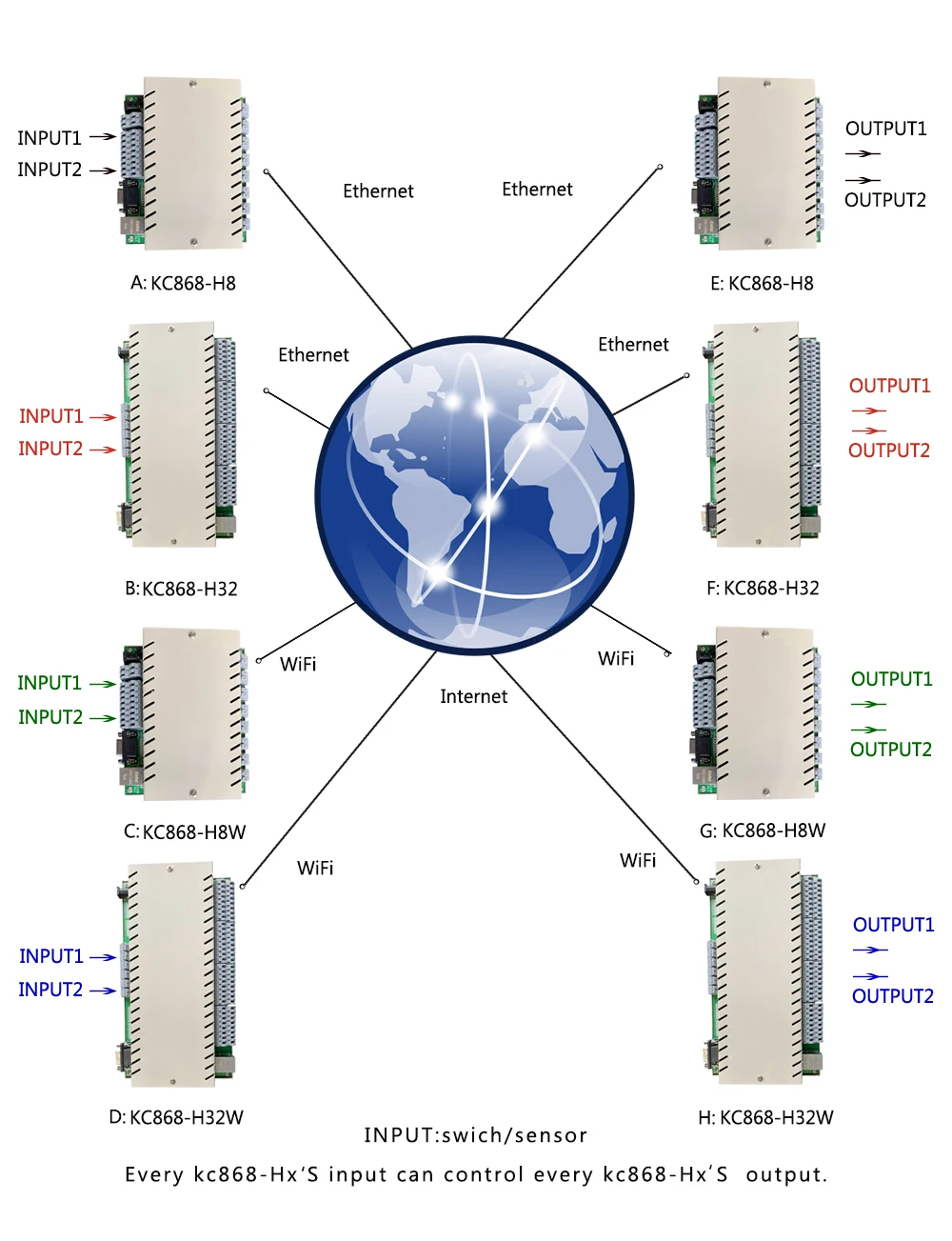

2. You can check real-time devices status for each device on App. If you need a specific number of channels, you can use some KC868-H16 and KC868-H8 together. Such as KC868-H16:1pcs + KC868-H8:1pcs that control channel is 16+8=24. All controller in one APP window.

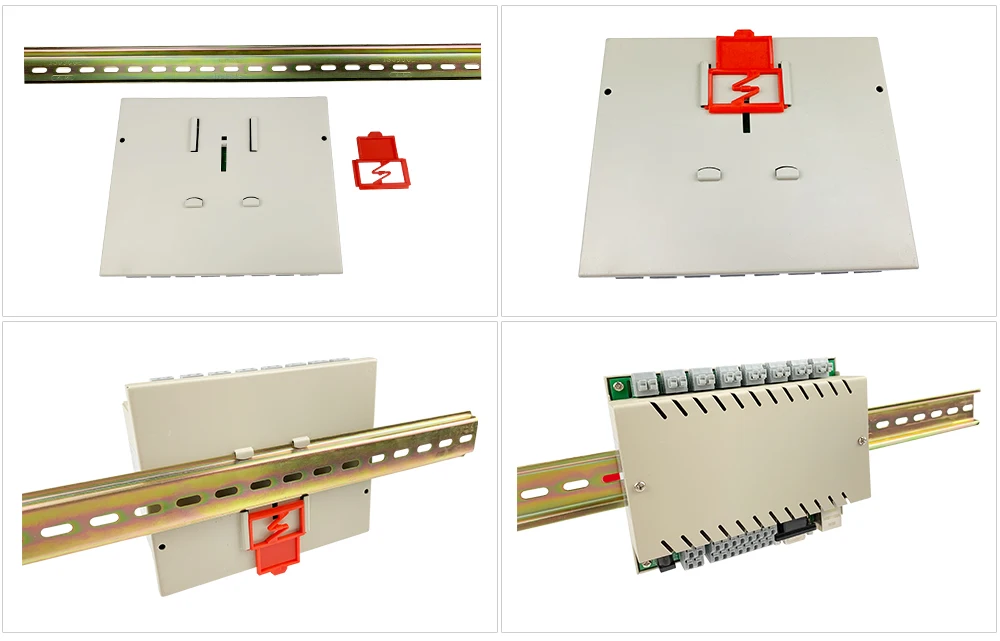

3. A DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks.
4. KC868-H32,KC868-H32W,KC868-H16,KC868-H16W,KC868-H8,KC868-H8W,KC868-H4,KC868-H4W,KC868-H2,KC868-H2W,KC868-G,KC868-S Controller belongs to KC868 family by KinCony , These controller all use the same software. The difference is that different number of security channels , control channels and ways of networking
5. These product have CE/FCC/RoHS Certified.
1.Remote ON/OFF – Turn electrical devices ON/OFF from anywhere
2.APP/PC Support– Free iOS and Android mobile App and PC software
3.Independent control - Control each gang separately
4.DIN Rail Mounted – Great for industrial control
5.Sync Status –Real-time device status provided to App
6.Share Control – Share your account with your family to control your smart home
7.Timing – Set scheduled to turn ON/OFF at specified regular time
8.Scene – Turn ON/OFF some specific switch of devices with one tap
9.Smart Scene – Can be triggered ON/OFF by kinds of sensor (Need support by sensor)
10.Supporting secondary development for programmer.
11.Network control methods for KC868-Hx controller:
a. Mobile phone APP remote control, PC local or remote control
b. Local Control: PC software; Control by yourself for programmer(For engineers:use controller communication protocol)
c. Remote Control: PC software;Mobile APP; Control by yourself for programmer(For engineers:Mode A: http www web command Mode B:coding by yourself according your app account to login)
1. Using ARM processor,industrial stability and good anti-jamming.
2. Control channel up to 8 and sensor channel up to 8.
3. Support LAN and Internet, It can also be used without internet.
4. Free Mobile app and PC software.
5. Support multilingual customization.
6. Each device name supports self-modification.
7. Each device icon supports supports self-modification.
8. Software Title Name Information supports self-modification.
9. For Engineer: Provide the controller's communication protocol, which can be redeveloped.
Working Voltage： DC 12V
Material：Fire resistance ABS、metal shell
Working Temp： -20℃~70℃
Working Humidity： 20%RH ~ 80%RH
Output Load：each 250V/10A
Input port qty：8 ports
Output port qty：8 ports
The newest Andorid Software , Download form our webpage(not in Google Play): https://www.kincony.com/download/Smart-Home_Eng.apk

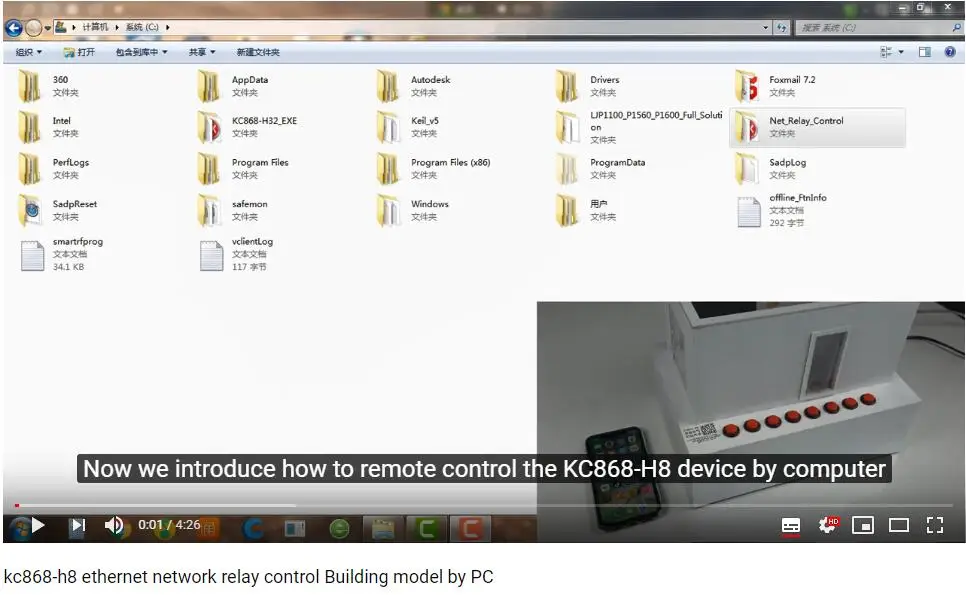

This is KC868-Hx's PC software of remote control version, It support rename and change ICO file by yourself. Also support kinds of languages of different countries.

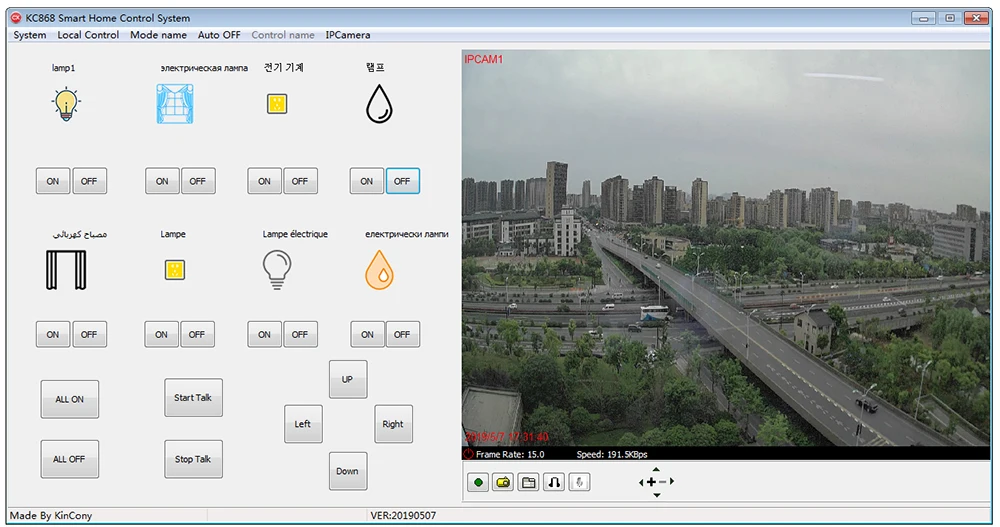

new software support CCTV (only use for KinCony's ipcamera product). When you see the video control the relay switch. 2 cctv screen.

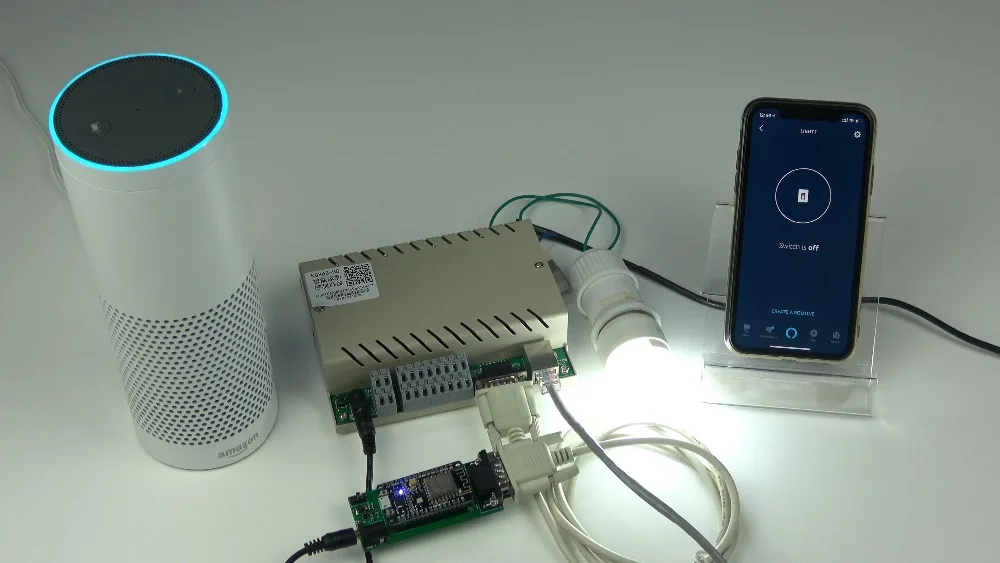

If you connect with "KC868 Voice Assistant" module, controller can control voice control by Amazon Alexa or Google Home Speaker or Amazon Alexa or Google Home phone APP.

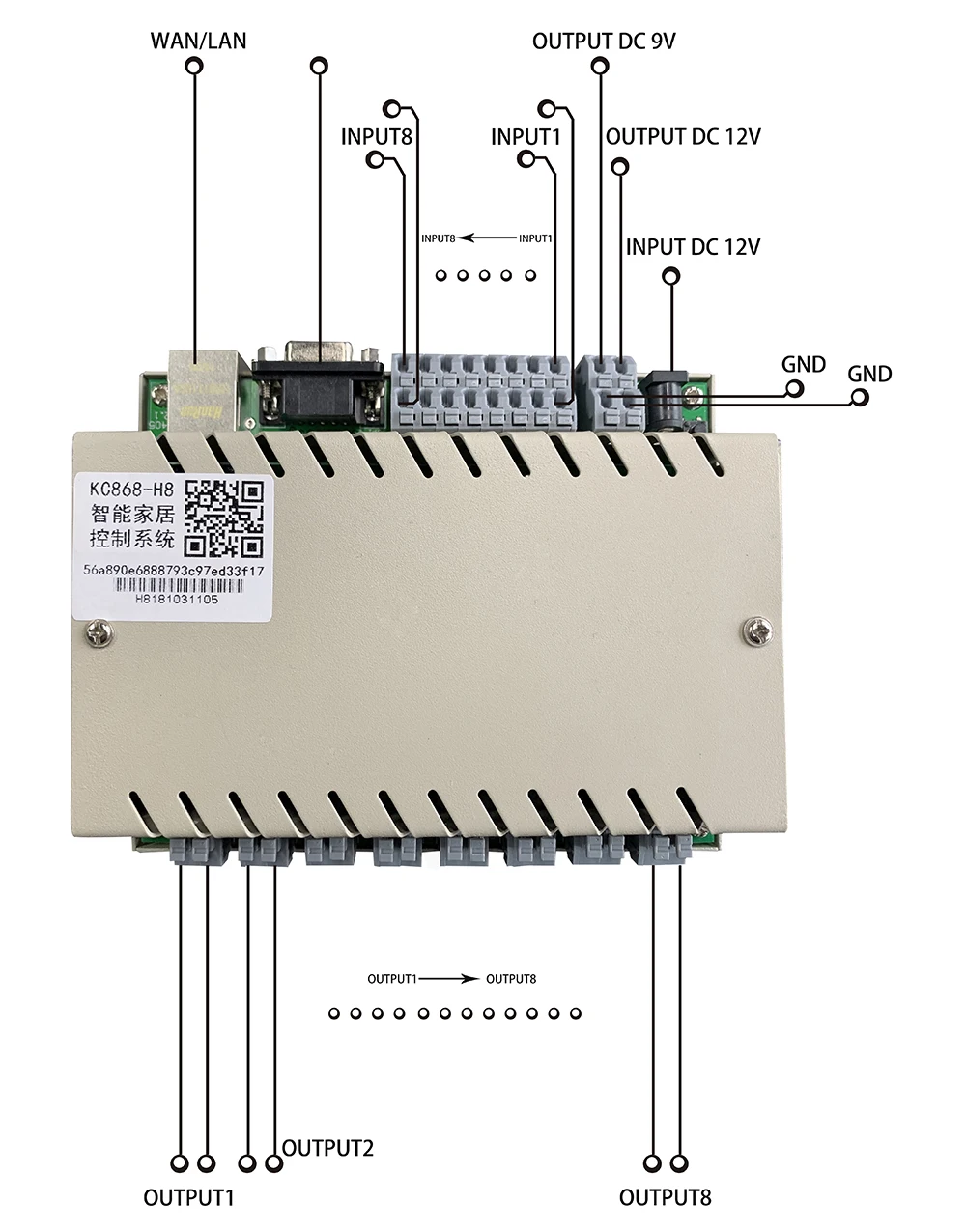

Interface Definition Diagram

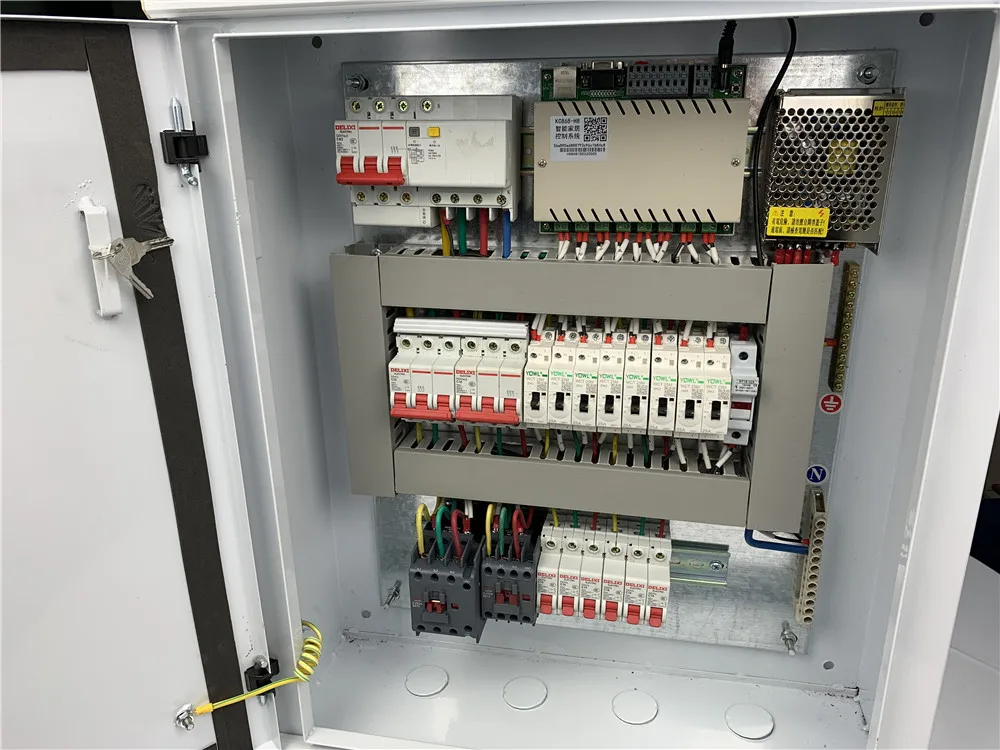

This is our client's successful application case of smart power box used by KC868-H32 controller and manual control board.
Development Communication Protocol & Secondary Development Program Toolkit
We supply complete source program Toolkit of VS2005(Microsoft Visual Studio 2005) , and we give the controlling examples through RS232 serial port and Ethernet socket,to help customers carrying on the secondary development.

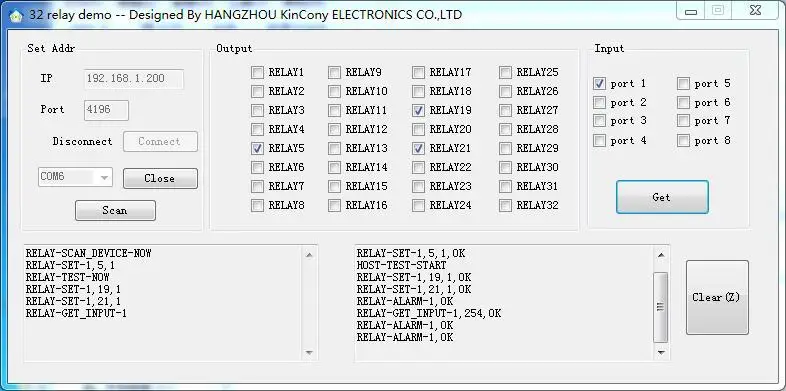

The PC software can control the relay switch and also show the input state.Details showed from below screenshots.
We can supply the DEMO code of C++Builder, Delphi, VB.Net, Python and iOS versoins.
Q1. How many applications can the device KC868-H32 control?
Answer: 32 ways applications
Q2. How many inputs are there in the device KC868-H32?
Answer: 6-way input
Q3. How many inputs are there in the device KC868-H32?
Answer: You can add 2pcs kc868-h32 in app. Then you can control 64 relays. Also if you add 3pcs of kc868-h32, then you can control 96 relays.and so on. All controllers will be add in one app account , not need to change app account to login and control device.
Q4.what is the maximum load per channel for the device kc868-h32?
Answer: 250V/5A each channel
Q5.What if the load power is greater than the rated power?
Answer: if it is overloaded, the external high power AC relay can be connected to crease the total load power
Q6.What type of equipment can be connected to the input of the kc868-h32 control box?
Answer: the equipments with switching value signal output
Q7.What is the size of the kc868-h32 control box? What are the fixed installation methods?
Answer: 272x117x40mm; to fix by hanging on the rail directly or to fix by screw
Q8.What is the interfaces the kc868-h32 control box supports?
Answer: support RS232 and Ethernet interface
Q9. Is there the version of Wi-Fi?
Answer: Yes. It’s the KC868-H32W.
Q10. What are the network control methods for KC868-H32 control boxes?
Answer: Mobile phone APP remote control, PC local or remote control
Local Control: PC software; Control by yourself(use controller communication protocol)
Remote Control: PC software;Mobile APP; Control by yourself(Mode A: http www web command Mode B:coding by yourself according your app account to login)
Q11.What kind of software and user manuals can be provided?
Answer: Network configuration tool, Demo software, Or Instructions and Secondary development protocol etc. For more details, pls visit www.kincony.com/document to download
Q12. When there is no internet, how to remote control the device KC868-H32?
Answer: under local network, using the PC to achieve local remote control; or using the wireless internet router to provide wired network or Wi-Fi signals to achieve controlling.
Q13. Where the mobile phone APP software can be easily downloaded from?
Answer: For IOS, log in to Apple app store, searches 【Kincony smart home】 to download; for Android, log in Google app store, searches【Kincony smart home】 to download or visit the official website to scan the QR for downloading
B. Development By Yourself
Q1. Is it supporting the users to write their own programs to control the device?
Answer: Yes, supporting. And the related program example is avialble.
Q2. Is it supporting to control the device through a browser?
Answer: Yes, supporting. And one relevant case can be provided.
Q3. What are the ways to remote control the device when the users program themselves?
Answer: the PC software, the browser for controlling.
Q4. Is it provided the source code of the secondary development package example?
Answer: Yes, providing the detail information.
C. After sale service
Q1. Where to download the relevant information after purchasing?
