8500lbs capacity high speed 12v electric winch

FOB Reference Price:Get Latest Price
US $160-300 / Piece | 15 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month 100000pieces/year
Port:
Ningbo or Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ZHME
Model Number:
X8288
Power Source:
Electric
Application:
Auto
Capacity:
8288lbs
Rated line pull::
8288 Lbs (3760kgs) single line.
Motor::
Series wound 6.8hp /5.0kw,12V DC
Gear Train::
3 stage planetary
Gear ratio::
138: 1
Braking action::
Automatic in the drum
Battery::
25mm2.72"(1.83m)
Wire rope::
5/16"X105'(8.0mm X32m)
Drum size::
3.0"X9.0"(76mmX228mm)
Dimensions::
23.7"X6.6"X8.7"( 603X168X220mm)
N.W::
88 lbs (40kgs)
Packaging & Delivery
Packaging Details
strong export carton
Delivery Time
30days
Winch Instruction

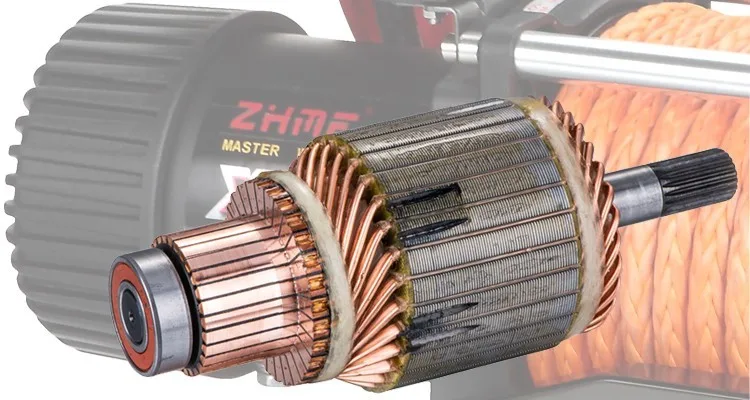

Winch Motor

High performance winch motor provides superior torque output and fast line speed. Heavy duty ensures winch work powerful. IP68 waterproof ensures long life of winch motor.

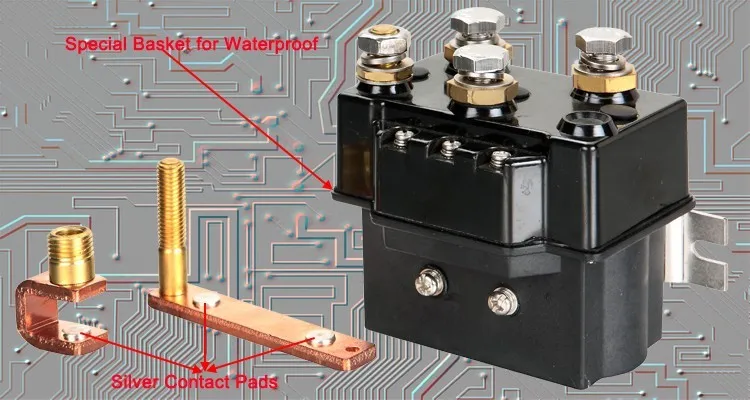

Solenoid

The 500A solenoid is waterproof. Silver contact pads ensures to control electric well.

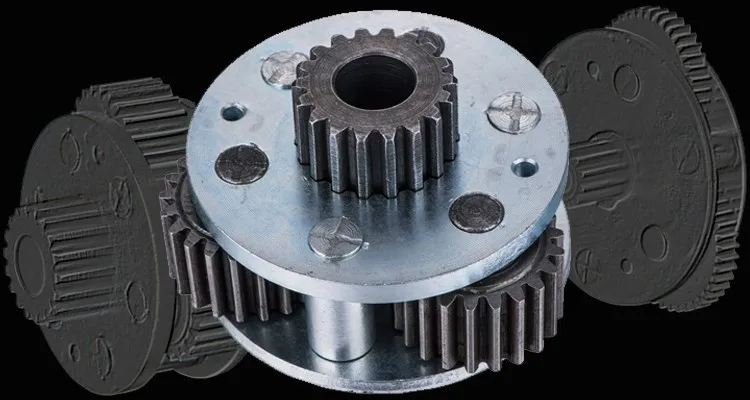

Gear

3 Stage plagetary winch gears are made of 20CrMnTi material, which is the hardest material of gear.

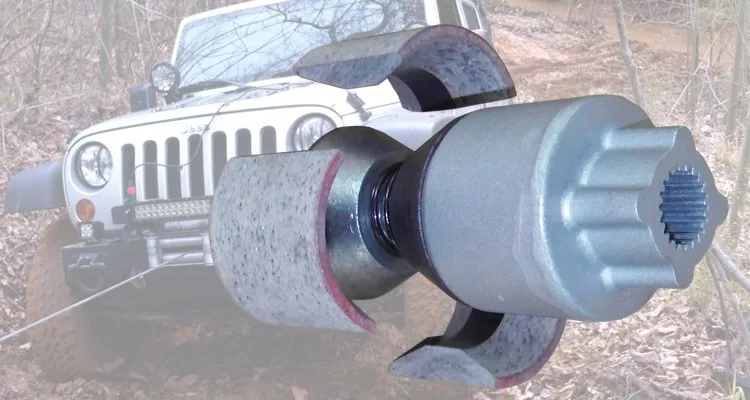

Brake System

Cam brake runs automatically in the drum, with low noise and ensures safety when winch working.

Winch Application
Specification
Specification
Rated line pull:
8288Lbs (3760kgs) single line
Motor:
Series wound 6.8hp /5.0kw,12V DC
Gear Train:
3 stage planetary
Gear ratio:
138: 1
Clutch:
Sliding Ring gear
Braking action:
Automatic in the drum
Fairlead:
Roller fairlead for wire rope, Aliuminum fairlead for synthetic rope
Rope:
Wire rope 7.8mm×28m, Synthetic rope: 9.5mm× 26m
Drum size:
3.0"×9.0"(76mm×228mm)

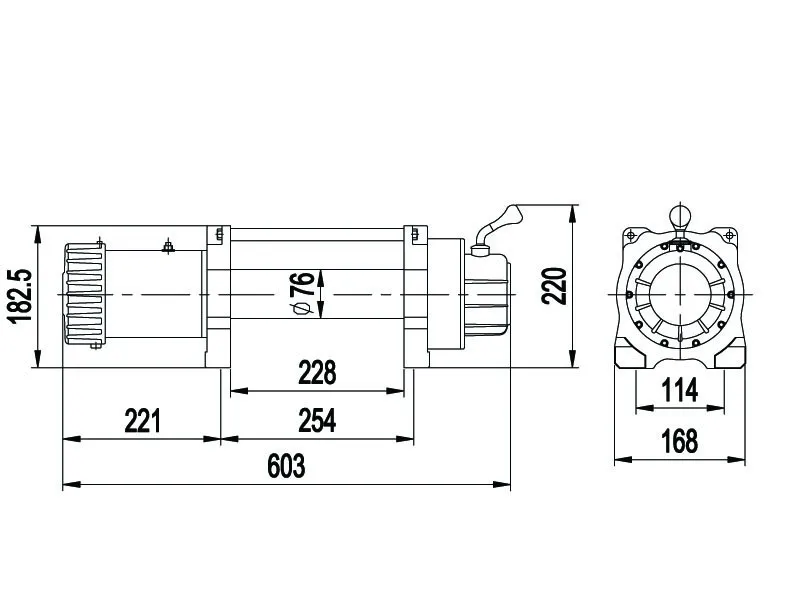

Dimensions:
23.7"×6.6"×8.7"( 603mm×168mm×220mm)
Mounting bolt pattern:
10"×4.5"(254mm×114.3mm)
Battery:
Recommended 650 CCA minimum for winching 25 square mm,72"(1.83m)
N.W:
95lbs (43kgs)
Packing:
680mmx360mmx260mm (324pcs per 20' container)
Line speed and motor current (first layer)

Line pull
Lbs
0
2000
4000
6000
8288
Kgs
0
907
1814
2722
3760

Line speed
FPM
65
19.7
14.1
12.5
11.2
MPM
19.8
6
4.3
3.8
3.4
Motor current
Amps
58
160
220
280
360
Line pull and cable capacity
Layer of cable
1
2
3
4

Rated line pull per layer
Lbs
8288
6400
5300
4700
Kgs
3760
2903
2404
2132

Cable capacity per layer
Ft.
19.6
43
72
105
M
6
13.2
22
32
Our Packing

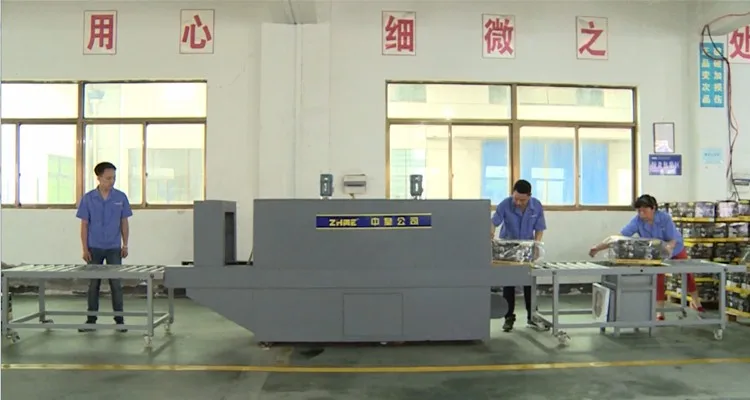

Auto packing machine

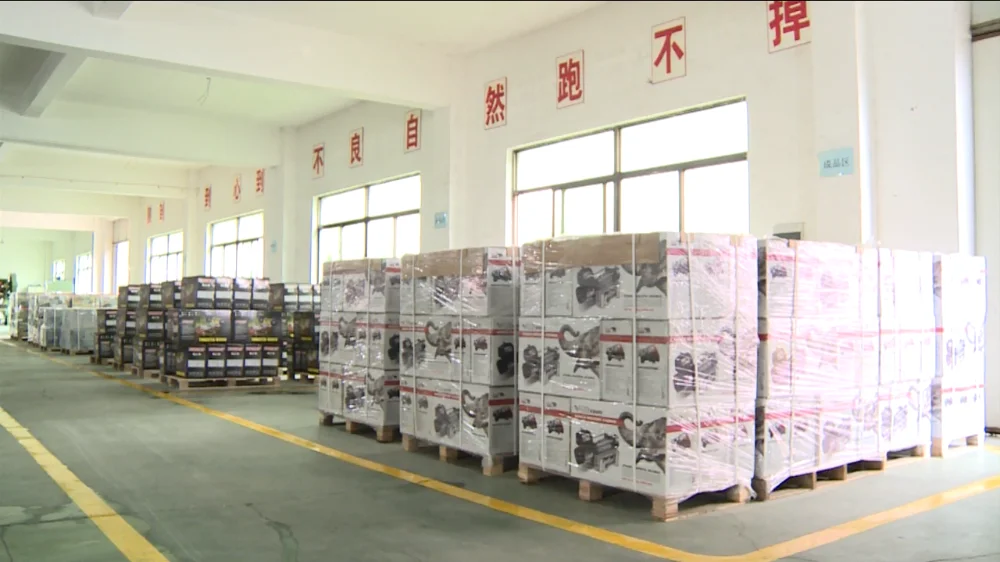

Winches waiting to be loaded.

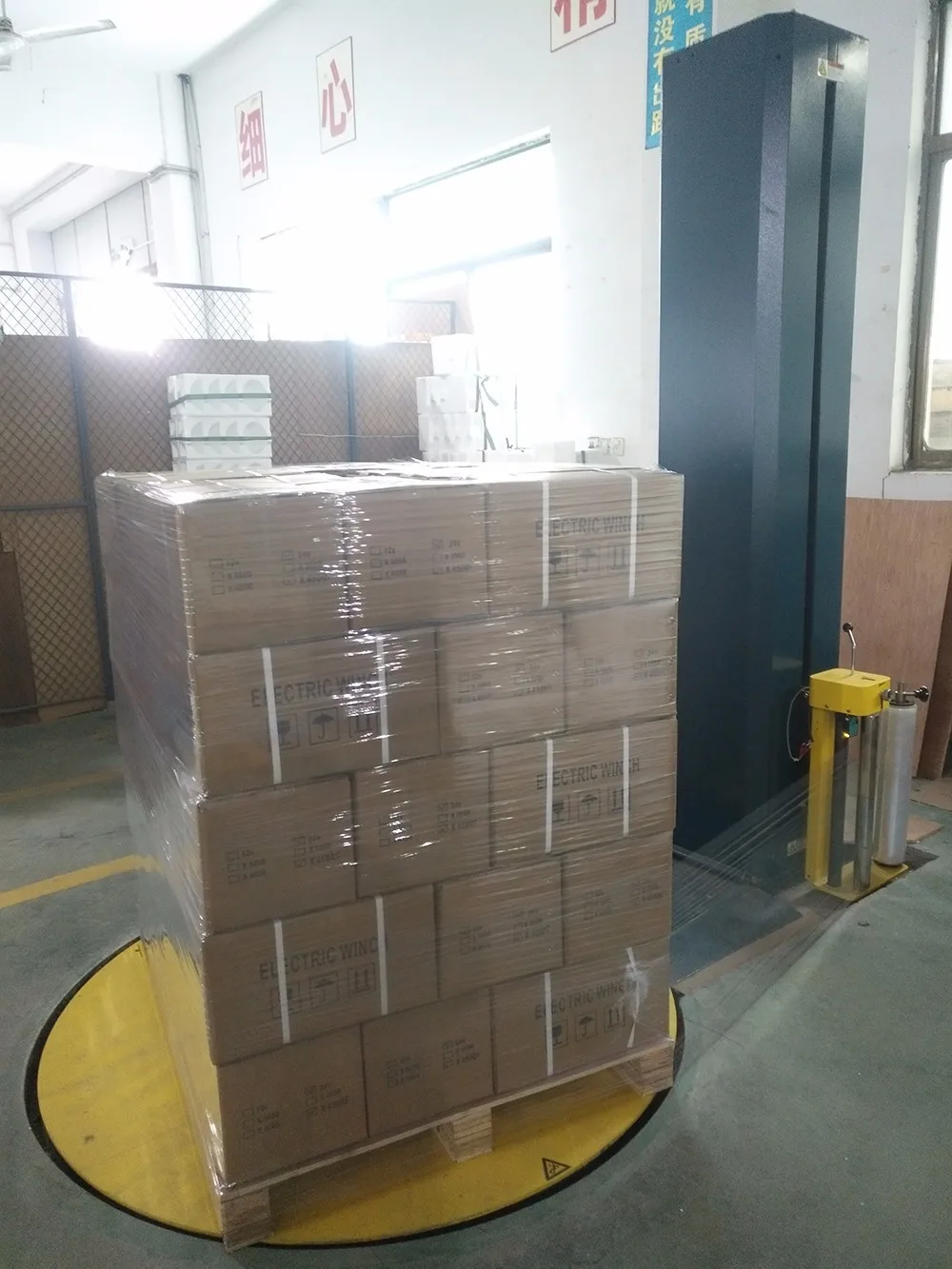

Round the protective film automatically.

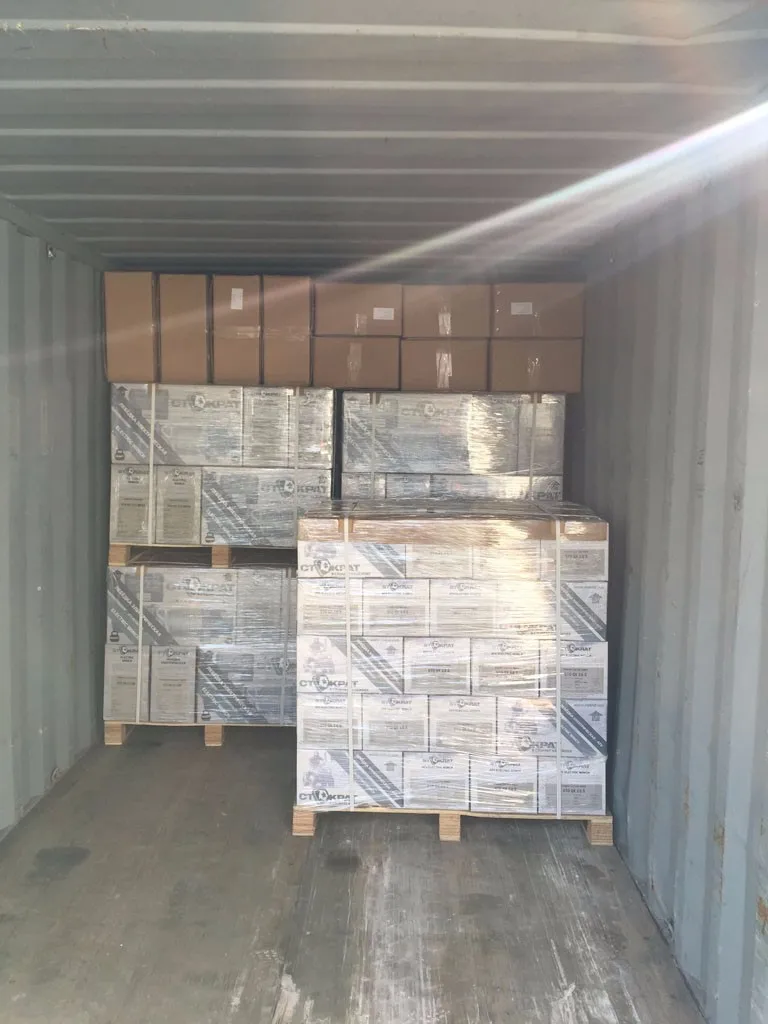

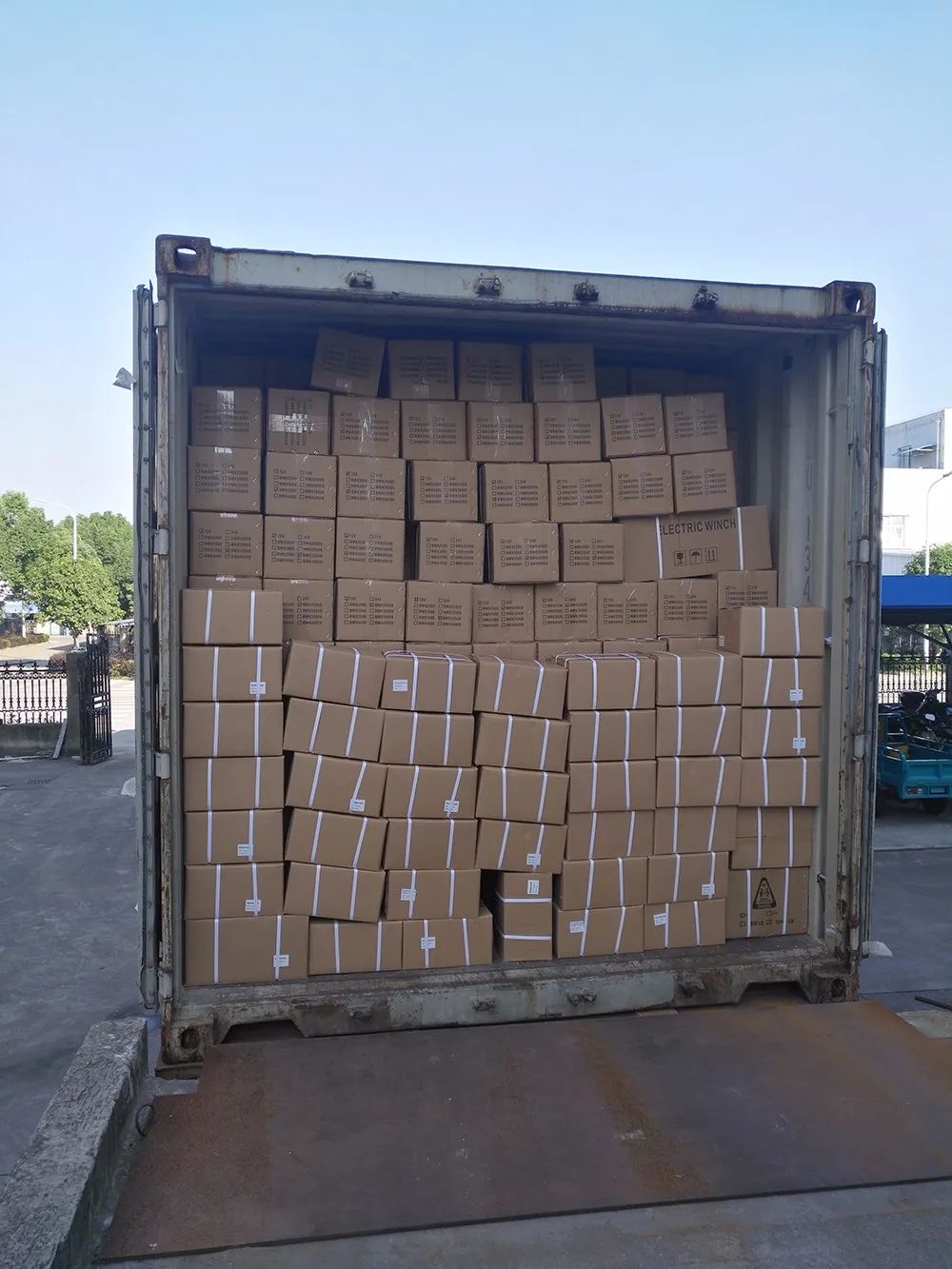

Winches on pallets, pallets in container.

Go shipping

Company Information

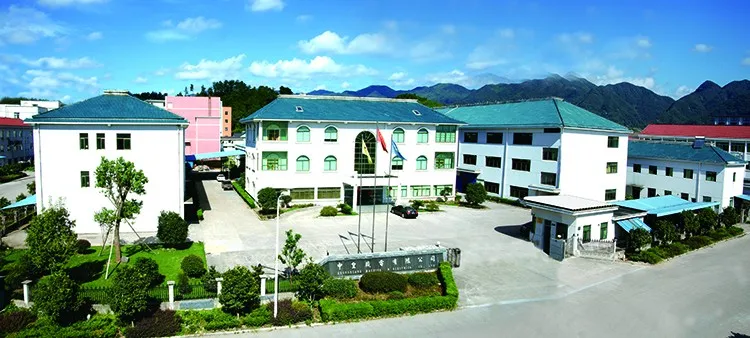

NINGBO ZHONGHUANG MACHINE & ELECTRICS CO., LTD.

Ningbo Zhonghuang Machine & Electrics Co., Ltd. (ZHME) is a professional manufacturer of electric winches and winch accessories in Ningbo, China, every year, there are more than 100 000 winches finished and sold from ZHME company to the worldwide market, they are very welcome by users.

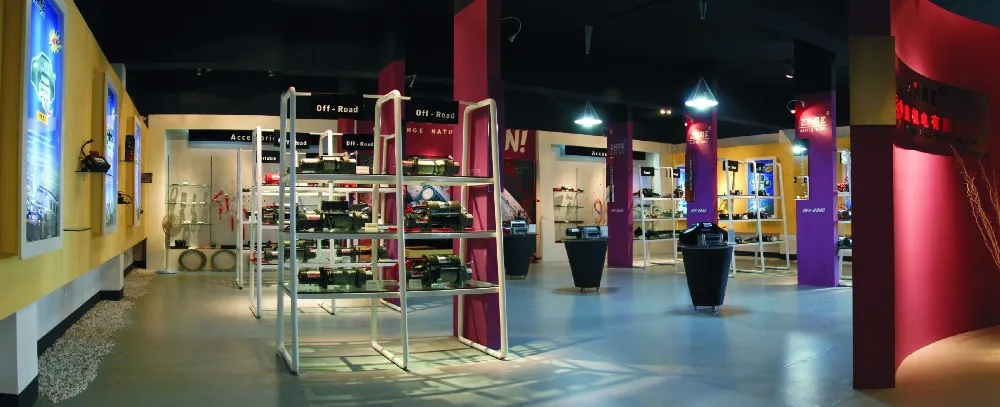

ZHME owns 150 000 m2 company area, more than 150 employees work togther here, 150m2 showing room shows most products of ZHME.

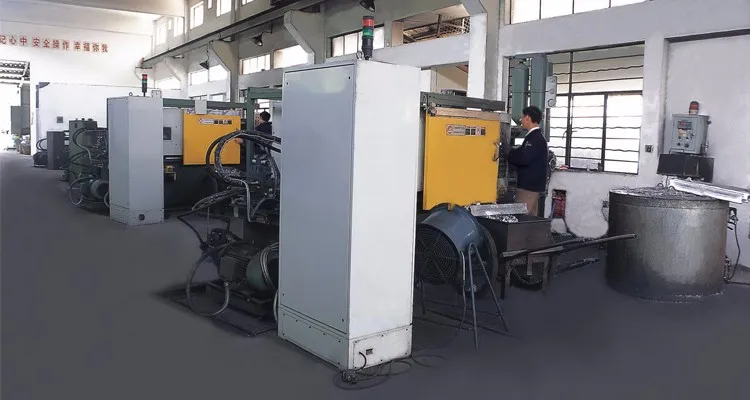

Die Casting Workshop

Winch gear box cover, supports, motor cover and other accessories are die casted here.

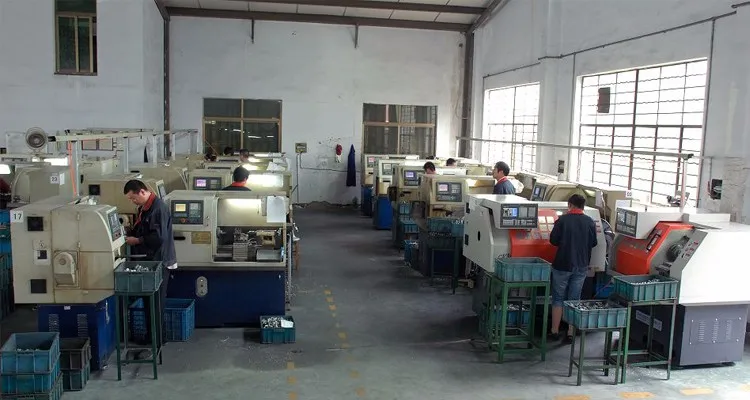

CNC Workshop

More than 40 workers process winch parts in the CNC workshop.

CNC Center

These machines are good at process the gears, fairlead, tie bar and other winch parts.

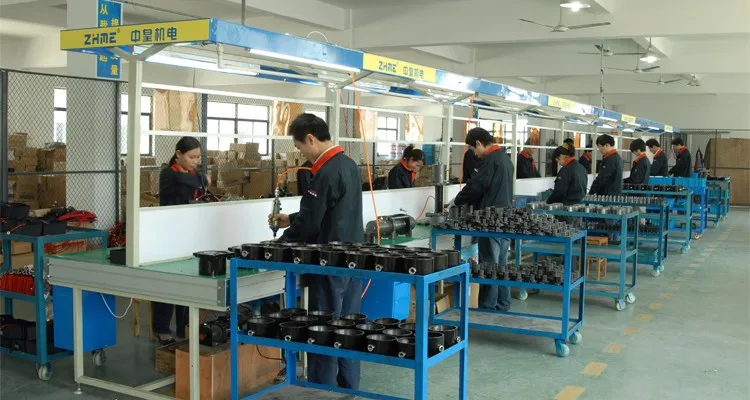

Motor Workshop

ZHME winch company establish an independent winch motor workshop to produce winch motor for our own using, we also supply winch motor to other winch company and worldwide buyers.

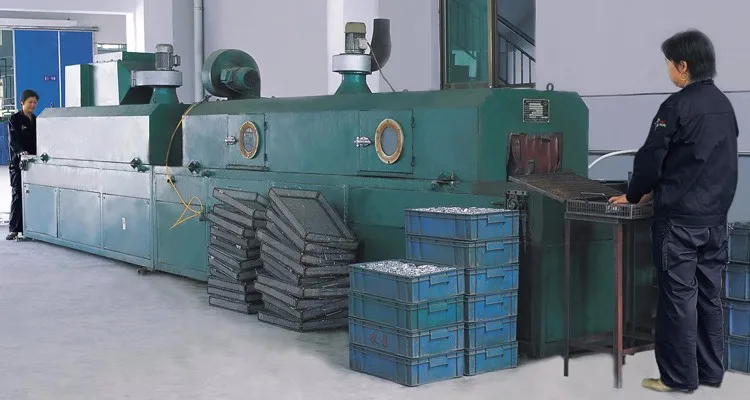

Cleaning Machine

ZHME workers clean the winch parts by it, cleaning parts ensures high quality of winch.

Assemblying Line

ZHME workers assembly more than 10 000 winches on the assemblying line, it is with full tools and winch support Number printing machine. Support Number is the only number for each winch, it is helpful for after-sale service.

Auto Packing Line

ZHME auo packing line heat the plastic bag around the winch box automatically to protect box.

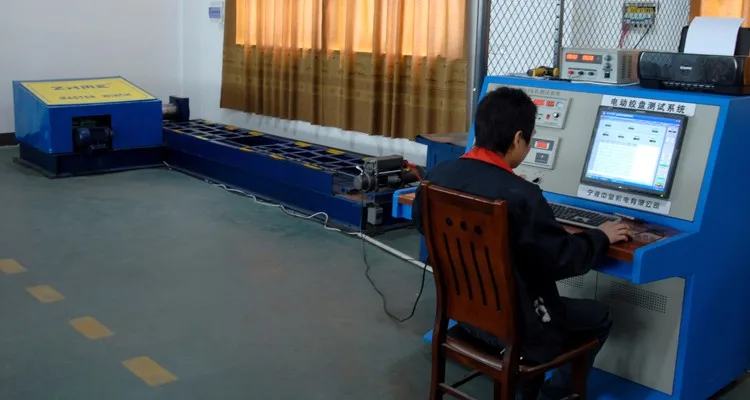

Winch Testing Facility

ZHME tests winches pull, voltage, current and speed here by computer and print the testing report with exact date.

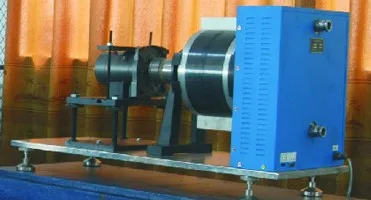

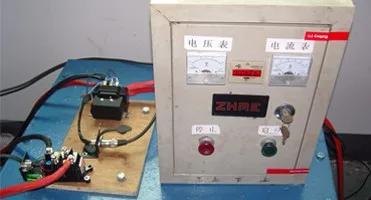

Motor Testing Machine

Solenoid Testing Machine

Refound & change

Winches and winch accessories are warranted for 12 months from the date of sale to the consumer (excluding winch cable and paint)

Why choose us

Full range of electric winches

Professional winch production and testing equipments

Self-made rate of 95% or more

Using ERP management system

Strong research and development capabilities

CE certificate, ISO9001

More than 20years production experience
