850W laser cutting machine parts

FOB Reference Price:Get Latest Price
US $16,700-20,000 / Set | 1 Set/Sets laser equipment parts (Min. Order)
Supply Ability:
5000 Set/Sets per Year laser equipment parts
Port:
Qingdao,Ningbo,Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Soullon
Model Number:
SD-YAG Key Parts
Application:
YAG laser cutting machine series
Include:
laser head,laser generator,water chiller and laser power
Packaging & Delivery
Packaging Details
laser cutting machine key parts packaging: 1. Outside package: Sandard export wooden cases 2. Inner package: Stretch film
Delivery Time
within 5 workdays after payments

Self-developed laser equipment parts

1. Laser Cutting Head



Laser Cutting Head for YAG Laser Cutting Machine

Self-developed laser equipment parts | laser equipment parts | laser equipment parts

YAG Laser Cutting Head



Technical Parameters:

No.

Type

Technical parameters

1

Capacitance precision

±0.01pF

2

Detection sampling frequency

40/S

3

Detection sampling area

Φ5mm

4

Control precision

±0.1mm

5

Max. range

120mm

6

Control system

Independent development

7

Jacking motor

stepping motor

8

Temperature of controller

-10~60°C

9

Temperature of Probe components

-10~250°C

10

Water-cooling /gas caliber

Φ6mm

11

Adjusting range for the focal quantity

1.0mm~4.0mm

12

Power supply voltage

AC220V±10%, 50Hz/60Hz


2. Laser Generator



Laser Generator for YAG Laser Cutting Machine

Self-developed laser equipment parts | laser equipment parts | laser equipment parts



Technical Parameters:

No.

Type

Technical parameters

1

Laser working media

ND:YAG

2

Laser wavelength

1064nm

3

laser powder

600W

4

Pulse frequency

0-500Hz

5

pumping source

Bi-Xenon head lamp

6

Flare processing

3 times the beam expander well

7

Min. cutting line width

0.15mm

8

Cutting thickness

max 8mm

9

Aimed at orientation

With the light path (red) preview instructions

10

The laser power stability

<5%

11

Power demand

Three-phase four-wire system AC380V±10%

12

equipment power

max 20KW

13

Cooling Method

water-cooling

14

Machine dimension

1100×180×180mm


3. Water Cooling Chiller


Water Chiller for YAG Metal Laser Cutting Machine


Technical Indicators:

  1. Working power supply: 3 phase 380V 50HZ
  2. Temperature control precision: ≤ ± 1 °C
  3. Temperature control range:0 °C~50 °C
  4. lift of pump:47m
  5. ater flow of pipe ≥ 30L/min
  6. Flow control switch ≥ 25L/min, The electrical contacts are connected
  7. Total power: 7.5KW
  8. Refrigerating capacity: 18KW
  9. Cold medium: R22
  10. working environment: temperature ≤ 36 °C,air dust ≤ 0.05g/m2, well-ventilated.

Self-developed laser equipment parts | laser equipment parts | laser equipment parts

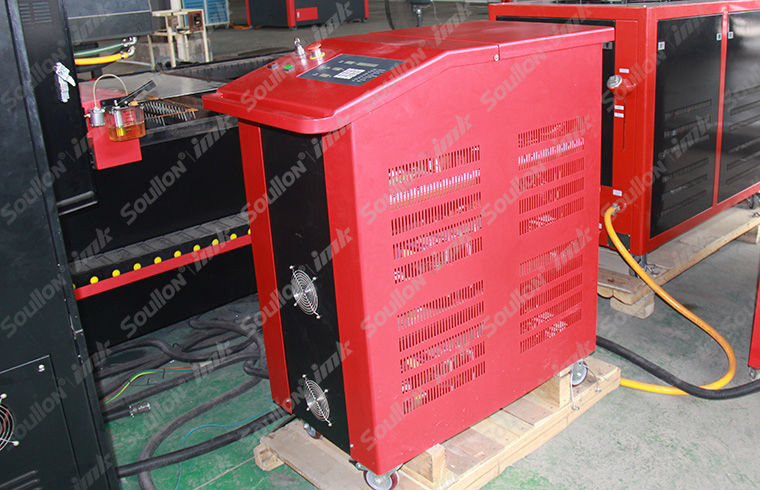

4. Laser Power Supply


Laser Power for YAG Laser Cutting Machine


  1. Control current: 50A-400A (double lamps)
  2. Pulse width: 0.3ms-20ms
  3. Laser frequency: 1HZ-400HZ 0HZ is inching, 1HZ a step
  4. The output power of power source:≤18KW
  5. working environment: the environment temperature is below 30°C and drying, air dust <0.01g/m2

Self-developed laser equipment parts | laser equipment parts | laser equipment parts

Applicable Machines:

Laser EquipmentTypeWorking?AreaDetails
SD-YAG12121200×1200mmClick to view
SD-YAG25132500×1300mmClick to view
SD-YAG30153000×1500mmClick to view
SD-YAG40204000×2000mmClick to view







5. yag laser cutting machine part Cutting Samples

6. yag laser cutting machine part Manufacturing Process

7. Application yag laser cutting machine part

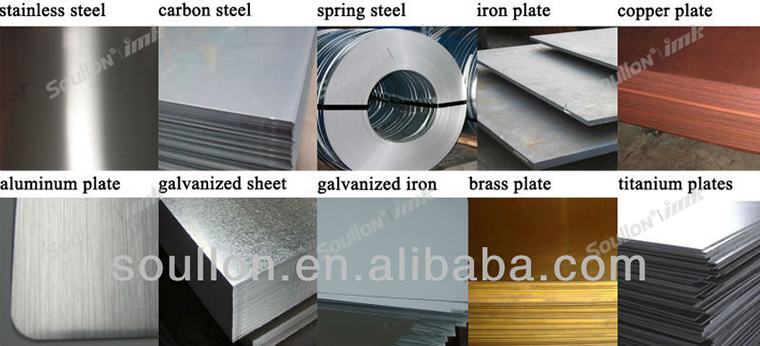

Application Materials: 850W laser cutting machine is good at cutting various metal: Stainless Steel, Mild Steel , Carbon Steel , Alloy Steel , Spring steel , Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Sheet, Copper Plate, Brass Plate, Bronze Sheet, Gold Plate, Silver Sheet, Titanium Plate, Metal Tubes and Metal Pipes, etc.

laser cut parts | 850w yag cut part | metal laser cutting machine part

Application Materials of yag laser cutting machine part

laser cut parts | 850w yag cut part | metal laser cutting machine part

Application Industries: YAG laser cutting machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

8. Quality Control yag laser cutting machine part

We always pay more attention to the quality of laser cutting machine. Standard quality control system and team are responsible to insure the product quality in every process with different instruments like laser interferometer and laser powermeter. In the mechanical assemble process, the laser interferometer, laser callimator, dial indicator and marble plate are used; In the laser assemble process, the laser powermeter and optical microscope are adopted.





Certifications







Trade Shows





More please click into our "Exhibition Show"



Packaging & Shipping

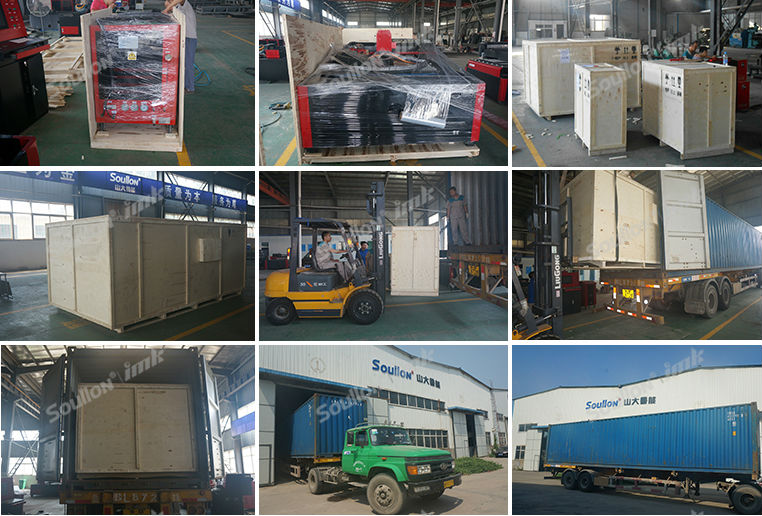

yag laser cutting machine part packing and shipping



After-Sales Service





  1. Technical support online service provided.
  2. Technical files service provided.
  3. On-site training service provided.
  4. Spare parts replacement and repair service provided.



Company Information





We focuses on laser cutting machine manufacturing for years, to form the industrial chain that takes YAG yag laser cutting machine part,middle and high power fiber laser cutting machine as the main products and supplemented by laser generator,laser cutting head,water chiller,laser power supply and other laser cutting machine spare parts. View More>>
