8KW Solar Power Inverter / On Grid Solar Panel Inverter

FOB Reference Price:Get Latest Price
US $1,050-1,180 / Pieces | 1 Piece/Pieces the more the cheaper (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JingFuYuan
Model Number:
SUNTREE-8000TL
Output Power:
8000W
Output Type:
Triple
Size:
470*165*560mm
Weight:
32kgs
Input Voltage:
900V
Output Voltage:
360V~440V
Type:
DC/AC Inverters
Output Frequency:
50Hz/60Hz
Output Current:
11.6A
Colar:
White
Degree of protection:
IP65
MPPT operating range:
250~800V
Number of inputs:
2
Number of MPPT trackers:
2
Max input Current:
2*16A
Display:
LED + LCD
Warranty:
5 Years
Certificate:
TUV,SAA,CE,CQC,AS4777.2/3.....
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Month follow your need
Packaging & Delivery
Packaging Details
pack in Carton.
Port
Shenzhen
Lead Time :
5 days after receive payment
Product Details

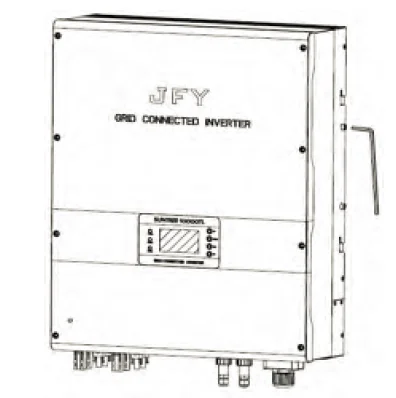

SUNTREE Series Three-Phase String Inverter

Features

High performance string inverters
 From 5.0KW to 30.0KW
 Famous power components
 Superior PV energy harvest
 Excellent thermal performance
 Transformerless design with higher operation efficiency
 High overload capability under most ambient conditions
Easy and affordable to install
 Lightweight and compact size
 Wide MPPT voltage range allows more flexible module selections
 Includes a lightweight portable bracket simplifying installation
 Firm IP65 inverter enclosure allows outdoor application
Full data display and communications
 LCD display energy data
 Bright LED indicators imply system status at a glance
 PC software for remote monitoring and system troubleshooting
 Integrated RS485/RS232 serial communications
Cost Advantages
 Transformerless design cutting down the cost
 Light weight and small dimension, reducing shipping cost
 Integrated procurement and assembly line of operation, reducing production cost
 IP65 protection degree, suitable for outdoor installation, reducing construction cost
 Low maintenance expense and low power loss when breakdown

Product Introduction
Product Parameters
MODEL(SUNTREE)
5000TL
6000TL
8000TL
Input (DC side)
Max. DC Input Power(W)
5500
6600
9000
Max DC Voltage(Vdc)
900
MPPT Operating Range(Vdc)
250~800
Number of Parallel Inputs
2
Number of MPP Trackers
2
Max.input current of per Mppt(W)
3500
4000
5000
Max. Input Current(A)
2*10
2*12
2*16
Output (AC side)
Rated Power(W)
5000
6000
8000
Max. Output Power(W)
5000
6000
8000
Rated Output Current(A)
7.3
8.7
11.6
Max. Output Current(A)
7.9
9.5
12.7
Nominal AC Output Voltage(Vac)
400
AC Output voltage range (Vac)*
360~440
AC Grid frequency range (Hz)*
50/60±5
Power Factor (cosφ)
>0.9(leading)~0.9(lagging)
THDI
<3%(at nominal output power)
Efficiency
Max.efficiency
97.6%
97.8%
98.1%
Euro.efficiency
96.7%
96.9%
97.3%
MPPT. efficiency
99.6%
99.6%
99.6%
System
Operating Temperature(℃)
-25~+60
Noise typical[dB(A)]
≤25
Power consumtion at night (W)
0
Electrical Isolation
Transformerless
Cooling Concept
Natural Cooling
Degree of protection
IP65
Communication
RS485/RS-232 (WIFI Optional )
Dimension (W×D×H)(mm)
470*165*560
Weight (Kg)
32
32
32
*AC grid voltage range and frequency range depend on local standards.
