A150 12v 24v motorized valve actuator with manual override

  • 1-9 Pieces
    $45.00
  • 10-99 Pieces
    $44.00
  • >=100 Pieces
    $43.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Samples - $45.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Tonhe
Model Number:
motorized valve actuator
Application:
General
Material:
Plastic
Temperature of Media:
Normal Temperature
Pressure:
Medium Pressure
Power:
Manual
Media:
Water
Port Size:
1/2"-2"
Structure:
Ball
Type:
with manual override
Certificate:
CE, Rohs, IP67
Body material:
plastic
Color:
Gray/Black/blue
Torque:
15N.M
Voltage:
12VDC 24VDC
Working current:
≤1.5A
Open/close time:
≤10Sec
Life Time:
70000
Product name:
A150 12v 24v motorized valve actuator with manual override

Packaging & Delivery

Selling Units:
Single item
Single package size:
11X8X9 cm
Single gross weight:
0.5 kg
Package Type:
30pcs/carton
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 10 11 - 100 >100
Est. Time(days) 10 20 To be negotiated
Video Description
Product Description



A150 12v 24v motorized valve actuator with manual override

Detailed information

Technical Parameters:





Connection standard

ISO5211 F03,F05

Output axis specification

Female octagonal 9*9 or 11*11

Maximum working pressure

1.5MPa

Rated voltage

DC12V;  DC24V ;                       (Optional )

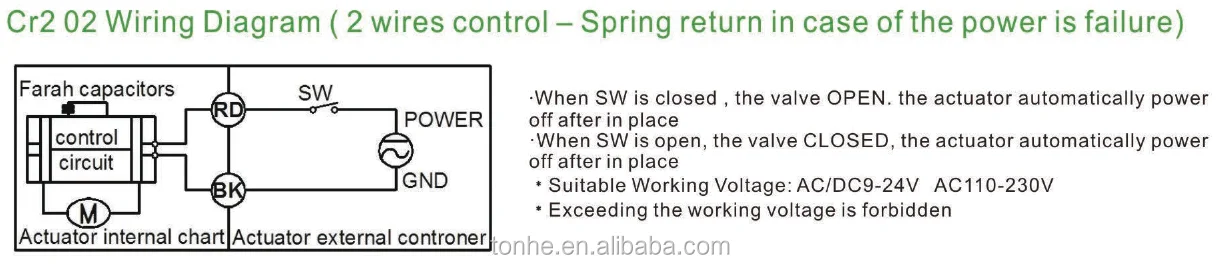

Wiring diagram

CR202

Life time

70000 times(testing pressure is 0.4MPa, medium is water)

Actuator material

Engineering Plastics PPO

Torque force

15 N.m

Cable Length

0.5m;1.5m                                           (Optional )

Environment temperature

-15℃~60℃

Liquid temperature

2℃~90℃

Manual operation

Yes

Open/close indicator

Yes

Protection class

IP67








Application

Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.




Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, working voltage

2, wire control

3, actuator cable length


Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.




TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .











Packaging & Shipping





FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: Can I get samples from your factory?

A: Yes, Samples can be provided.



Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
