A150-T50-S2-B 2 inch DN50 DC12v DC24v motorized valve with manual override

Feedback Ratings
  • 1-9 Pieces
    US $89.00
  • 10-99 Pieces
    US $85.00
  • >=100 Pieces
    US $84.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Power:
motorized valve
Material:
Stainless Steel
Temperature of Media:
High Temperature
Media:
Water
Port Size:
2 inch 2 way
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
2 inch 2 way electric valve
Brand Name:
Tonheflow
Application:
General
Type:
with manual override
Certificate:
CE, NSF61,Rohs, IP67
Body material:
stainless steel
Color:
Customer's Request
Torque:
15N.M
Voltage:
DC12v DC24v
Working current:
≤1A
Open/close time:
≤15 Sec
Seal Material:
EPDM & PTFE
Product name:

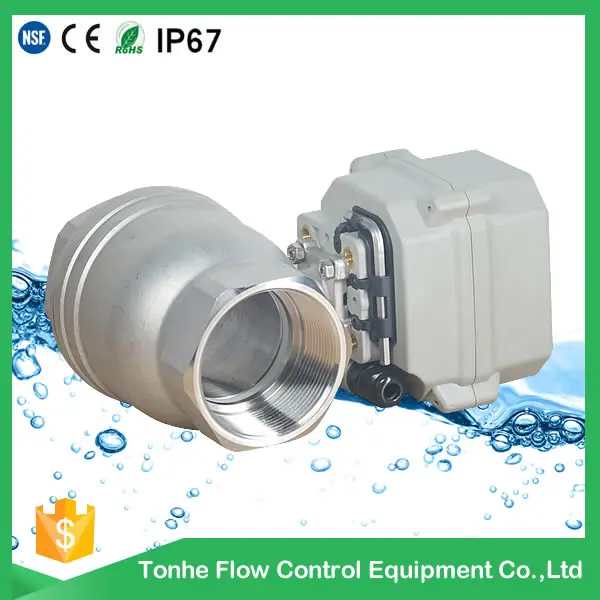

A150-T50-S2-B 2 inch DN50 motorized valve with manual override

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X10X18 cm
Single gross weight:
2.5 KG
Package Type:
8pcs/carton
Lead Time :
2
Product Description



Description of A150-T50-S2-B 2 inch DN50CR2 01 DC12v DC24v motorized valve with manual override

Product size  NPT/BSP 2"
Maximum working pressure1.0MPa
Circulation mediumFluid, Air
Rated voltageDC12V, DC24(Optional)
Wiring control methods

CR2 01

Working current≤ 1A
Open/close time≤ 15 Sec
Life time50000 times
Valve Body materialStainless Steel 304
Actuator materialEngineering Plastics
Sealing materialEPDM & PTFE
Actuator rotation90°
Max. torque force15 Nm
Cable Length0.5m
Environment temperature-15℃~50℃
Liquid temperature2℃~90℃
Manual overrideYes
IndicatorYes
Protection classIP67
Connection StandardISO5211  F03 F04  F05


Specifications:



 A150-T50-S2-B2





Application

Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.




Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage DC12v or DC24v

3, wire control

4, valve manual override & indicator ( yes or no)

5, actuator cable length


CE IP67 2 inch 2-way dn50 stainless steel CR2 02 electric motorized ball valve

Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.


CE IP67 2 inch 2-way dn50 stainless steel CR2 02 electric motorized ball valve

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .


CE IP67 2 inch 2-way dn50 stainless steel CR2 02 electric motorized ball valve
CE IP67 2 inch 2-way dn50 stainless steel CR2 02 electric motorized ball valve

CE IP67 2 inch 2-way dn50 stainless steel CR2 02 electric motorized ball valve
CE IP67 2 inch 2-way dn50 stainless steel CR2 02 electric motorized ball valve


CE IP67 2 inch 2-way dn50 stainless steel CR2 02 electric motorized ball valve

Packaging & Shipping

 CE IP67 2 inch 2-way dn50 stainless steel CR2 02 electric motorized ball valve

CE IP67 2 inch 2-way dn50 stainless steel CR2 02 electric motorized ball valve



FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: Can I get samples from your factory?

A: Yes, Samples can be provided.



Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.

CE IP67 2 inch 2-way dn50 stainless steel CR2 02 electric motorized ball valve
CE IP67 2 inch 2-way dn50 stainless steel CR2 02 electric motorized ball valve



Packaging Details
