A20Ex Low boiling point Hydrocarbon solvent recycling machine on sale

FOB Reference Price:Get Latest Price
$4,399.00 - $4,699.00 / Sets | 1 Set/Sets , solvent recycling machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Calstar kuanbao
Model Number:
A20Ex
Machinery Type:
Solvent Recycling machine
Minimum Order Quantity:
1 unit
Warranty:
three years
Automatic Grade:
Semi-Automatic
Volume:
20 Liters
Certificates:
Explosion-proof, CE, ISO9001, ISO14001
Supply Ability
Supply Ability:
1000 Unit/Units per Month , solvent recycling machine
Packaging & Delivery
Packaging Details
Seaworthy standrad wooden box.
Port
shenzhen
Lead Time :
within 15 workdays after payment
Product Description

A20Ex Low boiling point Hydrocarbon solvent recycling machine on sale


Product Introduction

A20Ex, specially designed solvent recycling machine for small amount of organic solvent recovery. Tilting-type and air-cooled condensing system, safe structure are manufactured by Chinese explosion-proof standard (CNEX: Ex d IIB T2 Gb, certificate No. CNEx16.2108X) and European standard (ATEX). After distilling and cooling for proximate 1.5 hours, clean organic solvents will be ready for reuse.
It is suitable for small amount of organic solvent to recycle.

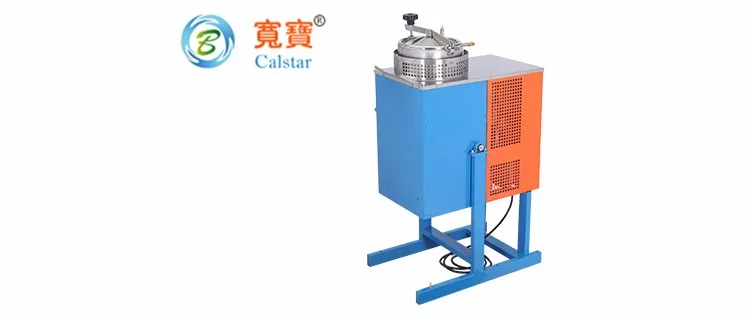

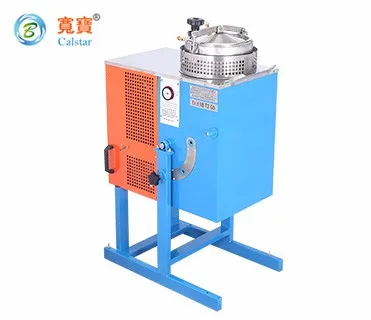

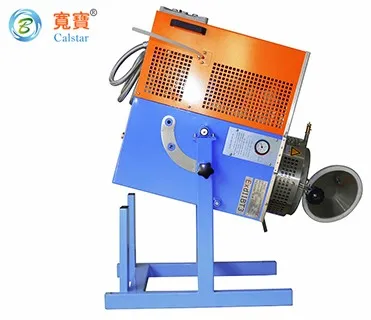

Product Photos



Technical data

Imput volume
21 L
Length
790 mm
Capacity of Tank
28 L
Width
535 mm
Capacity of heat transfer oil
12 L
Height
1240 mm
Power of heater
3.0 KW
Weight
93 KG
Power of fan
0.09 KW
Temp. of operation
50~190 °C
Max power
3.2 KW
Ideal room temp.
5~30 °C
Max current
14.5 A
Noise
around 65 db
Power supply
220V AC/50 HZ
Voltage of control unit
24V DC
Heating method
Indirect heating by heat transfer oil
Cycle time
around 2.0 Hours
Recovery rate
95%
Cooling system
Air-cooled
Solvent imput
Manual ( automatic imput unit is addable)
Material of case
Carbon steel with paint, or SUS304
Vacuum unit
None(option addable)
Material of tank
SUS304, double layers
NOTE: Values listed above are under ideal conditions in laboratory, just for your reference. The realistic data will be a little deviation due to the difference of waste content, boiling point of solvent, room temperature, viscosity etc.

Recoverable solvents list

1. Aromatics categories: toluene, xylene, mesitylene, etc.
2. Aliphatic hydrocarbons: pentane, hexane, octane, etc.
3. Alicyclic hydrocarbons : cyclohexane, cyclohexanone, toluene and cyclohexanone, etc.
4. Halogenated hydrocarbons: chlorobenzene, dichlorobenzene, methylene chloride, trichlorethylene, etc.
5. Alcohols: methanol, ethanol, isopropyl alcohol, etc.
6. Ether: ether, propylene oxide, etc.
7. Esters: methyl acetate, ethyl acetate, butyl acetate, etc.
8. Ketone: acetone, methyl ethyl ketone, methyl isobutyl ketone, etc.
9. As well as other organic solvents that are not listed.

Unrecoverable solvents list

1. Nitrocellulose (nitro), and oxidant solvents and other hazardous materials.
2. Strong acid or strong alkaline solvents.
3. Highly toxic solvents.
4. Pairs of stainless steel or brass with a strong corrosive solvent.


Main Features

● Explosion-proof design: in compliance with Chinese Explosion-proof standards (CNEX) and European standards (ATEX),
● Standardized production, stable and durable quality guaranteed.

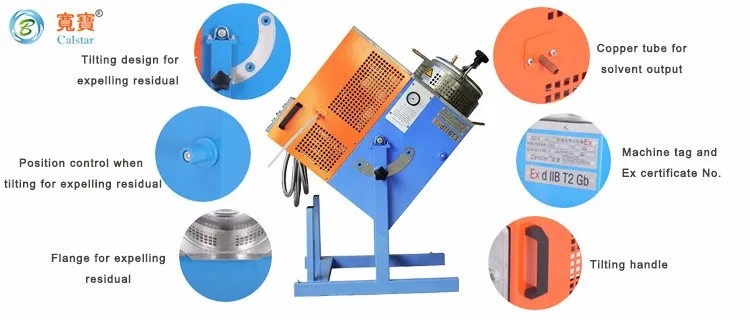

● Tilting-type: gradually tilting and pouring out waste residue which is easily removed.

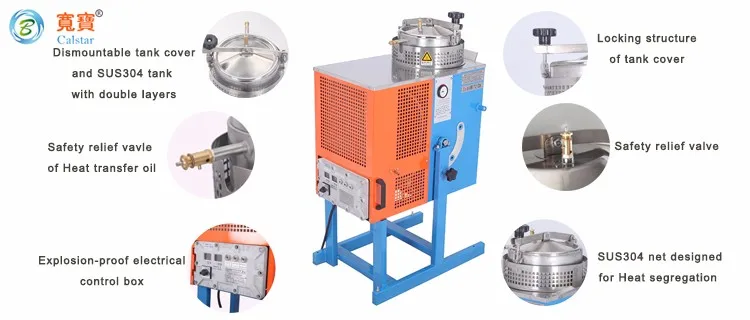

● SUS304 stainless steel tank is used to prevent chemical corrosion. Two layers design, reinforcement barrelhead design, precise temperature control, explosion-proof, anti-leakage are made for safer operation.
● Heating Method: heat medium (heat transfer oils) indirect heating;
● Digital heating temperature controller: advanced numerical display, accurate and convenient heating temperature control;
● Multiple operational safety protection functions: power off or power on by timing or temperature pre-set, excessive temperature protection features; high-voltage protection function; power failure protection function.
● Short reclaiming process, simple operation.
● Less maintenance.

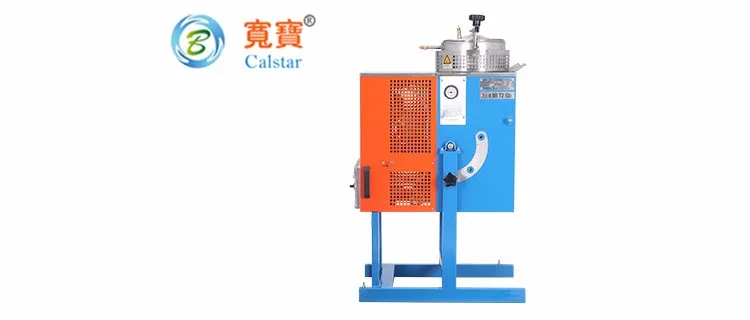

Detailed Images
Packing & Delivery

Packing

1. Seaworthy standard wooden box.
Delivery
1. 15 days after payment if equipment in stock, or 30 days after payment if equipment customized.


Contact us.

Just click above picture to send equiry to us.

Related products

    A20Ex solvent recycling machine

           A60Ex solvent recovery unit

      A60Ex-V solvent distillation system

        A200Ex solvent recycling plant

          B60Ex water-cooled solvent

                recovery machine

              L-82 cutting oil centrifuge

Our Company

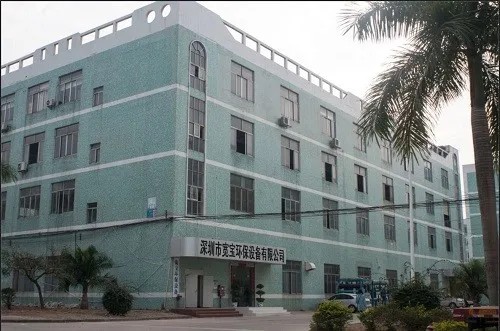

Kuanbao introduction
CALSTAR trade mark is named after CALSTAR ASSOCIATES COMPANY established in 1984 in the US. "CAL" stands for California and "STAR" means outstanding, popularity. So, CALSTAR together means "California Star".
Since 1995, Calstar Kuanbao, an entrepreneurial team was set up to develop environmental protection equipment. Also, to distribute solvent recovery equipment from other countries.
In 2001, "SHENZHEN KUANBAO ENVIRONMENTAL EQUIPMENT CO., LTD." was established in China, specializing in developing & selling CALSTAR solvent recovery machines. After two years in 2003, "TAIWAN KUANBAO ENVIRONMENTAL DEVELOPMENT COMPANY" was set up. In the meantime, patents and trade mark of solvent recovery equipment is accomplished.
Jingdebao, the second brand of solvent recovery equipment of Kuanbao, was promoted successfully in 2008, which means business tactic turned into multiple-trade marks. Meanwhile, Shenzhen high-tech enterprise and Europe CE certificate obtained.
In order to extend our business to overseas, “TAIWAN KUANBAO INTERNATIONAL CO., LTD.” was founded. Our equipment has been more well-known world-widely since then. However, we never stopped research and development. We cooperated with CNOOC to build a solvent recovery system of Membrane treatment in 2012. The 7th generation of automatic, intelligent solvent recovery equipment has been built successfully in 2013. Next year, automatic, online gas solvent recovery machine has been released to the market. In 2016, we obtained 20 Explosion-proof certificates of Chinese at 4th time, and ISO9001,ISO14001 at 5th time in a row.
Our equipment includes solvent recovery machine, oil and water separator, oil purification centrifuge, vacuum relief unit etc... And we achieved standardization and specialization in mass production.
According to 22 years’ experience in environmental equipment industry, Calstar Kuanbao has been recognized and ranked top leading, most influential company in China.


Certifications



Exhibitions



Our clients


Our Service
1. Quick response within 3 hours.
2. Products with international certificate.
3. Products 100% QC checked before shipping.
4. Three-year warranty for completed machine except Heat transfer oil, Gaskets and switches.
5. Customization and Buyer label offered are available.
6. providing professional solution of solvent recovery.
7. providing solvent sample analysis and optimizing solvent formula for free.
8. Wholesale and retail.
9. Pre-sales inquiry and consulting.
10. On site installation and operation training after sales while Volume of machine is 200L equal or above. On the contrary, video of installation and operation training provided.
FAQ

1. How long does your warranty last?
It lasts three years for completed machine except Heat transfer oil, Gaskets and switches.
2. Can you do OEM?
Yes, OEM and buyer label offered are available.
3. What certificates are your products in compliance with?
Our products are in compliance with Chinese Explosion-proof standard(CNEX), European standard(ATEX) and CE. And our company has passed ISO9001 and ISO14001.
4. What kinds of payment do you accept?
L/C and T/T are both acceptable.
5. What is your lead time?
15 days after payment if equipment in stock, or 30 days after payment if equipment customized.
6. What is the package? Is it reliable?
We use seaworthy standard wooden box. It’s fairly reliable.
7. Are free spare parts available after sales?
Yes, free spare parts are available within warranty. And fare of spare parts will be charged after warranty expired.
8. What would you do if breakdown happened with your machine?
We will send our professional engineer to solve this breakdown on site if it is severe and impacted the main function of machine. In this situation, we may have to negotiate some charges. On the contrary, if the breakdown is unimportant, and won’t impact main function of machine, video call will be enough.
