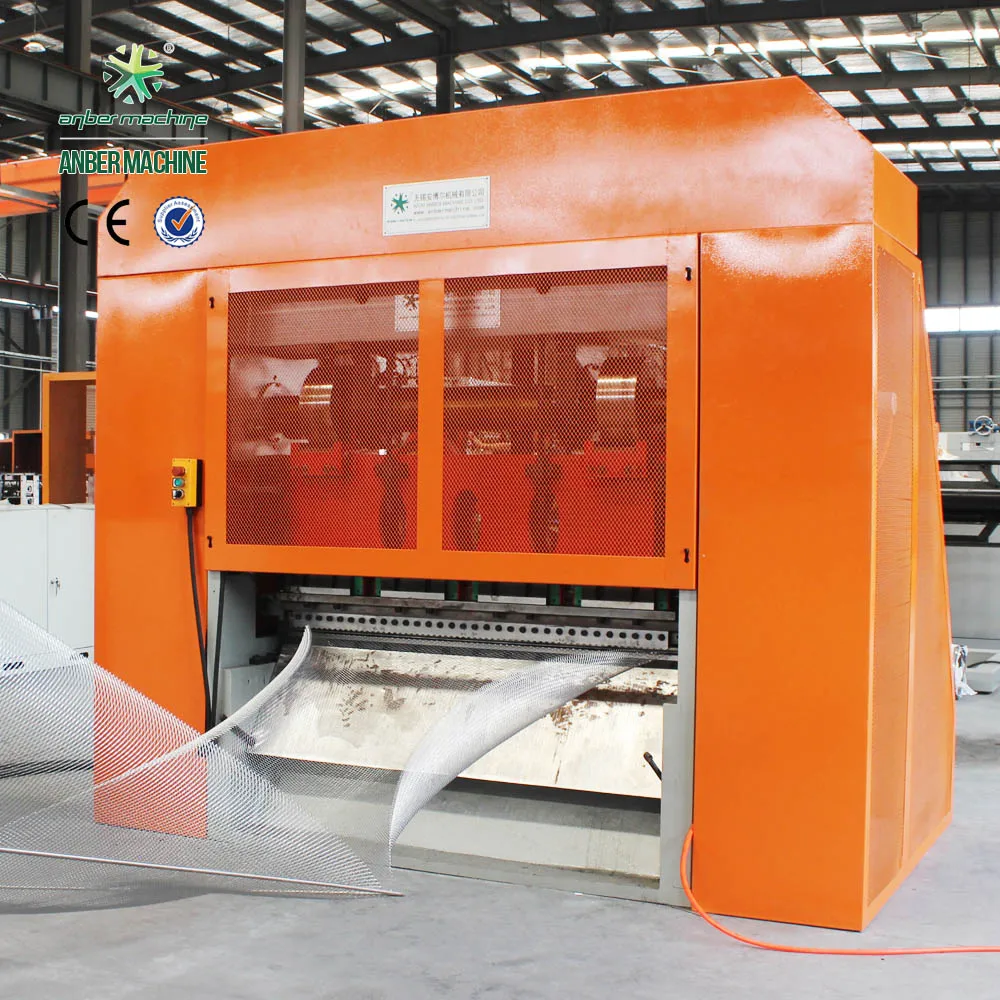

ABE-GS25-1250 1.25 Meter High speed expanded metal mesh machine

Feedback Ratings
$110,000.00 / Set | 1 Set (Min. Order)
Model Number:
- +
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
90 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Punching force:
500 strokes/minute
Overall Size:
about 9.0 T
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
2500X3000X2500 cm
Single gross weight:
5600.0 kg
Lead Time :
Quantity(Set) 1 - 10 >10
Est. Time(days) 90 To be negotiated
Product Description

What is expanded metal mesh?
Expanded Metal mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanding machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.

Expanded Metal Mesh Production Process

1. Sheets or coils or metal are fed into the expanding machine. A little metal can create a lot of mesh, adding value and saving resources and money.

2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.

3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.

4. Using the unique shearing and stretching process means very little waste is created. the metal is sheared and then stretched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing.

Expanding force
Max. Coil width
Thickness of steel coil
Max. 1.5mm
Expanding speed
Max. 500 strokes/minute
Main motor power
Servo motor feeding motor
2KW/2000 rpm
Slide stroke(up and down)
Slide stroke(right and left)
Air pressure
Overall size of machine(L*W*H)
Machine weight
about 5.0 tons
Controlled by PLC+touch screen; Length calculate+automatic cutting
Products Show
Our Certifications
Our Company

Our ABE series expanded metal mesh machines are revolutionary products. We adopt automatic feeding device by servo or step motor, automatic lubrication system and PLC control system with famouns brand such as Siemens, Mitsubishi, etc. Electric elements use Schenider brand.

We have various different type of expanded metal machine, the specification from 6.3 tons to 260 tons. Expanding thickness of material can be from 0.1 to 10mm and mesh width from 600mm to 3200mm.

Our designer adopts 3D modeling design to make sure our machine have perfect performance. Our factory always focus on the machine's innovation. Base on our customer value feedback, we keep updating our machine design. We ensure your investment can get value back.


Q: How long will your engineer reach our factory?
A: Within one week after machine arrival your factory.

Q: How many days will you finish installing ?
A: Normally we will finish installation and training within 7 days. Machine installation only need 1-2 days. The left time just training your workers.

Q: What should we charge for your engineer?
A: You should charge for the air tickets, hotel, food and also their salary 100USD one day per person.

Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from the machine finished installation.

Q: How could we do after one year warranty period?
A: We can also do service for you, but you need pay for spare parts and engineer's cost.

Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.

Q: Does your engineer understand English?
A: Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.

Q: How do we solve the machine problem after your engineer leaving?
A: Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.

Q: How many worker do we need running those machines?
A: One or two workers required for machine operation, there will be only one worker for our micro type expanded metal mesh machine within 25T punching force otherwise need two workers for hevay duty expanded metal machine.
