ADC keyboard analog 5 channel button sensor for Arduino

Feedback Ratings
  • 2-4 Pieces
    US $2.90
  • 5-9 Pieces
    US $2.85
  • 10-199 Pieces
    US $2.75
  • >=200 Pieces
    US $2.10
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order:: 1000 Pieces)
Customized packaging (Min. Order:: 1000 Pieces)

More

Graphic customization (Min. Order:: 1000 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ALSobot
Model Number:
RB-02S159
Output:
Analog Sensor

Packaging & Delivery

Selling Units:
Single item
Single package size:
150X90X110 cm
Single gross weight:
0.3 kg
Package Type:
standard package
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(day) 2 To be negotiated

Description

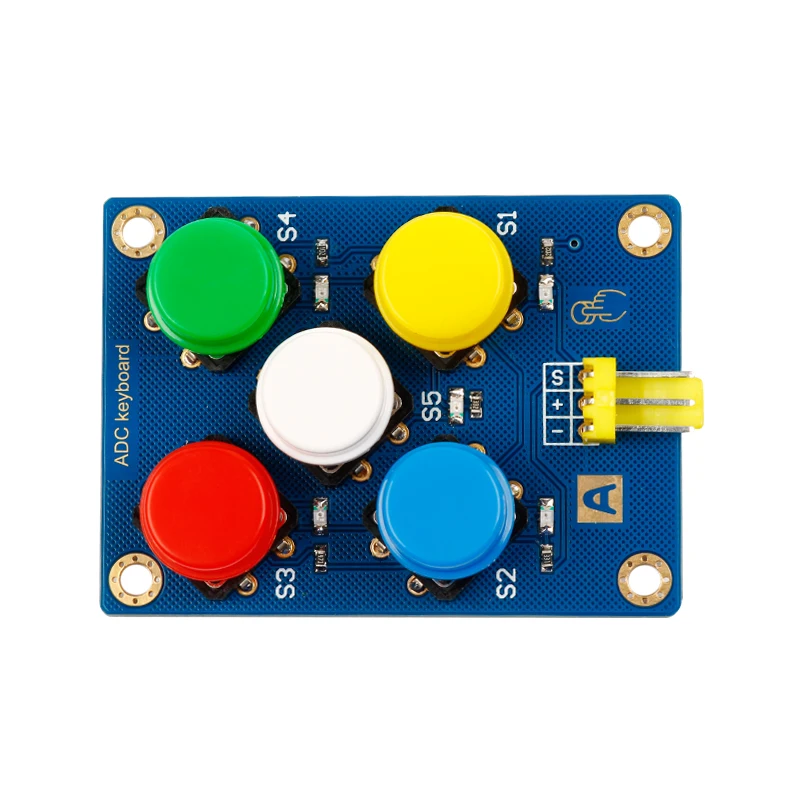

When designing the input circuit of the key, we usually adopt independent IO port to connect the key or matrix connection.Matrix connections take up IO less than independent connections, but is there a better way? The simulation keyboard module is a good solution to this problem. It allows you to read the state of 5 keys with one simulated IO port, which really simplifies the circuit.When the button is pressed, the corresponding LED will light up next to the button.

Specifications

  • Item name: ADC keyboard
  • Item Code: RB-02S159
  • Brand: ALSRobot
  • Place of origin: China
  • Fixed hole: M3*4

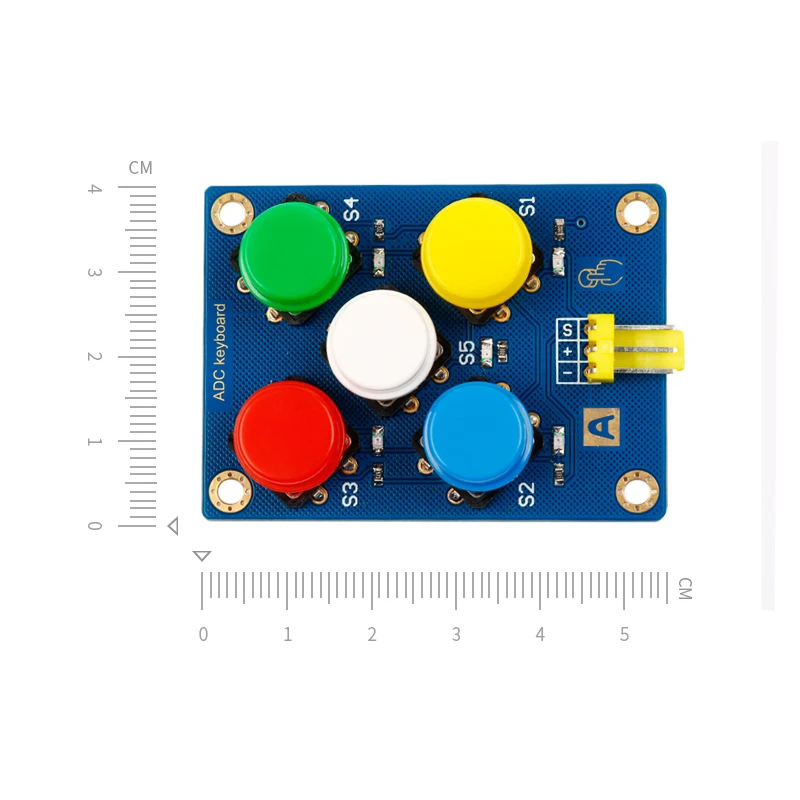

  • Size: 55mm*40mm
  • Interface type: 3P sensor interface
  • Signal type: analog signal
  • Indicator light: 5 buttons
  • Working voltage: 3.3v or 5V
  • Working current: ≤ 20mA
  • Pin definition:
    + : power positive
    - : power supply negative pole
    S: signal
  • Connection line: 3P sensor connection line
  • Indicator light: indicator light is provided next to the five buttons of S1-S5

pictures

RB-02S159-ADkeyboard (4)

RB-02S159-ADkeyboard (1)RB-02S159-ADkeyboard (3)ADC Keyboard

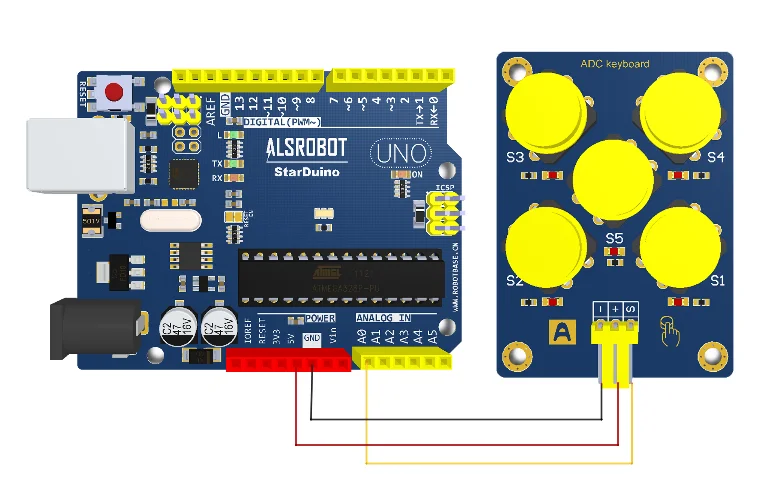

ADC keyboard connect to the Arduino UNO R3 controller
