ALSRobot micro:bit Motor Driver Shield v3.1 Development Board for Javascript Python Programming

Feedback Ratings
  • 5-9 Pieces
    US $15.30
  • 10-49 Pieces
    US $15.10
  • 50-199 Pieces
    US $13.80
  • >=200 Pieces
    US $9.50
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order:: 1000 Pieces)
Customized packaging (Min. Order:: 1000 Pieces)

More

Graphic customization (Min. Order:: 1000 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ALSRobot
Model Number:
RB-01C139D
Motor Type:
DC Motor
Name:
micro:bit Motor Driver Shield v3.1
Application:
educational robot
Voltage range:
6.5V-15V
Color:
Blue
Dimensions:
70mm * 80mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
150X90X110 cm
Single gross weight:
0.5 kg
Package Type:
Standard Package
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(day) 3 To be negotiated

Description

micro :bit motor driver shield v3.1 is another version of microbit motor driver shield from ALSRobot.

micro :bit motor driver shield v3.0 board loaded with RGB LED, buzzer, headphone jack and two channel dc motor driver, in which the headphone jack can be external to the speaker box and can be switched between the headphone jack and buzzer by selecting switch.micro :bit the IO interface of the v3.0 motor driver shield is introduced with 3P sensor interface, which is convenient to connect other functional modules. Among them, P8, P11 and P12 interfaces can also drive the steering gear.With micro:bit motor driver shield, you can more easily play the powerful function of micro:bit and more easily build interactive works, which will turn your fantastic ideas and strange ideas into reality.

Specifications

  • Item name: micro:bit motor driver shield v3.1
  • Item Code. : RB-01C139D
  • Brand: ALSRobot
  • Place of origin: China
  • Size: 72mm*84mm
  • Packaging: anti-static bag
  • Fixed hole: M4*4
  • Power Supply:External DC power supply
  • Working Voltage:6.5-10.5V(Working) 6.5-15V(not work)
  • Input Voltage(Recommend):7.4V
  • Input Voltage(Limitation):10.8V
  • Outpit Voltage:5V 3.3V
  • Digital Interface, 3V Power supply:P1,P2
  • Digital Interface, 5V  Power supply,drive servo :P8,P11,P12
  • Analog Interface:P1,P2
  • Extension interface:IIC interface;Ultrasonic module interface P11, P12
  • RGB colored lights control: P5
  • Buzzer control/headphone port driver: P0
  • Motor control: P13, P14, P15,P16
  • Indicator light: power indicator light
  • Motor driver chip: DRV8833
  • Motor driver current: up to 1.5a per circuit

pictures

RB-01C139D-motor diver(1)

micro :bit motor driver shield v3.1 interface clear

RB-01C139D-motor diver(2)

micro :bit motor driver shield v3.1 size presion

RB-01C139D-motor diver(5)

micro :bit motor driver shield v3.1

RB-01C139D-motor diver(4)

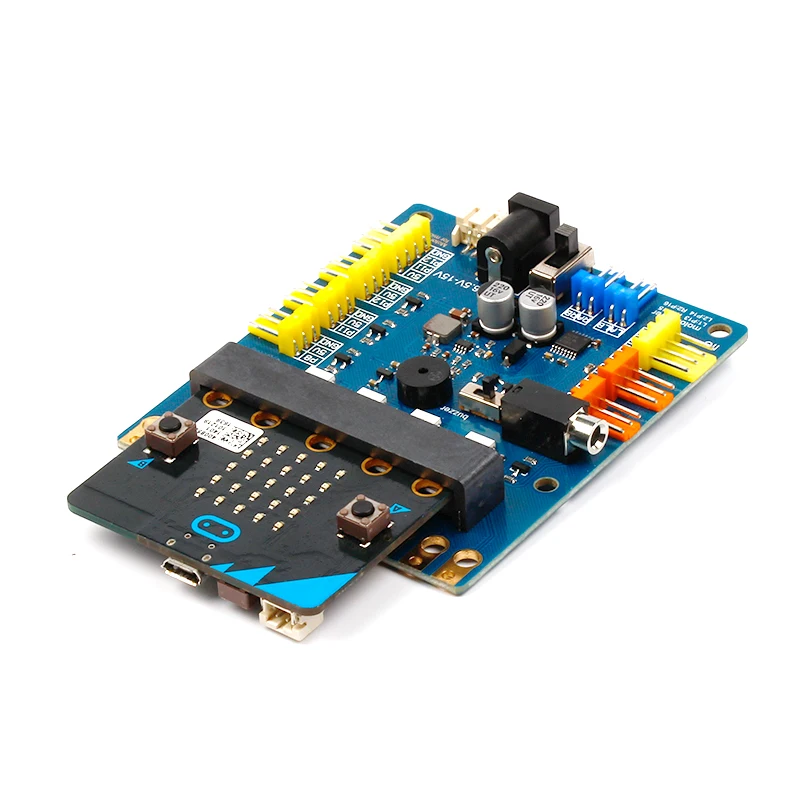

micro :bit motor driver shield v3.1 with BBC micro:bit controller

RB-01C139D-motor diver(3)

 micro :bit motor driver shield v3.1  application with servo and DC motor

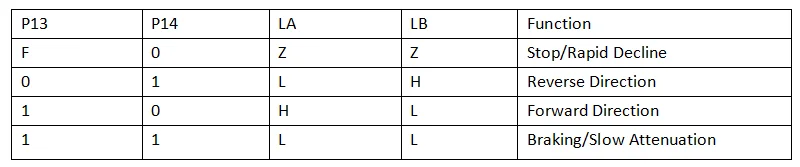

Motor drive:

RB-01C139D-motor drive 4

PWM Control Motor Speed:
RB-01C139D-motor drive 3
Experimental Procedure:
RB-01C139D-motor drive 2
Connection Method with micro:bit controller and DC motor:

RB-01C139D-motor driver


Final Decsription
