ANSI C136.41 7pin Dimming Base Receptacles for Light Control Sensor Switch

Feedback Ratings
$4.50 / Piece | 10 Pieces (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Shuncom(OEM is acceptable)
Model Number:
SZ10-N7
Type:
Plug With Socket, Twist-lock receptacle
Grounding:
Standard Grounding
Rated Voltage:
0-480VAC
Rated Current:
10A
Application:
Industrial / Commercial
Name:
ANSI C136.41 7pin Dimming Base Receptacles
Certificate:
CE ROHS
Material:
Phenolic, Nylon
Applicable Volt Range:
0~480VAC
Rated Frequency:
50/60Hz
Ambient Temperature:
-40℃ ~ +70℃

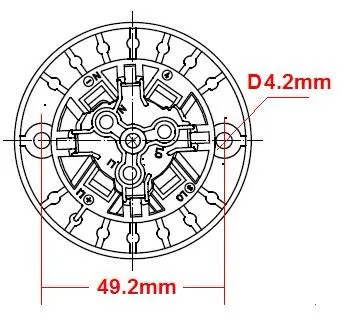

Overall Dimensions (mm):
65Dia.x 40
Power Loading:
AWG#14: 15Amp max. / AWG#16: 10Amp max.
Optional Signal Loading:
AWG#18: 30VDC, 0.25Amp max.

Packaging & Delivery

Selling Units:
Single item
Single package size:
48X32X31.5 cm
Single gross weight:
14.0 kg
Package Type:
each piece in one small white paper box, 100 boxes in one master carton.(48cm*32cm*31.5cm)
Lead Time :
Quantity(Piece) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 3 7 15 To be negotiated
Specification
Setting Information
Rear Cover
Offered for power leads waterproof at rear side

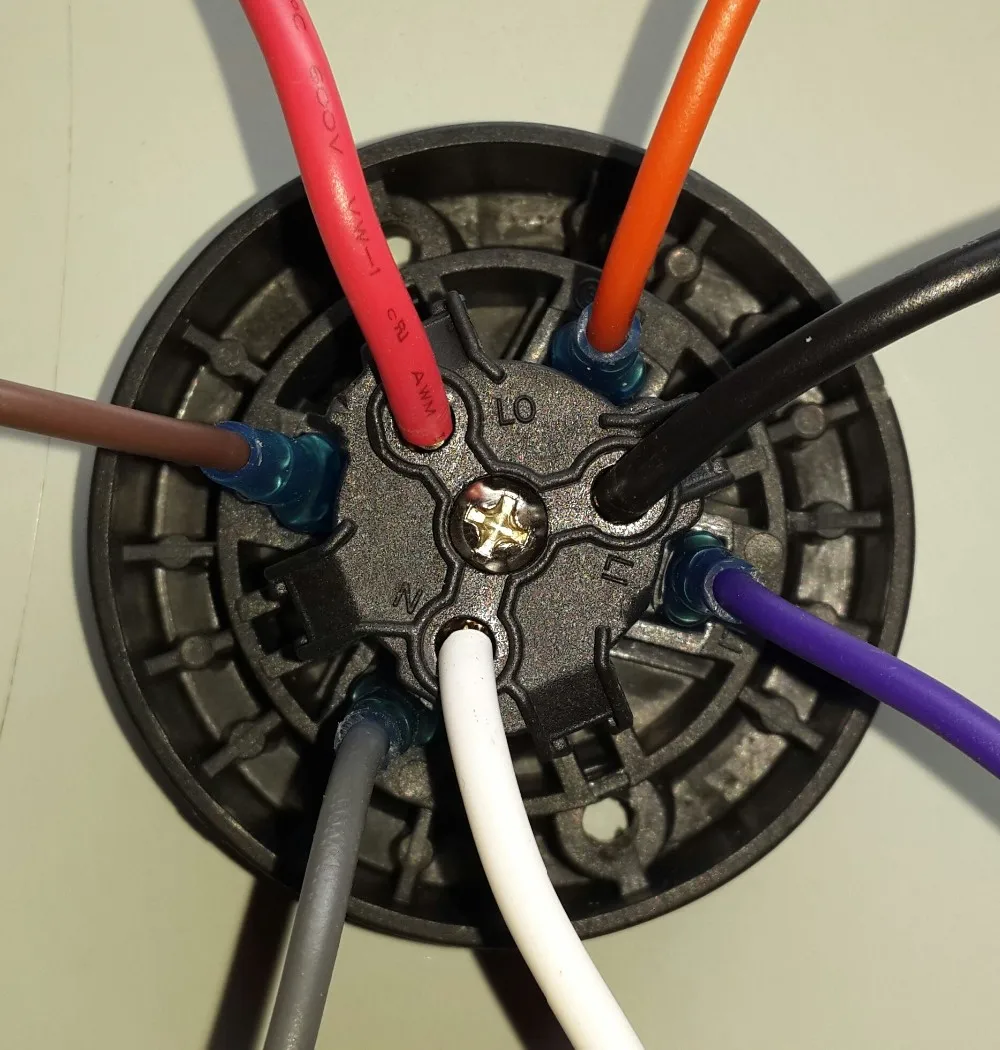

Leads
AWM1015, 600V, color coded, 12" Min.
Plastic Material
UV stabilized, Glass fiber filled PBT
Power Contact Material
Phosphor bronze
Signal Contact Material
Phosphor bronze, entirely nickel plated, gold plated to top
Product Description

Product Details

Conforms ANSI C136.41

CE &ROHS  listed

360 degree rotation limiting


Product Details

2 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers male quick connectors at rear back for signal connection.

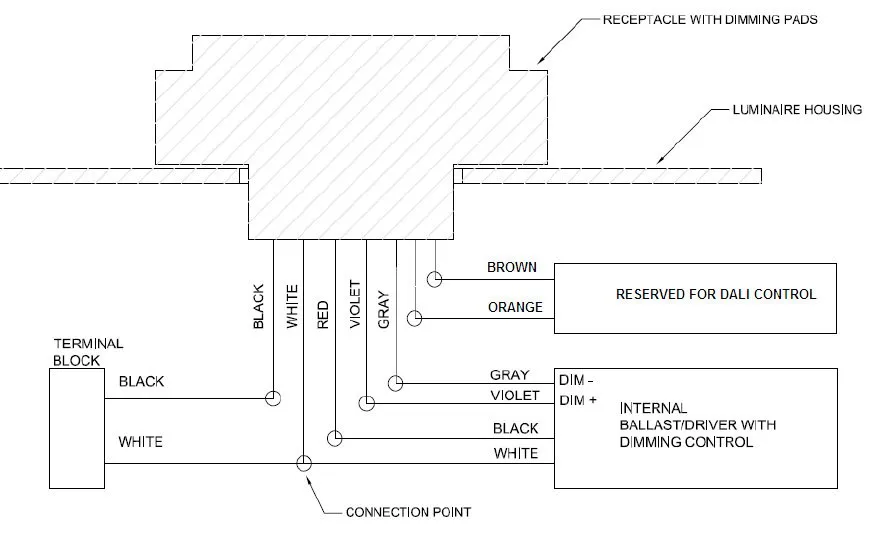

Installation Process
Applications
Certifications
Company Information
FAQ

Q1. Can I have a sample order for Light Control Receptacle?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for Light Control Receptacle order?

A: Low MOQ, 10pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. Is it OK to print my logo on Light Control Receptacle product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.
