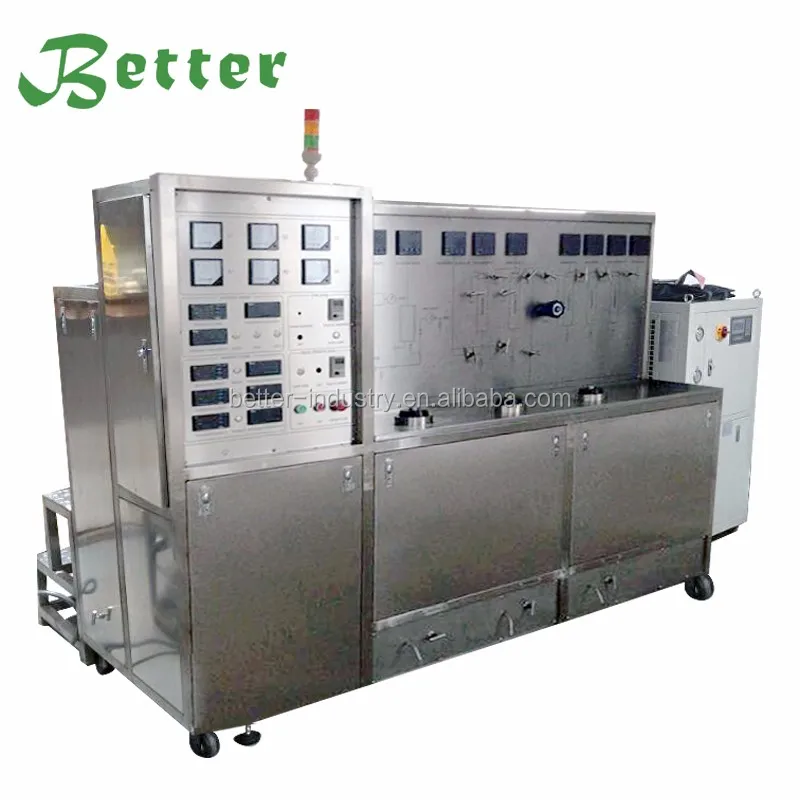

ASME Standard Supercritical Fluid Co2 Extraction Machine/Equipment

Feedback Ratings
$92,800.00 / Set | 1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Better
Model Number:
HSFE30 Supercritical Fluid Co2 Extraction Machine/Equipment
Application:
ASME Standard Supercritical Fluid Co2 Extraction Machine/Equipment
Type:
Extractor
extraction kettle:
20L
Item:
ASME Standard Supercritical Fluid Co2 Extraction Machine/Equipment
working pressure:
40Mpa
extraction temperature:
home temperature- 75℃
material:
SUS304
voltage:
220V
Certification:
CE
The flow of CO2:
0~200L/h
Usage:
Chemical Industry/Herb
Function:
Extracting Concentrating
After-sales Service Provided:
Overseas third-party support available

Packaging & Delivery

Selling Units:
Single item
Single volume:
8 cm 3
Single gross weight:
1800.0 kg
Package Type:
ASME Standard Supercritical Fluid Co2 Extraction Machine/Equipment 1)Wooden case or container packing directly 2)According to clients' request
Lead Time :
10
Video Description
Product Description

Working Principle

The ASME Standard Supercritical Fluid Co2 Extraction Machine/Equipment is suitable for producing pharmaceutical CBD and various essential oil and hemp oil extraction , herbal and plant oil extraction. It is widely used to produce the garlic oil, essential oil, rose oil, caffeine, fructus hippophae etc.

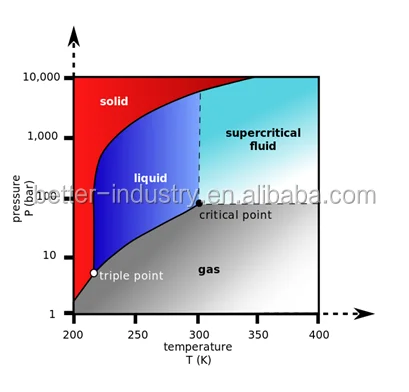

1. What is supercritical Co2 fluid:
Supercritical Co2 is a fluid state, which occurs at or above its critical temperature 31.1 C and critical pressure 7.38 0 bar.
2. Characteristics’ of Supercritical Co2 Fluid:
a. Density under gas and liquid phase, close to liquid, or namely as dense gas, dissolve ability close to liquid.
b. Viscosity between gas and liquid phase, close to gas.
c. Diffusion coefficient between gas and liquid, much bigger than liquid phase, strong penetrability.

3. Supercritical Co2 Fluid Application
a. Food industries
b. Medical care food industries
c. The effective components in Chinese herbal medicine extraction
d. Extraction of natural flavors and fragrances
e. Natural pigment extraction

SPECIFICATIONS
No.
Model
Capacity
Pressure
(Mpa)
Temperature
(℃)
Power
(KW)
CO2 Pump Flow(L/H)
Dimension
(mm)
1
HSFE0.5
0.5L*1


50









85
10
50
2500*2500*1600
2
HSFE1
1L*1
10
50
2500*2500*1600
3
HSFE5
5L*1
18
50
2500*2500*1600
4
HSFE10
10L*1
5L*2







40
18
100
3000*2500*1600
5
HSFE20
10L*2
25
200
3000*3000*1800
6
HSFE30
10L*3
30
210
5000*4800*1800
7
HSFE48
24L*2
45
400
5000*5000*4200
8
HSFE96
24L*4
58
600
5800*5000*4200
9
HSFE100
50L*2
60
800
6200*6000*4500
10
HSFE120
30L*4
60
800
6800*6000*4500
11
HSFE150
50L*3
63
1000
7200*6000*4500
12
HSFE200
50L*4
65
1000
7800*7000*4500
For capacity above 200L, will be custom made.

Main Features

1) Intermittent or continuous work,co-solvent can be added if request.

2) CO2 can be recovered and reused;
3) Pressure and temperature can be designed according to demand.
4) Can custom made into PLC or computer control
5) Electric has CE and UL approved
Detail Information

CO2 Pressure pump

Flow : 0~200L/h ( real flow of CO2);

Designed pressure: 40MPa

Flow adjustment: 0~200L/h

Head of pump with cooling structure

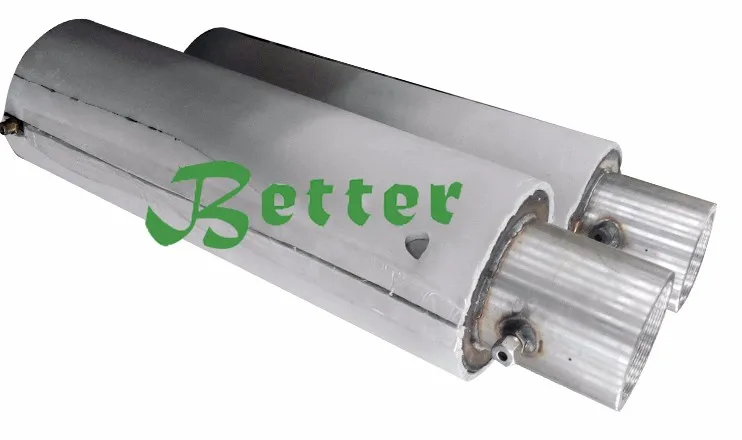

Extractor

The max working pressure: 35MPa

The max operation temperature: 75℃

Material: 1Cr18Ni9Ti; Material tank (for both liquid and solid material): 2

Heat preservation structure, and with stainless shell outside (also called jacket water structure)

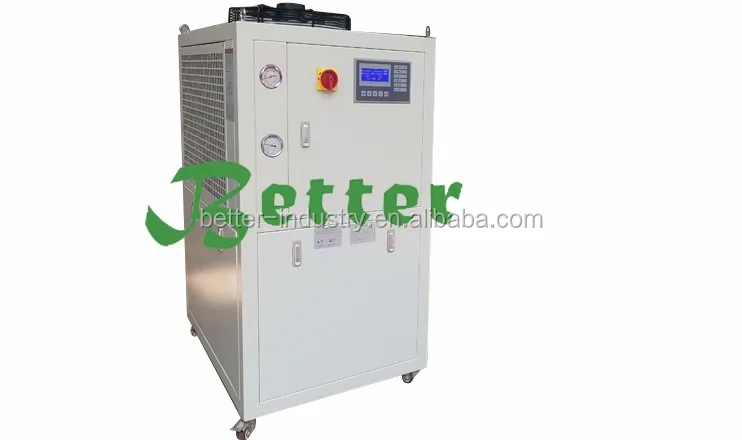

Chiller -cooling systerm.

Cooling Capacity: 20000Kcal/h (air cooling)

Temperature range: -5℃~+5℃ (meet process requirement)

Application
APPLICATION
ASME Standard Supercritical Fluid Co2 Extraction Machine/Equipment
Agriculture Food
Extraction of pesticides and soil contaminants. Separation of fats and contaminats, flavors.
Pharmaceutical
Extraction of active components, preparation of natual products, viamins.
Cosmetic
Extraction of fragrances and oils.
Laundry
Dry cleaning of garments.
Mechanical
Degreasing parts, precision cleaning of high-value componets.

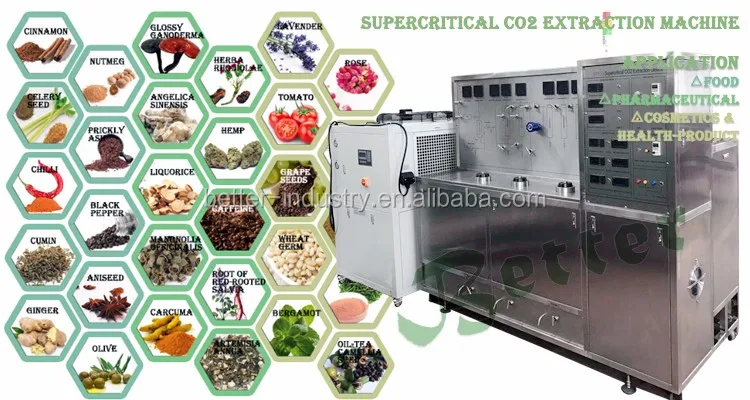

A wide range of industries for the extraction of natural products for the food additives(such as ginger, large bolt, cinnamon, anise, hops, pepper, cumin,etc.), drugs(such as artemisia annua vegerarian, magnolia, angelia, etc.), health care(such as sea buckthorn, samara, pomegranate, lycopene, etc.)
Flow Chart

ASME Standard Supercritical Fluid Co2 Extraction Machine/Equipment Design:
Liquid Co2 from pressured bottle or storage tank, through pipeline into purifying part, cooling part, mixer part, after heated and transferred into extractor, where solid raw material loading into barrel feeding into extractor, with dissolve ability to extracting, through temperature and pressure condition change, separated target material in separator. Separated material without chemical solution remained, Co2 would be gasifying after few seconds.

CO2------Extraction kettle------Separation I------Separation II------Return circuit

Packing & Delivery
Packaging for ASME Standard Supercritical Fluid Co2 Extraction Machine/Equipment
 Size
1330*1250*1600 mm
2290*980*2090 mm
Weight
1.8T



Packaging Details
The normal package is export standard wooden box(Size: L*W*H).
Or according to customers special request.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

1) Overseas customer after-service: it can be door-to-door maintenance in each year

2)Safety of funds: trade assurance in alibaba or our local agency transaction directly

3)Export experience: if you have no import experience, we can do door to door help you to solve import, equivalent to domestic procurement, and the price is only half or even
lower other company.

4) Efficient and affordable: two hours in each bunch(classes) to 1/5 time shorter than the other some
companys, and the price is only 1/3.

5)Quality of  ASME Standard Supercritical Fluid Co2 Extraction Machine/Equipment : CE approved,
under way for UL certification, or you can contact with our customer.

Related Products

Supercritical Co2 Fluid Extraction Machine

96.8% Response Rate

Essential Oil Extraction Machine

93.6% Response Rate

Solvent Extraction Machine

94.9% Response Rate

FAQ

1.What does BETTER need from me to quote a price?

a).Raw material
b).Production capacity per batch,we supply 0.5L~200L machine for you,big capacity of machine can be customized according to your request for your request.

2.What material can you process with this machine?
Our CO2 extract machine is widely used in extracting hemp oil, wheat embryo oil,fish oil,tobacco essential oil,Arteannuin,Sundrops oil,Gingerol,Pepper haematochrome,Hops extract etc.

3.What is the machine material you use?
Stainless steel.

4.What is the highest pressure does your machine can suffer?
50Mpa.Our standard design is 40Mpa..

5.Does the CO2 can be reused?
YES. CO2 can be used in circulation.

6.Does you machine can work under the conditions of supercritical and subcritical?
No,it can only work at supercritical state.

7.Can we do extraction test before purchasing?
Of course,we can do extraction test with your raw material and send you videos and pictures
for your reference.

8.Do you have machine in stock?
No,every machine is customized according to your order.

9.How long does it take to produce the machine once I place my order ?
The Supercritical CO2 extract machine’ process flow is complex.Generally it takes about 60 workdays to Produce.We are responsible for the quality of machine our customers.Every procedure and details has to be inspected strictly.

10.How will my order be packed, can you provide the installation service?
Plywood case. And we will assemble and test the machine before packing.
Installation:We will send English manual after your purchase. If customer need, we will send one engineer for assembling and training for workers. USD100 per person per day, food, accommodation and air-ticket will be on clients.
