ATF-3015D Fiber Laser Cutting Machine

Feedback Ratings
$25,000.00 - $50,000.00 / Set | 1 Set (Min. Order)
Model Number:
ATF-3015-D
Power(W):
2000w Raycus
$25,000.00
- +
available
2000w IPG
$30,000.00
- +
available
3000w Raycus
$35,000.00
- +
available
All 6 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $25,000.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
3000*1500mm
Cutting Speed:
30m/min
Graphic Format Supported:
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Application:
Laser Cutting
Applicable Industries:
Manufacturing Plant, Construction works , Energy & Mining, Advertising Company
Condition:
New
Cutting Thickness:
Depend on different material
CNC or Not:
Yes
Cooling Mode:
Industrial water chiller
Control Software:
Cypcut
Place of Origin:
Shandong
Brand Name:
Alpha
Certification:
CE, ISO, GS, SGS, UL, CCC
Warranty:
2 Years
Laser Source Brand:
IPG or Raycus brand
Laser Head Brand:
Switzerland Raytools
Servo Motor Brand:
Yaskawa
Guiderail Brand:
Rexroth
Control System Brand:
Cypcut
Key Selling Points:
Multifunctional
Rack and pinion:
Taiwan YYC
Fiber laser head:
Switzerland Empower RAYTOOLS
Laser Power:
2000W/3000W/4000W for option
Positioning accuracy:
±0.03mm
Repeatability positioning accuracy:
±0.02mm
XY Axis Maximum Acceleration:
0.4g
XY Axis Max. speed:
30m/min
Power Supply Rated Voltage:
3-phase 380V/50Hz or Custom made
Machine Weight:
6000KG
Dimension:
2250*4200*1500mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
2250X4220X1500 cm
Single gross weight:
6000.0 kg
Package Type:
Plywood case
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description
Product Description

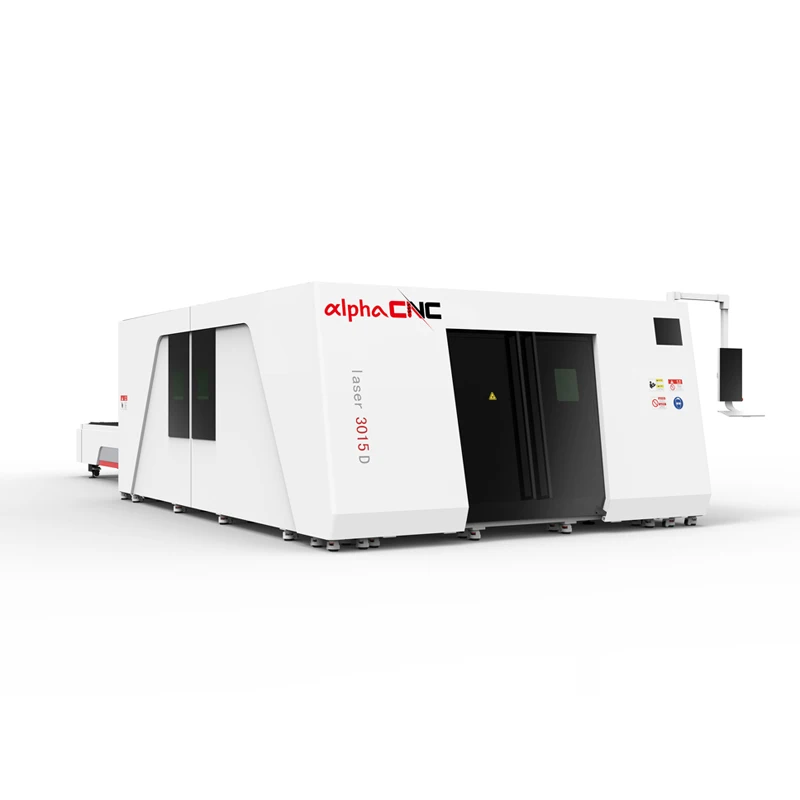

ATF-3015D fiber laser cutting machine is Alpha's new design. The machine is with enclosed machine cover, which will protect the worker from dangerous. The machine is very sutaible for the high power fiber laser machine that more than 2,000w.


Application Material:


Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Working Area

3000*1500mm

X axis working area

3,000mm

Y axis working area

1,500mm

Laser Power

2000W/3000W/4000W for option

Fiber Laser Generator Brand
Max, Raycus, IPG, GW, nLIGHT for option
Positioning accuracy

±0.03mm

Repeatability positioning accuracy

±0.02mm

XY Axis Maximum Acceleration

0.4g

XY Axis Max. speed

30m/min

Working Table

Serrate working platform

XY Axis Transmission system

German helical rack and pinion

Z axis Transmission system

Taiwan TBI ballscrew

Cooling System
Industry water chiller

Power Supply Rated Voltage

3-phase 380V/50Hz or Custom made

Machine Weight
6000KG
Dimension

2250*4200*1500mm

Detail show

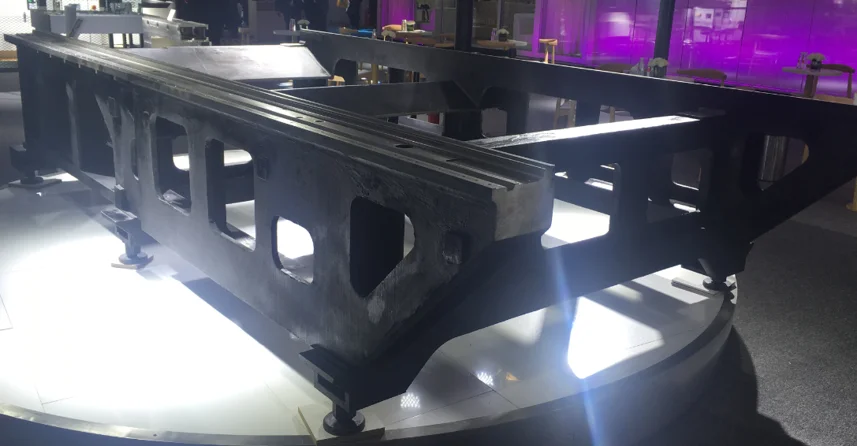

Heavy duty iron cast machine bed

The bed is made by iron cast, the thickness is about 20-30mm, it is very strong, it can bear very heavy workpiece. The machine bed is heat treated and will not deform for long periods of use. Compared with the welded machine bed, the iron cast machine bed is with higher precision.

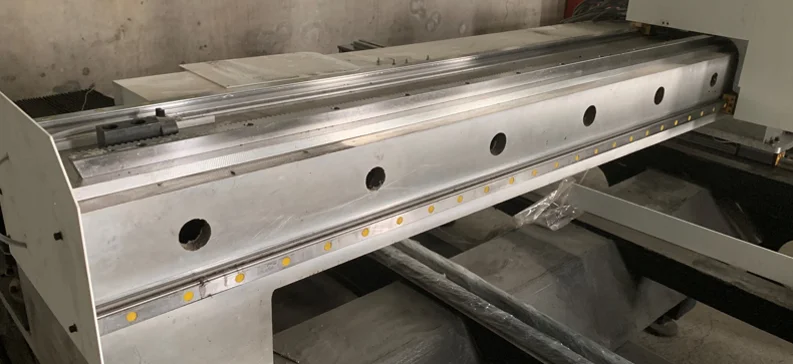

Heavy duty steel welded machine frame

The machine beam made by aluminum cast material, which is very hard material, not easily deformed.

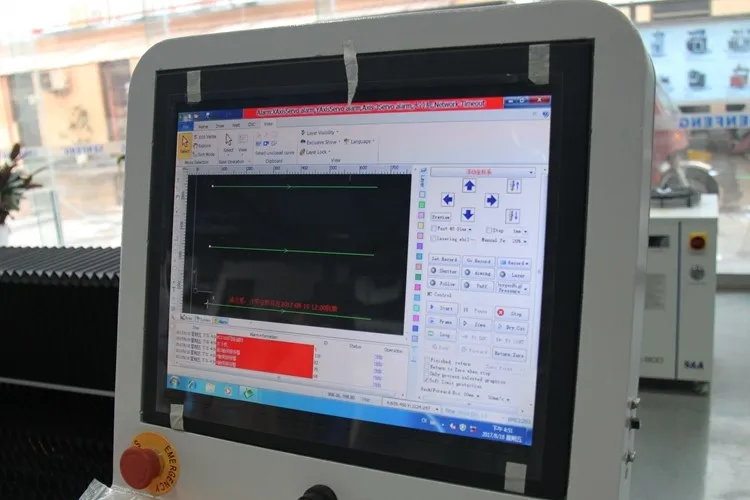

CypCut Controller

Support flight cutting, leapfrog, electric focusing, double exchange workbench
Trajectory accuracy 0.05mm, positioning accuracy 0.01mm
Cutting speed 30m/min
Maximum air movement speed 80m/min
Maximum acceleration 0.8G

Switzerland Raytools laser head

The BM109 series is an auto-focusing fiber cutting head from RAYTOOLS AG in Switzerland for 2017 below 1.5KW. The product has a built-in motor drive unit that automatically changes the position within a range of 17mm by a linear mechanism driven focus mirror. The user can continuously adjust the focus through the program to complete the rapid perforation of the thick plate and automatically cut the plates of different thicknesses and materials. The product is equipped with a D28 composite lens unit that integrates the beam and optimizes the optical and water-cooled design so that the laser head can operate continuously for a long time.

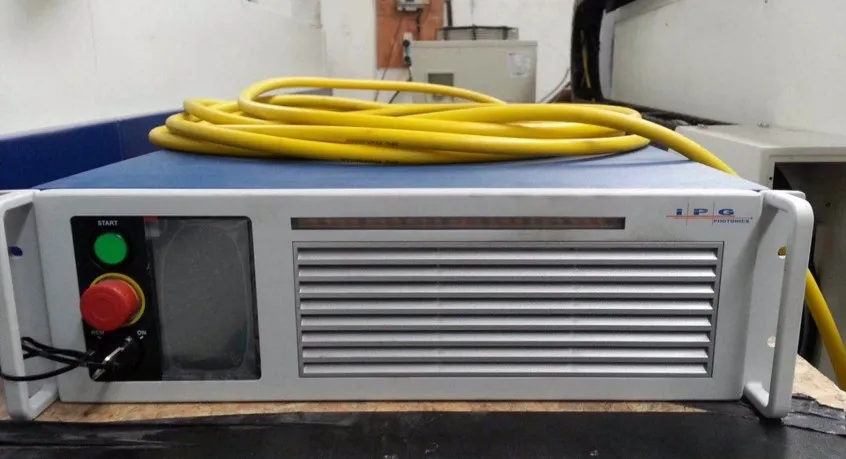

German IPG Laser Gernerator

German IPG is a world-renowned fiber laser manufacturer with unparalleled advantages in cutting highly reflective materials. Make the cutting edge smoother.

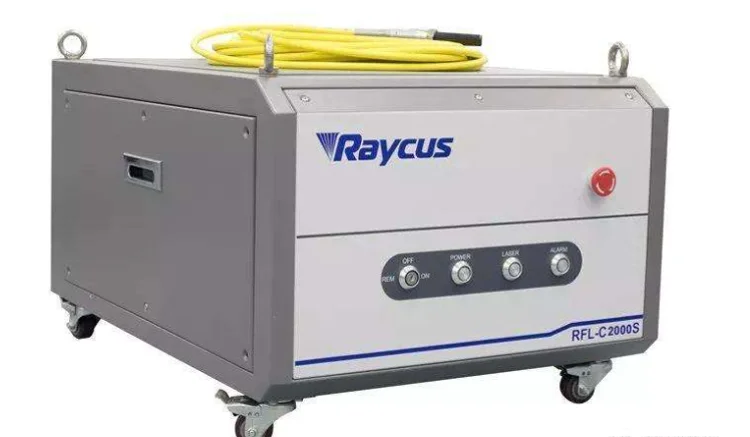

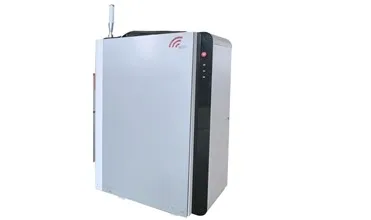

Raycus Laser Generator

Raycus is the top Chinese brand. It is reliable and with lower price than IPG.

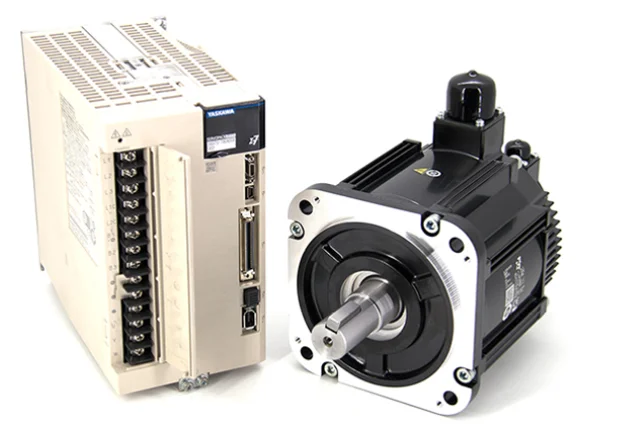

Japan Yaskawa servo motor and driver

The Japan Yaskawa servo motor is installed in all of the axes. With this motor, the machine can realize high-precision machining at high speed.


France MOTOVARIO Gear reducer

France MOTOVARIO Gear reducer is with high transmission efficiency, low energy consumption and superior performance. Service life is much longer.

XY Axis German Rexroth Sqaure Rail
&Taiwan YYC Rack Transmission system

The machine adopts Taiwan Hiwin square rail, which is more durable. And the use of high quality helical rack pinion, makes it high precision.
The rack and pinion on XY axis is from German.The high hardness of the material makes the rack more wear resistant.

Taiwan TBI ball screw on Z axis

As the top brand of the ball screw, TBI ballscrew is famous for the high precision, and long service life.

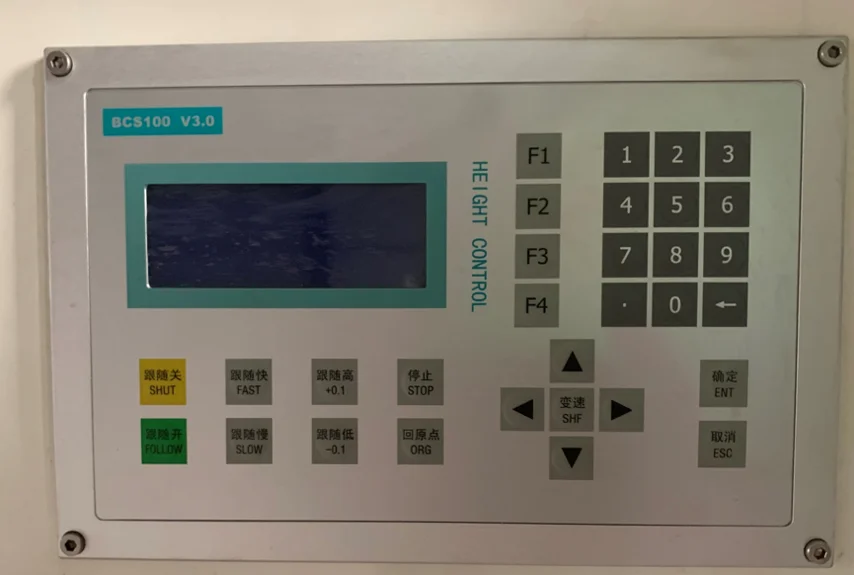

Automatic Height Adjustment Device

During the use of the fiber laser cutting machine, in order to ensure a high quality cut, the height of the cutting tip to the surface of the cut workpiece must be kept substantially the same.
In order to make up for the problem of high control instability during manual adjustment of the cutting, the fiber laser cutting machine is equipped with an imported follower capacitor height adjuster. No matter how thick the plate is cut, the height is consistent with the capacitor height-adjusting cutting head.


Feeding roll

The machine comes with the feeding roll. The feeding roll will help the worker feed the material easily.

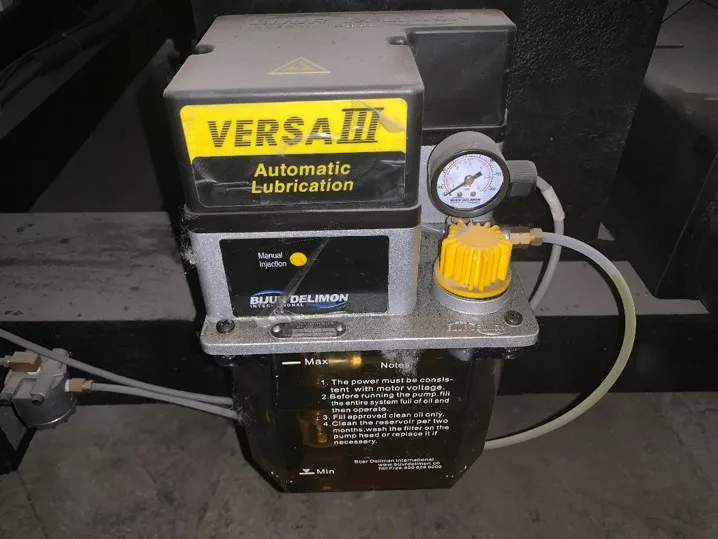

American Bijur Delimon Automatic lubrication system

The function of the automatic oil pump is from American Bijur Delimon, it is mainly to perform regular quantitative oiling on the easily wearable guide rail, ballscrew and the rack gear. It is by the digital controller to control the lubrication pump working cycle; lubrication time and intermittent time.

Constant temperature air conditioner inside of the control box

The main function of the electric control cabinet air conditioner is to maintain the constant temperature inside the cabinet. Especially for areas that are too hot or too cold, it can extend the life of electrical components in the cabinet and ensure the normal working of electrical components.

Height adjustment Foot base

The main function of the foot base is to adjust the height of the machine by adjusting the height of the foot base. This function is essential for uneven ground.


Big Independ Control Cabinet

Control panels, drivers, and other low voltage components are installed in the control cabinet. Larger space helps to place and dissipate electrical components.

Alignment material function

The alignment material function is mainly for align the material easily.

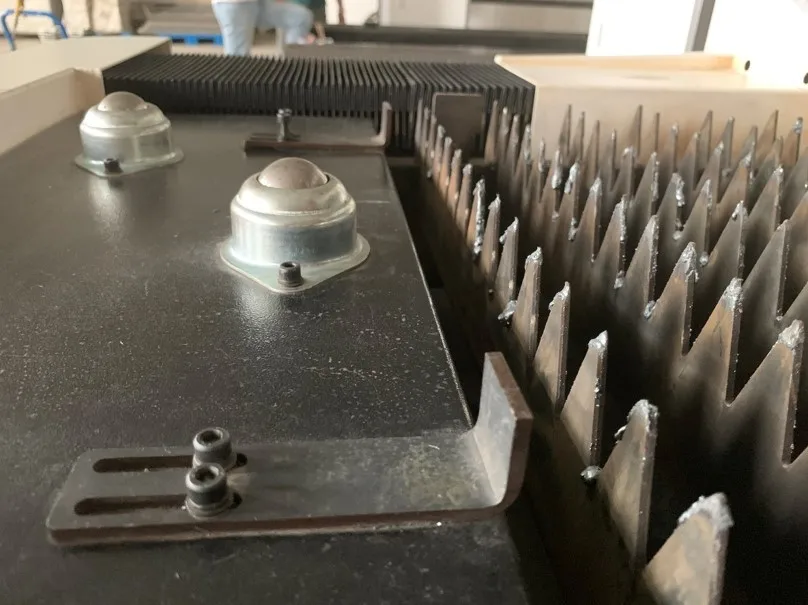

Serrate working platform

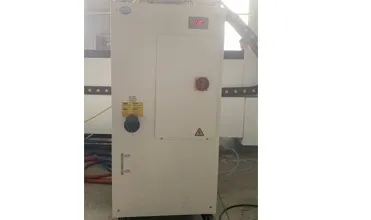

Water chiller


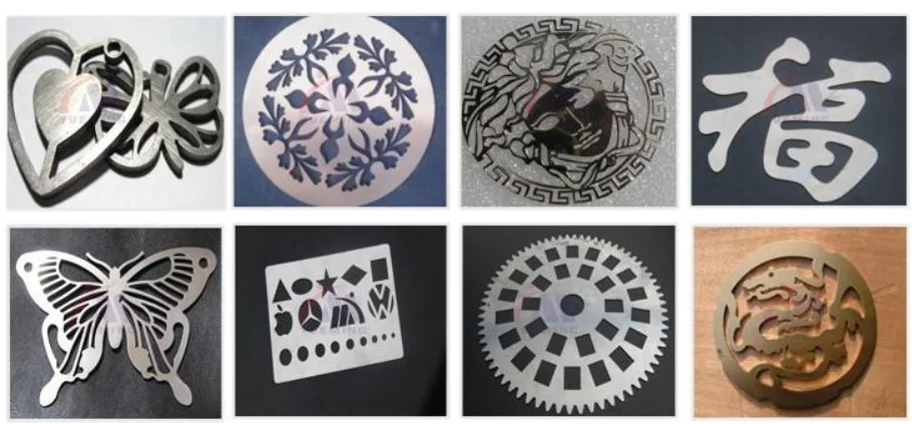

Samples
Strict Quality Test

Each of the small parts have been tested by the quality department

Packing & Delivery


Step 1. Pack the machine with plastic sheet for clearing and damp proofing.


Step 2: Put the machine in the plywood case for safety


Step 3: Transport the plywood case into the container.

Certifications
Our Company

 Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.


Agent and distributor wanted all over the world!
