ATM-1390-Y Laser Machine

Feedback Ratings
$12,500.00 / Set | 1 Set (Min. Order)
Model Number:
ATM-1390-Y
Power(W):
800w
$12,500.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $12,500.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Material:
Acrylic, Glass, Leather, MDF, Metal, Paper, plastic, Plywood, Stone, Wood
Laser Type:
CO2
Cutting Area:
1300*900mm
Cutting Speed:
0-40000mm/min
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:
Laser Cutting
Applicable Industries:
Manufacturing Plant, Construction works , Advertising Company
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Ruida
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Certification:
CE, ISO, GS, SGS, UL, CCC
Warranty:
2 Years
Laser Source Brand:
Ruida
Control System Brand:
Ruida
Key Selling Points:
Multifunctional
Working area:
1300*900mm
Laser tube type:
CO2
Laser tube:
1pc 60w Reci, 1pc 280w Yongli
Laser head:
1 pc only for non-metal, 1pc for metal&non-metal
Laser tube power:
280w, 60w
Max cutting speed:
20m/min
Laser output control:
1-100% software setting
Location precision:
less than 0.01mm
Highest scanning precision:
50-1000DPI
Operating temperature:
0 - 45C

Packaging & Delivery

Selling Units:
Single item
Single package size:
2250X1880X1280 cm
Single gross weight:
500.535 kg
Package Type:
Plywood case
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description
Product Description

This machine is versatile and uses two CO2 laser tubes. One of them is a high-power 280W laser tube that can be used to cut thin metal sheets and non-metallic medium and heavy plates. In addition, there is a small power 60W laser tube, which is mainly used for engraving work. This machine is the best and most economical choice for both metal and non-metal processing.

Parameters
Standard Specifications ATM-1390-Y

Working Area

1300*900mm
Laser tube power


Laser tube power: 280w, 60w

Laser-type

Sealed CO2 laser tube, water-cooling, 10.6um

Max engraving speed

0-40,000mm/min
Max cutting speed

20m/min

Laser output control

1-100% software setting

Location precision

less than 0.01mm
Location precision

20,000mm/min

Highest scanning precision
50-1000DPI

Operating temperature

0 - 45C

Operating humidity

5- 95% non-condensing

Minimum shaping character:

English 1x1 mm

Driving system

High-precision 3-phase Stepper Motor
Cooling mode

Freon-based chiller and water flow sensor

Auxiliary equipment

Vacuum/Exhaust fan, air-exhaust hose, air-assist pump

Work surface

Iron honeycomb or Aluminium alloy blade

Controlling software

Ruida

Compatible software

TAJIMA, CorelDraw, AutoCAD, Photoshop, ...and more

File formats supported

JPG, BMP, PLT, DST, DXF, AI

Color separation

Uses color property to set function, speed, and laser power

Detailed Images

Laser tube


This machine is versatile and uses two CO2 laser tubes. One of them is a high-power 280W laser tube that can be used to cut thin metal sheets and non-metallic medium and heavy plates. In addition, there is a small power 60W laser tube, which is mainly used for engraving work. This machine is the best and most economical choice for both metal and non-metal processing.
The laser output is stable. The discharge tube is catalyst coated,the working life is much increased. Compared to similar product, the tube body length is shorter, the laser beam mode is better, the cutting speed is higher.
1. Stability: the discharge glass tube body is imported from Germany. The laser beam mode is up to TEM00. The power is table. It is competitive for industrial application.
2. Power: The power is 30% higher than other laser tube with same length.
3. Long Life: the catalyst coating on discharge tube with unique electrode processing makes the laser out put is more stable, avoid power weaken during long time working.

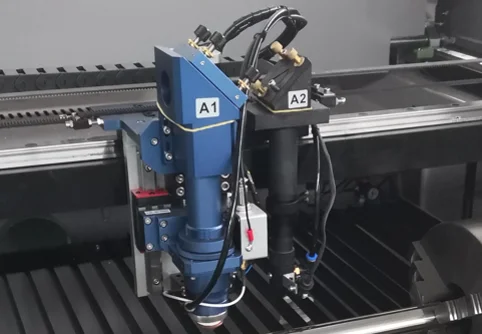

Laser head

Double heads, one is A1 another one is A2.
A1 is a mixed laser cutting head, also known as metal / non-metallic laser cutting head is an important part. This laser head is different from ordinary laser cutting head, both cutting metal materials, but also cutting non-metallic materials. with the capacitor height adjustment system can accurately track the focus of the metal plate surface. Z-axis transmission part, you can move up and down, accurate tracking of the focus position.
A2 is for non-metal engraving, it match with a 60w small laser tube, it is mainly to do the engraving work.

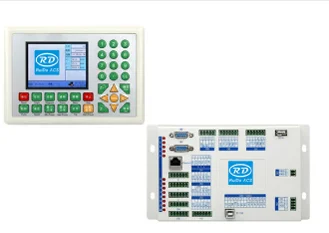

Easy to Use Ruida control system

Outline Specification Program
Product Introduction: Metal and non-metal laser cutting system is based on the RDC6332Mmotion controller. Employed with thin metal plate and non-metal laser cutting techniques, this control system is suitable for non-metal laser cutting and metal laser cutting.
Functions: System encryption and parameters storage on board, file storage capacity is up to 256M.
Customized boot screen, controller kernel program upgrade remotely2-way digital/analog laser control interface
Dedicated RF laser control interface
At most 4-axis stepper/servo motor open/closed loop controlSoft/ hard limit coordinates protection for optional
Linear, circular arc and B Spline interpolation
Flexible dedicated LFS interface, supporting many manufactory's LFS system
Support various metal cutting technology control

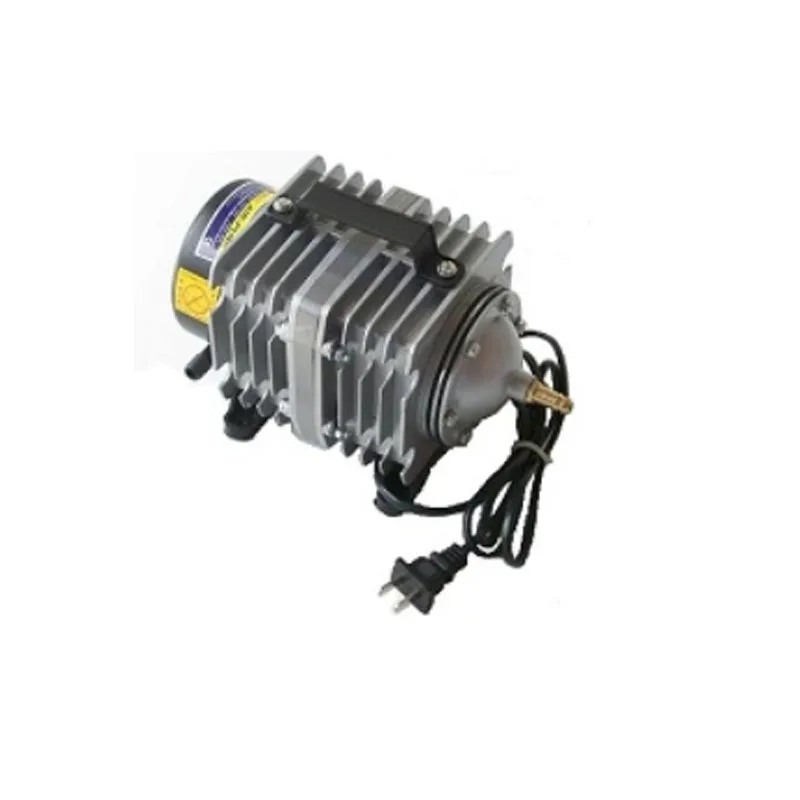

Air Pump

The air pump is used for three basic reasons. The primary reason is the push fumes away from the laser's focal lens. This protects the lens from contaminants which could destroy the lens. The second function of the air pump is to push air into the material's kerf as created by the laser beam. Air that is applied to the kerf will remove debris/fumes and allow the laser light to penitrate deeper through the material. The third reason is that the air will help to cool the material. If the laser cut/engraved material stays hot, then it could warp or shrink. This air pump is a diaphram style which does not require oil. Oil or water in the air line could be projected directly onto the focal lens. This air pump has a higher air flow rate and is quieter than other piston-stroke designs..

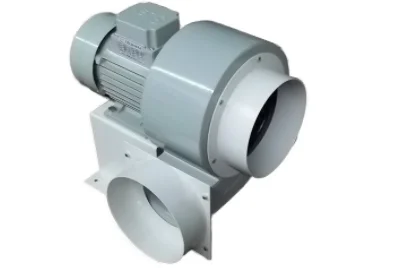

Blower / Fan / Vacuum

The vacuum blower creates an air flow to remove dust and fumes from the work area of the laser machine. It is important to remove the dust and fumes from the laser engraving areas because dust can settle onto the mirrors or lens. Dust on the mirrors or lens will create a focal point of the laser's heat and soon destroy the optics. The fumes need to be removed from the operator work area because they can be irritating and unhealthy. The blower can also be connected to a vaccum box to pull air through the work material.

Vent Air Direction Control

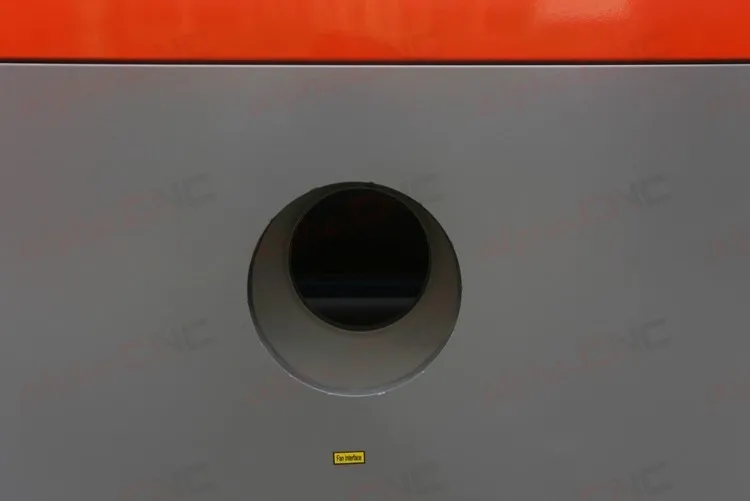

The exhaust air exits the laser machine through a 6 inch duct flange (150mm diameter). The duct flows directly from the bottom of the vacuum table. This allows for much better control of the air flow... getting rid of the unwanted fumes.

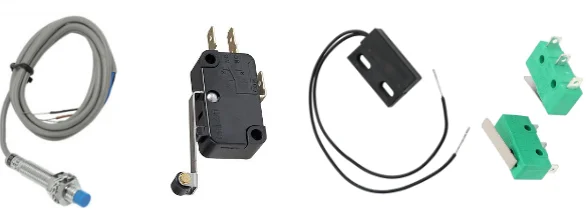

Limit Switches

The limit switches prevent the axis from attempting to go beyond the mechanical limits of the machine. Some machines can be equipped with autofocus sensor which ties into the control board. The sensors for the X and Y axis are non-contact sensors which yeild a more repeatable position over the life of the machine.

Full Cabinet

This laser machine is should NOT be considered as portable for a weekend project. The main frame is a sheet metal cabinet that does not come apart easily. This enables the machine to be much more rigid and utilizes more verticle space for the Z movement, motors, small parts box, and the integrated vacuum table.

Castor Wheels

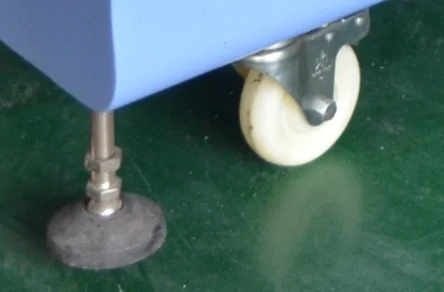

The various models of laser machines can weigh from 300 to more than 1000 pounds. Every machine is equipped with castor wheels to make it easier to move it around the workshop or office. While the castor wheels are great for moving the laser machine around the building, the laser machine is also equipped with leveling pads. The leveling pads should be used for long term stabilization of the laser machine.

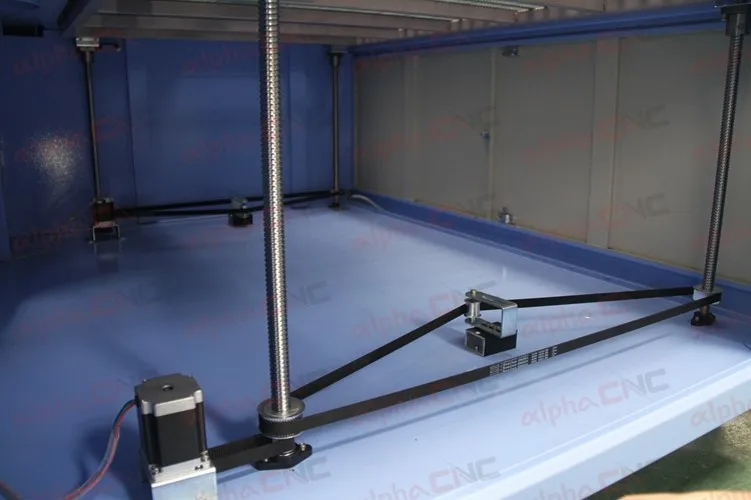

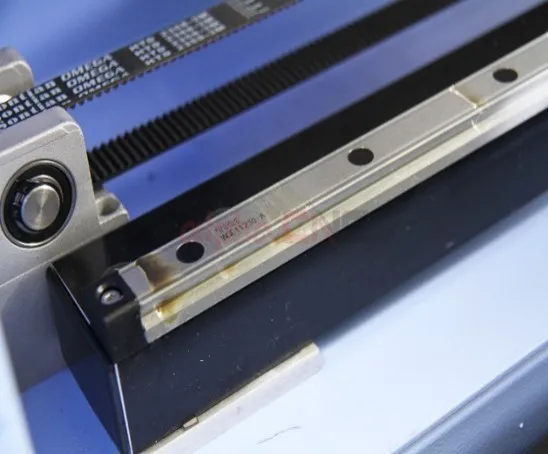

Transmission system

The guide liner is Taiwan Hiwin square rail, which is durable, after long time use, it will still have high precision. The belt is Shanghai Fulong brand, it is durable and hard deformed.

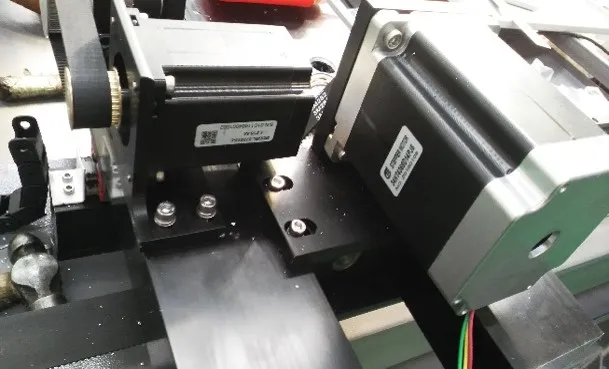

Big stepper motor

The motor is big, it can make the machine work at fast speed.

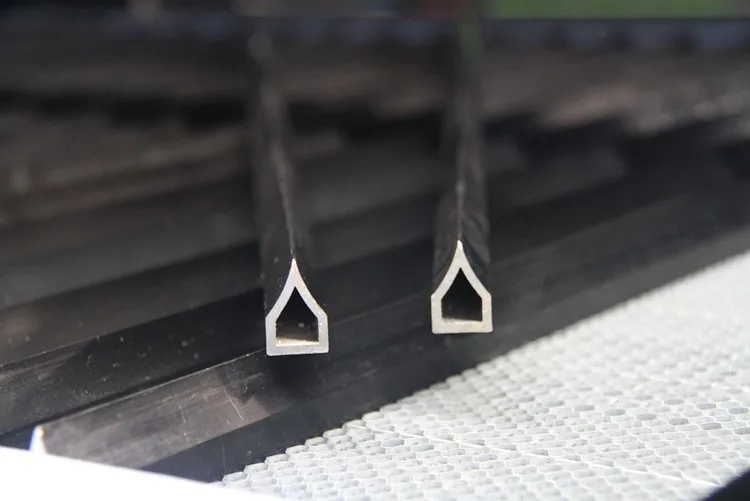

Table

Alpha supplies blade and honeycomb table for your choice, you can choose according to your requirement.

Reflective lens

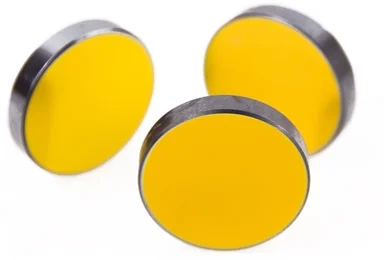

The imported silicon reflective lens for the substrate silicon, it has a good optical heat, the surface of the silicon coated with a reflective film, can greatly improve its reflectivity, about 98-99%, almost to avoid the reflection caused by the loss of light.

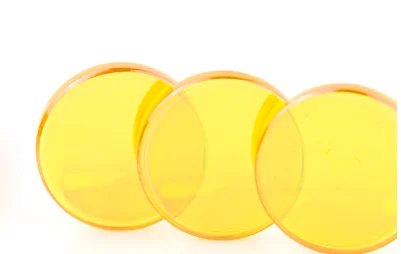

Focus Lens

This section imports of zinc selenide focusing lens of excellent quality, the material selected from the best US imported substrate, edge polishing, high transmittance, a full set of US optical cold processing technology, imports of vacuum coating machine. Strengthen the coating process, durable and easy to stripping, After focusing, spot fine, cutting and carving effect is very good.

The water chiller

280w machine comes with a CW6000AI water chiller to coolant the laser tube. The coolant effect will be very good.

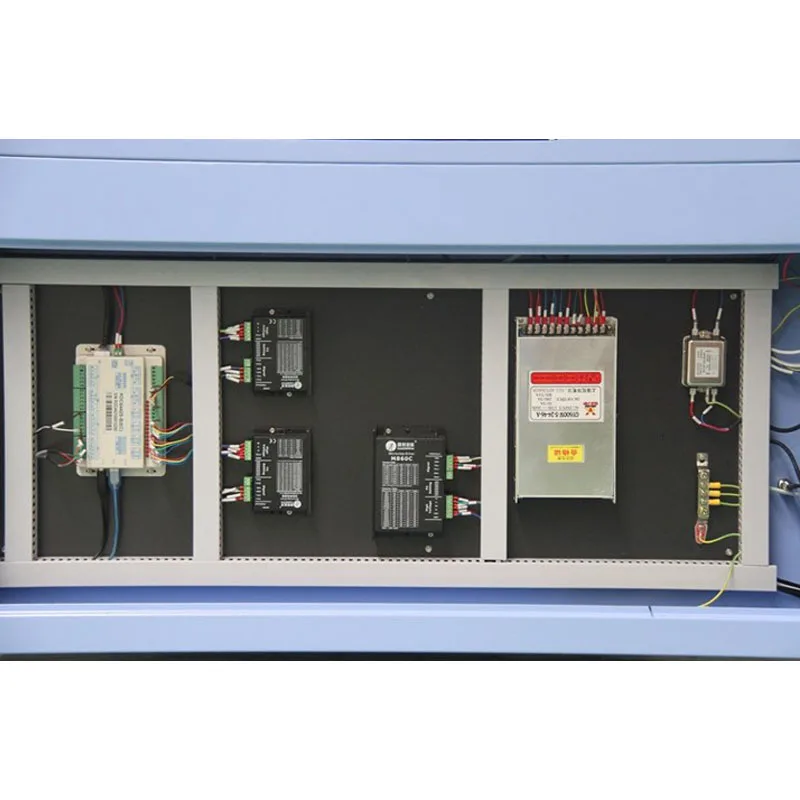

The control cabinet

The control cabinet is clean and neat, all wiring is tagged so that when service is required, the customer can easily navigate the cabinet.

Option Parts

Automatic up-down table

The High precision ball screw up-down table, smooth and quiet. It will allow to process the thick material. The automatic up-down table usually comes with the rotary axis.

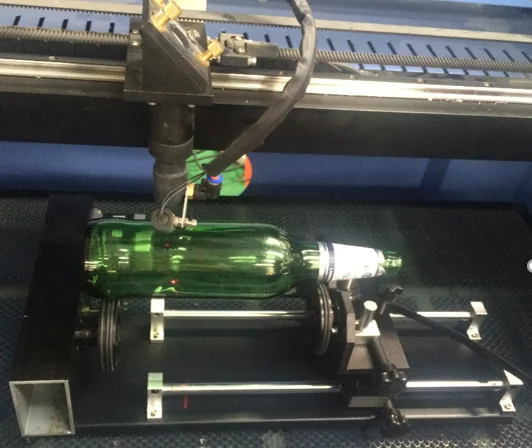

Rotary axis

The rotary axis is for engraving or cutting the cylindrical material, such as the glass bottle, the gourds and other crafts.
The rotary axis using need together with the automatic up-down table.
The standard rotary axis diameter is 80mm, we have 100mm for option.

Sample
Our Certificates
Packing & Delivery
Packaging
Size
2250 (L) * 1880 (W) * 1280(H)
Weight
500KG



Packaging Details
The normal package is plywood box, or packed according to customers special request.
