All Terrains 4WD 500watt Motor Electric Fat Tire Off-road Hunting Quad

  • 1-4 Units
    $6,999.00
  • >=5 Units
    $4,999.00
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Wattage:
351 - 500w
Voltage:
48V
Power Supply:
Lithium Battery
Wheel Size:
26"
Motor:
Brushless, 48v 500watt mid drive motor
Certification:
None
Frame Material:
Aluminum Alloy
Foldable:
No
Max Speed:
<30km/h
Range per Power:
31 - 60 km
Place of Origin:
Henan, China
Brand Name:
TrikExplor
Model Number:
F426E
Max. load:
150 kg
Rider height:
165-200 cm
Tires:
Innova 26x4.8"
Front brakes:
Shimano BR-M447 hydraulic disc brakes
Brakes:
Avid BB7 mountain mechanical disc brakes
Shifter:
NX 11-speed
Cassette:
NX PG-1130 11-speed 11-42T
Suspension:
DNM AOY-36RC air shock
Battery:
48v 14.5Ah lithium battery

Packaging & Delivery

Selling Units:
Single item
Single package size:
185X95X67 cm
Single gross weight:
95.0 kg
Package Type:
Wooden case
Lead Time :
Quantity(Unit) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

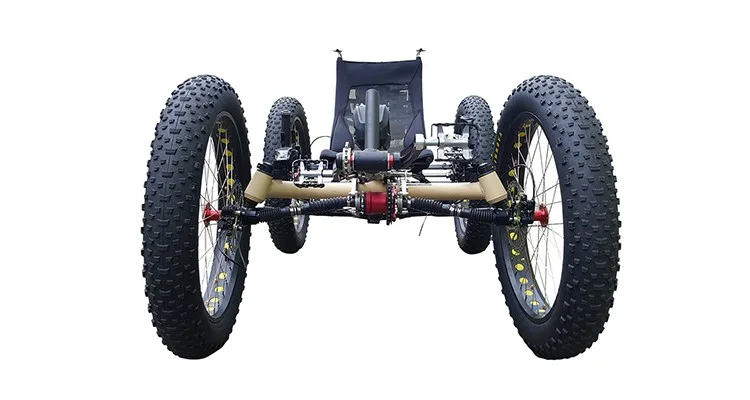

4WD Off-road Quad - F426E

The first 4WD recumbent quad in the world, is specially designed for off-road. It combines durability, reliability and specialist features for conquering all challenging terrains. Sand, gravel, riverbeds, mud, snow, rocks; if you want, it will take you anywhere.

Our quad at SPEZI 2018

Detailed Images

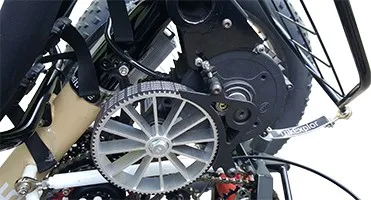

Powerful 48v 500watt Mid Drive Motor

Selection Between 2WD and 4WD

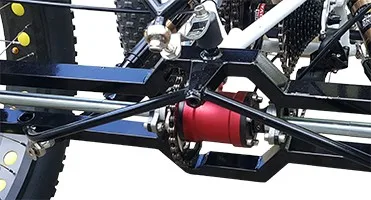

TrikExplor Designed Divider

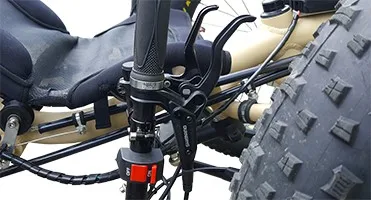

Coordinated and Sub Control Brake Levers

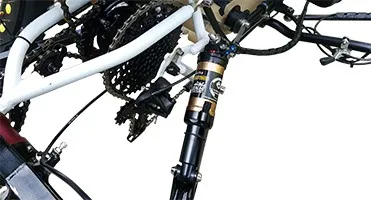

DNM AOY-36RC Air Shock

18T Trail Bike Crankset

Product Specs
Technical Data
Components
Overall width
98 cm
Frame
Aluminum 6061 T6
Overall height
95 cm
Seat
TrikExplor Ergo-mesh seat
Overall length
180-200 cm
Tires
Innova 26x4.8"
Track width
87 cm
Front brakes
Shimano BR-M447 hydraulic disc brake
Wheel base
110 cm
Rear brakes
Avid BB7 mountain mechanical disc brake
Ground clearance
26 cm
Brake levers
Shimano BR-M447 front / Avid FR-5 rear
Bottom seat height
50 cm
Shifter
SRAM NX 11-speed
Seat width
37 cm
Rear derailleur
SRAM NX 11-speed
Seat depth
25 cm
Crankset
18T
Seat angle
40°
Cassette
SRAM NX PG-1130 11-speed 11-42T
Turning circle
4.6 m
Chain
Miche 11-speed / Shimano CN-HG51 8-speed
Approach angle
58°
Suspension
DNM AOY-36RC air shock
Departure angle
90°
Motor
48v 500w mid drive motor
Weight
51 kg
Battery
48v 14.5Ah lithium battery with Panasonic cells
Wheel size
26"

Max. load
150 kg


Rider height
165-200 cm
FAQ

Q: Does it have enough torque to go up hills?
A: The quad is equipped 18T chainring and 11-42T sprockets The lowest gear ratio is 0.428 (18 : 42). So it can create a very large torque. With the assist of electric motor, the quad goes up hills pretty easily.


Q: Does it come with both throttle and pedal assist?
A: It only comes with the throttle.


Q: How fast would the quad be able to go on flat pavement?

A: The max. speed with full throttle is 25 kph and the max. speed with pedal power is 15 kph.


Q: Can I select between 2WD and 4WD?

Yes, our 4 wheel drive system allows the rider to manual shift from 2WD to 4WD.


Q: What accessories do you supply?

A: We supply charger, head lights and tail lights. They are free accessories.


Q: What colors are available?
A: Our available colors are blue, red, green, white and black.


Q: I am 190 cm tall and weight 120 kg. Is the trike suitable for me?

A: Yes. Our trike is suitable for 165 to 200 cm height and the max. load is 150 kg.


Q: How is the quad shipped?
A: Usually the quad is shipped by sea. It comes 90% assembled. You only need to mount the seat and two rear wheels.

How To Buy

Consumer:

In Europe, you can buy it from our dealers in Germany, Netherlands, France and Norway.

In other areas, you can buy it directly from us.

Payment: Wire Transfer, Western Union, Credit Card, PayPal.

Shipment: By FedEx, TNT or DHL.


Dealer:

Because of the success of our products in Europe, we are now looking for new dealers all over the world.


If you have bicycle store, online shop or do bicycle related industries, we are welcome you to be our dealer.


As the innovation leader in this filed, our design concept is unique in the market and we have the most extensive product lines. What's more, we are continuously developing new products.



Pls contact us now to learn how attractive policy we offer you.

Company Introduction

TrikExplor has been producing recumbent cycles in China since 2003, creating a Chinese top recumbent brand.

We are deeply committed to manufacturing superior quality recumbent cycles in a constant bid to offer the ultimate recumbent experience.

We presently display nearly ten different models of recumbent trikes and quads. They are suitable for different terrains and different purposes, including traveling, racing, off-road, city and commuting.
