Aluminum 3d cutting cnc machine 1212 rack transmission cnc router machine

  • 1-2 Sets
    $4,150.00
  • >=3 Sets
    $3,800.00
Model Number:
AKM1212
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Brand Name:
AccTek
Voltage:
220v/380v, 50hz/60hz
Dimension(L*W*H):
1960*1760*1800mm
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service
Product name:
Aluminum 3d cutting cnc machine 1212
Working area:
1200x1200mm
Spindle:
Air Cooling Spindle
Control system:
DSP Control System
Transmission:
XY axis Gear Rack, Z axis Taiwan TBI ball screw
Table:
Vacuum + T-slot
Driving system:
Leadshine easy servo motor and drivers
Guide rail:
Taiwan Hiwin Square Guide Rail
Inverter:
Delta Inverter
Software:
Artcam
Weight:
550kg

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
10.0 kg
Package Type:
Standard marine export plywood case (cnc router)
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Video Description

Aluminum 3d cutting cnc machine 1212 rack transmission cnc router machine



Product Description

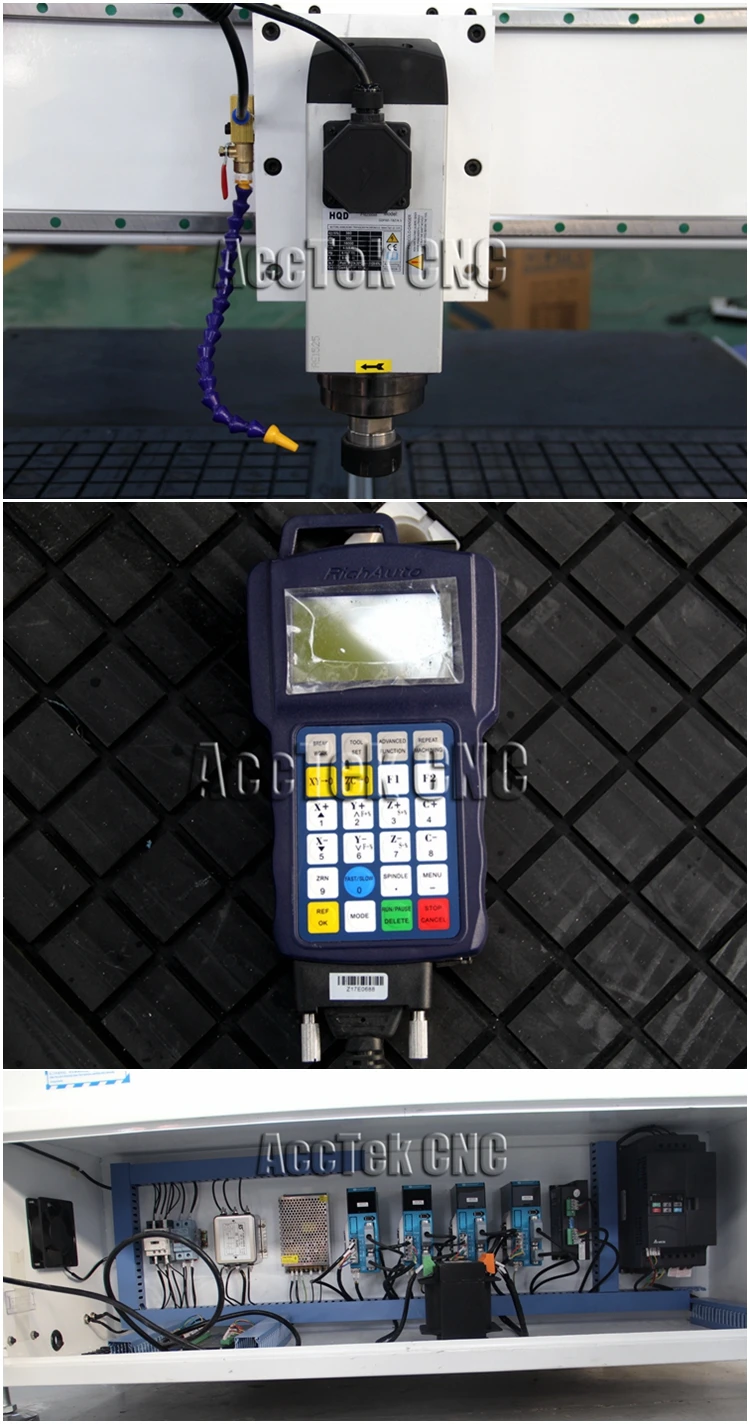

 - Mainly configurations

 #Working area: 1200*1200*200mm
 #Air cooling spindle
 #DSP controller
 #Leadshine easy servo motors and drivers
 #Transmission: XY by gear, Z by Taiwan TBI ball screw
 #Taiwan Hiwin linear square 20mm rail guide
 #Vacuum & T-slot table
 #Taiwan Delta inverter
 #Manual oiling system
 #Computer cabinet
 #Tool sensor


- Features of cnc router

1. Thicker square tube bed makes the operation more stable and accuracy.

2. Our machines adopt the vacuum or T-slot dual-use table, you can use the clips to fix the small-scale materials, which can save the vacuum pump electricity, and you can adopt the vacuum adsorption to fix large-scale material.so the processing is convenient, simple and efficient.

3. High quality Taiwan imported Linear guide has much longer life 10 times of life-time than round guide; It is stable and hard to distort.

4. Professional human control system shows advantages as continuing carving when occurring breakpoint ,off power, processing time can be forecast, back to the origin, and automatic correction function.

5. Double motor for Y axis make the cnc machine work with more strength.

Technic Parameters



Working Area1200*1200*200mm
Traveling Positioning Accuracy±0.03/300mm
Repositioning Accuracy±0.03mm
TableVacuum & T-slot Table
FrameWelded Structure
X, Y axishelical rack 1.25M, Hiwin 20# Rail Linear Bearing
Z axisHiwin Rail 20# Linear Bearing & Taiwan TBI Ball Screw
Max. Power Consumption(Without Spindle)  2.5kw~3Kw
Max. Rapid Travel Rate33000mm/min
Max. Working Speed25000mm/min
Spindle PowerAir cooling spindle
Spindle Speed0-18000RPM
Drive MotorsLeadshine easy servo motor
Working VoltageAC380V/50/60Hz,3PH (Option: 220V)
Command LanguageG Code
Operating SystemDSP Control System
Computer InterfaceUSB
Flash Memory128M(U Disk)
X,Y Resolution<0.01mm
Software CompatibilityType3/UcancameV9/Artcam Software
Running Environment  Temperature0 - 45 Centigrade
Relative Humidity30% - 75%
Sample

- Application materials

1) Mould: wood,wax, wood, gypsum,foams,wax.
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Payment & Delivery

- About the delivery

Its need about 12-15 days to produce the machine after get your deposit.

all thing is tested well,then we arrange the delivery.



- About payment

We accept Trade Assurance on Alibaba, or T/T , you can pay 30% in advance, 70% before delivery.

The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.

After you agree, please finish the balance.Finally.we arrange the delivery.

Services & Feedback



- Guarantee

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

- After sales services

1.Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.

2.Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc.

3.Our technicians could speak English, if you need any technical support in the future, they could help you online.
