Overview
Quick Details
D/C:
-
Package:
-
Model Number:
RB-01C102
Type:
Drive IC
Brand Name:
ALSRobot
Place of Origin:
China
Product name:
Arduino Mini Controller ATMEGA32U4 Arduino Steven Controller
Item No:
RB-01C102
Microcontroller:
ATMEGA32U4
Working Voltage:
DC + 5V
Digital Interface:
D2, D3, D10
Analog Interface:
A1
Size:
30mm x 50mm
Weight:
8g

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X10 cm
Single gross weight:
0.5 KG
Package Type:
antistatic plastic bag standard box
Lead Time :
Quantity(Piece) 1 - 1000 >1000
Est. Time(day) 5 To be negotiated

Description

Builded with master chip ATMEGA32U4, the mini controller is easy to use and very powerful. It is in a small volume with a digital IO, an analog IO and an I2C interface, which is very suitable for more stringent requirements to control the volume of the occasion. By supplying an external power(7-15V), the digital port can drive servos work. There are four M3 mounting holes onboard, using immersion gold process, flexible in using and elegant in appearance.

Specifications

  •  Product Name: Steven Controller
  •  Item No: RB-01C102
  •  Microcontroller: ATMEGA32U4 (processing speed of up to 16MIPS)
  •  Working Voltage: DC + 5V (USB direct power supply)
  •  The external power supply voltage: Recommended DC + 7V ~ + 15V
  •  Output voltage: DC + 5V
  •  Digital Interface: D2, D3, D10 (D2, D3 for I2C)
  •  Analog Interface: A1
  •  Size: 30mm x 50mm
  •  Weight: 8g
  •  The pin definition:

       D2: digital pin 2
       D3: digital pin 3
       10: digital pin 10
       1: Analog Pin 1
       - / G: Power ground
       + / V:. power positive

Features:

  •  I2C interface connects directly LED bar in I2C pins (GPIO 2 pick SDA, GPIO 3 pick SCL)
  •  Digital IO interface directly connected to the 360-degree steering
  •  Analog interface A1 is directly connected to the ultrasonic sensor URF02

pictures

RB-01C102-Steven (2)

Arduino Mini Controller ATMEGA32U4 Arduino Steven Controller

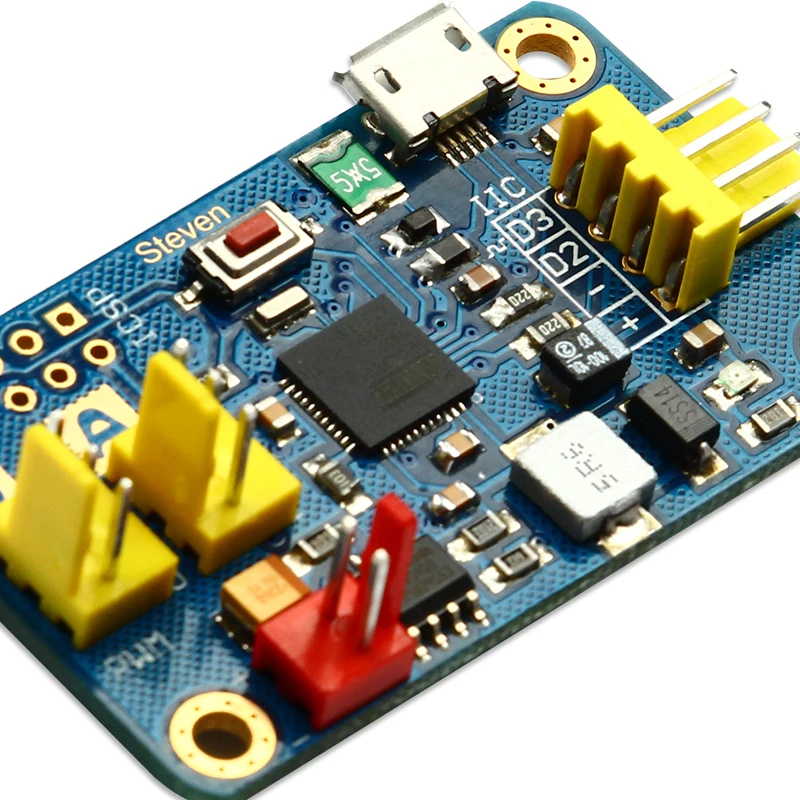

RB-01C102-Steven (1)



Arduino Mini Controller ATMEGA32U4 Arduino Steven Controller-Interface

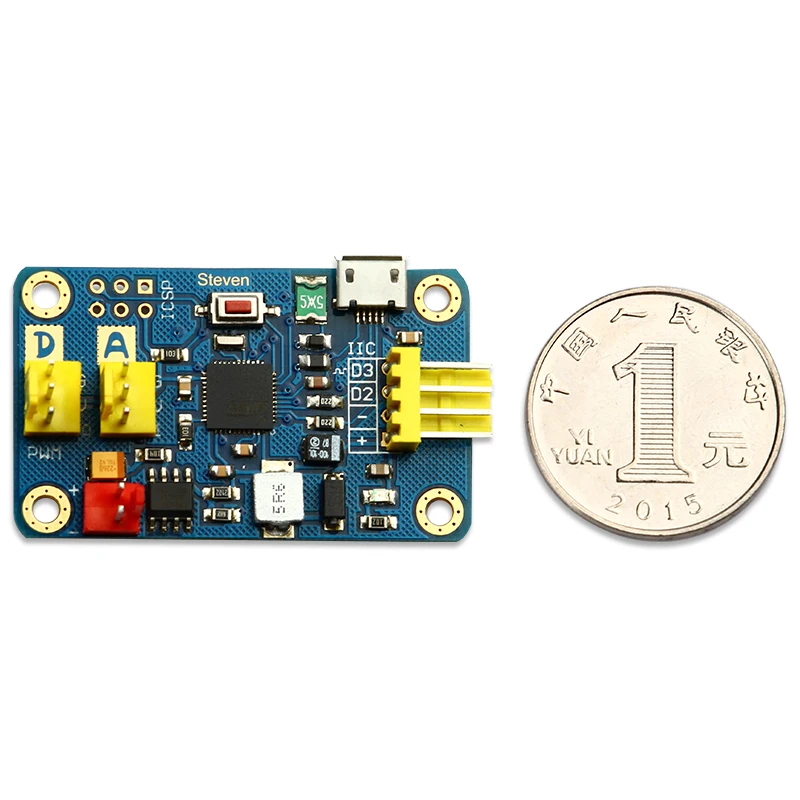

 RB-01C102-Steven (3)

Arduino Mini Controller ATMEGA32U4 Arduino Steven Controller-small size
