Automatic CNC Band Sawmill Machine For Timber cutting

$4,100.00 / Set | 1 Set (Min. Order)
Type:
Band Saw Table Panel Saw Rip Saw Frame Saw
Model Number:
MJ3210
$4,100.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Woodworking sawmill
Condition:
New
Use:
Woodworking
Style:
Vertical
Place of Origin:
Hebei, China
Brand Name:
YSDMILL
Usage:
Log timber lumber cutting
Voltage:
380V/50Hz/3Phase
Power(W):
22kw
Dimension(L*W*H):
1260*1000*2300mm
Weight:
1280kg
Certification:
ISO/CE/SGS
Warranty:
12 Months
After-sales Service Provided:
Field installation, commissioning and training
Application:
Woodworking Sawmill, Round/Square log cutting saw
Name:
Vertical bandsaw
Saw wheel diameter:
40inch(1000mm)
Max log cutting diameter:
800mm
Saw wheel rpm:
750r/min
Motor Power:
22KW(30HP)
Saw wheel elevate:
Manual/Automatic
Saw blade guide elevate:
Manual/Automatic
Saw blade specification:
(5inch)125*1.15*6900mm
Optional table size(mm):
700*900mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
40X40X40 cm
Single gross weight:
15.0 kg
Package Type:
Plastic film for full container, and steel holder package for LCL. Or as customer requirement.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 3 To be negotiated
Video Description
Product Description

Product Application

The 40inch bandsaw wheel mainly use for max 800mm diameter log cutting, the fram is cast iron, the body and base connect by high strength screw, the saw wheel axis is more stronger then domestic model, we provide optional saw wheel and saw blade guide automatic elevate. The 5inch saw blade thin kerf and low price can save more cost for you, all our machine can customer .

Model
YMJ3210
YMJ3210Z(Automatic)
Saw wheel diameter
1000mm(40inch)
1000mm(40inch)
Saw wheel rpm
750r/min
750r/min
Max log cutting diameter
800mm
800mm
Motor power
22kw(30HP)
22kw(30HP)
Saw wheel elevate
Manual
Automatic
Saw blade guide elevate
Manual
Automatic
Saw blade spec
125*1.15*6900mm
125*1.15*6900mm
Working
Worktable / Log carriage
Worktable / Log carriage
Overall size
1260*1000*2300mm
1260*1000*2300mm
Weight
1280kg
1320kg

Worktable model.

700*900MM Table size, table with manual measurement for easy setting cutting size, we also provide automatic log feeder for your option.

Customer made log carriage.

We provide customer made bandsaw carriage accord to your log specification.

Our Company
YSDMILL Machinery Manufacturing Co. Ltd. is located in Xingtai City, Hebei province China. Since it has been established nearly three decades, our company has become a professional woodworking machinery manufacturer that integrated the Research&Development, production, sales and after-sales service as one. Meanwhile, YSDMILL has been a well known sawmill machinery manufacture at home and abroad.

With the professional R&D team and continuous innovative spirit, we come out in front in the woodworking machinery industry. According to the different requirements of customers in various districts, we confirm the direction of researching and development and upgrading the product. We can provide custom-made wood processing line solution for customers accordance with customs' wood processing needs, which can achieve personal customization, greatly improve the customer's processing, save labor and raw material costs, and improve the efficiency of wood processing..

Detailed Images

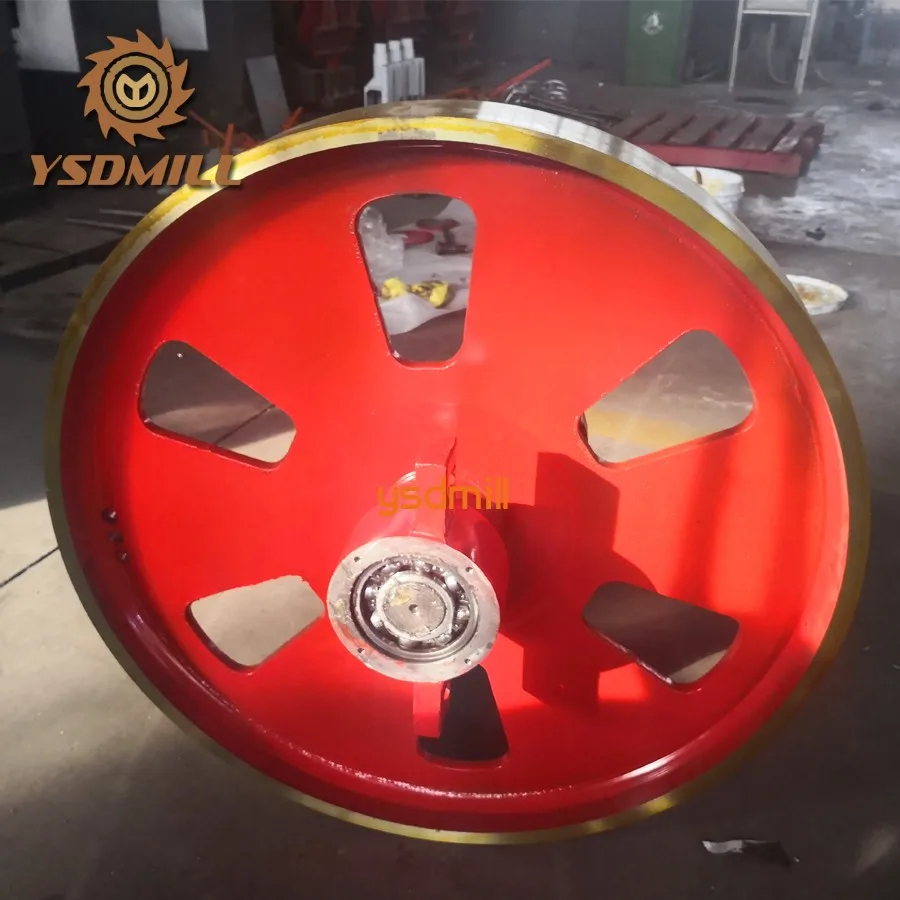

Saw wheel

Name: Steel saw wheel

Brand: YSDMILL

Original: CHINA

Steel saw wheel for long working life , saw wheel surface with slushing oil.

Saw wheels bearing

Name: Saw wheel bearing
Brand: NTN
Original: JAPAN
8 units NTN bearing for up and down saw wheel for smooth cutting.

Machine Parts

Name: Down saw wheel holder
Brand: YSDMILL
Original: CHINA
New type saw wheel holder for easy saw wheel adjust and maintenance.

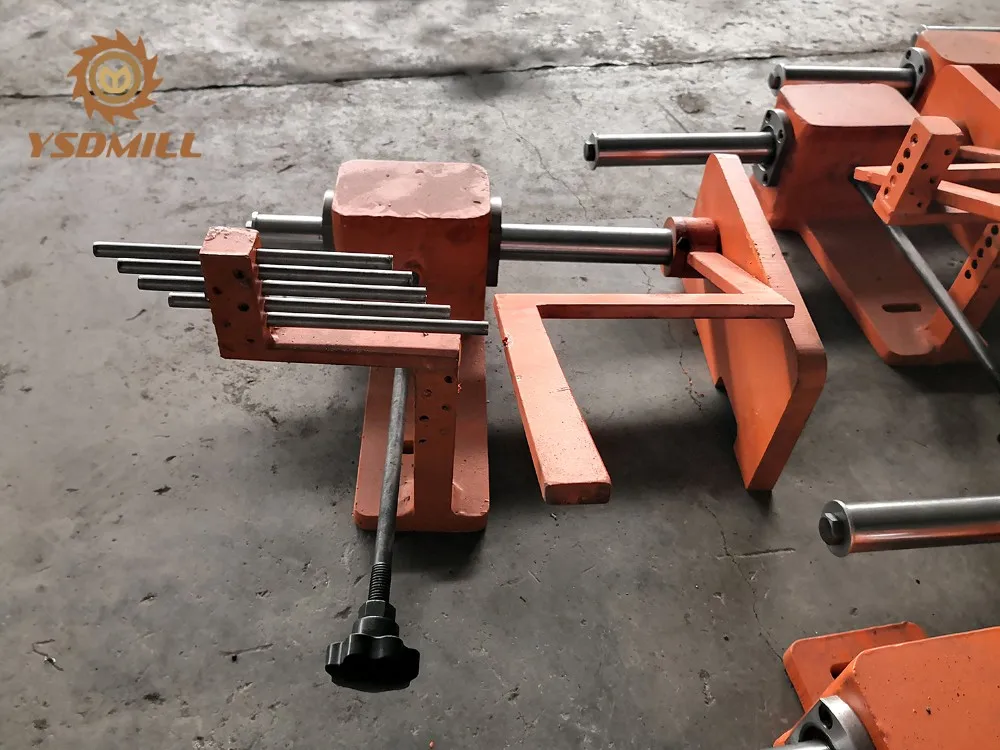

Manual measurement tool

Name: Measurement tool
Brand: YSDMILL
Original: CHINA
Manual measurement tool for cutting thickness setting,easy operation.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1260*1000*2300mm
Weight
1280kg



Packaging Details
The normal package is plastic film(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
1260*1000*2300mm
Weight
1280kg



Packaging Details
The normal package is plastic film(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
