Automatic brake truck 20000lbs large capacity electric winch

FOB Reference Price:Get Latest Price
US $500-700 / Sets | 1 Set/Sets large capacity electric winch (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
JNDO
Model Number:
JNDO
Power Source:
Electric
Application:
Auto
Capacity:
20000lbs(9072kg)
Name:
large capacity electric winch
Type:
heavy duty electric winch
Color:
Customer Requirement
Motor:
7.3hp/5.5kW,12V;8.16hp/6.0kW,24V
Gross Weight:
53kg without cable
Cable weight:
24kg
Packing Size:
600*380*400mm without cable
Wireless remote:
optional
Warranty:
1 Year
Certification:
CE
SupplyAbility
SupplyAbility:
Set/Sets per Month large capacity electric winch
Packaging & Delivery
Packaging Details
Packaging Details:12v/24v 4x4 electric winch/windlass with DC motor cartons or wooden cases on pallets,and we can also make the packing according to buyers request.
Delivery Detail:5 days after payment.
Port
Qing Dao port,China
Lead Time :
Shipped in 5 days after payment

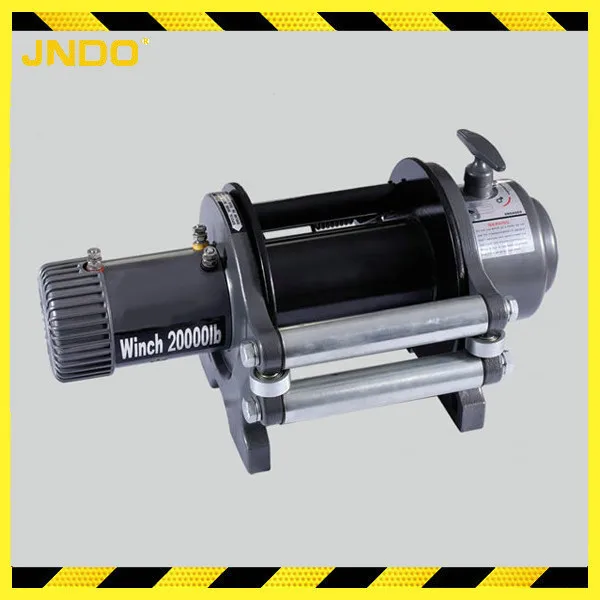

Automatic brake truck 20000lbs large capacity electric winch



Product Description



JN-S20000/JN-S20000T

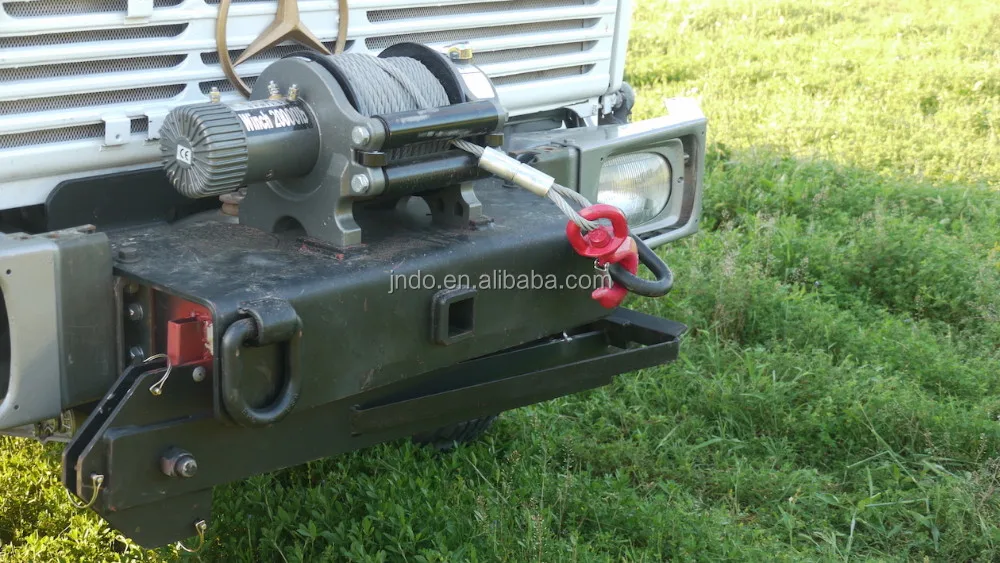

The single line pull of 20000lb off-road vehicle winch is as high as 9.1ton. It can be used

on the heavy vehicle such as the cargo truck. This product is firstly developed by our

company. It was once the tool with largest pulling force. Currently, it is still quite popular

by virtue of its good performance. If you need a product with large pulling force, this

product is sure to meet your requirement.

    The fairlead of the product is integrated with the winch. Therefore, it saves the time for

installation. For the product with big pulling force, the design makes the product safer

and more humanized.



Overall dimensions of  20000lbs large capacity electric winch



Rated Rope tension20000LBSVoltageDC 12V/24V
ColorCUSTOMIZEDApplicationAuto
Motor

7.3hp/5.5kW,12V

8.16hp/6.0kW,24V

CertificationCE
Control

Wired remote switch,

wireless remote

Mounting bolt pattern

254mm×114.3mm,

254mm×194.3mm

Gear reduction rate

375:1

Drum Size (Dia.×L)Φ99mm×201.5mm
Gear Train3-stage planetary gearFairlead

4-way roller fairlead

Model NumberS20000/S20000TPacking Size

Winch:600×380×400mm

Cable:460×460×150mm

ClutchSliding ring gearPortNingbo/QingDao



Standard Configuration of 20000lbs large capacity electric winch
1. Control box of electric winch
2. Wired remote switch: with 1.83m cable
3. Roller fairlead/Hawse fairlead
4. The series wound motor of 20000lb  20000lbs heavy duty electric winch is fully sealed
Therefore, the motor has good water resistance
5. Clutch: sliding ring gear
6. Wire rope: Φ13.5mm×30m

7.Certifications of electric winch:CE certification

Optional Accessories of 20000lbs large capacity electric winch
1. Mounting rack
2. Wireless remote control
3. Nylon rope

4. Tree strap

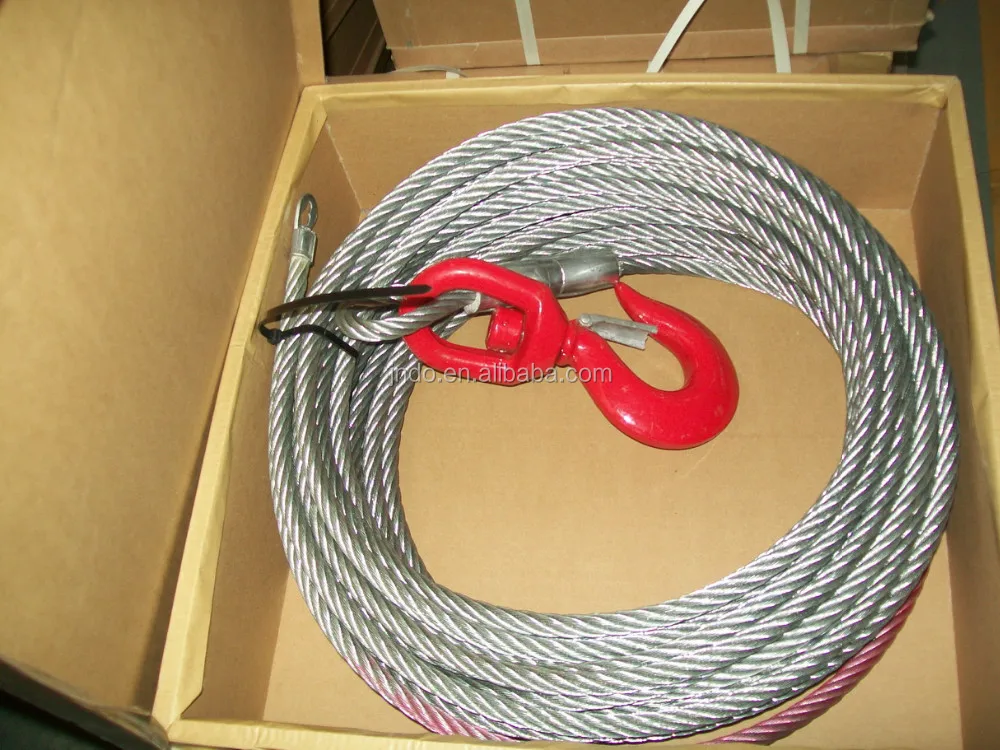

Cable and hook

Packaging & Shipping



Company Information

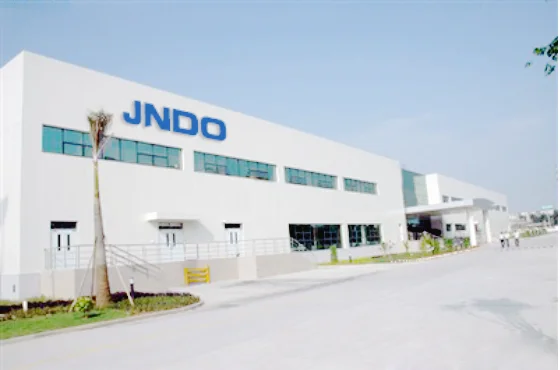

   Shandong JNDO Hoisting Equipment Co., Ltd. is a manufacturer specialized
