Automatic steel button heading machine for precast concrete pole

FOB Reference Price:Get Latest Price
US $30,000-35,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Model Number:
After-sales Service Provided:
Engineers available to service machinery overseas
max clamping force:
Rated capacity:
heading Input voltage:
Max pier head force:
Color of heading machine:
Diameter of bar:
7.1mm,9mm,10.7mm,12.6mmor customized
Automatic steel button heading machine for precast concrete pole
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
The package of Automatic steel button heading machine for precast concrete pole is container
Lead Time :
10 days

  Automatic steel button heading machine for precast concrete pole

Product Description


The components of the Automatic steel button heading machine for precast concrete pole

are imported or domestic famous brand products to make the machine durable. The components are connected by

flexible joints to reduce the oil leak process and greatly reduce the maintenance work amount of machine

maintenance workers. The heading is designed in the form of eccentric rotation and the attrition rate is only 1/4 of

similar products, so the use cost is reduced greatly.

The design of automatic control system is completely new and the adjust is clear (with display device);

the switching is by means of a key to reduce the inconvenient processes of parameters adjustment

and test running by short steel bar, so the efficiency is improved and the material is saved.

The machine has very strong anti-interference ability, with reliable operation, convenient use and excessively low failure rate.

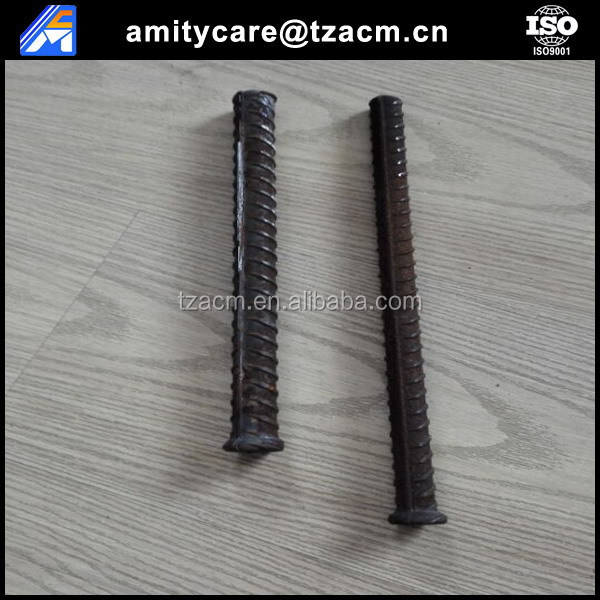

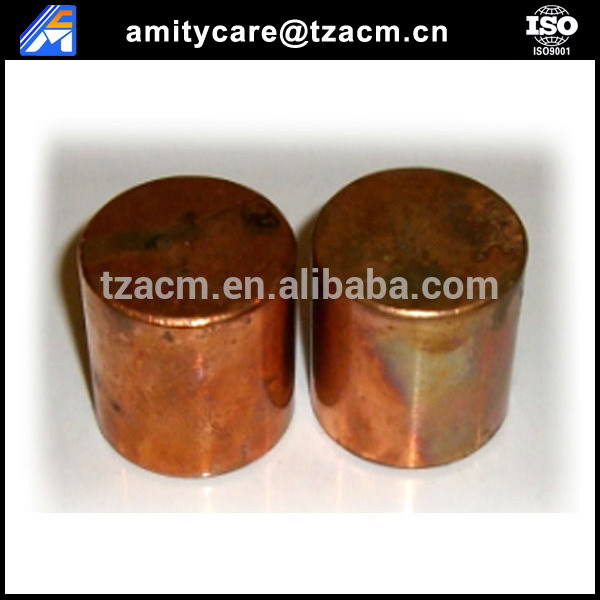

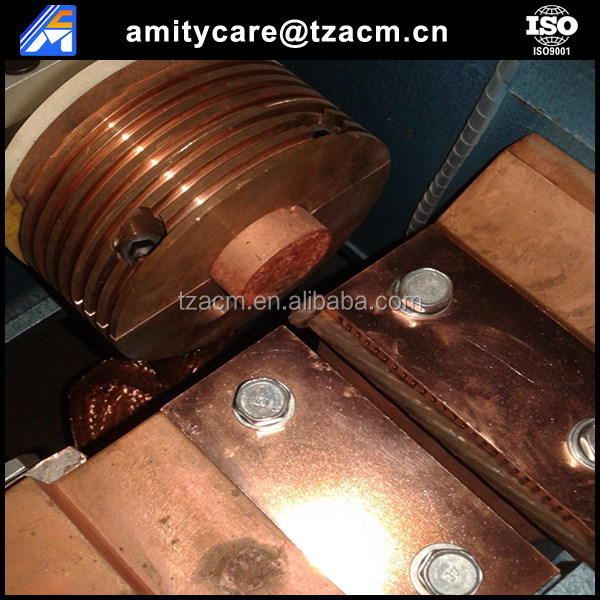

Product Display





Main Technical Index


Rated capacity15KVA
Max.clamping force50T when the air pressure is 7.2kg/cm²
Max.upsetting force16T when the air pressure is 7.2kg/cm²
Diameter of bar Φ7.1mm, Φ9.0mm, Φ10.7mm, Φ12.6mm
Same-specification operation directionleft and right direction
The strength loss of heading reinforcement<5%
Input voltage AC380V±5%, 50 hz, three phase four wire system
Maximum heating current7500A
Air MAX7.2kg/cm²


Company Introduction




Our Service
  1.   Professional after sale service team(machinery and power);
  2.   Onsite installation and guidance;
  3.   A team of well-trained engineers ready to save a lot of problems for customer;
  4.   All follow the customer’s requirement.

FAQ :you want to set up a new factory of concrete pile or pole .pls follow below question



1:How many poles or pile will be produced per day?how many hrs per shift and how many shifts per day?
2:do you have existing land and what size ? Actually, the land size decide the capacitymeet it?
3:Concrete strength,C60(PC) or C80(PHC)?The difference is C80 pole need steam curing by autoclave, higher strength.
4:what diameter of you pile ? what length of your each pile specification ?
5.:What taper ratio of your country pole standard ?same as China 1:75?pls tell me more specification of your poles ?
       such as length ,diameter.The mould size and price is based on it. For piles , pls tell me diameter and length is enough.
6:What is your budget??And how about automation degree?? Full-automatic need more investment.
7:Local market??Do you have done market research?If the local demand is not big, we will recommend more suitable capacity
