BLE nRF52832 Push button iBeacon eddystone Beacon

FOB Reference Price:Get Latest Price
$1.00 - $8.90 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
D15N
Brand Name:
Minew
Place of Origin:
Guangdong, China
Product name:
D15N Push Button Beacon
Chipset:
Nordic nRF52832
Configurable Parameters:
UUID, Major, Minor etc
Transmission Range:
90 meters (max)
Antenna:
50ohm
Transmission Power range:
-30dBm - 4dBm
Battery life:
5 months with default setting
Transmission Circuit:
10.5mA(Max)
Operation Voltage:
1.8-3.6V
Accessories:
Keychain, Neckstring
Product Certification Verified
CE Certified.
FCC Certified.
Supply Ability
Supply Ability:
50000 Piece/Pieces per Day

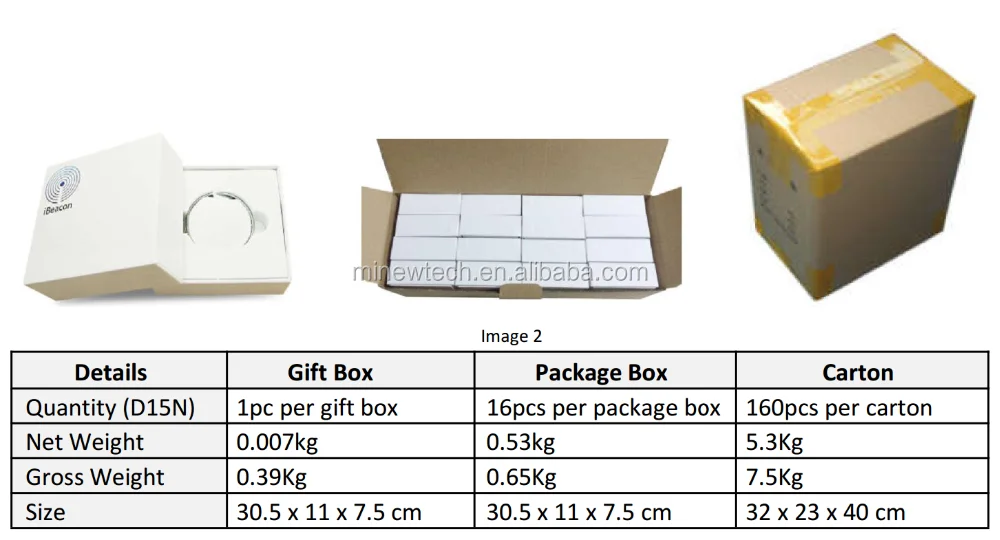

Packaging & Delivery
Packaging Details
Around shape ble advertising ibeacon with push button:
16pcs/box;
160pcs/carton
Port
Shenzhen
Product Description

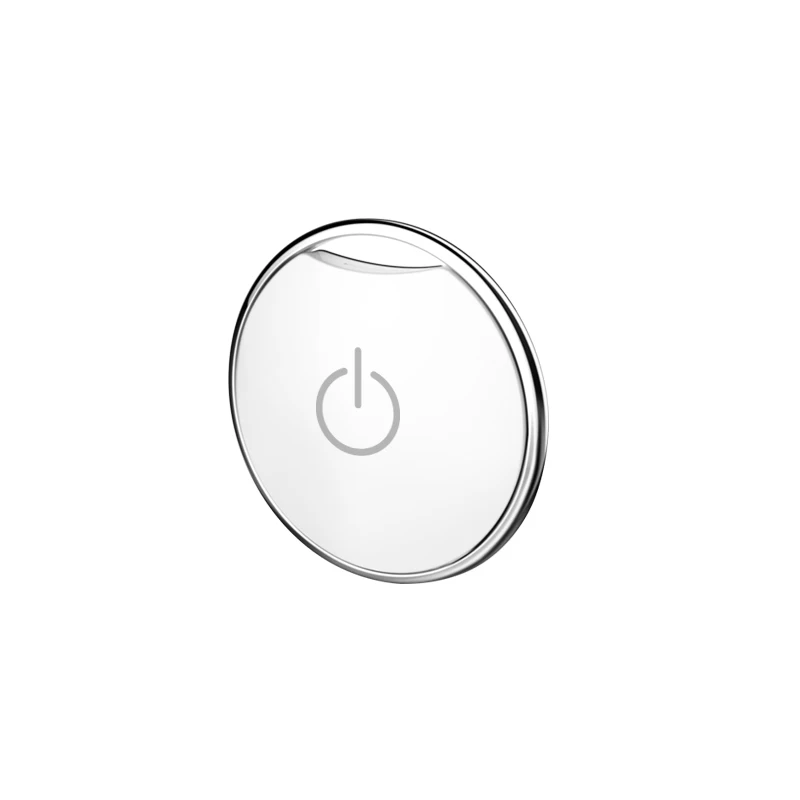

The UFO beacon ble D15N  is a very popular and modern iBeacon with ARM core chipset nRF52832 and leverage BLE 4.0 technology; it has a nice design case, accurate hardware and robust firmware.  Minew Beacons broadcast 2.4GHz radio signals at regular and adjustable intervals. MiniBeacon can be heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps.

Features of D15N Push button Beacon:

1.  Click Button, advertises standard iBeacon data;
2.  2 x Click Button, advertises standard Eddystone-URL data;
3.  3 x Click Button, advertises standard Eddystone-UID data;

Product details:


1. Easy to switch back and forth between iBeacon & Eddystone by pressing;
2.  Suitable for various application after further development;

Configuration APP: BeaconSET+


Parameters:

Characteristic
Item
Default Setting
0×FFF1
UUID
E2C56DB5-DFFB-B060-D0F5A71096E0( Proximity)
0×FFF2
Major
0
0×FFF3
Minor
0
0×FFF4
Measured Power
-59 ( 0*C5)
0×FFF5
Transmission Power
3(-12dBm)
0×FFF6
Change Password
minew123( must be 8 characters)
0×FFF7
Broadcasting Interval
9(900ms)
0×FFF8
Serial ID
Random (unique serial ID for beacon)
0×FFF9
iBeacon Name
MiniBeacon_(the maximum 12 characters)
0×FFFE
Connection Mode
0 ( connectable, configuration mode)
0×FFFF
Soft Reboot
minew123(it is same as the value of change password)
Related Products

i3 Robust Beacon

E7 Waterproof Beacon


E8 Accelerometer sensor

Our Company

Founded in 2007,Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:

1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.
Warmly welcome the OEM and ODM projects.

Certifications

CES Exhinbition Show:


2018 CES Exhibition No of Minew is South Hall 4, Booth No. 35972.

Packing & Delivery

Delivery

1. According to our customers requirements, we are willing to handle shipment for our customers, and the shipment fee is needed in this case. Fast Express like DHL,UPS, TNT, FedEx are all available here.

2. Or if our customers have their own Express account, freight forwarder in China, we are happy to contact their Express people or freight forwarder to pick up products from our factory.

FAQ

Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. Firmwork 3. Demo APP 4. Configuration APP 5. Instructions

Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.

Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
