BS PK05 24VDC Motor Automatic Swing Gate Opener

FOB Reference Price:Get Latest Price
US $100-500 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
5000 Set/Sets per Month
Port:
Shanghai
Overview
Quick Details
Type:
Gate Operators
Place of Origin:
Jiangxi, China (Mainland)
Brand Name:
BISEN
Model Number:
BS-PK05
Item name:
Bisen 24v dc motor swing gate opener(BS-PK05)
Max single-leaf length:
3m
Max single-leaf weight:
300kg
Rod's max travel:
300mm
Motor's power:
24VDC 40W*2
Current:
2A
Environmental temperature:
-20oC~50oC
Rod's running speed:
1.6cm/s
Packaging & Delivery
Packaging Details
Carton or Wooden case
carton size :0.74*0.41*0.175M
Delivery Time
according to your order
Product Description



Features:

Bisen 12v DC Motor Swing Gate Opener(BS-PK05)

Safe: BS-PK Swing Gate opener meets the highest standard in safety.

Reliable:Electro-mechanical automated gate opener is time-tested design.

Convenient: Quick, Safe and Secure Manual Releas-A release key that can be used should the power fail or the backup battery is not charged.





BS-PK05 Control download Manual of install and use(For Control).

1. In case of power failure,release the clutch easily,and operate the gate manually.

2 .Stop acting when gate meets with obstacle.

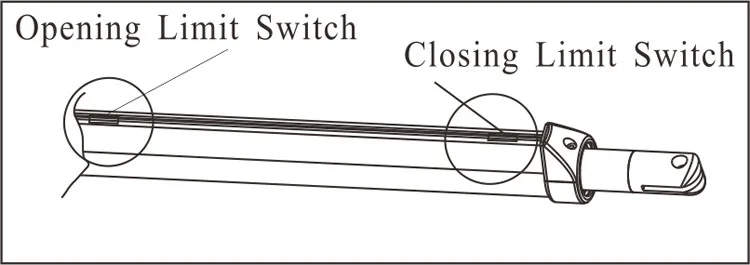

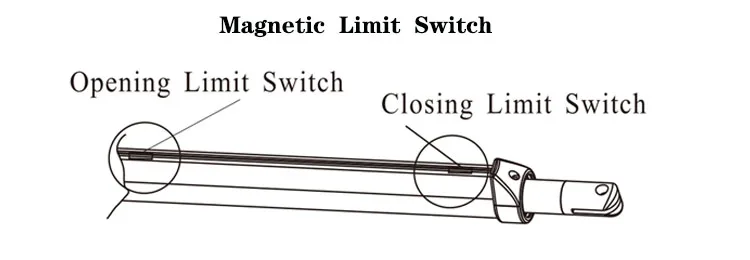

Easy Adjustable Magnetic Limit Switchs:Magnetic limit switches are more reliable than many other design because dirt and other debris do not normally interfere with proper function.
They are easy to adjust and access since they are on the bottom of the exterior arm.
Adjustments are uncomplicated-simply slide to the desired location and tighten the screw.
Once the brackets are bolted into place, the user can also adjust the open and close stopping points.



BS-PK05 Technical  Parameters

BS-PK05

  Manual of install and use

  Manual of install and use(For Control)

Model:BS-PK05
Supply voltage:24VDC
Power of motor:40W
Rotational speed:2200RPM
Rod's running speed:1.6cm/s
Rod's max travel:300mm
Max leaf length:3m x 2
Max single-leaf weight:300KG
Environment temperature:-20℃~+50℃
 Protection class:IP55

       1.In case of power failure,release the clutch easily,and operate the gate manually.
       2.Stop acting when gate meets with obstacle.



Control Box

 Power supply: 220VAC 50Hz
 Transformer:24V 150W
 Accessories max loaded: 24VDC 500mA
 Max load: 2×80W/24VDC
 Environment temperature: -20℃~+55℃
 Protection fuse: 10A
 Running time protection: Adjustable
 Auto closing delay time: Adjustable1 Controlling single or double-leaf
 Force:Adjustable   is optional.
 Protection class: IP552 24VDC back-up battery can be input

Company Information

Bisen Smart Access co., Ltd. was established in 1999. This is the biggest professional manufacturer for automatic access equipment. Bisen has been awarded more than 200 patents in China and Europe.

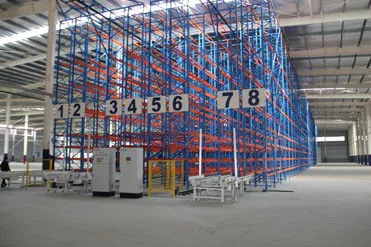

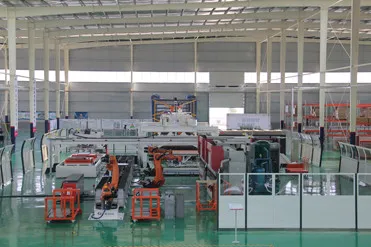

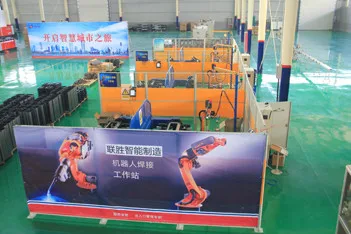

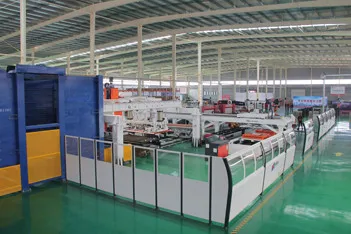

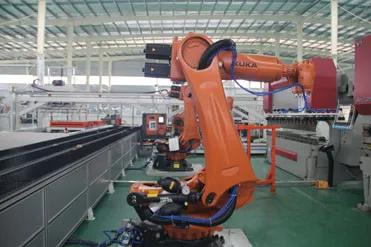

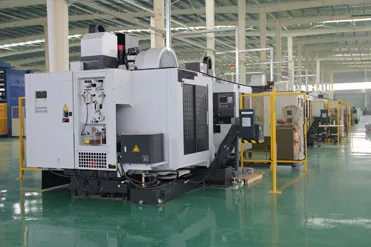

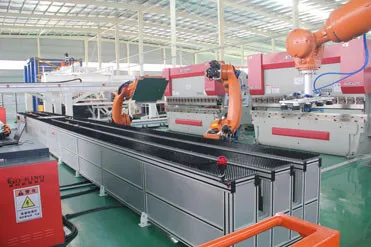

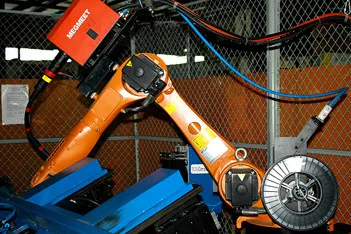

In 2015, Bisen built the new factory and invested in new facilities , Steel plate flexible product line, Welding Robots, Automatic spraying equipment, to improve the quality control and capacity.



BAISHENG GATE & DOOR AUTOMATION CO.,LTD.Located in Nanchang Minying Science & Technology Park, Nanchang city, China. The production area is 40,000 square metres.


We are the biggest Professional manufacturer for Gate and Door Automatic Operators in China. More than 50 experienced engineers are engaged in R & D,and more than 500 employees are working in manufacture and service.


We can provide quality ODM/OEM service for customers in the world.BISEN SMART ACCESS CO.,LTD. was established in 1999, Located in Nanchang Minying Science & Technology Park, Nanchang city, China. The production area is 40,000 square metres.

Our main products:Auto-barrier gate,Garage door opener,Roll up door opener, Swing gate opener, Sliding gate opener, Industrial sectional door opener,Anti-terrorism Road Blocker,Hydraulic Bollard,Pedestrian Gate,Entrance control system etc.

1.Our factory covers more than30,000 square meter .

2.We specialize in Automatic door& gate opener since 1998.

3.Our main products are traffic barrier,garage door opener,swing gate operator,
Sliding gate opener,industrial sectional door operator ,road blocker ,bollard and so on.

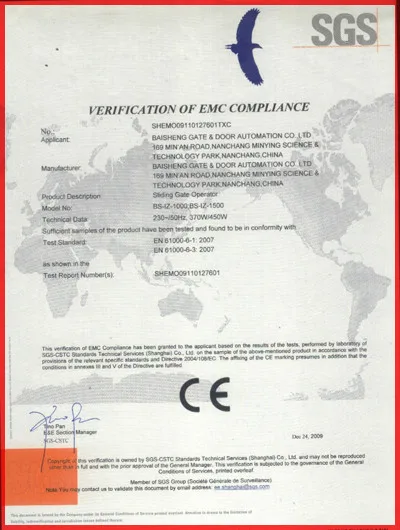

4.The certificate we got: CE,ISO9001:2008
5.We have formed 10 production lines.


6.Exhibition we attend:

a)The U.S. Guardrail Exhibition ,

b)Chinese Commodity Fair in Jordan ,

c)IDA Automatic Door Show ,

d) Italian Building Material Exhibition ,

e) Polish Building Materials Exhibition ,

f) The Canton Fair
7.Our big markets: main customers are from Europe ,the USA,Canada,Russia,Mexico ,middle east ,South Africa etc.
8.ODM/OEM service is welcome.

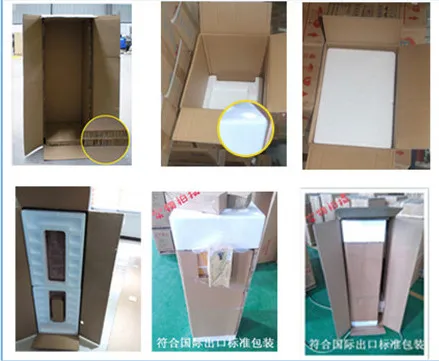

Packaging & Shipping



1.Standard export carton or wooden case.

2.Packaging Details:Carton box with pallet.

3.Delivery Date:7days after 100%payment.

4.Packaging:1 set packed as 1 carton;10 sets packed as 1 pallet.

5.Shipping:If you do not have forwarder,we can arrange shipping by express,air and sea.



Exhibitions

Certifications

Our Services

1. OEM Manufacturing welcome: Product, Package...

2. MOQ: 1 piece

3. Car Parking System Warranty:1 year

4. We will reply you for your inquiry in 24 hours.

We have our own overseas service department and professional technology team, can meet  different requirements of customers in the shortest time and supply the best service when you back home.

Putting customer first is our principle all the time!



FAQ

Trouble

Cause

Shooting

Motor can not work

1,No power supply

2,Break fuse

3,Surpass load

1,Check power supply

2,Change fuse

3,Check if any barrier on the track

Can open but can not close

1,Photocell is not connected properly

2,Photocell beam is block off

3,Photocell is broken

1,Connect the photocell

2,Clear out obstacle

3,Change a new device

Can open (close) but can not close (open)

1,Position of limit switch is not correct

2,Limit switch is damaged

1,Adjust position

2,Change limit switch

Can not locate accurately

1,Distance of limit switch is too large

2,Limit switch is wrong

3,Magnetic-stells

  position is wrong

1,Adjust position of limit switch

2,Change limit switch

3,Re-adjust the position

Release device is doesnt work

1,Operating handle is broken

2,Worm gears are jammed

1,Change the handle

2,Rotate the pinion

Push the OPEN button

 but the gate close

Whether +MOTOR- wires are

connected wrong

Connect correctly according to

 wiring diagram

Motor can turn but can not work

1,Compression spring of clutch is dead

2,Gear box is released

1,Change the spring

2,Couple the worm gear
