Bafang ultra G510 48v 1000w mid drive motor kit e bike conversion kit

Feedback Ratings
  • 1-4 Sets
    $560.00
  • >=5 Sets
    $550.00
Color:
Black
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Voltage:
48V
Design:
Brushless
Wattage:
> 400w
Product name:
Bafang ultra G510 48v 1000w mid drive motor kit e bike conversion kit
Rated Power:
1000w
Weight:
10kg
Motor:
Brushless mid motor
N0(RPM):
150/170/210
waterproof grade:
IP65
Pedal sensor:
speed and torque integrated
Rated voltage:
48v
Color:
Black
Certification:
CE/ROHS

Packaging & Delivery

Selling Units:
Single item
Single package size:
53X26X28 cm
Single gross weight:
10.5 kg
Package Type:
Standard export carton with foam for Bafang ultra G510 48v 1000w mid drive motor kit e bike conversion kit.
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 2 - 10 11 - 20 >20
Est. Time(days) 7 15 30 To be negotiated
Product Description

Advantages of bafang G510 mid motor kits

1. 48V 1000W Torque Sensor Mid Motor
2. Comfortable Riding Experience
3. 160N.m Max Torque,Strong Climbing Ability
4. IP65 Protection Grade,No Longer Afraid of Dust and Rain
5. Simple Installation,Easy to Use,No Reluctance,Low Noise
6. DPC18.UART Color Display

The mid-drive motor constantly samples relevant information at a frequency of up to 80k Hz via a torque sensor and two speed sensors which are all highly sensitive. The resulting data on crank torque, vehicle speed an the speed of rotation of the pedal is made available to the controller, ensuring precise control of the vehicle while achieving the highest possible efficiency. The max drive system puts the rider in complete control. In spite of a generous power output and a maximum torque of more than 160N.m, the motor operates in virtual silence. The modular motor design and intergrated controller make disassembled by easier and improve service responsiveness.

Specification
Position
Mid motor
Wheel diameter(inch)
Optional
Construction
Gear drive
n0(Rpm)
43/48/60
Rated power
1000w
nT(Rpm)
150/170/210
Max Torque
160 N.m
Efficiency
≥80%
Pedal sensor
Speed sensor and torque integrated
Shaft Standard
ISIS
Weight
10KG
Noise Grade
<55
Operating Temperature
-20℃-45℃
Color
Black

If you want to know more, please send me an inquiry↓↓↓↓↓↓↓↓

Detailed Image

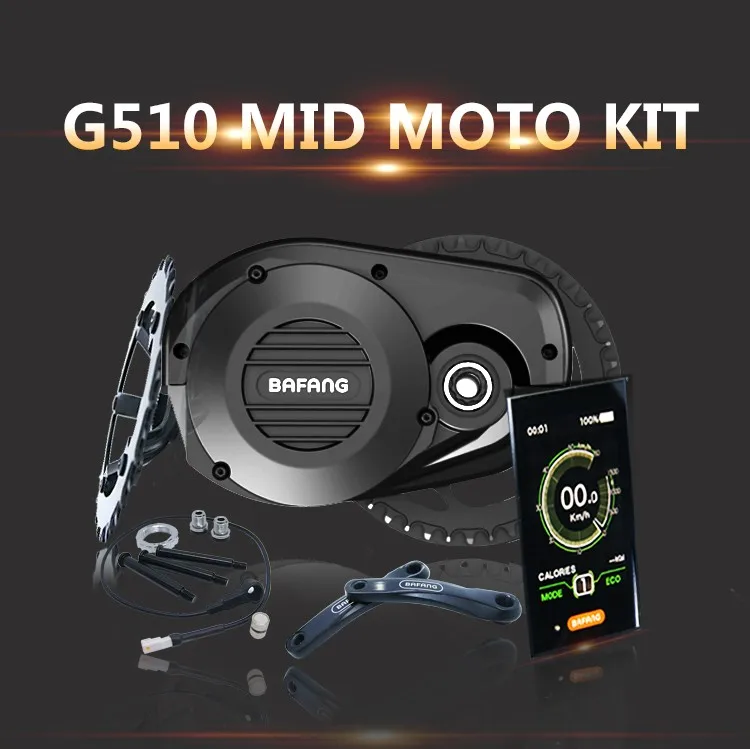

G510 Mid motor


The mid-drive motor constantly samples relevant information at a frequency of up to 80k Hz via a torque sensor and two speed sensors which are all highly sensitive.

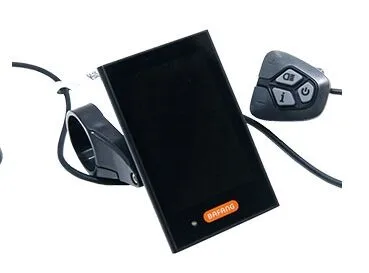

DPC-18 Color Display


LCD display looks fashionable and have more functions.Set relevant parameters, like rim size,speed limited,password.... When you cycling, it also can tell you the speed,time,range,temperature...It can show the controller and battery information.


Chain wheel

G510 chain wheel is usually 44T, which helps you ride smoothly. We provide mountain bike type and snow bike type, which are different. When you want to order it, pls tell me know your bike type.


Screws and nuts


First fix the hager onto your fram, then using the screws and nuts to fix the mid motor. Install the magnet to your rear wheel rim.



Related Products

If you want to know more, please send me an inquiry↓↓↓↓↓↓↓↓

Company Profile
CNEBIKES Co., Ltd is located in Changzhou city ,Jiangsu ,China.  We are just one hour from Shanghai by high-speed train . It is easy for potential customers to come and have a look at our facility and products.

We manufacture a variety of products . Our products are reliable and durable. We export to Europe, the USA, Canada, Southeast Asia, Australia and many other countries . Our customers have given us high praise for our products and service.

FAQ

Q: My bike bracket bottom is 73mm .can I use BBS01 or BBS02 ?
A:Yes , bb for bbs01 and bbs02 is 68mm,but it can work with bb73mm.

Q: My bike bracket bottom is 100mm .can I use BBS01 or BBS02 ?
A:Yes , we can extend the bracket bottom length to 100mm .

Q.How many sets are available for bafang mid motor kit wholesale price ?
A. more than 20 sets , we can offer the wholesale price for MMG31,MMG32, MMG33 .

Q:Do you have stock?
A:We always keep some ready stock for this mid motor kits,Please let me know what quantity and which model you want,thus I could check properly for you.

Q:What type of connector do you use for the battery?
A:Anderson connector.

Q: Can i have a user manual of Bafang mid motor kits?
A: Yes, we will send you a user manual with the goods.
