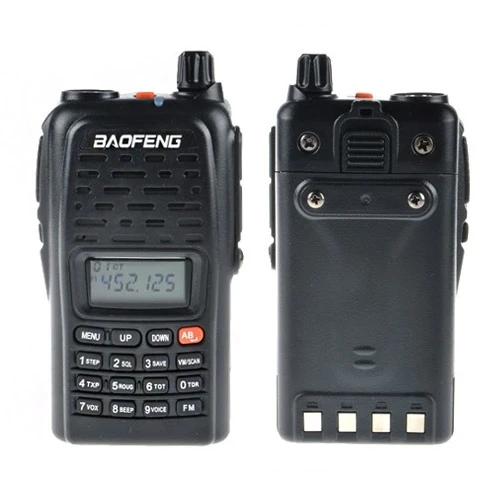

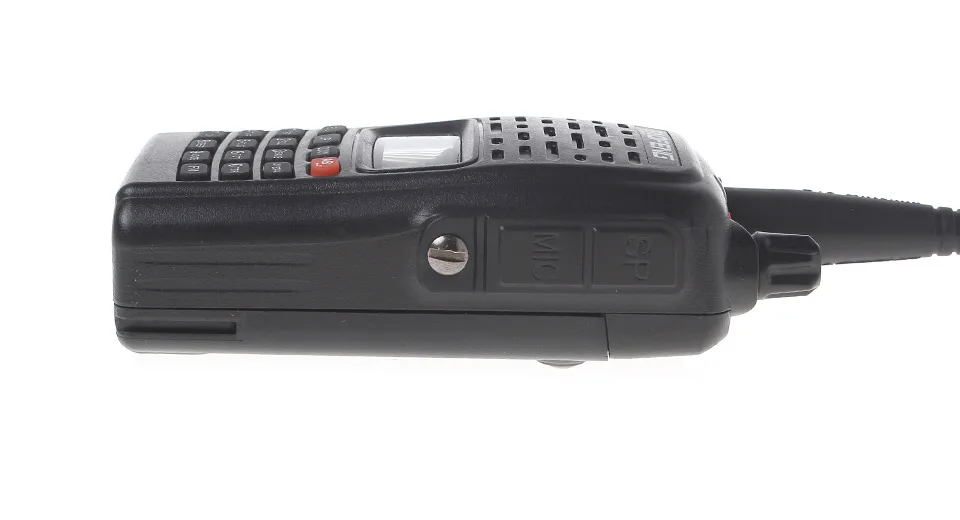

Baofeng dual band wireless walkie talkie BF-V85 with long term business

Feedback Ratings
  • 2-9 Pieces
    US $45.00
  • 10-99 Pieces
    US $42.00
  • 100-999 Pieces
    US $40.00
  • >=1000 Pieces
    US $35.00
Color:
Black
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
BAOFENG
Model Number:
BF-V85
Type:
Handheld
Dimensions:
110x58x32 mm
Frequency Range:
UHF VHF(Dual band)
Storage Channel:
99
Talk Range:
3 - 8 Km
Name:
BF-V85
Operating Voltage:
7.2 V DC ±20 %
Antenna Impedance:
50 Ω
Frequency Stability:
±2.5 ppm
Audio Output:
More than 500 mW (at 5% distortion)
Output Power (High / Low):
5 W /1 W
Walkie talkie:
dual band two way radio
Two way radio:
dual band walkie talkie
interphone:
Dual band mobile radio

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X15X5 cm
Single gross weight:
0.8 kg
Package Type:
50pcs/ctn
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(day) 5 To be negotiated
Video Description

Baofeng dual band wireless walkie talkie BF-V85 with long term business



Features



1)       Output : 4W/1W14)   Dual Band, Dual Display and Dual Standby
2)       Frequency Range: 136.00-174.00 MHz15)   Auto Back Light
                     400.00-480.00 MHz16)   3 Scanning Ways (Time, Carrier wave, Search )
3)       PC or Manual Program17)   PTT-ID (Press PTT to transmit code, release PTT to transmit code, or both can          transmit code)
4)       Radio Function18)   Frequency Difference Setting
5)       Voice Prompt19)   Keypad Number directly choose the Menu Function
6)       DTMF Code20)   Reverse Frequency Function
7)       50 CTCSS and 104 DCS Codes21)   Flashlight Function
8)       Time-out Timer (TOT)22)   High &Low Power Switchover
9)       Step Frequency(5,6.25,10,12.5,20,25KHz)23)   Wide/Narrow Band Selection
10)   Battery Saving24)   ANI Code Edition
11)   VOX Function25)   Dimension: 112x61x35 mm
12)   Busy Channel Lock Function26)   Packing Details: 30 Units /CTN, Carton Size: 52.5x33.67 cm
13)   Low Battery Warning                   N. W: 16 KGS   G.W: 17 KGS

Technical Index

Unity Section:
Frequency Range:       136.00-174.00 MHz
400.00- 480.00MHz
Storage Channel99
Step Frequency2.5/5/6.25/10/12.5/20/25KHz
Rated voltage    DC 7.4 V
Battery CapacityH-1800 mAh (Li-ion Battery)
Battery LifeAbout 10 Hours
Frequency Stability±2.5ppm
Work Temperature  -20 °C to +60°C
Frequency Combination   PLL frequency synthesis
Antenna Impedance50 Ω
Wok Mode     Same Frequency  simplex Operation or
 Different Frequency  simplex Operation
Dimension   112x61x 35 mm (Excluded Antenna)
Transmitter
Output Power 5W/ 2W
Modulation Mode(W/N Band)   FM (F3E)
Maximum Frequency Deviation (W/N Band)<5KHz(W), <2.5KHz(N)
Spurious Radiation≤7.5 µW
Adjacent channel power65dB (W) ,55dB (N)
Residual Radiation<-60 dB
Audio Distortion<5 %
SNR45dB(W), 40dB(N)
CTSCC/DCS Frequency Deviation(W/N Band)0.7±0.1KHz (W), 0.4±0.1KHz (N)
Modulation Sensitivity 8-12mV
Transmitting Current≤1500mA
  Receiver
Sensitivity<0.20 µ V (12dB  SINAD)
Audio Power1 W
Inter modulation Interference Resistance≥65dB (W), ≥55dB (N)
Adjacent channel Sensitivity (W/N Band)≥65dB (W), ≥55dB (N)
Audio Distortion5%
Receiving Current≤ 400m A






Packaging & Shipping
ItemQty
two way radio1
battery1
charger1
belt clip1
user manual 1









Related Products

contact us

Company Information
       Guangzhou Minxing Communication Equipment Co., Ltd. was established in 2008, is a professional engaged in radio research and development, production of the manufacturers. All of our products meet international quality standards. Since its establishment, thousands of products have been exported to over 120 countries and regions in Pakistan, India, Australia, Russia, Colombia, Ukraine, Georgia and the United States.



Packaging & Shipping
FAQ

1.Q: Are you a manufacturer?

A: Founded in 2008, owning a 23,000 square meters manufacturing base, more than 200 R&D engineers and 300 manufacturing workers, we are among one of the top manufacturer and designer in China mainland for two-way radios and systems.



2.Q: What is MOQ (Minimum order quantity)

A: 2 pcs for sample test first is recommended. The price policy sets MOQ for bulk order based on cooperation relationship with us as a distributor, dealer or premium dealer, or OEM cooperation. Please contact us for details.



3.Q: Do you accept customized?

A: Rebranding is acceptable and OEM&ODM is welcomed.



4. Q: Could you offer free sample to test?

A: Sample will be charged firstly, but will be refund to you when you put bulk order on us.



5.Q: When can I find tracking information of sample?

A: We will send you the tracking number of sample within 2 days after delivery.





Packaging Details
