Beer brewery equipment brewing supplies

FOB Reference Price:Get Latest Price
$3,900.00 - $48,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
RM
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
RAINBOW
Processing Types:
Alcohol
Voltage:
380v, 3-phase/customization
Power(W):
up to the heating method
Dimension(L*W*H):
up to the equipment type
Weight:
based on the capacity
Certification:
CE, ISO9001, PED
Warranty:
3-5 years
After-sales Service Provided:
Field installation, commissioning and training
Polishing:
Fine polishing to 0.4~0.6um without dead corner
Welding:
100% TIG welding with argon protection
Insulation:
Polyurethane 100mm
Material:
Stainless steel 304/316 or red copper
Heating method:
Steam, electricity, gas fire
Fermenting type:
Ales or lagers or both
False bottom:
Detachable, in lauter tun, thickness: 5mm, wedge type
Export countries:
France, Finland, Norway, USA, Canada, Australia...etc
Control system:
PID/PLC control panel
Manufacturer:
Yes
Supply Ability
Supply Ability:
50 Set/Sets per Year
Packaging & Delivery
Packaging Details
Soft material wrapping on tanks and then fiber wood cladding from outside.
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
About us

1) We, Jinan Rainbow Machinery Co., Ltd., are a professional leading exporter and main manufacturer of craft beer brewery equipment for 8 years.


2) Rainbow Machinery exports beer tanks to many countries, such as USA, France, Germany, Norway, Switzerland, Canada, Australia, Finland, Ecuador...


3) Rainbow Machinery can design and manufacture beer tanks as requested, which include tanks' capacity (100L-20000L), dimension, voltage (380v, 50hz, 3phases/customization), heating method (electricity, steam or gas fire)...


4) Rainbow Machinery can ensure All fine polishing for tanks' insdie and All TIG welding with pure argon protection.

Product Description
Items
Equipment
Specification
Brewhouse
Malt miller
300kg/h
Mash/lauter tun
1000L
Brew kettle/whirlpool
1000L
Hot liquor tank
1300L
Plate heat exchanger
10m2
Wort pump
3m³/h
Fermentation
Fermenter
1000L
Yeast adding tank
30L
Cooling
Glycol water tank
2000L
Glycol chiller
5Hp*2
Glycol pump
3t/h
CIP
Alkalia tank
100L
Sterilization tank
100L
CIP pump
3m³/h
Spare parts
All necessary spare parts, like valves, CIP balls, pumps, gauges...etc.
Other auxiliary equipment
Bottle filler and capper
Keg washing machine
Keg filling machine
Beer filtering machine
Labeling machine
Gas steam generator
Beer kegs (EU/US/DIN Standard)

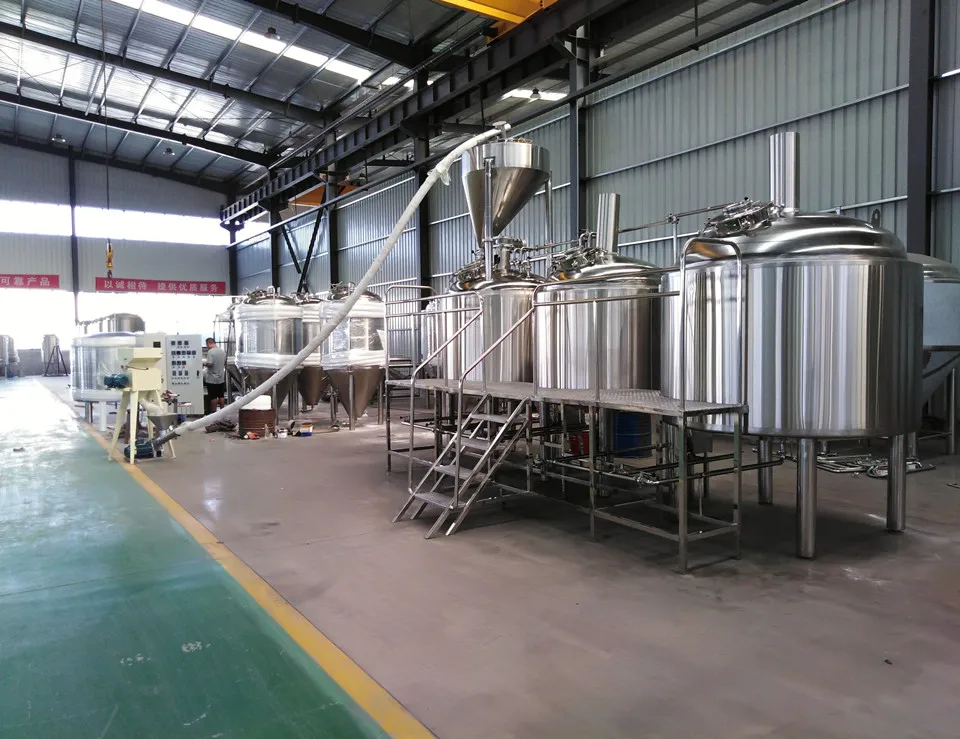

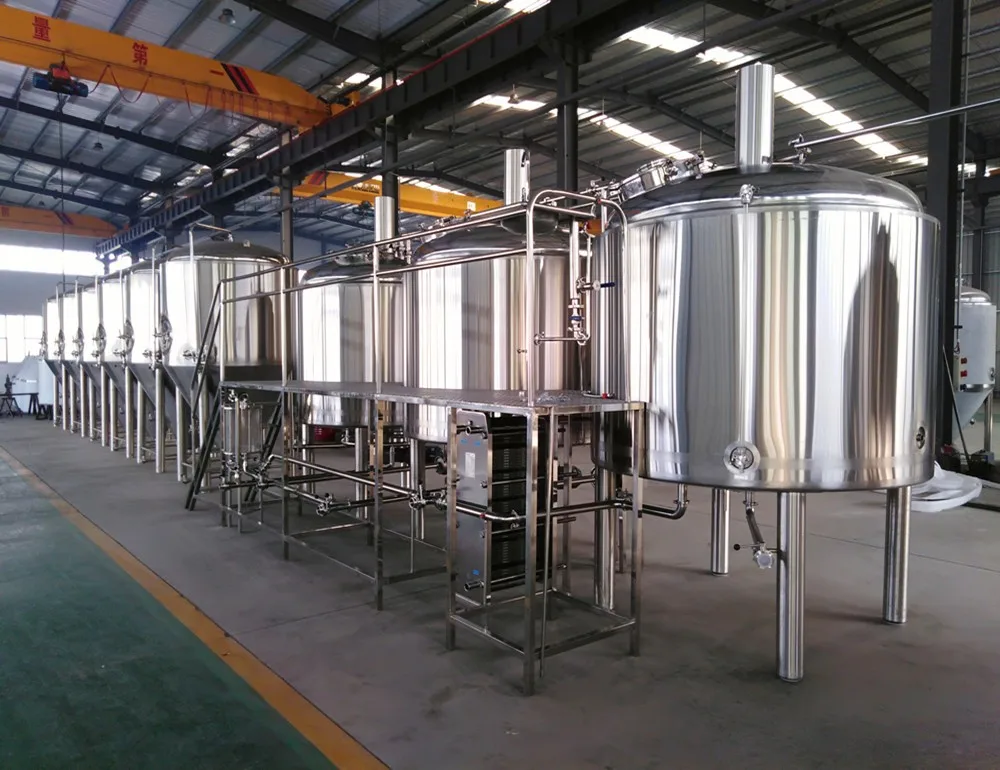

Brewhouse system

Different Combinations of brewhouse system:

-2 veseels:

Mash/lauter tun +Brew kettle/whirlpool
Mash/brew kettle+Lauter/whirlpool

-3 vessels:

Mash/brew kettle+Lauter tun+Whirlpool tun
Mash tun+Lauter tun+Brew kettle/whirlpool

Mash/lauter tun+Brew kettle+Whirlpool

-4 vessels:

Mash tun, Lauter tun, Brew kettle, Whirlpool


Optional: Hot liquor tank/Cold liquor tank

Heating method: Electricity/Steam/Direct gas fire


Features:


-Dome top and cone bottom;bottom cone 160 degree

-Interior Shell:SUS304,thickness:3mm

-Exterior Shell: SUS304,thickness:2mm

-Insulation:Polyurethane, thickness:100mm


-Interior Finish: Fine polishing to 0.4~0.6um without dead corner

-100% TIG welding with pure argon gas shield


-Top mounted manway


-Side manway for spent grains

-Easy-clean and detachable sparging arm

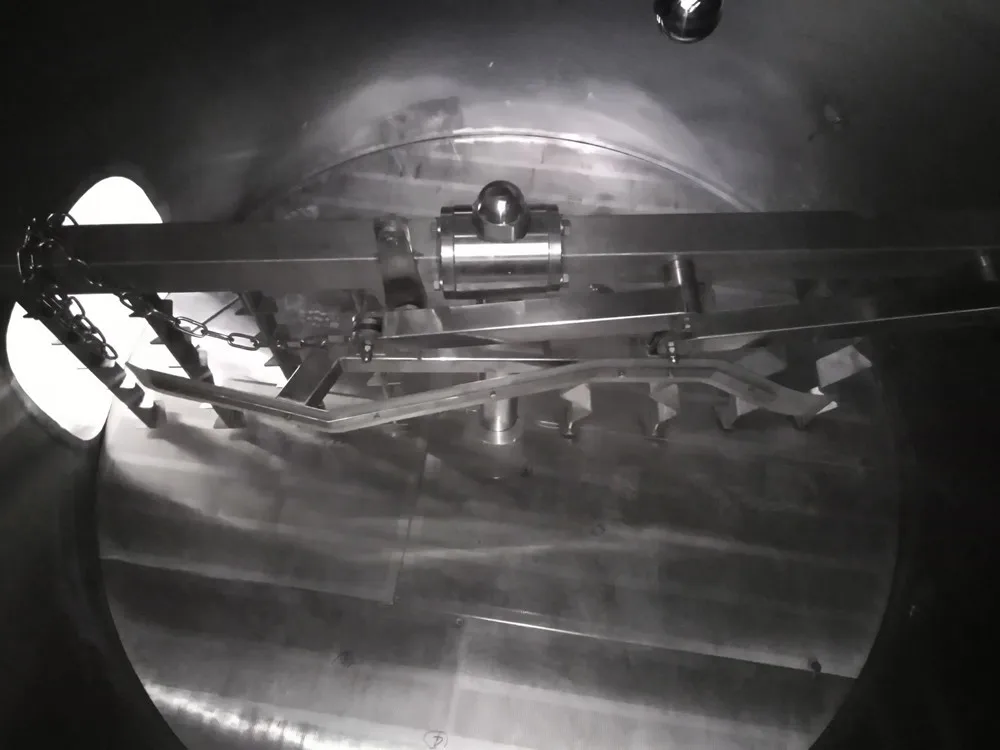

-Easy-clean and detachable false bottom, thickness:5mm, wedge shape

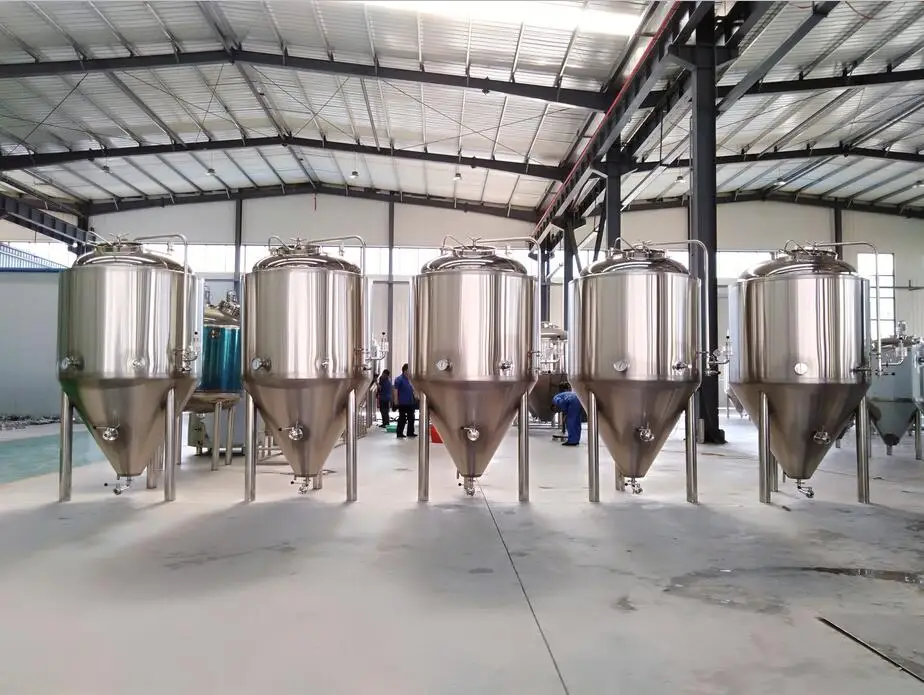

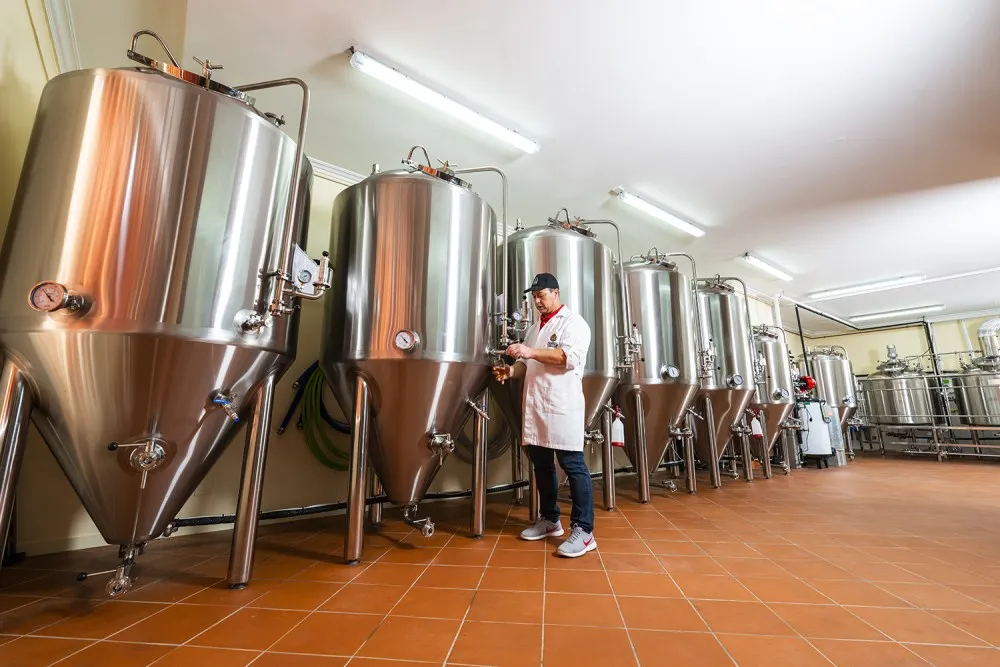

Fermentation system

-Inside wall, SUS 304, thickness: 3mm

-Outside wall, SUS 304, thickness: 2mm

-Cooling jacket: both on cylinder and cone parts, SUS 304
-Insulation: Polyurethane, thickness:100mm
-Fine polishing without dead corner for tanks' inside
-100% TIG welding with pure argon gas shield
-Dome top and cone bottom, bottom cone, 60 degree
-Top manway
-Working pressure: 0.2Mpa
-Test pressure: 0.3Mpa
-Bung apparatus
-Relief/vacuum valve on top
-Sample valve
-Rotating racking arm on cone with butterfly valve
-Inside CIP arm with 360° coverage CIP spraying ball
-Thermowell with high accuracy temperature sensor: PT100
-Discharge arm with butterfly valve


Polishing&Welding

Polishing: All fine polishing to 0.4~0.6um without dead corner for all tanks.


Welding: All TIG welding with pure argon  gas protection.
