Best Feedback 3.5X-90X Optical Dual Arm Trinocular Zoom Stereo Microscope 14MP Camera LED light For Mobile Repair Price

Feedback Ratings
  • 1-2 Sets
    $500.00
  • 3-4 Sets
    $480.00
  • >=5 Sets
    $460.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $485.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
RATE
Model Number:
TB2-D10-SMZAL
Theory:
Stereo Microscope
Drawtube:
Trinocular
Magnification:
7X-45X zoom
Warranty:
one year
Zoom ratio:
1:6.4
Veiwing head:
trinocular
Interpupillary distance:
55-75mm
Vertical Pillar High:
38mm
Horizontal moving:
235mm
Working distance:
100mm
Trinocular microscope:
Stereo microscope
Illumination:
Extra 144 LED Illumination

Packaging & Delivery

Selling Units:
Single item
Single package size:
51X51X40 cm
Single gross weight:
26.5 kg
Package Type:
1. 1 Set/Carton 2. Carton Size:58x41x44cm 3. N.W.: 23.5 kgs/Set 4. G.W: 26kgs/Set 5. Inner package with foamed plastic+outer carton
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 7 10 14 To be negotiated

Best Feedback 3.5X-90X Optical Dual Arm Trinocular Zoom Stereo Microscope 14MP Camera LED light For Mobile Repair Price



Product Description

TB2-D10-SMZAL Packing list is:

1*TXB2-D10 Trinocular stereo microscope.
1*14MP HDMI USB Camera.
1*144 Led Ring Light.
1*0.5X Auxiliary Lens.
1*2X Auxiliary Lens.

TXB2-D10 Trinocular stereo microscope:
1) Item:Stereo Microscope(continuous zoom)
2) Model:TXB2-D10
3) Objective system:0.7x-4.5x,Up to 90x after optional 20 x eyepiece.
4) Eyepiece system:Wide Field Plan-Scope Eyepiece:WF10X (Optional :WF15X ,WF20X).
5) Working distance:100mm.
6) Magnification:7x-45x, and the doubling ratio is 1:6.4
7) Observation head:Articulated Free Triocular Head,Interpupillary Distance:55-75mm,45° Inclined.
8) Illumination:Natural light reflecting lighting.
9) Base: Two-arm universal base.Vertical Pillar height:38mm ,Diameter:32mm ,Base size:210x260x40mm.
10) Focus system: Focusing bracket.

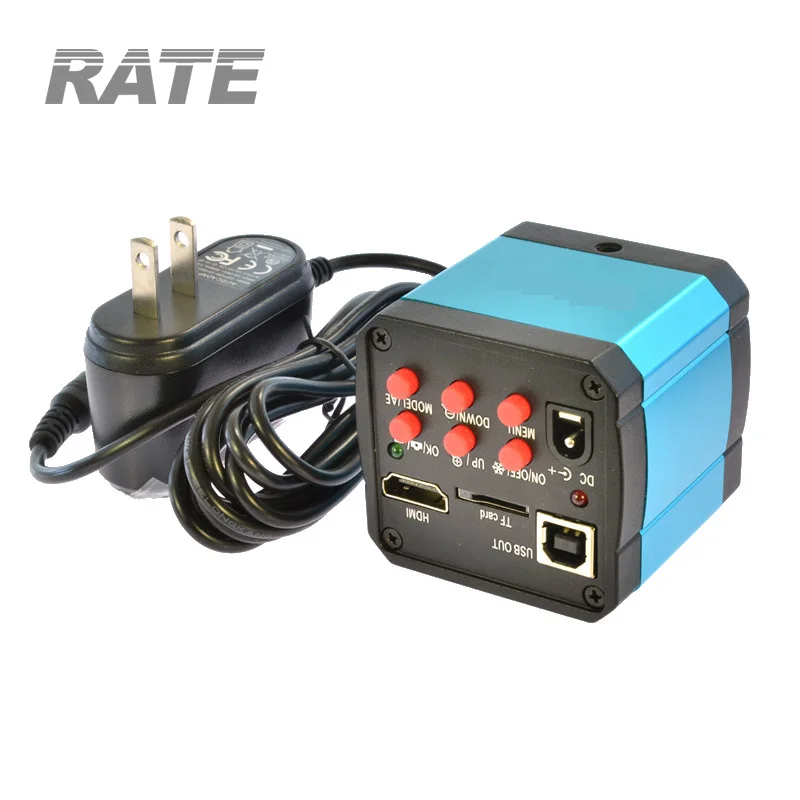

14MP HDMI USB Camera:
1) HDMI USB industrial camera
2) Model: RT-2307
3) Image sensor: 14 megapixel panasonic sensor 1/2.3 inch
4) Pixel size: 1.43um*1.43um.
5) Frame rate: 60 frames
6) Image resolution: 4320*3240 1920*1080 (TF card storage)
7) Video format: MP4, MOV(TF card)
8) Video resolution: 1920*1080@60fps
9) USB video resolution: 1920*1080@30fps
10) White balance: automatic or manual white balance
11) Cross: there are four colors to choose from, 4 horizontal lines and 4 vertical lines that can move
12) Interface of TF memory card: 8G or 16G or 32G.
13) Digital magnification: supports 5 times digital zoom
14) USB interface: standard USB2.0 interface
15) Freeze: freeze/thaw function
16) OSD: simplified/traditional/English/Russian
17) Exposure: EV value (exposure compensation) adjustment is supported
18) Color: R/G/B adjustable
19) Lens: suitable for C or CS interfaces
20) Camera interface: standard HDMI interface USB2.0 output interface memory card interface
21) Packaging specification: 14 million HD industrial camera +USB cable +HDMI cable + CD (software).

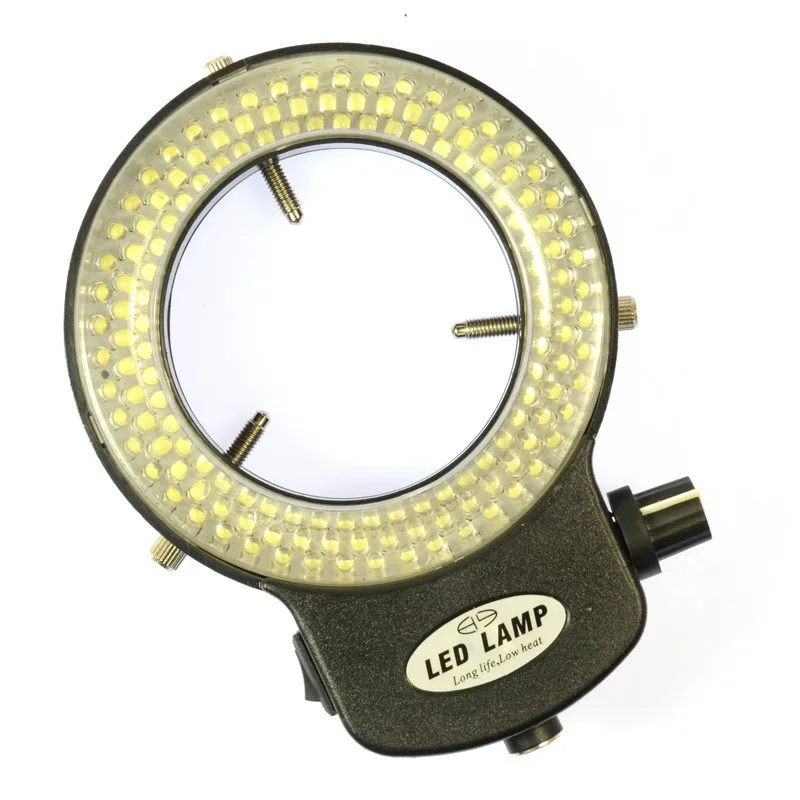

144 Led Ring Light:
1) Bright white light bulbs.
2) 20,000 hours of life.
3) Bright lights, no shadows.
4) 0-100% matching brightness, high brightness.
5) Variable strength control.
6) Energy input :100-240 v 50-60hz.
7) Suitable for lens diameter :30mm-63mm.

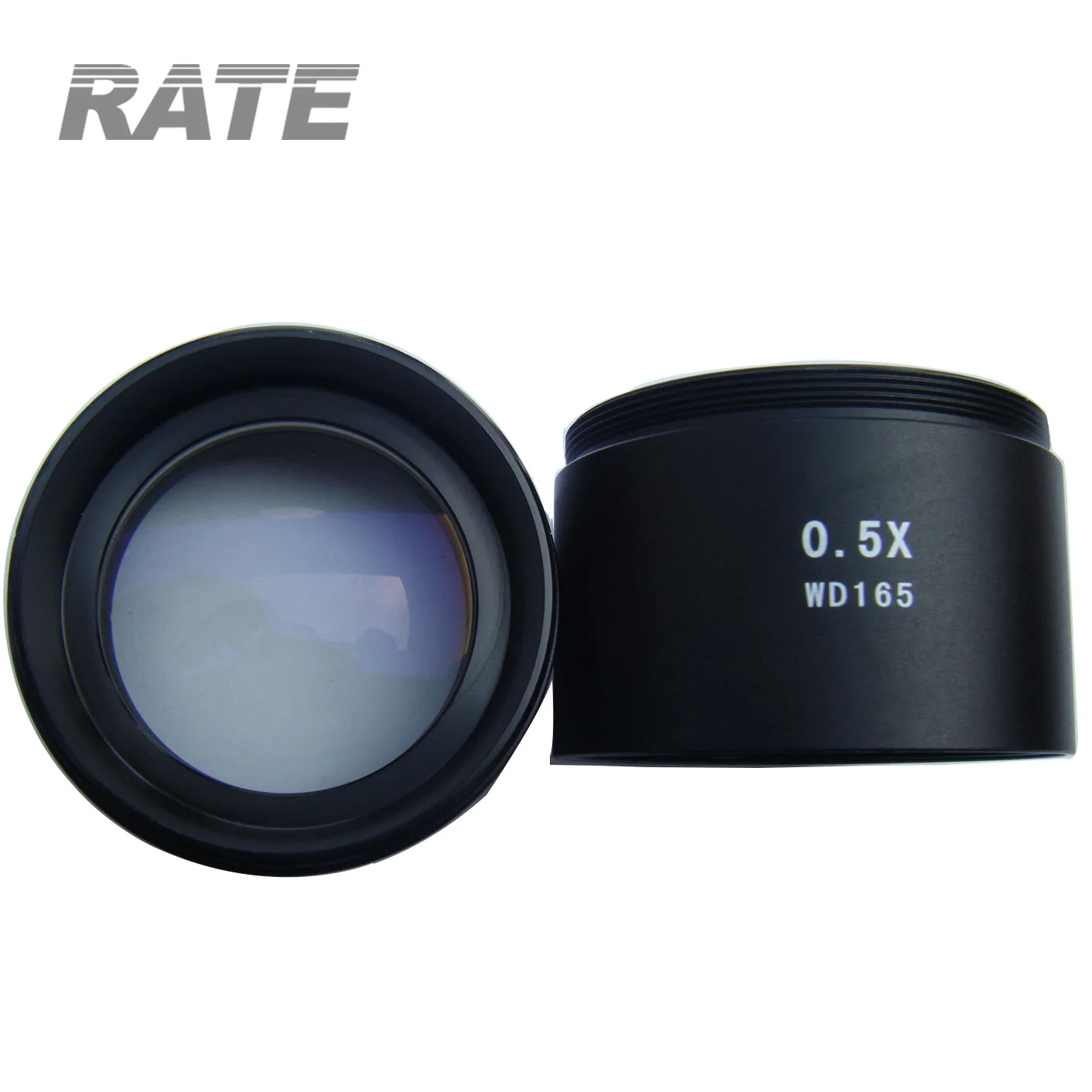

0.5X Auxiliary Lens:
1) Name: 0.5x auxiliary objective.
2) Application: 0.5 times smaller.
3) Working distance: 165 mm.
4) Interface size: 48mm.
2X Auxiliary Lens:
1) Name: 2X auxiliary objective.
2) Application: 2X times Larger.
3) Working distance: 30 mm.
4) Interface size: 48mm.




Application:

Product application: widely used in microelectronics, mold, precision machinery, jewelry, clocks and watches, jewelry, fingerprint identification, ticket identification, printing, mobile phone maintenance, archaeology, biological anatomy, school teaching and other fields. It is especially suitable to observe the surface microstructure of large objects.



CE Certificate:

Packaging & Shipping
Packaging:1. Inner box with plastic foamed + Outer carton.
2. Net Weight/Set:23.5kg.
3. Package:1sets/Carton 50X50X31cm.
4. Gross Weight/Carton: 26.5kg.
5.And other terms as customer required.
Shipping:1. Shipping by EMS or international express, such as: DHL, UPS, TNT and Fedex(available for samples and small orders, it takes about 3-7days arrive, also called door to door servise.)
2. Shipping by air.(fast, but charge high, it takes about 3-7days arrive)
3. Shipping by sea.(safty and charge low, but it takes about one month to arrive.
