Biologic Pharmaceutical fermentation tank with CIP and SIP

FOB Reference Price:Get Latest Price
$10,000.00 - $300,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
RTY-Z
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
SHANGHAI RITAI
Application:
Liquid, yeast, bacteria, fungus, vaccine, enzyme and so on
Type:
Extractor, Fermentation
Material:
stainless steel 316L & stainless steel 304
Capacity:
5L-20000L
Rotate speed:
50-400rpm
Surface finish:
Inside surface Ra0.28μm - 0.4μm, Outside surface Ra0.4μm - 0.6μm
Agitator type:
Mechanical agitator
Pressure:
0.1Mpa-0.6Mpa
Documents:
DQ, IQ, OQ, PQ, FAT, SAT, Operation Manual, Drawing, etc.
Certification:
ASME, PED 97/23/EC, NB, GB, ISO 9001:2008
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Unit/Units per Month
Packaging & Delivery
Packaging Details
Exporting wooden case
Port
Shanghai, China

Product Description

Name: Industrial Fermentation with CIP and SIP



Description of industrial fermentation with CIP and SIP

Capcity: 5L-20000L
Pressure: 0.1Mpa-0.6Mpa
Rotate speed: 50-400rpm for research scale, pilot scale
Material: Contacting parts is made by SS316L, other parts is made by SS304
Agitator type: Mechanical agitator
Surface finish:
Inside surface Ra0.28μm - 0.4μm by mechanical polishing or electropolishing
Outside surface Ra0.6μm - 0.8μm by satin finishing
Feature: Fermentor is Simens's PLC control system, and this system adopts simens's human-machine interface(HMI) and PID control, which can measure and automatically control parameters of temperature, rpm, pH, DO, feed, foam and etc. It possesses functions of digital setting, quick validation, data display, data storage, data print, password management and so on. It has commucation connection which can communicate with computer.

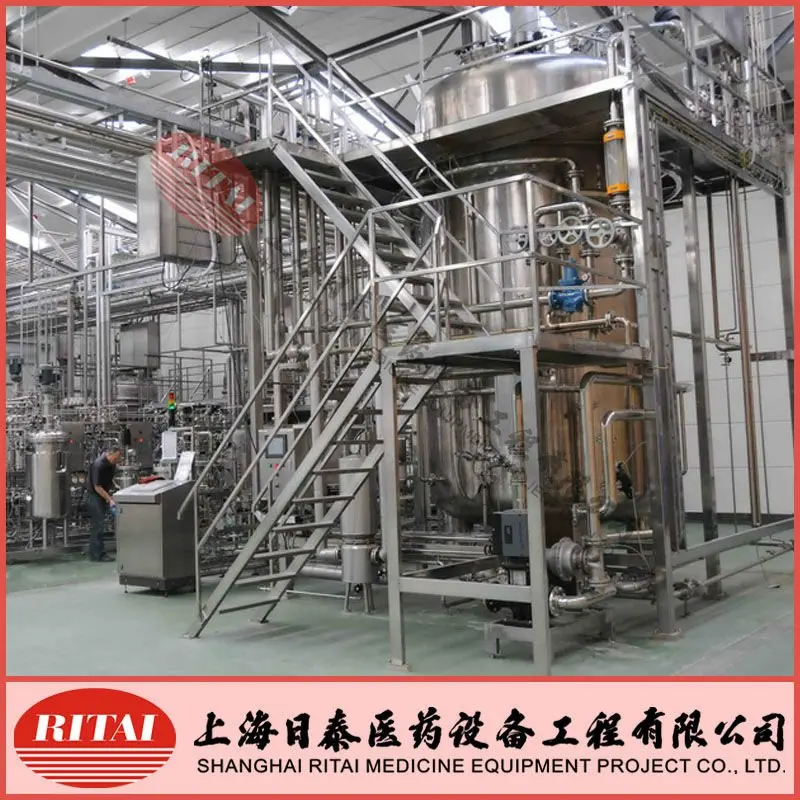

Struction: pilot scale, floor stand, with platform, one fermentor vessel with one control system



Range:
This series of products suits for various kinds of microbiology fermentation test, such as bacteria culture, fungi, enzyme, vaccine,environmental, agricultura, pharmaceutical , micro biologyical etc. This equipment has the following features: excellent stability and convenient operation. Users can choose appropriate configuration according to fermentation process.

Control parts for fermentor

No.

Parameter name

Technical indicator

1

PH

1.On-line check and measure, and digitization fully automatic control;
2.PH, acid and base gang control. Peristaltic pump automatically adjust to feed acid and base;
3.Control range 2-12pH, measure precision ± 0.01 pH, control precision ± 0.01 pH;
4. It has auto alarm function.
5.pH sensor and signal transmission line. .

2

DO control

1.On-line check and measure, DO and rotate speed gang control;
2.Range 0-100% or 0-200%, precision ± 1%;
3. It has auto alarm function;
4. DO sensor and signal transmission line..

3

Foam control

1.Automatically control and automatically alarm;
2.Eletrode check, peristaltic pump automatically add defoamer.

4

Feed control

1.Maunally control;
2.Automatically add according to fixed max. height .

5

Temp. control

1.PID fully digitization signal processing, digitization control settings
2.Circulating water automatically control temperature
3.Measure range 0-150 degree, control range 15-45 degree,control precision ± 0.5degree
4.Pt 100 Ω temp. Sensor

6

Rotate speed

1.Fully automatic control settings, With automatic alarm function
2.Speed range, please checking the drawing, precision ± 1%
3.It is mechanical agitator, turbine type, vertical impeller
4.Speed:50-400rpm

7

Sterilization

manually control

8

Pressure

manually  control
9

Air flow

manually control
Remarks: the table is only for reference, if client have difference requirement on the control points, we can also make according to client requirement.
Packaging & Shipping



Packaging: wooden case or iron rack

Shipping: by sea


Our Services



We offer design, customization, manufacture, installation, and maintenance services, etc.


Company Information



Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.

Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
