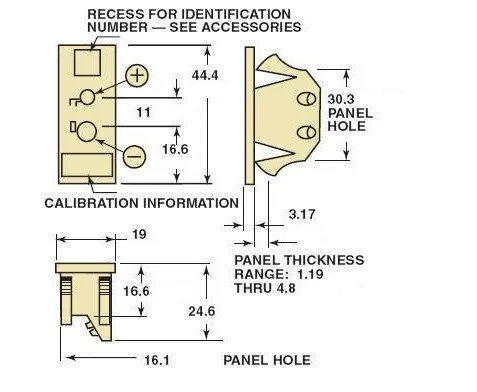

UPJ panel mounting sockets are unique in that they accept both miniature and standard size thermocouple plugs. The panel retaining clips are an integral part of the connector moulding so no additional mounting hardware is required, the sockets simply push into a 16.3 by 30.4 mm rectangular panel cut-out and lock into place. The UPJ sockets will mount into panels with a thickness from 1.2 to 4.8 mm.
T Type Thermocouple Socket
IEC and ANSI
Thermocouple Socket (Female Part)

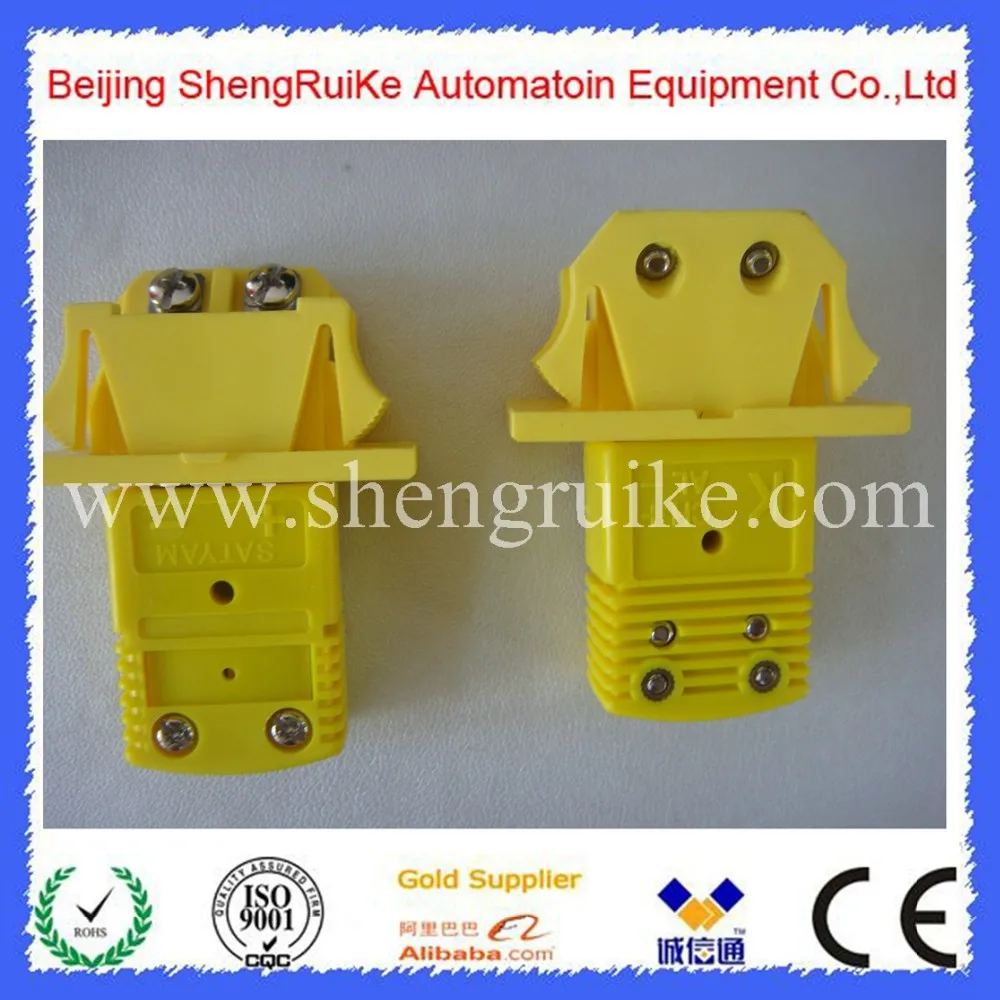

Both Mini and Standard Thermocouple Male Connector
T Type Thermocouple
Front Side Thermocouple Connector ( T Type)
Back Side Thermocouple Connector ( T Type)
Mini Thermocouple Connector K Type
Standard Thermocouple Connector K Type
PCC Thermocouple Connector .
KType Pannel Thermocouple Connector
Packing & Delivery
1. Special logistics packaging
2. Suitable carton size

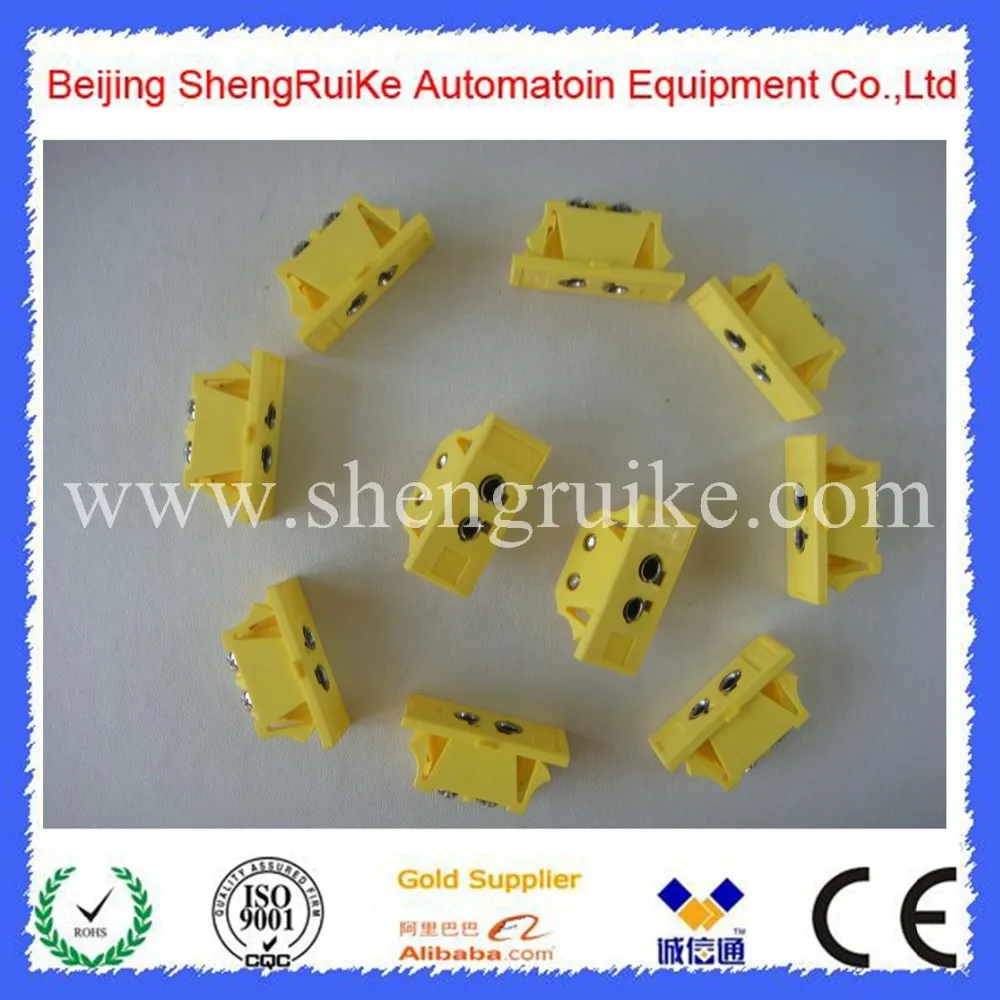

UPJ Thermocouple Socket. It is suitable for standard thermocouple connector
HIgh Quality , No Need Installation Bracket

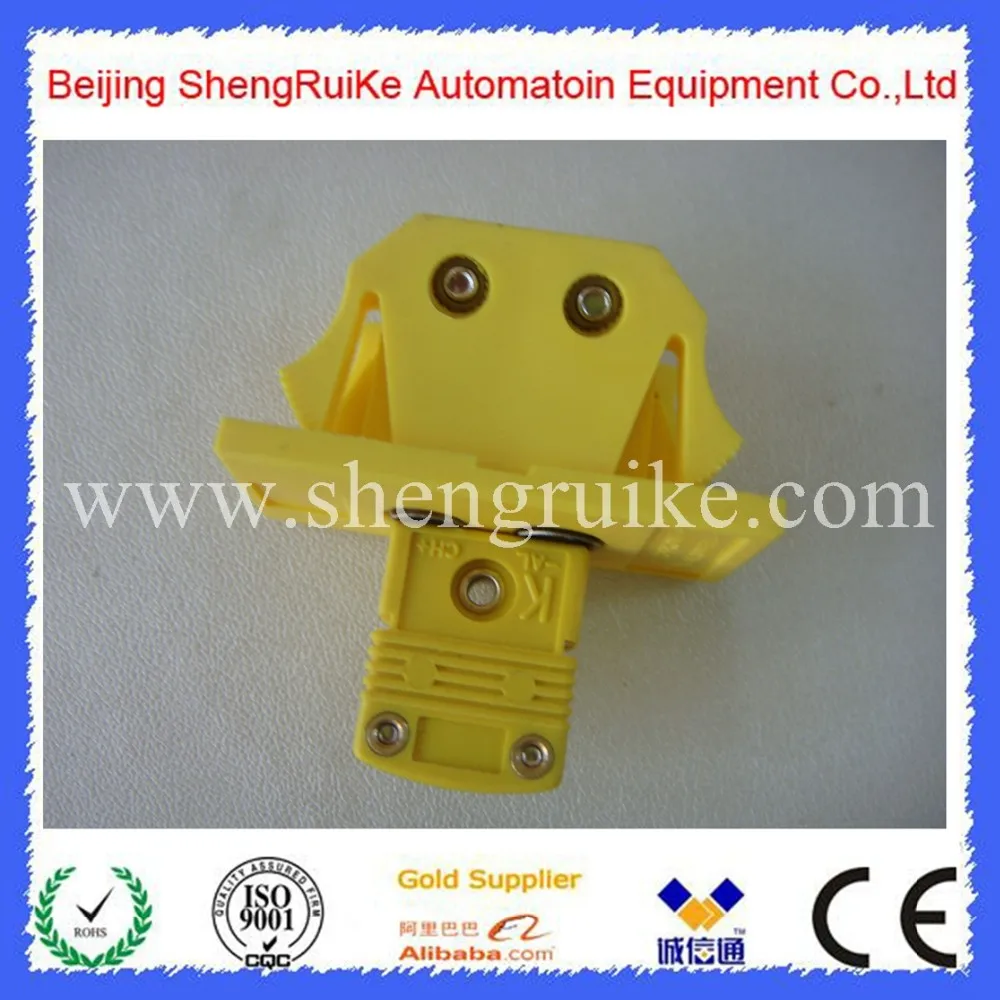

UPJ Thermocouple Socket also accept Mini Thermocouple Connector
ICE and ANSI Color Code For you.
Beijing ShengRuiKe are specilized Temperature Instrument like Thermocouple, RTD Pt100, Bimetal Thermometer, Display Meter ect.
if you need , contact me.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below:
