Bluetooth button programmable beacon

  • 3-4999 Pieces
    $6.90
  • >=5000 Pieces
    $5.60
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Model Number:
D15N Bluetooth button
Brand Name:
Minew
Place of Origin:
Guangdong, China
Battery type:
CR2025 replaceable
Chipset:
Nordic nRF52810
Transmission Range:
50 meters advertising distance
Supporting Protocols:
iBeacon & Eddystone(URL, UID, TLM)
Certification:
CE FCC
SDK:
iOS & Android available
Transmission Circuit:
10.5mA (Max.)
Size:
Diameter 35 x 8.2 mm
Antenna:
50ohm
Application:
Activity monitoring, Asset tracking and location

Packaging & Delivery

Selling Units:
Single item
Single package size:
32X8X11 cm
Single gross weight:
0.3 kg
Package Type:
Bluetooth button programmable beacon: Standard Packageing
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 15 To be negotiated
Product Description

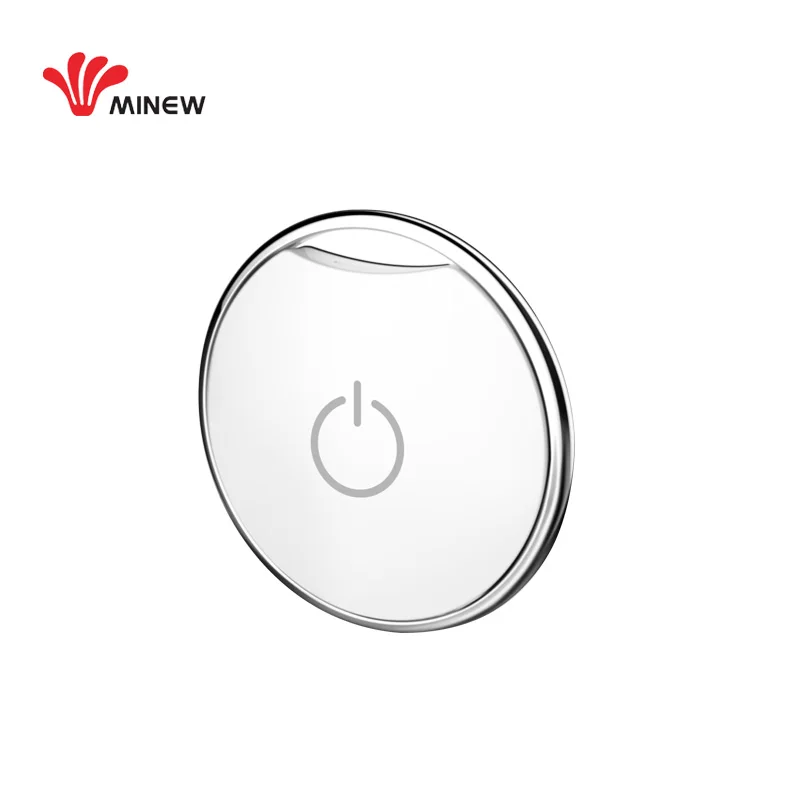

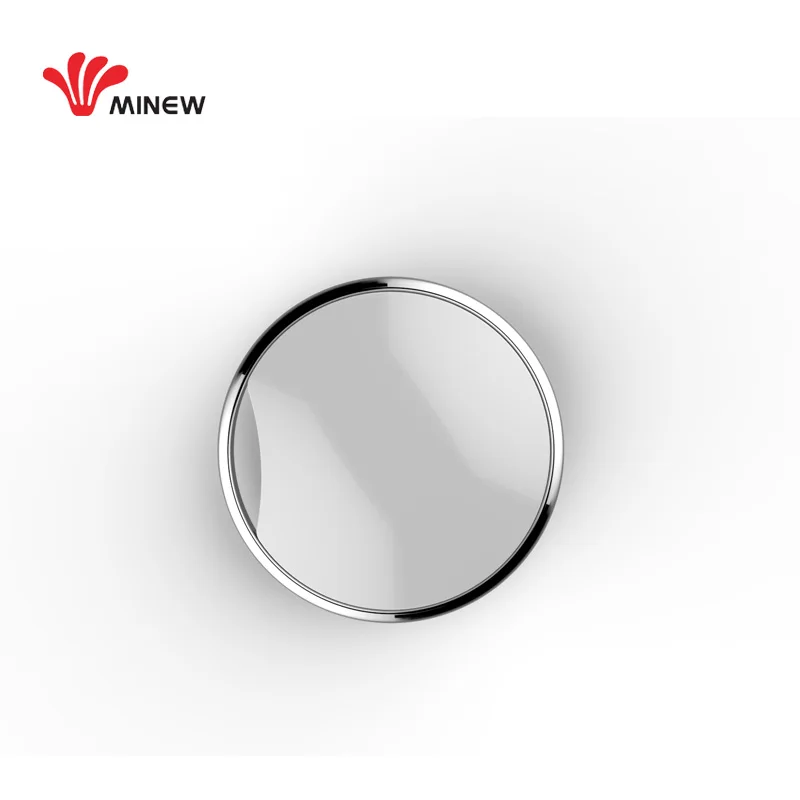

Bluetooth button programmable beacon D15N

The UFO beacon D15N is a new generation beacon that loaded Bluetooth 5.0 hardware platform, hidden
push button and MiniBeacon Plus intelligence software.

D15N UFO beacon advertises standard iBeacon and Eddystone (UID,URL,TLM) simultaneously. The user can configure D15N UFO beacon via configuration app BeaconSET+ as well.


Moreover, the push button can be defined to advertise different data to meet different application by click, double-click and triple-click. For example, the single click can be used to the panic / emergency / SOS button. For more functions, please refer to the configuration instruction.

FEATURES

- Advertise iBeacon & Eddystone simultaneously
- Unique MAC address (ITU)
- Bluetooth 5.0 chipset nRF52 series
- The max. 50 meters advertising distance

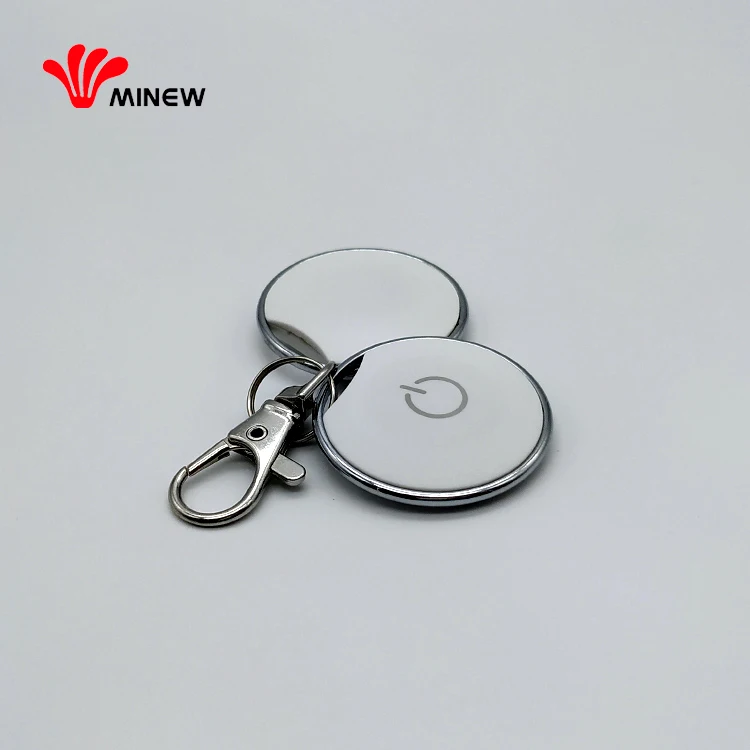

- Weatherproof housing with key-chain hole
- Push button for emergency using

Configure App: BeaconSET+

Bluetooth button programmable beacon Certification:

Technical Parameter
Item
Value
Remarks
Case Color
White
Other colors can be customized
Battery Model
CR2025
1pc CR2025 coin battery, 85mAh, 3.0V
Operation Voltage
1.8-3.9V
DC
Transmission Circuit
5.3mA (Max.)
Tested at 0dBm transmission power
Transmission range
50 meters
Maximum
Antenna
50ohm
On board / PCB Antenna
Net Weight
7.0g
With battery

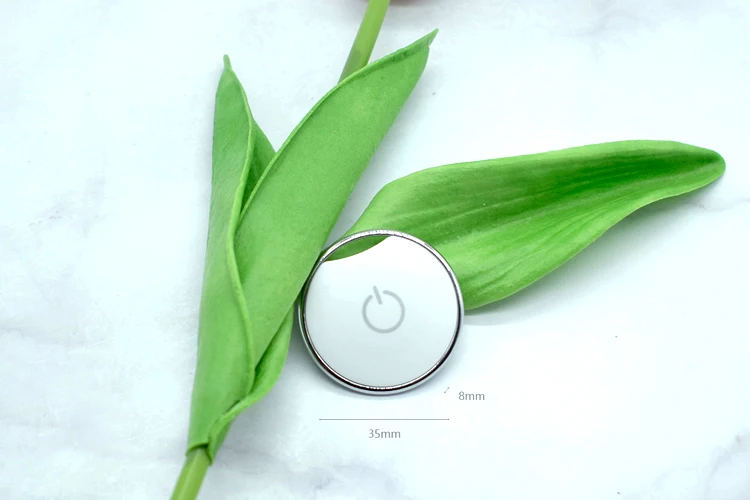

Size
Diameter 35 x 8.2 mm
Null

Application

Detailed Images

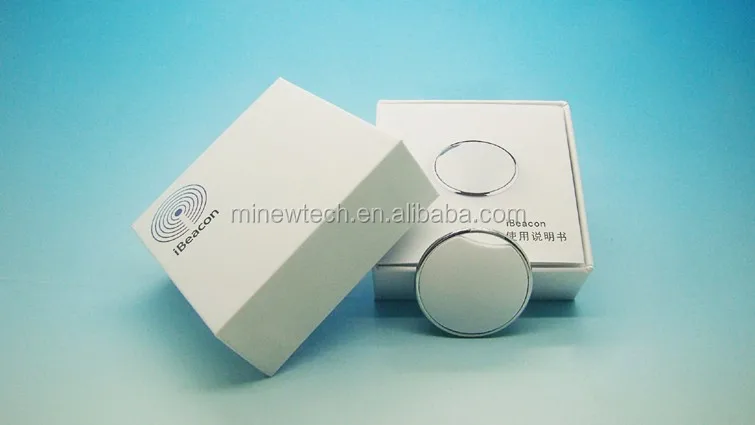

Packing & Delivery

Delivery
According to our customers requirements, we are willing to handle shipment for our customers, and the shipment fee is needed in this case.

Fast Express like DHL,UPS, TNT, FedEx are all available here.
Or if our customers have their own Express account, freight forwarder in China, we are happy to contact their Express people or freight forwarder to pick up products from our factory..

Our Company

Founded in 2007, Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.

We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.
We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:
1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.
Warmly welcome the OEM and ODM projects.

Our Service

- Print your logo on the top of MiniBeacon;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.

FAQ

Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions

Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.

Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
