CALT 12bits parallel output absolute rotary encoder

Feedback Ratings
  • 1-9 Pieces
    $125.00
  • 10-99 Pieces
    $115.00
  • >=100 Pieces
    $98.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 20 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Contact Supplier
Samples - $125.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:

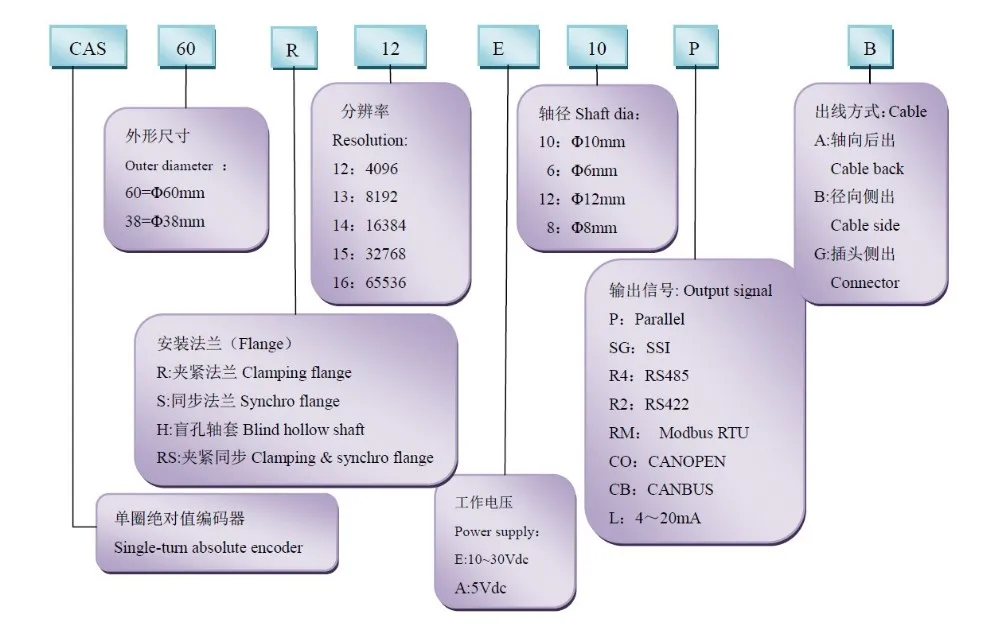

CAS60-S12E10PB
Usage:
Speed Sensor
Theory:
Optical Sensor
Output:
Digital Sensor
outer diameter:
60mm
Shaft:
10mm
Resolution:
12bit up to 4096lines
power supply:
10~30vdc
Output signal:
parallel output
allowed speed:
2400 rev/min
shape features:
metal sealed housing sealed double bearing structure
protection class:
IP65
Type:
Synchro flange

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X20 cm
Single gross weight:
2.0 kg
Package Type:
Standard strong export carton box
Lead Time :
Quantity(Piece) 1 - 50 51 - 500 >500
Est. Time(days) 3 7 To be negotiated
Video Description
Product Description

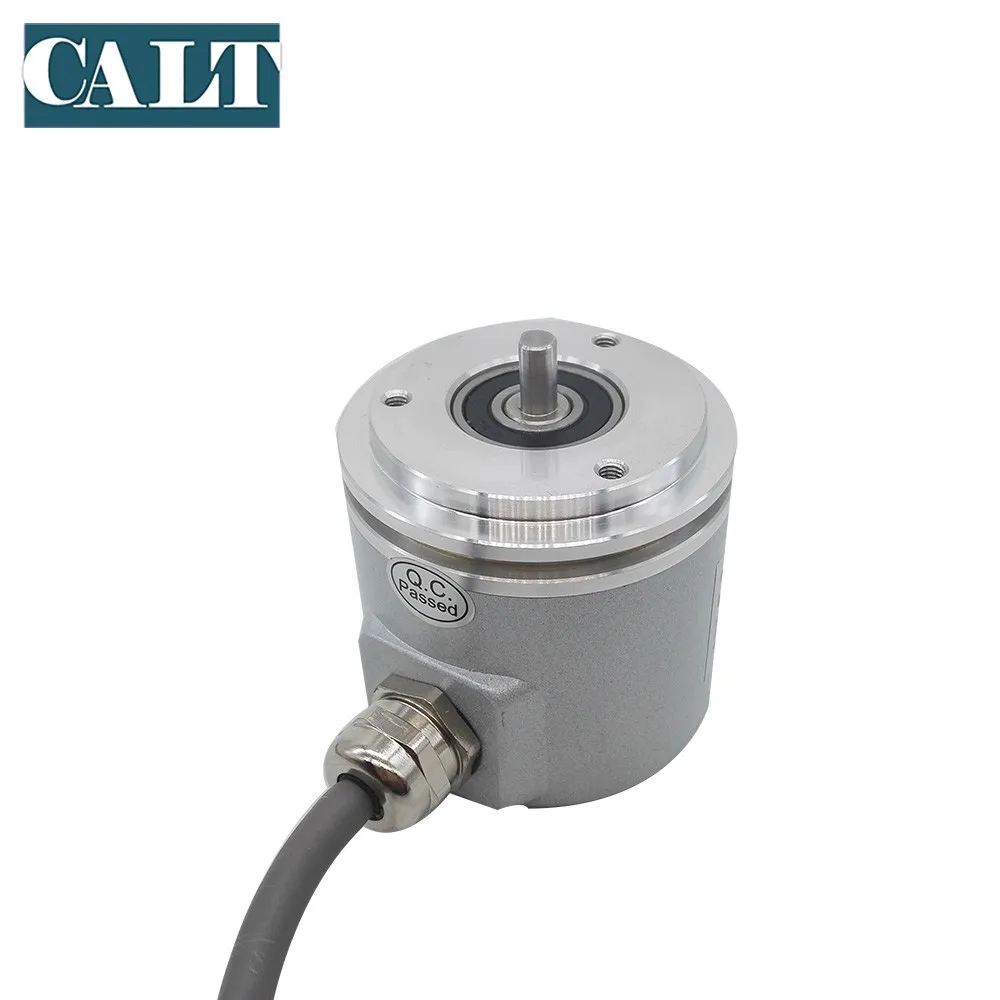

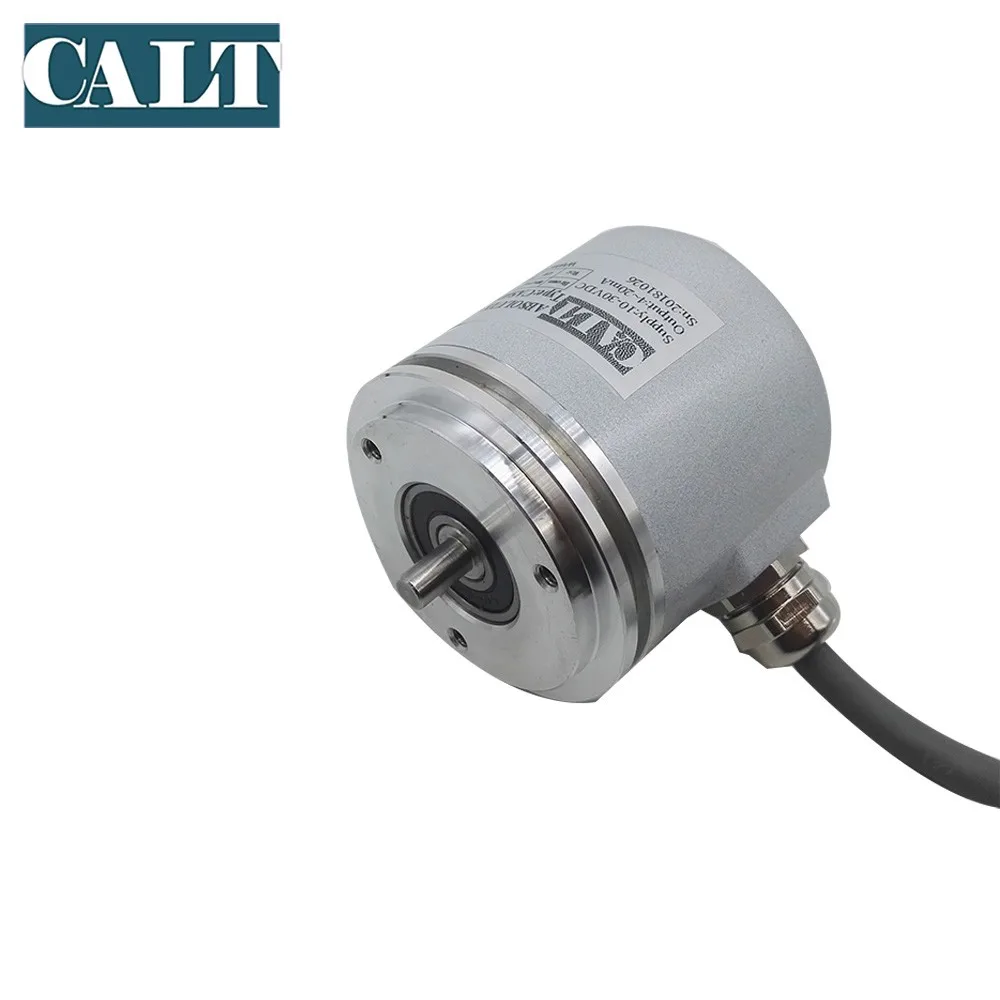

CALT 12bits parallel output absolute rotary encoder


12-bit parallel output of Single-turn absolute encoder, CW, CCW is compatible, single lap and multiple laps work is optional, anti-jamming, the best choice for replacing incremental encoder


Advantage

*Single-turn absolute encoder, it both have the choice of CW and CCW.
*Single-turn encoder combines metering lap signal, can work multi-lap, not more than 90 degrees to the power outage.
*12 bits resolution (1024,2048 lines can be ordered).
* Wide working voltage range, 10 ... 30Vdc, reverse polarity protection.
* Wide operating temperature range,-25~80Celsius; storage temperature: -40~80Celsius.
* Parallel push-pull output, optional for voltage reference, can be connected to a variety of devices.
* Comes with chips core operations, can be put zero.
* Clamping flange, Synchronous flange or Blind hollow shaft is optional, the length of the cable and socket can be ordered.

Note:

1 Keep two lines connected together when normal working
2 By default, the data increases clockwise; when connect the wire with high level, the data increases counterclockwise.
3 When the wire connected to high level, the current value is set to zero.
4 Maximum 50mA each parallel output

Detailed Images
Certification
Related Products
Our Company

   Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. has specialized in parking heater and related products for many years, located in Chinese business and port center, Shanghai. CALT brand product ranges:  2kw 3kw 4kw 5kw air heater, 5kw, 8-12kw water heater, knob switch heater, remote heater and GSM heater.

 Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Australia, Europe, America and Russia and other countries and regions in the world.

Welcome to our factory

Packing & Delivery

Packing Details  : carton packed for each encoder or items, and then pack with thick carton for shipping.

Delivery Details : 3-4 days after full payment in regular product, and 7-10days for customized type. and according to quantities.
