CALT 4-20mA 360 Degree 12bits Absolute hall angle sensor

Feedback Ratings
  • 1-9 Pieces
    $86.00
  • 10-49 Pieces
    $84.00
  • 50-199 Pieces
    $79.00
  • >=200 Pieces
    $69.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
resolution (Min. Order: 1 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
P3036-C-360-A-LS
Usage:
angle sensor
Theory:
Hall Sensor
Output:
hall sensor, 4-20mA
Resolution Ratio:
4096(12bits)
Operating Current(MAX):
<35mA
Voltage:
DC24v
Angle:
360°
Protection class:
IP65
Outer size:
36.5mm
Application:
Manipulator, Textile machine
Warranty:
12 Months
Material:
Shaft: Stainless Steel

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X12X14 cm
Single gross weight:
1.5 kg
Package Type:
export carton
Lead Time :
Quantity(Piece) 1 - 20 >20
Est. Time(days) 5 To be negotiated
Product Description

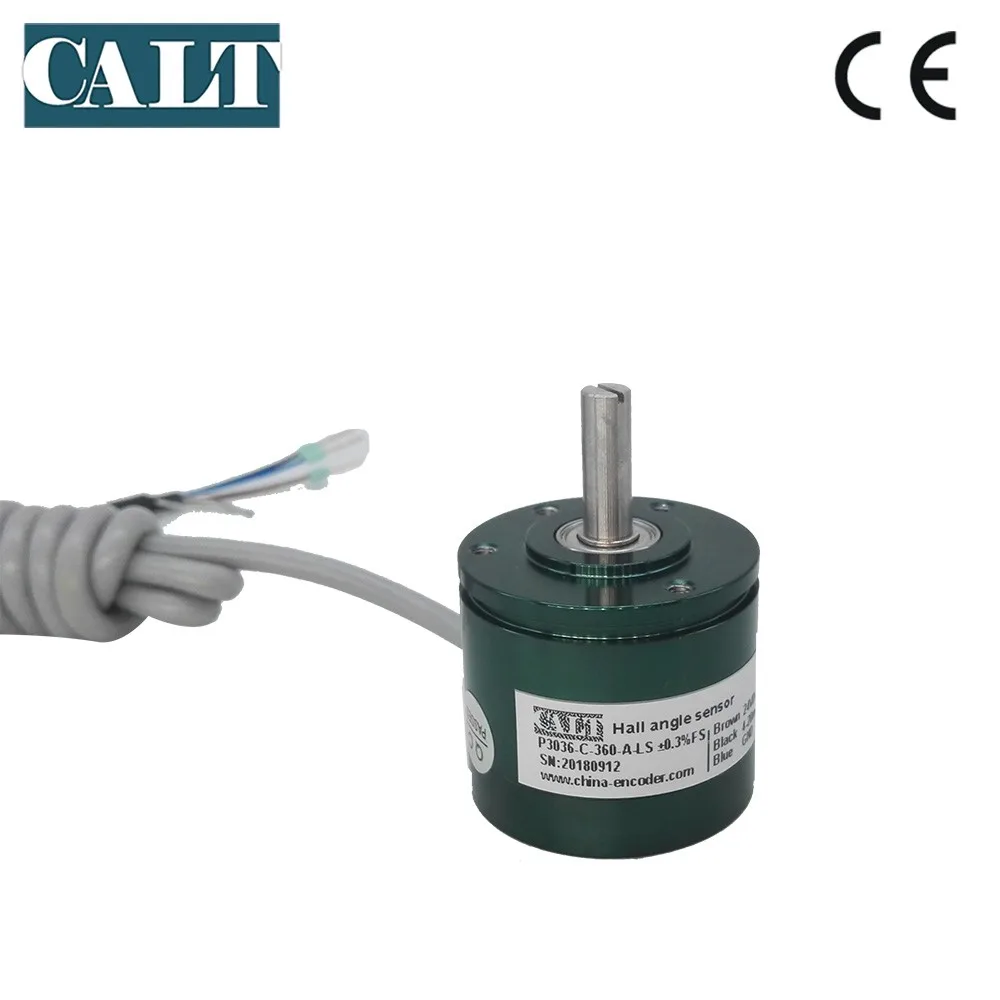

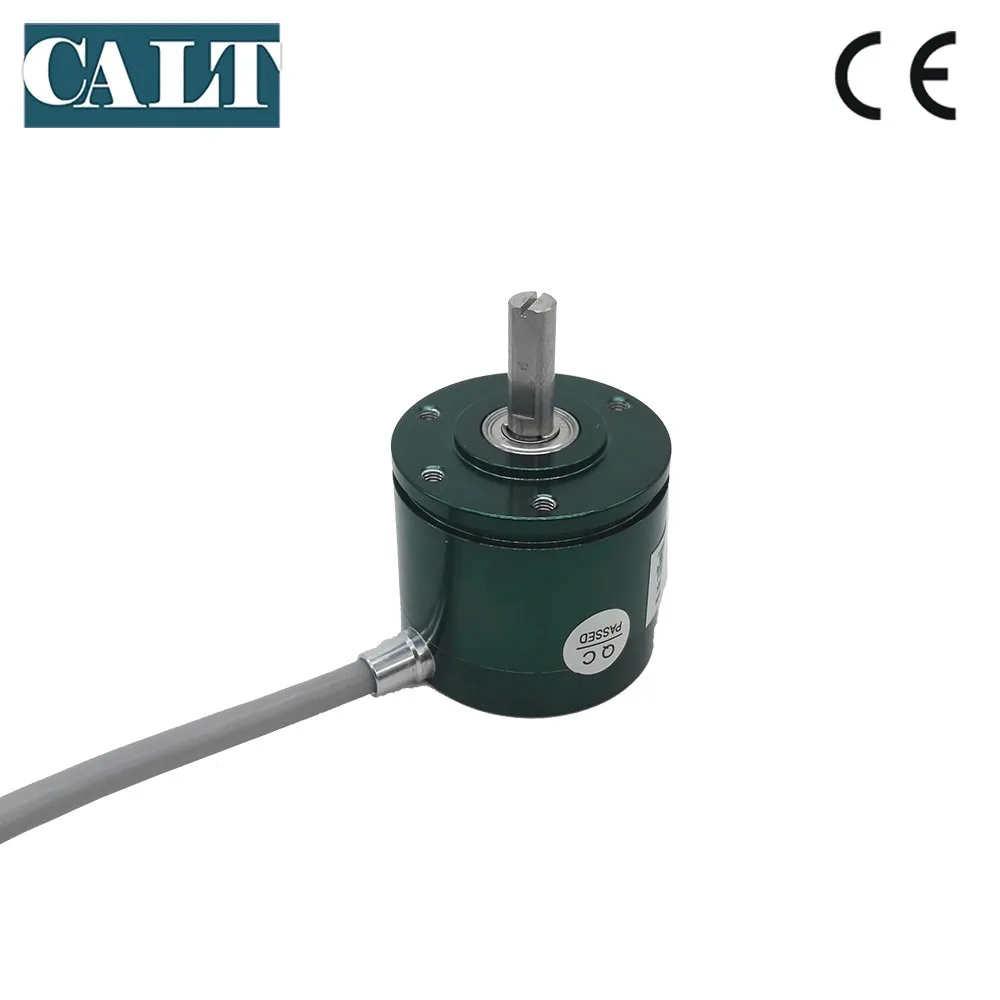

CALT 4-20mA 360 Degree 12bits Absolute hall angle sensor

Key Features
 Maximum outer diameter 36.5mm
 The whole point of 360 ° no dead Measurement
 Linearity is 0.3% F.S.
 Output signal 4-20mA, 0-5V DC or 0-10V DC
 Supply voltage 24V DC
 Mechanical theory of infinite life
 Small rotary damper
 Easy to install

Application

Manipulators, Textile Machinery, Construction machinery, Hydraulic cylinders Systems, Testing Machine, Automotive Test
medical instruments

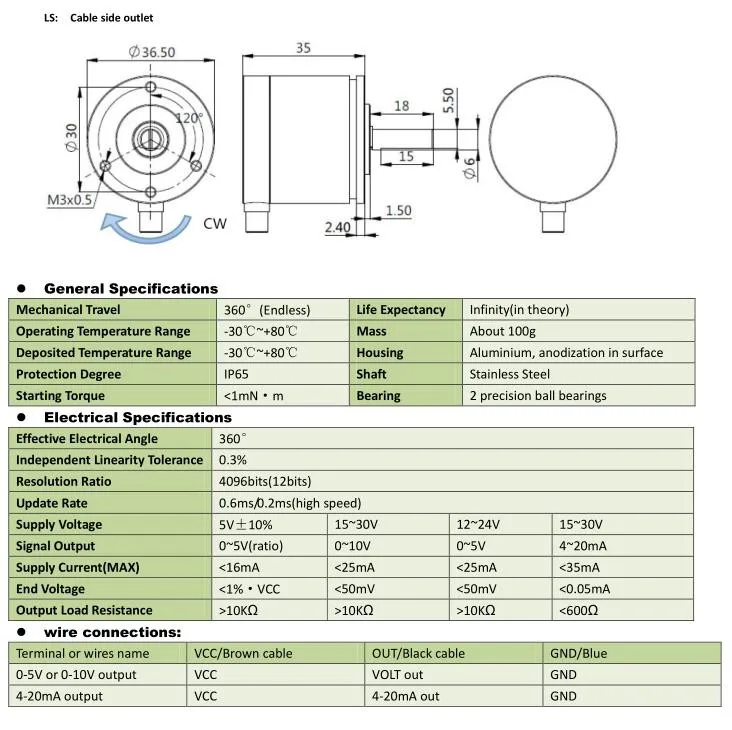

Detailed Images
Related Products
Packing & Delivery

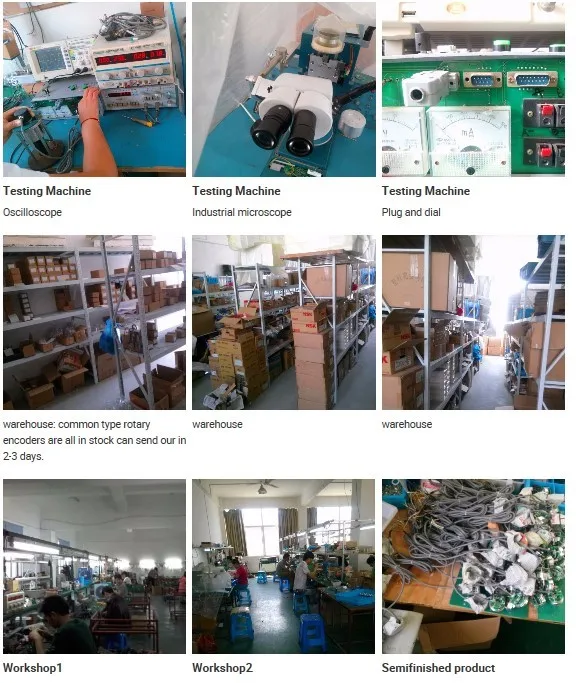

Our Company

Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
