CALT 60mm Blind hollow Multi turns SSI output absolute rotary encoder

Feedback Ratings
  • 1-9 Pieces
    $263.00
  • 10-29 Pieces
    $255.00
  • >=30 Pieces
    $240.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized packaging (Min. Order: 1 Pieces)
Customized logo (Min. Order: 1 Pieces)

More

Shaft size (Min. Order: 1 Pieces) Less
Contact Supplier
Samples - $265.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
CAX60H1212E10SGG
Usage:
Speed Sensor
Theory:
Optical Sensor
Output:
Analog Sensor
Output signal:
SSI
Supply voltage:
10-30Vdc
Work temperature:
-25℃ to 70℃
Resolution:
4096 lines
Max. turns:
4096
Protection Class:
IP65
Allowed speed:
2400 rev/min
Connection cable:
1 m 8 core shielded cable, or 9 core socket
Shaft:
10mm
Outer size:
60mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
18X16X12 cm
Single gross weight:
0.6 kg
Package Type:
Cartoon
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 50 >50
Est. Time(days) 7 To be negotiated
Product Description

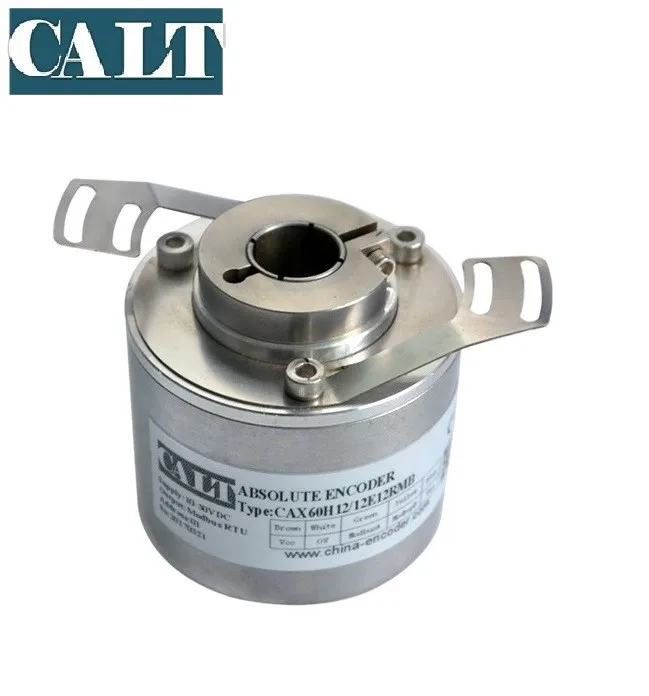

CALT 60mm Blind hollow Multi turns SSI output absolute rotary encoder

*Using "magnetic detection method", with excellent shock and vibration characteristics.
*The single turn resolution can reach up to 4096 (12 bits), the Maximum turns is 4096.
*SSI output, convenient to connect various PLC and PC equipment.
*Multi-purpose and multi-function, measure Angle by single-turn or multi-turns encoders, and length measurement by multi-turns encoders.
*Wide working voltage, extremely low power consumption.
*Clamp synchronous flange, blind shaft sleeve flange, international standard outline structure.
*External resetting line to set the default location, easy installation, no need to find ZERO.

Selection Guide:

Characteristic parameters
Operating voltage
10 ... 30Vdc or 5Vdc polarity protection
Current consumption
< 110mA(24V Power supply] < 190mA(12V Power supply
Output signal
SSI
Output pattern
Gray code and Binary code is optional
Each turn Resolution
≤12 bit, up to 4096 lines (order selection)
Max. turns
4096
Duplicate precision
Repeatability ± 2BIT (the actual precision and installation precision shaft concentricity related)
Operating temperature
-25 to 70 ℃ Programming temperature range: 0 ℃ + 70 ℃
Protection degree
IP65
Allowed speed
2400 rev / min
Connection cable
1 m 8 core shielded cable, or 9 core socket
Shape features

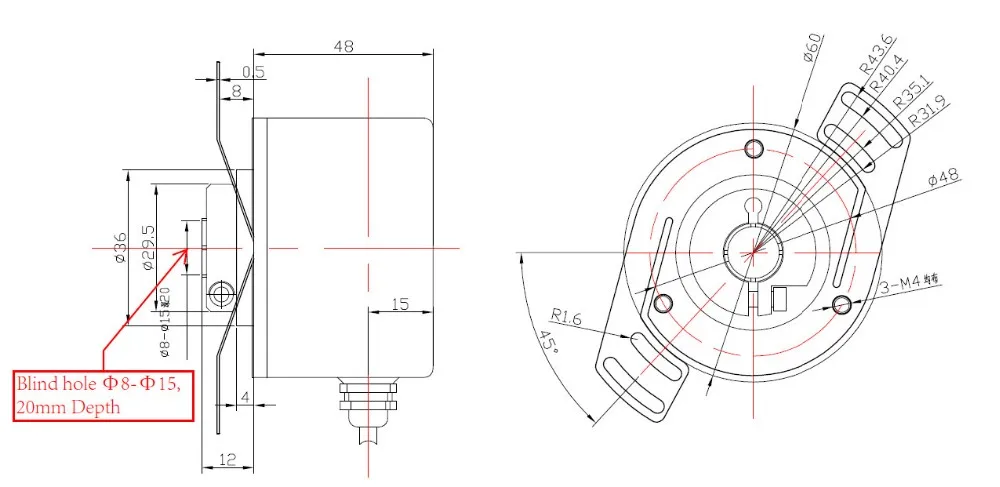

Clamped synchronously integrated flange, metal housing, sealed double bearing structure (see figure for dimensions)
shaft
Clamping synchronous flange shaft diameter 10mm or 6mm, length 20mm, containing D type, stainless steel material

Typical applications

Iron and steel metallurgy

Water Conservancy industry
Military, radar, antenna
Engineering
Port machinery
Lifting
Wind power industry
Stage equipment
and other industries
Detailed Images
