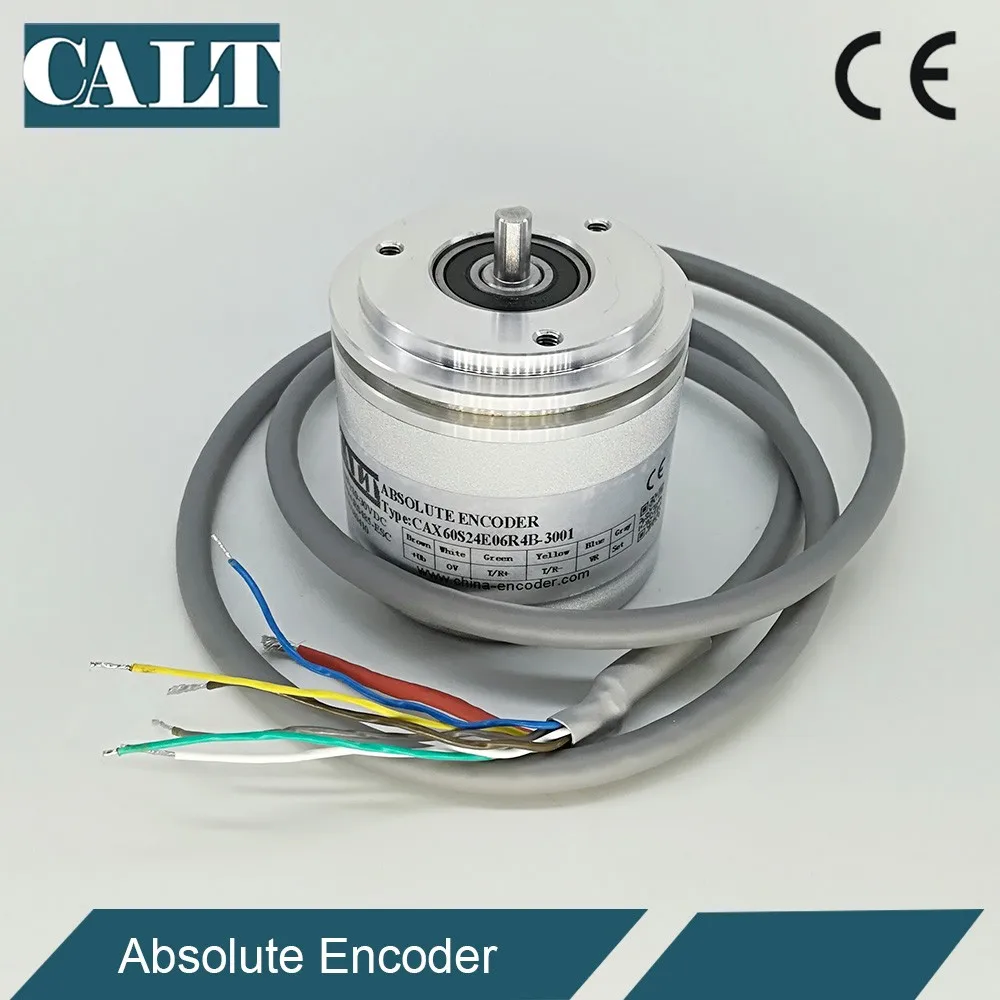

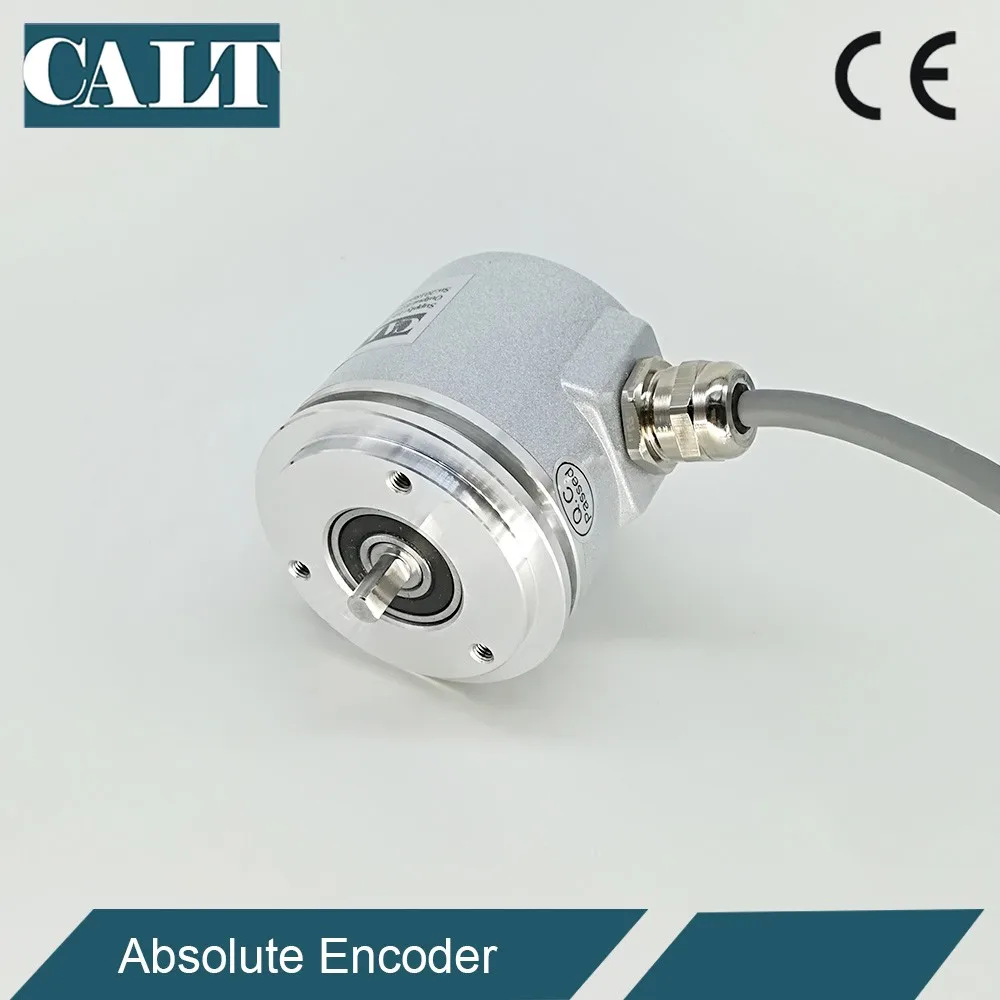

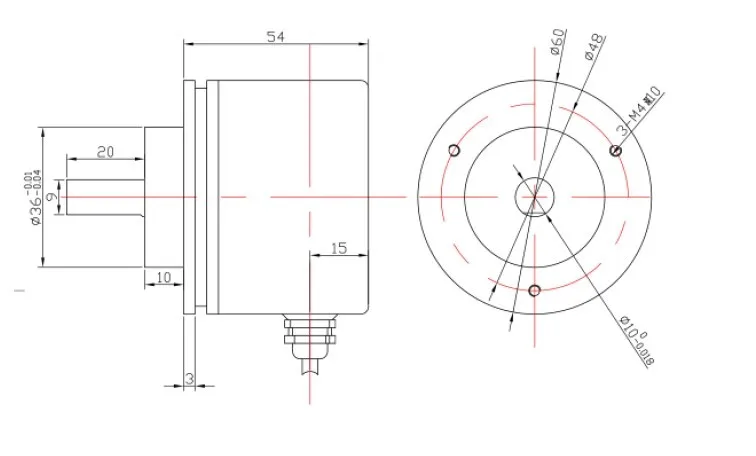

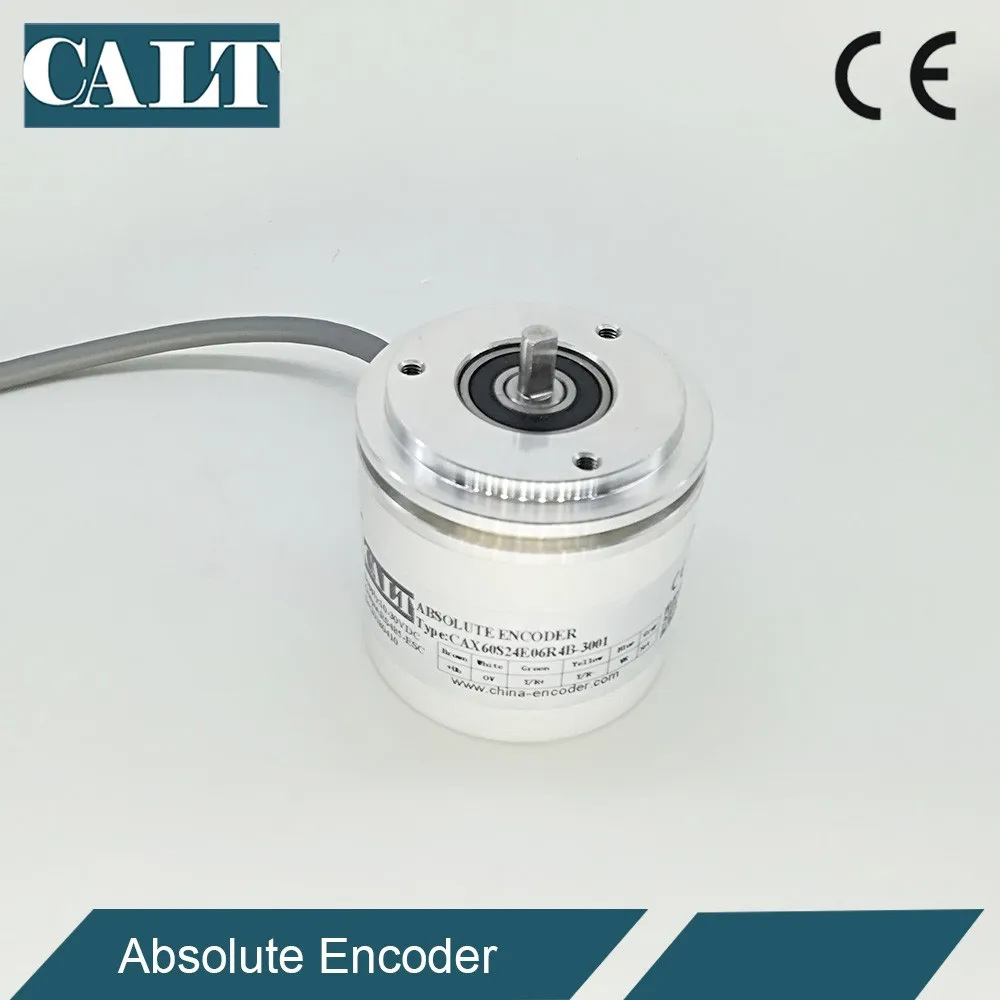

*Using "magnetic detection method", with excellent shock and vibration characteristics. *The single turn resolution can reach up to 4096 (12 bits) and up to 4096 laps (12 bits). *CANopen output, convenient to connect various PLC and PC equipment. *Multi-purpose and multi-function, directly corresponding to single-turn, multi-turn Angle, multi-turn length measurement. *Wide working voltage, extremely low power consumption. *Clamp synchronous flange, blind shaft sleeve flange, international standard outline structure. * External resetting line to set the default location, easy installation, no need to find ZERO.
The encoder can set the communication frequency and address, direction and resolution of CANopen via RS485 communication interface. The communication baud rate of RS485 is 115200. Frame format: 8-bit data , stop bit 1, no check, no control flow.
Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
