CALT CNC Manual Pulse Generator Handwheel MPG 5V 12V Milling Machine controller

Feedback Ratings
  • 1-9 Pieces
    $69.00
  • 10-999 Pieces
    $65.00
  • >=1000 Pieces
    $50.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
voltage (Min. Order: 2 Pieces)
resolution (Min. Order: 2 Pieces)
Contact Supplier
Samples - $68.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT

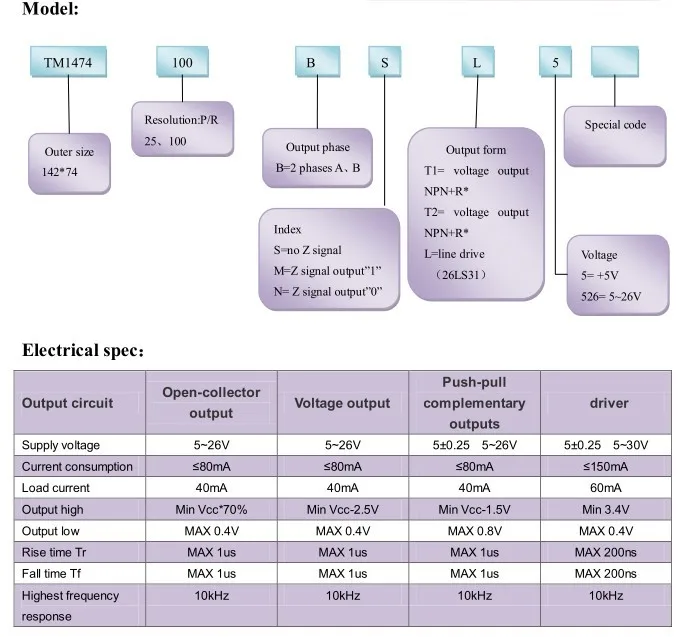

Model Number:
TM1474
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
Digital Sensor
resolution:
100ppr, 25ppr
protection degree:
IP50
anti-vibration:
10G 10~2000hz
Name:
hand wheel pulse generator
voltage:
5v, 12v optional
system:
fanuc, siemens, mitsbushi
name:
cnc manual pulse generator MPG
cable:
5.8m spiral coil cable

Packaging & Delivery

Selling Units:
Single item
Single package size:
18X16X14 cm
Single gross weight:
0.8 kg
Package Type:
carton
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 50 51 - 200 >200
Est. Time(days) 5 10 To be negotiated
Product Description

CALT CNC Manual Pulse Generator Handwheel MPG 5V 12V Milling Machine controller


Application & Features:
For CNC machine Zero correction and signal split. Full plastic shell, high dielectric strength, with axis switches, the IOPP sealed design, with ×1, ×10, ×100 three gear ratios, 6-axis and magnification switches.

Packing & Delivery

Packing Details  : carton packed for each encoder or items, and then pack with thick carton for shipping.

Delivery Details : 3-4 days after full payment in regular product, and 7-10days for customized type. and according to quantities.

1. Rotary encoder pack box 2 layers.
2. All packed good
3. Encoder module disc in plastic box
4. Ziplock packed for flexible coupling
5. Rotary encoder packed well
6. Packed with good conditions with shipping mark.
Related Products

Solid shaft type GHS38 Series.

Widely used in automatic control, automatic measurement, as the angle and speed sensors.


ASIC devices internal, good reliability, long life, anti-jamming performance. Stainless steel shaft has a higher stability and protection.Metal shell is more solid and anti-impact. Bearing load heavy, anti-oil and water

Servo-motor Encoder GSM48 Series.

Widely used in the field of automatic control AC servo unit, particularly suitable for use in servo motor supporting.


Internal ASIC devices, high reliability, long life, strong anti-interference. Wide range of resolutions, and does not require signal conditioning.  With A, B, Z and U, V, W six-channel signal output can be connected with standard line driver (26LS31) RS422, can provide 12 output signal, and is compatible with TTL

Hollow Shaft Type GHB38 Series.

Used in automatic control, measurement, robot X-Y working platform, printing and packaging.

Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.

Hollow Shaft Type GHH80 series.

Used in automatic control, measurement, robot X-Y working platform, printing and packaging.

Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.

Manual Pulse Generator TM1469 series.

For CNC machine origin correction and signal split.


 Full plastic housing, high dielectric strength, the axis transfer switch and Oil Pollution Prevention seal design.

Draw-wire Position Sensor CESI series.

compact size, rugged construction, easy to install

economic cost, and cost savings for customers
Various signals output optional: push-pull, TTL, open collector and so on


The cylinders, testing machines and other industry has achieved large-scale applications, reliability
