CALT Rope Length Transmitters draw wire displacement sensor linear position sensor

Feedback Ratings
$108.00 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)
Contact Supplier
Samples - $110.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
CESI-S1000
Usage:
Position Sensor
Theory:
Resistance Sensor
Output:
Digital Sensor
measuring distance:
0~1000mm
pull speed:
1m/s
operating temperature:
-40~85celsius
storage temperature:
-20~80 celsius
rope:
wire rope 0.6~1.2mm wire maximum load 16KG
voltage supply:
12~24Vdc
protection degree:
IP65/IP54
resolution:
theory of infinite
output:
NPN, Push pull, line driver, absolute encoder4-20mA

Packaging & Delivery

Selling Units:
Single item
Single package size:
18X15X12 cm
Single gross weight:
0.6 kg
Package Type:
carton
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 3 To be negotiated
Product Description

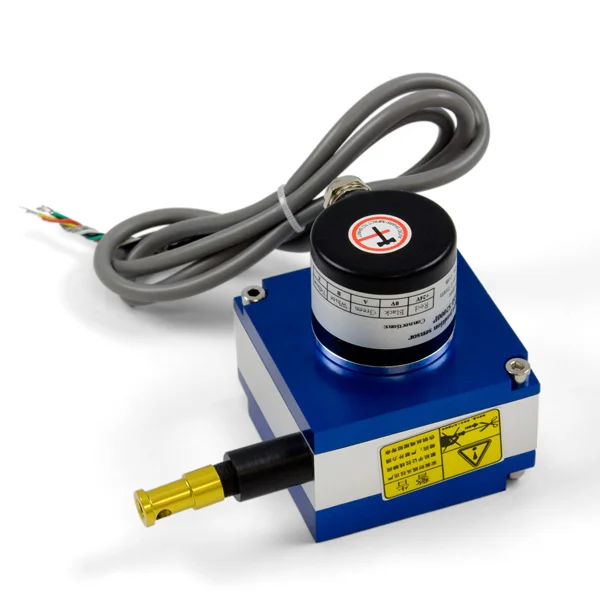

CALT Rope Length Transmitters draw wire displacement sensor linear position sensor

Draw-wire Position Sensor is a highly efficient linear displacement measuring device, with ingenious design principle, through scientific combination of the special steel cable and angle measurement components (potentiometer or encoder), it make linear displacement motion of an object convert into electric signal that measurable and linearly proportional, thereby achieve accurate displacement measurement data output.

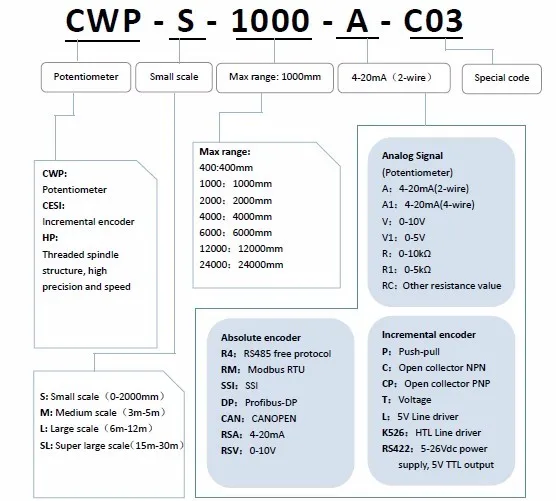

Selection guide

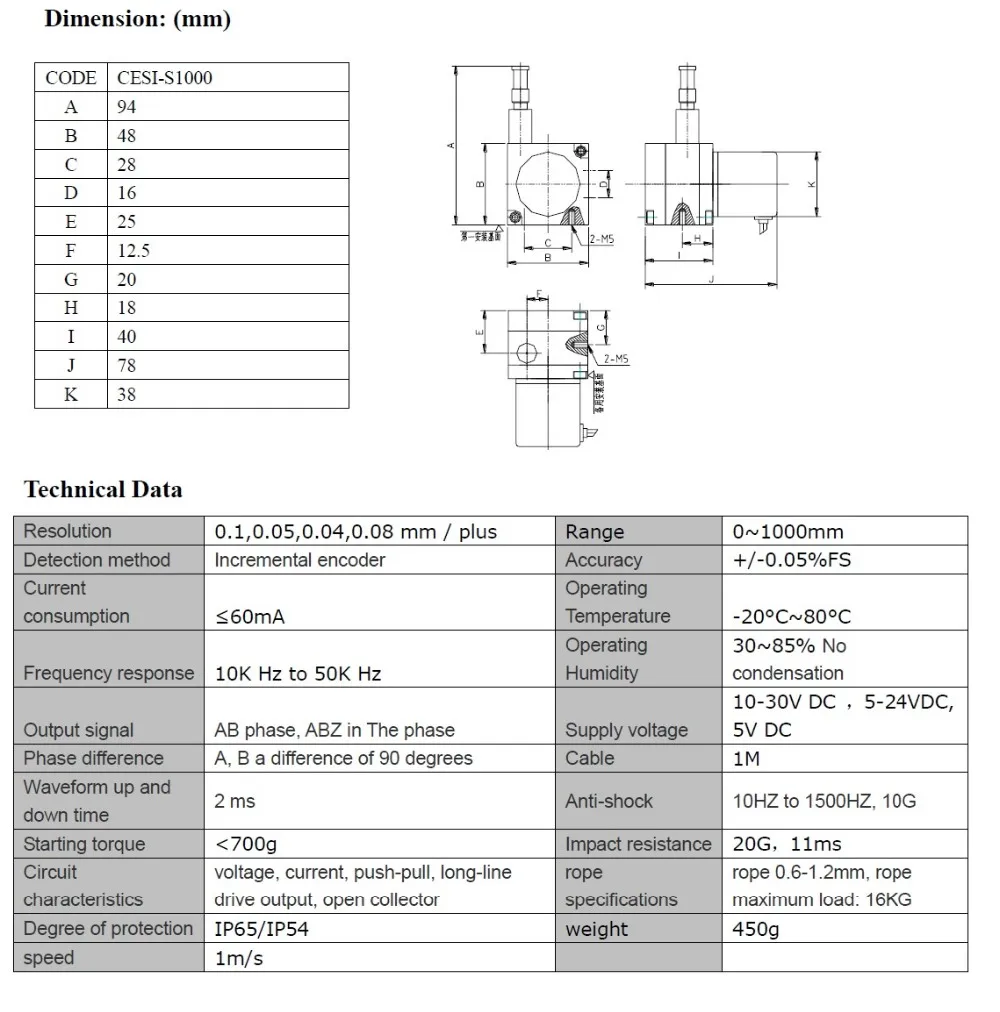

Detailed Images
Related Products

CALT CWP-S400 Analog signal draw wire sensor 0-400mm range

CALT CWP-M3000 Analog signal draw wire sensor 0-3000mm range

CALT HS Series High Precision draw wire sensor

CALT CESI-S1000 incremental encoder draw wire sensor 0-1000mm range

CALT KTC1-100 rod type resistance Linear LVDT displacement sensor

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Certifications
Our Company


Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.

Factory Building

9# 302, No. 4361 Hutai Road, Baoshan District, Shanghai

Testing Machine

Oscilloscope

Testing Machine

Industrial microscope

Testing Machine

Plug and dial

warehouse: common type rotary encoders are all in stock can send our in 2-3 days.

warehouse

warehouse

Workshop1


Workshop2


Semifinished product


FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 2-4 days after full payment if the goods are in stock. or it is 7-12 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Generally it is 2-4 days after full payment if the goods are in stock. or it is 7-12 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: We accept T/T, Paypal, Western union or money gramm.

Q: What's your warranty ?

A: 12 months. If the items you purchased from  our company are not with perfect quality or can't work normally, you can ship back for replacement or refund.

Q: What's your shipment method?

A: We ship by Express FEDEX, UPS, DHL, EMS, ARAMEX. All express freight is charged in your end.
