CALT SSI Length signal and 4-20mA weight signal three channel data liquid crystal display

Feedback Ratings
  • 1-9 Pieces
  • 10-49 Pieces
  • >=50 Pieces
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customized packaging (Min. Order: 1 Pieces)
Customized logo (Min. Order: 1 Pieces)


Output signal (Min. Order: 1 Pieces) Less
Contact Supplier
Samples - $268.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Model Number:
SMM1312-II(3 chanel LCD)
Position Sensor
Switching Transducer
220Vac or 24Vdc
Input signal:
1 chanel SSI and 2 chanel 4-20mA
Display type:
Output signal:
8 Relays switch output
Shape size:
Work temperature:
12 Months

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X10 cm
Single gross weight:
2.0 kg
Package Type:
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 5 To be negotiated
Product Description

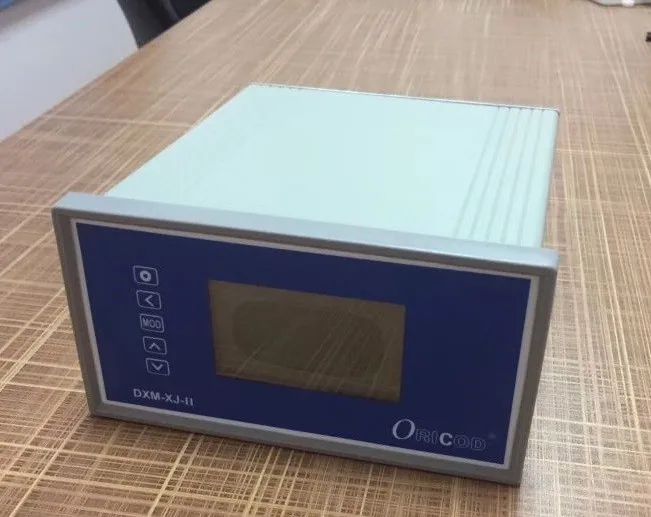

CALT SSI Length signal and 4-20mA weight signal three channel data liquid crystal display

★ Joins all brand of SSI signal sensor
★ SSI signal can while redundant equipment connection PLC of SSI module and this paragraph instrument
★ powerful of signal and power anti-interference fault-tolerant function, more reliable security
★Optional signal code: Gray code, Binary code
★ Can connecting 1 set SSI output signal Multi-turns absolute encoder to measure Length, and 1 or 2 sets 4-20mA output signal load cell for weight at the same time.
★ intelligent of Panel set, widely used in length and weight control systems, like Hydraulic Gate control systems and Hoisting operation system.
★ RS485 digital communications, and 4-20mA, and 8 points switch variety output signal

Operation parameter

Shape size (wide advanced): 160x80x170
Instrument open hole size: 152x74
Digital displayed bit number: 6 bit for length display, 4 bit for weight display
Input signals: can connecting 3 signals, 1 channel signal of 25 bit SSI synchronization series signal; 2 channel signals of 4-20mA weight signal.
Switch output number: 8 relays switch output (following electrical, each location a normal open a normal closed); Panel preset, switch form set.
Location signal output: 4 channel location signal output, 3 channel 4-20mA analog output (2 channel weight, 1 channel length), and 1 channel RS485 communications digital out
Signal adjustment: can set 4, and 20mA corresponds to value, can 4, and 20mA output value fine-tuning zero, and adjustable full communications, or zero point
Communication Protocol: RS485 output (or MODBUS) protocol, can Panel set address and speed rate; can custom protocol as client needs;
Zero setting: can reset at any position, panel intelligent setting.
Work voltage: 220Vac (24Vdc can custom)
Supply power: can provides sensor work power (indicate voltage and power flow)
Work temperature: -10 ℃ ~60 ℃
Relative humidity: <85%
Direction set: setting the encoder rotary direction, forward and backward direction
Remote display: 1 channel output signal to PLC controller, 1 channel output to remote display.
