CARIBE pos terminal android barcode scanner nfc card reader pda android terminal thermal printer

FOB Reference Price:Get Latest Price
  • 1 - 9 Pieces
    $290.00
  • 10 - 99 Pieces
    $280.00
  • >=100 Pieces
    $270.00
Lead Time:
Quantity(Pieces) 1 - 10 11 - 100 101 - 1000 >1000
Est. Time(days) 10 15 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CARIBE
Model Number:
PL-50L
Camera:
8M AF
Barcode scanner:
1D/2D Barcode Scanner Optional
Battery:
4800mAh
RFID:
NFC(13.56MHZ)/UHF(900MHZ) Optional
OS:
Android 7.0
GPS:
Support A-GPS
Bluetooth:
Bluetooth 4.0
Product name:
PDA Handheld Barcode Scanner
Functions:
Thermal Priner
Color:
Black
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month pos terminal android barcode scanner nfc card reader
Packaging & Delivery
Packaging Details
Carton Box
pos terminal android barcode scanner nfc card reader
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 101 - 1000 >1000
Est. Time(days) 10 15 25 To be negotiated
Video Description
Product Description

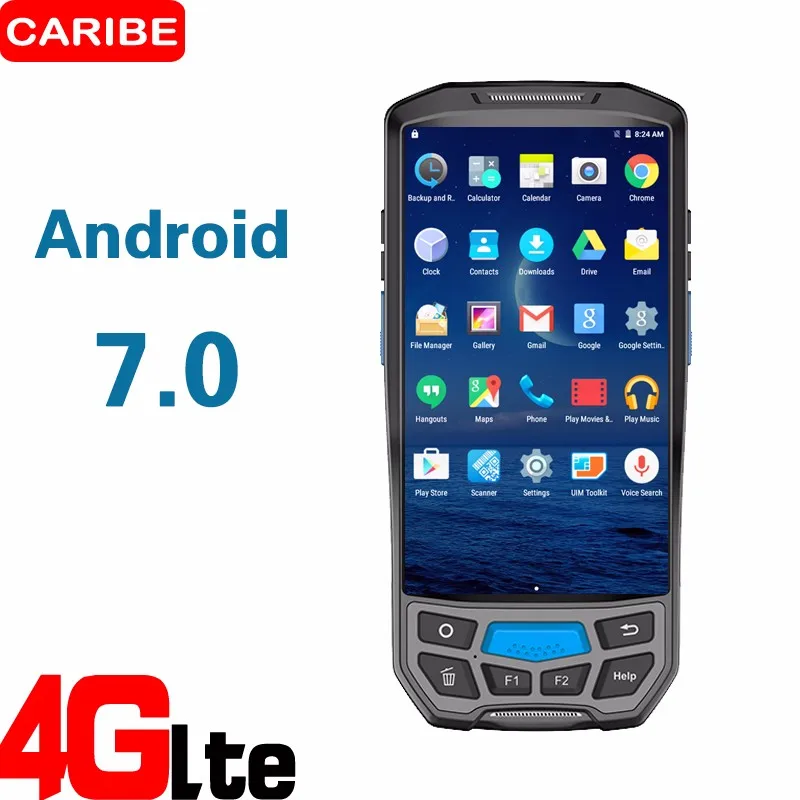

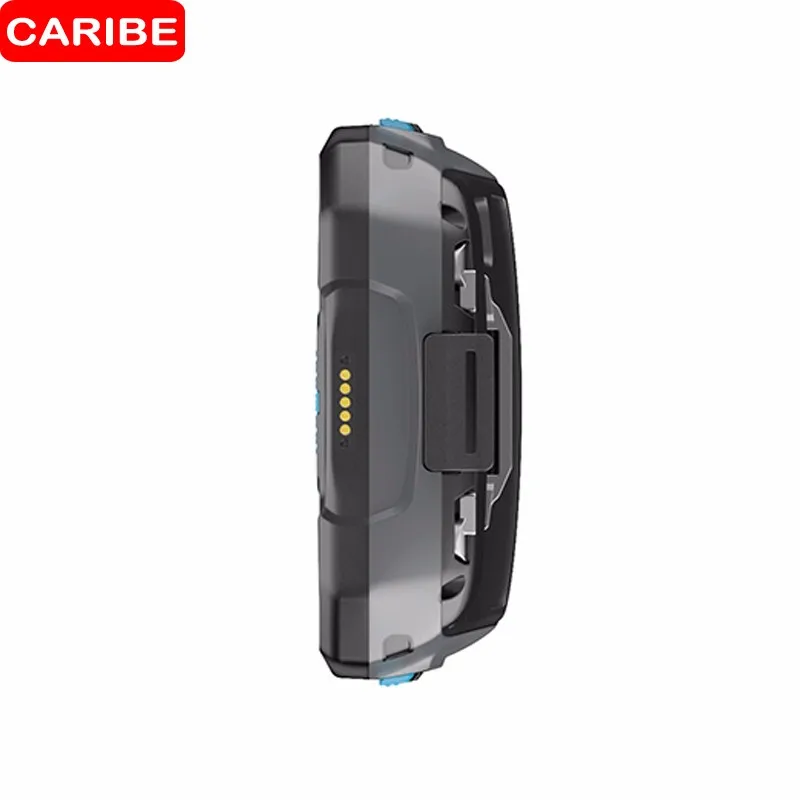

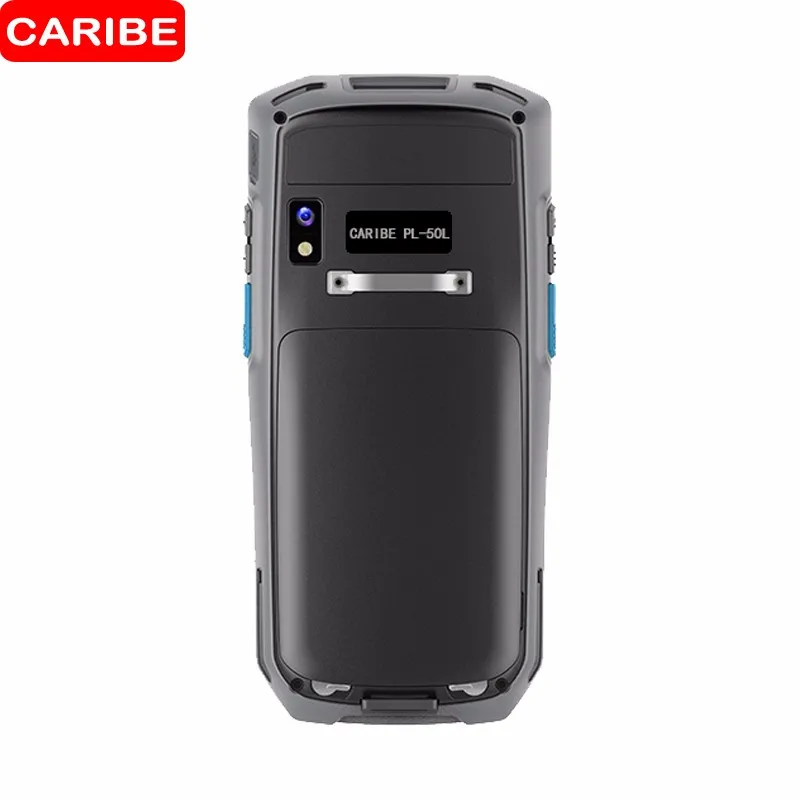

CARIBE pos terminal android barcode scanner nfc card reader ,pda android terminal thermal printer


Function Definition
Detailed Definition
Description
Model type
Handheld terminal Fingerprint shape printer shape
Physical Specification
Dimensions
178mm×78mm×24mm
Weight
<500g(with battery)
Keypad
11 keys:
1)  Front:1scan key,1 delet key,1 enter key,1 back key,1 function key
2)  Side:Vioice up and down,2 Scan key,1user-definedkey,1 Power key
Extensio n card slot/interface
PSAM
PSAM x 2
TF
TF x 1
SIM
Micro SIM x 1
POGO Pin
POGO Pin x 1
Micro USB
Micro USB x 1
Product performance
CPU
ARM Cortex-A53 64bit Quad-core CPU(1.5GHz)
RAM
2GB
eMMC
16GB
Screen
Display screen
5.0inch IPS color display,720×1280
Capacitive TP
5.0inch Capacitive TP, Multi-Touch, works even with water or Gloves
Scanner module
1D (option)
MD U966 or Honeywell N4313
Support:Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,
Codabar, Interleaved 2 of 5,China post 25,ISBN/ISSN,Code93,
UCC/EAN-128,GS1 Databar,HIBC,etc
2D(option)
newland2096 or Honeywell 6603
RFID
125Khz(option)
Support 125Khz;ISO11784/5, ISO18000-2; read distance is 2cm-5cm;
NFC(option)
Support 13.56MHz;ISO1443A/B,15693; read distance is 2cm-5cm;
UHF RFID(option)
Support 860-960MHz RFID;Support EPC C1/G2,18000-6C read and write;read distance≥1.2m;(3-5meters option)
2.4G(option)
2.4G RFID,read distance is 30 meters~50 meters;
Data
Wi-Fi
Support 802.11a/b/g/n
Communication
Bluetooth
Support Bluetooth 4.0;Support Class II
4G/3G/2G
2G:GSM(850/900/1800/1900MHz)CDMA
3G:CDMA2000 (800MHz)
3G:WCDMA (850/900/1900/2100MHz)
3G:TD-SCDMA (1880/1920/2015/2025MHz)
4G:TDD-LTE (B38/B39/B40/B41)
4G:FDD-LTE (B1/B3/B4/B41)
Extended
Cameara(option)
1,Support Zoom,anti-shake,Macro photography;
2,8MP ; (option: 12MP)
3,Support vedeo record;
4,Support still image and video capture
Flash
Flash and flashlight
G-SENSOR
1,3-Axis;
2,Adjustable samples per second,Such as 1 to 100 times
GPS
Support GPS&AGPS
Beidou
Built-in Beidou compass navigation
Voice
Microphone
Support voice record
Speaker
Support speakout
ID system
Fingerpirnt recognition
Built-in TCS1ST Sensor,Use Living recognition technology
ID card
Support ID card reader
POS/Payment
Thermal printer
58mm thermal printer
Hardware
Power
1,3.7V 4800mAh;
2,Continuous working ≥12hours;
3,stand-by time≥72hours;
RTC battery
clock not lost
Charging time
No more than 6hours(USB charger)
wristlet
wristlet*1
Shake
Motor*1
LED
2 LED
Flashlight
1,Brightness can be adjusted;
2,Brightness is the same as flash
Light Sensor
Support Photosensitive sensor
Software performance
OS
Android 7.0
Language
Almost all the language in the world
Input method
English,Chinese,handwriting, soft keyboard
Input mode
Support Soft keyboard and physical keyboard
standby current
≤10mA,target:8mA.
Operating environment
Work temperature
–25°C to +55°C
storage temperature
–40°C to +50°C
humidity
5%–95% (No condensation)
Drop resistance level
1.2M
Certificate
IP level
IP67 3C CE FCC ROSH
Laser safety standards
IEC2 Class /FDA Ⅱ,Accord to IEC60825­/EN60825-1
Device life
No less than 5 years
Detail Images
Packing & Delivery

Packing List


1 unit Independent Packing with Standard Accessories

Battery 1 pcs ,
USB Data Cable 1 pcs ,
Adapter 1 pcs ,
Screen Protector 1 pcs

Shipment

We offer DHL shipping usually,but in emergency ,we can choose another shipping option.
Normally : DHL shipment :USA , Britain, Germany, Italy, Belgium, France, Spain and so on,

EMS shipment :Russia, Saudi Arabia, Brazil and so on.

After your confirm the CI and shipment ways , we will start to arrange the shipment .
If you have any requestment for shipping , Pls connect with us .Thank you .
