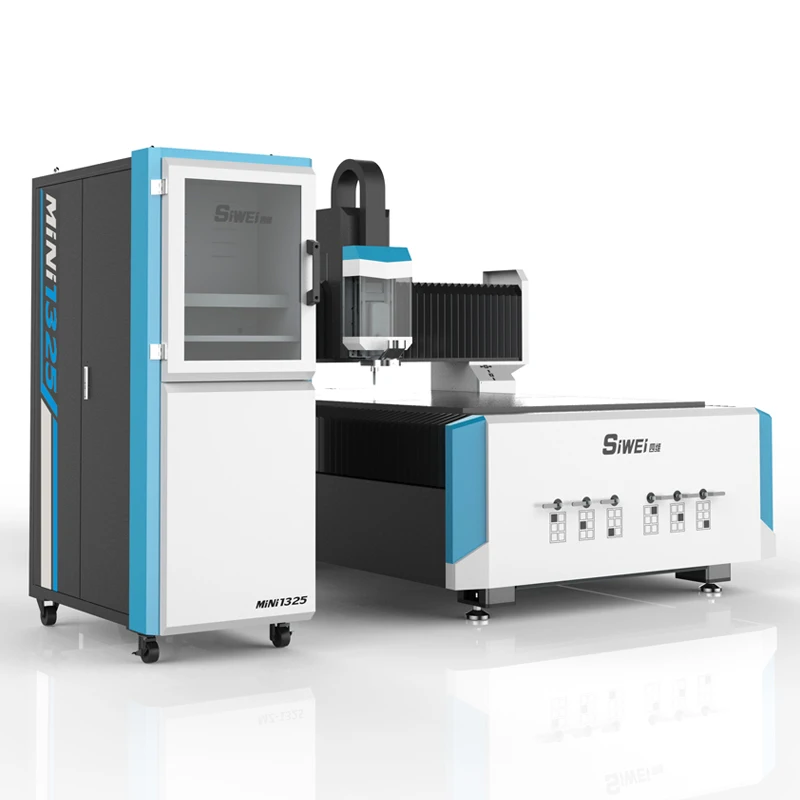

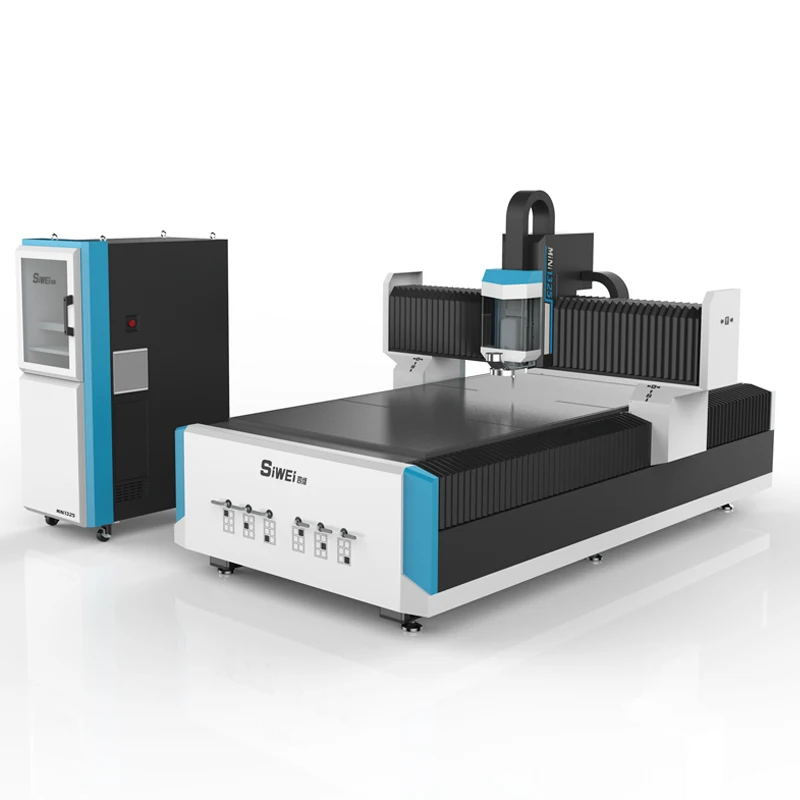

CNC Woodworking Machinery , 1325 Wooden Door Making Machine for Cabinets

FOB Reference Price:Get Latest Price
$10,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MINI1325
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Anhui, China (Mainland)
Brand Name:
SIWEI
Voltage:
380V
Dimension(L*W*H):
1300*2500*200mm
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Control system:
NC Control System
Motor:
Delta Servo Motor
Software:
Artcam/Type3
Inverter:
TECO Inverter
Driving system:
Delta Servo System
Table:
Vacuum
Guide rail:
LAPPING linear rail
Spindle:
Water Cooling Spindle
Application:
PVC MDF Wood Acrylic
Power(W):
7.5KW
Weight:
2500KG
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export plywood case packaging for CNC Woodworking Machinery , 1325 Wooden Door Making Machine for Cabinets
Port
Hefei to Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

Product Application

Advertising industry: mini LED words, oblique edge characters, acrylic, light-emitting characters, high-end advertisement characters etc.

Other industrial: building models, plastic and solid wood models, three-dimensional surface processing of musical instruments, electronic industry , woodworking furniture, cabinet door panels, building materials processing etc.

It also applies to engraving and cutting on copper, aluminum and iron plates.

This series of products are more focused on high precision processing model, suitable for advertising, electronics, woodworking, furniture, aluminum alloy products high gloss processing.

Linear Rail
Configure with LAPPING linear rail 25mm width
Package size
3.36*2.28*2.14m, Weight :2500KGS
X,Y working area
2500x1300mm,machine transmitting by rolling ball screw,high precision.
Z working area
200mm, Z axis with high precision grinding rolling ball screw.
Max. Moving speeding
30m/min
Work-holding
Standard with independent 4 zone matrix vacuum table with high strength
Control system
NC control system
Spindle motor power
7.5KW water cooling high speed quickly tool change spindle motor
Surroundings for software
Windows10/7/XP
Power(spindle is not      included)
more than 5000w
Working voltage
AC 380V/50Hz-60Hz (Standard)
Main axis rotating speed
0-24000rpm/min
Work Mode
TAIWAN Delta servo motors and drivers, and TECO inverter,speed control uniform and cutting edge smooth.
Machine structure
Adopt industrial heavy-duty structure under heat treatment
Dust cover
XY axis adopt totally closed dust cover design, Z axis with spindle protection cover
ATC tools
Standard with 4 pcs of linear type ATC tools and 4 tool shanks
Software
New version type3 software:Router 8
Warranty
One year without the tools
Optional device
Dust collection system

Main Features

Machine with integral welding body, high inflexibility structure design, material stress analysis& forming by heat treatment, avoid deformation.

1. Original NC controlling system, professional electronic parts,perfect function.

2. High accuracy mould working spindle motor with Quickly tool change function cooling by water, 7.5kw Made in China.

3. Original Taiwan Delta 750w servo driver board and servo motor, Z axis with brake motor.

4. All axis with LAPPING linear rail from Taiwan, high precision imported ball screw transmitting for X, Y, Z axis, also block with self-lubrication function ensure machine running smoothly in high speed, lower noise.

5. Independent big controller.

6. Standard with vacuum forming table and auto lift Dust

collector system

7. Air cooling device for cooling the bits during working.

Detailed Images

Machine Parts

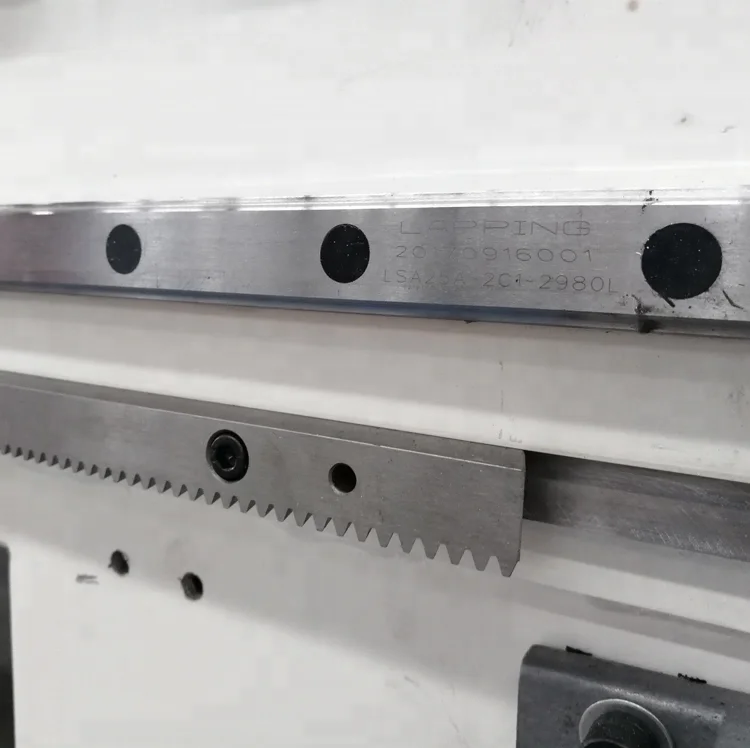

Name: Linear rail

Brand:LAPPING

Original: TAIWAN

Equipped LAPPING linear rail with high accuracy helical gear and rack transmitting, more stable and precisive.

Main Features

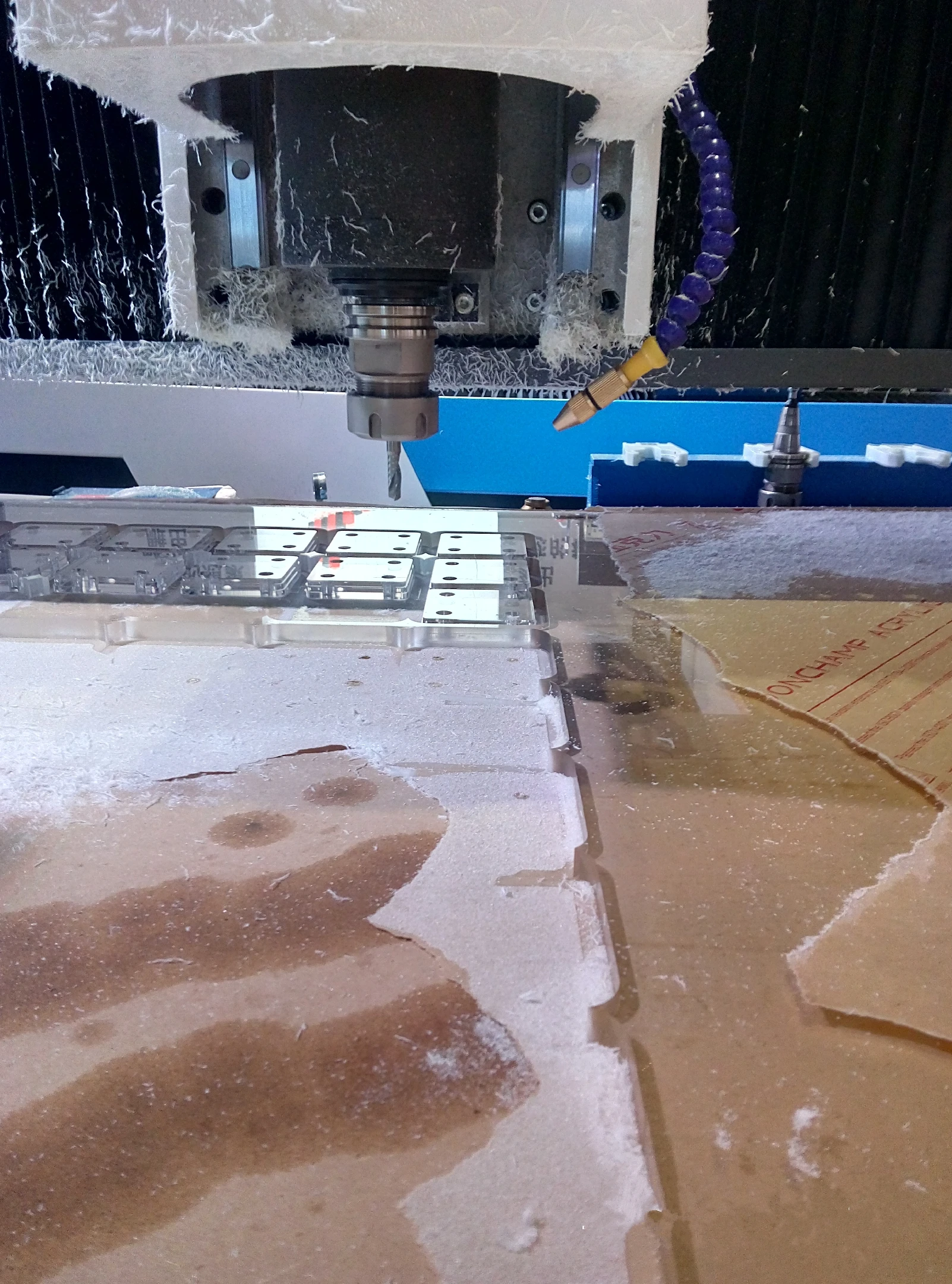

Name: Spindle motor
Brand: LINNAN
Original:
China

Standard with 7.5KW/380V high speed water cooling auto tool change spindle, high power, high efficient.  Italy HSD  air cooling spindle is optional.

Machine Parts

Name: Servo system and driver
Original:TAIWAN



Main Features

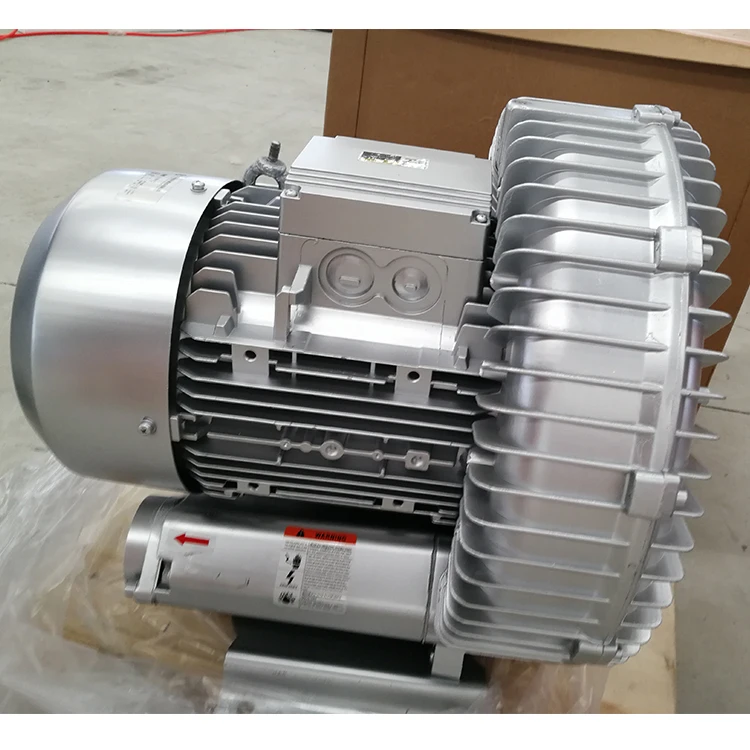

Name: Vacuum pump
Brand: Becker
Original: Germany

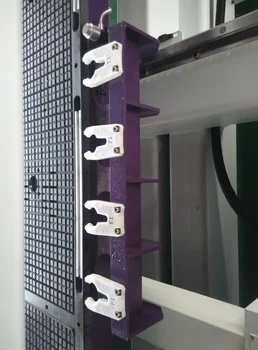

Auto tool change

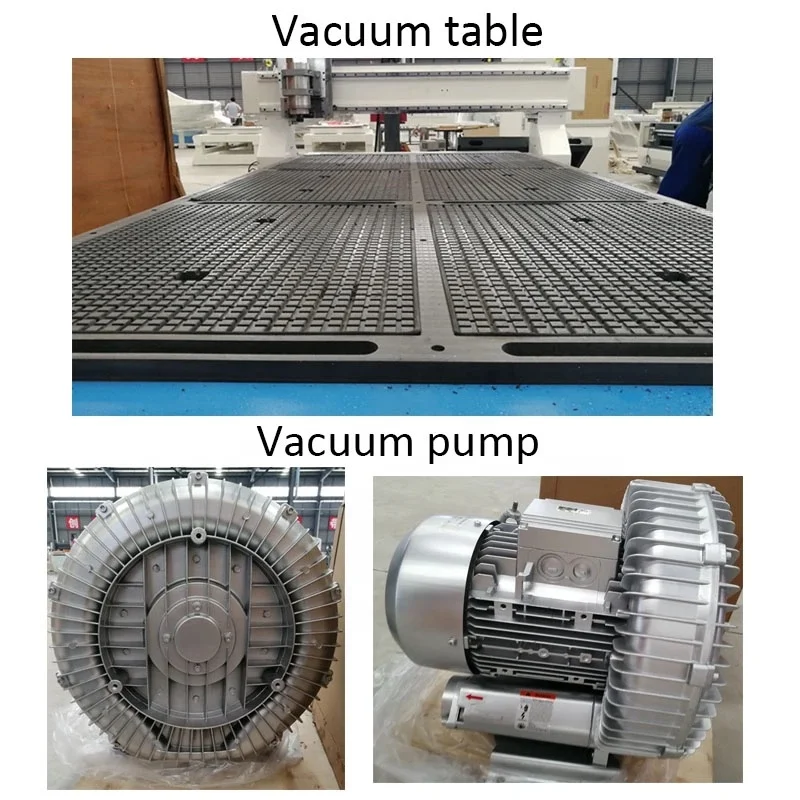

        Vacuum table and pump

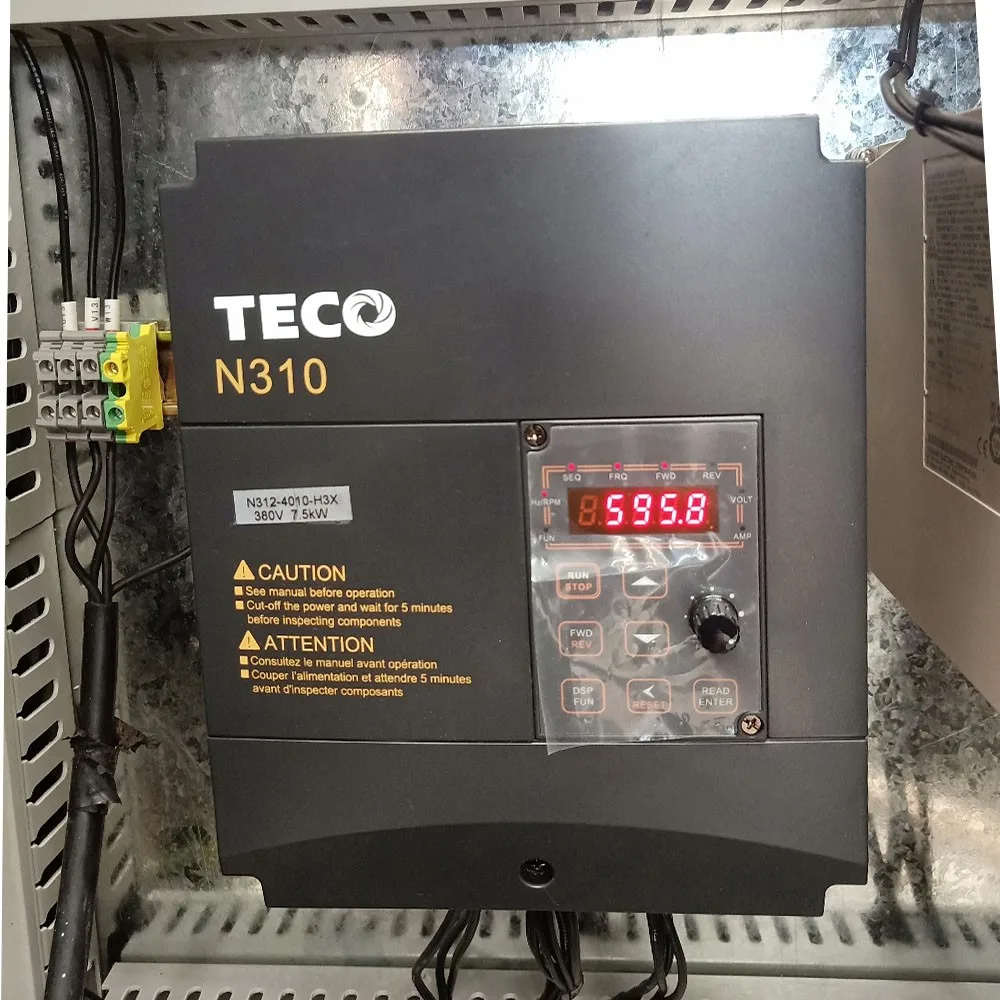

            TECO Inverter
Certifications
Our Company

Our company Hefei Siwei CNC Machinery CO.,LTD established in 1992,lies in HEFEI --One of Chinese scientific and technology cities.It has been working on researching and manufacturing CNC machinery in field of woodworking,stone engraving,metal processing,glass cutting and advertising etc. over 20 years.
The main products: Heavy moving column CNC machining center,Heavy static column CNC machining center,High accuracy metal cutting machine,High precision fiber laser machine,Vanguard series CNC engraver, Multistage CNC machine center, high accuracy CNC engraver, laser cutting machine,plasma cutting machine,totally 23 series ,more than 100 models.
Our sales net not only covers all Chinese provinces and municipalities,including HongKong,Taiwan&Macao,also the products are exported to more than 120 countries and regions such as Europe,America,Middle-east,South-east Asia etc.

Our Service

Pre-Sales Service

1. We have many exhibitions very year, hundreds of clients was coming to our booth for further communication.
2. 24-hours online Inquiry and consulting support.
3. Sample testing support.
4. We welcome you to visit our factory.

After-Sales Service
1. Training how to instal the machine, training how to use the machine online.
2. Engineers available to clients' factory for training.

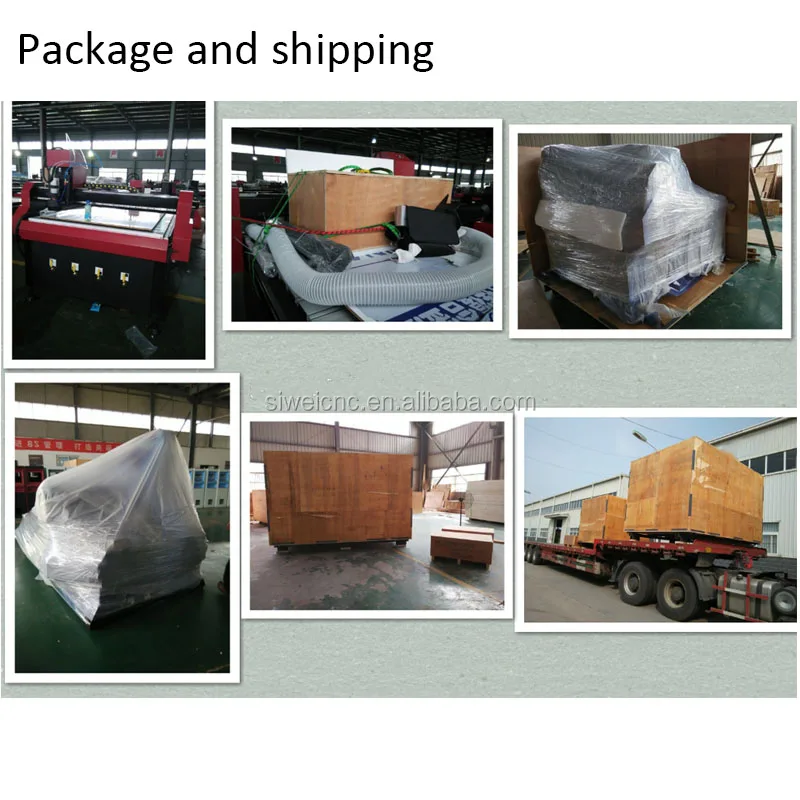

Packing & Delivery
Packaging
Size
3.36*2.28*2.14m
Weight
2500KGS



Packaging Details
The normal package is plywood box
Related Products




FAQ


Q1.How do you get the best price?
As you may know,the different type of CNC machine apply to the different material,and the different model apply to the different material.
Please tell me what's material you want to cutting or engraving ?
And what's MAX size of carved material ?
Then I wil recommand the most suitable model and the best price for you.


Q2.In case of failure,how to do?
Call us----our enginners are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free---For more information,please contact us
The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
IF YOU ARE INTERESTED IN THIS MACHINE, PLS CONTACT WITH US IN ANY TIME, THANKS
