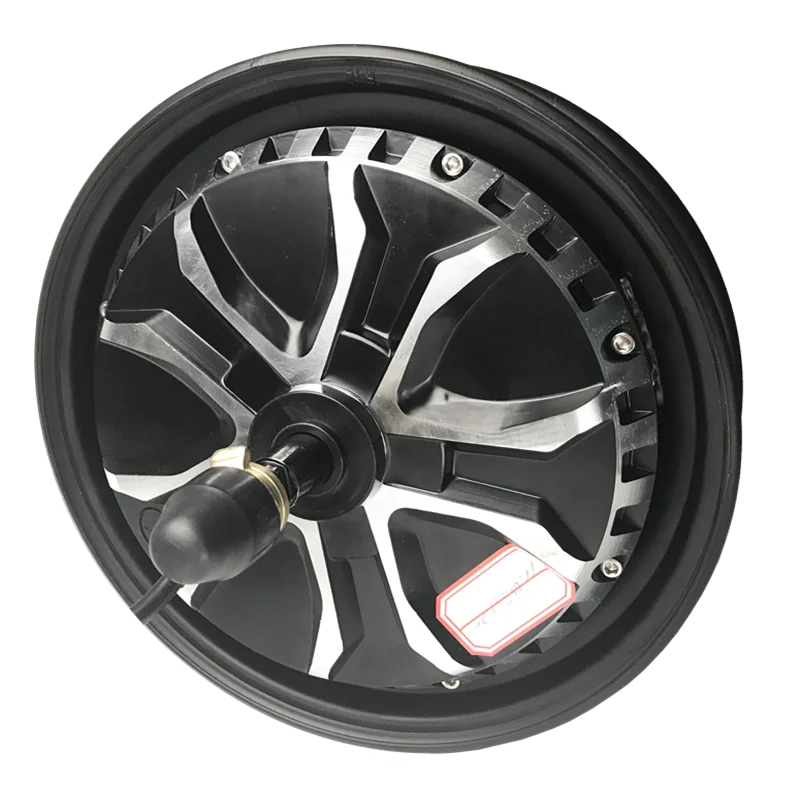

CNEBIKES 48v 1000w 10inch in wheel motor for electric scooter

Feedback Ratings
  • 1-49 Pieces
    $65.00
  • >=50 Pieces
    $55.00
Color:
Black
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Voltage:
36V
Design:
Brushless
Wattage:
> 400w
Product name:
CNEBIKES 48v 1000w 10inch in wheel motor for electric scooter
Motor:
Brushless Geared Motor
Rated Power:
350-1500w
Speed:
40km/h
Wheel size:
10''
Efficiency:
80%
Rated voltage:
48v
Application:
Scooter
Size:
10''*3.5
Position:
Rear Drive

Packaging & Delivery

Selling Units:
Single item
Single package size:
65X65X23 cm
Single gross weight:
5.0 kg
Package Type:
Standard export carton with foam for CNEBIKES 48v 1000w 10inch in wheel motor for electric scooter.
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 1 2 - 20 >20
Est. Time(days) 10 30 To be negotiated
Product Introduction

250w -1500w integrated motor in wheel motor


For 10inch /12inch E-Scooter Single wheel hub motor, it could be used for electric scooter, electric motorcycle.

high torque/high speed /double sets of hall sensor /voltage and RPM can be customized

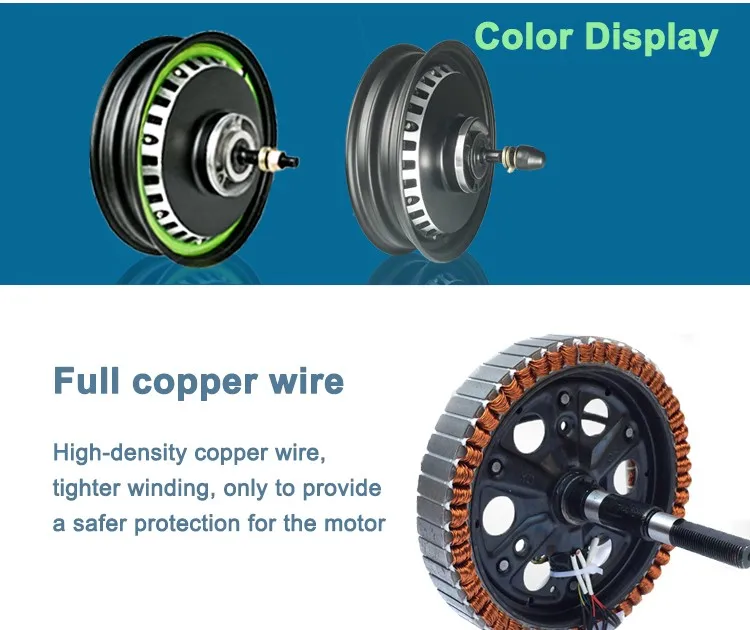

1) Use high grade coated copper wire (Temperature resistance 130 degree)
2) Use high temperature resistance wire (maximum temperature 120 degree)
3)Use hall sensor from famour brand
4)Install 2 sets of hall sensors in high power motor easy for maintenance


Product Parameters
CNEBIKES 48v 1000w 10inch in wheel motor for electric scooter
Motor
48v 1000w
Rated Power
350w-1000w
Controller
intelligent controller
Construction
Gearless brushless
Dropout
rear 185mm
Speed with load
25-45km/h
Efficiency (%)
85%
Operating Temperature
-20 - 45℃
Packing size
52x42x30CM
Brake
for Disc brake
Product Details Show

Why Choose in wheel motor ?

>> Often used for e-scooter or motorcycle .no spokes ,more strong .


>> Excellent start performance and good creeping slop capacity

>> Strong output function.

To customized a suitable motor, could you pls. inform below points:


1.E-scooter, E-tricycle or E-car, tire model?

2.Volt and wattage of motor, Speed(kV), and torque/climb angle ?

3.Your vehicle weight and loading weight?

4.Lithium or lead-acid Battery?

We could suggest most suitable motor accordingly, thank you for your cooperation.

Related Products
Why Choose Us

CNEBIKES Co., Ltd is located in Changzhou city ,Jiangsu ,China. We are just one hour from Shanghai by high-speed train . It is easy for potential customers to come and have a look at our facility and products.

We manufacture a variety of products . Our products are reliable and durable. We export to Europe, the USA, Canada, Southeast Asia, Australia and many other countries . Our customers have given us high praise for our products and service.

FAQ

Q:What's main advantages of geared motor and gear less motor?

A: Geared motor has lighter weight,smaller size,zero drag(complete freewheel when not using battery, and excellent efficiency.
Gearless motor has high top speed, more power output, and excellent life span.

Q:What is Pedal-Assist?


A:The Pedal-Assist Mode (PAS) operates when you are pedaling the bike and progressively adds electrical power to the motor. The faster you pedal, the more power is applied. PAS mode significantly increases battery range as compared with using the throttle alone.

Q:Does the battery recharge when I pedal?


A:No, in order for the motor to recharge the battery, it would have to create resistance which would make it too difficult to pedal without the motor. Unfortunately physics doesn't work in our favor.

Q:How far can I go on one charge?


A:There are many variables that affect distance such as weight, terrain, number of stop / starts, riding speed, amount of pedal assistance, number of hills climbed, tire pressures, and wind resistance etc.


Q: Front wheel and rear wheel choose which one?


A: Common standard front wheel is 100mm dropouts,easier to install without derailleur adjustments, you can use your original freewheel; Common standard rear wheel is 135mm dropouts, better grip especially when you ride on steep inclines or in wet condition.
