CNEBIKES TSZD2 36V 250w mid drive central electric bike motor conversion kit

Feedback Ratings
  • 1-4 Sets
    $275.00
  • >=5 Sets
    $260.00
Color:
Black
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Voltage:
36V
Design:
Brushless
Wattage:
201 - 300w
Product name:
TSZD2 36V 250w mid drive central electric bike motor conversion kit
Rated Power:
36v 250w
Motor:
Mid Crank Motor
Weight:
7kg
Brand Name:
Tongsheng
Display:
VLCD 5 Display
Chain wheel:
42T
RPM:
83-78
Sensor:
Speed sensor/ Hall sensor
Bottom bracket:
68mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
34X25X25 cm
Single gross weight:
7.0 kg
Package Type:
Standard export carton with foam for CNEBIKES TSZD2 36V 250w mid drive central electric bike motor conversion kit.
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 2 - 10 >10
Est. Time(days) 10 20 To be negotiated
Customer Feedback
Product Introduction

With an integrated torque sensor, this mid-drive motor which is compatible with a 68mm bottom bracket has a rated power of 250w,350w. will provide the rider with great explosive force when starting the system. Hightly strong and efficient, this motor greatly enhances riding joy and is suitable for mountain bikes and sand bikes, which are the favorites of riders who love challenges as well as transport bikes.

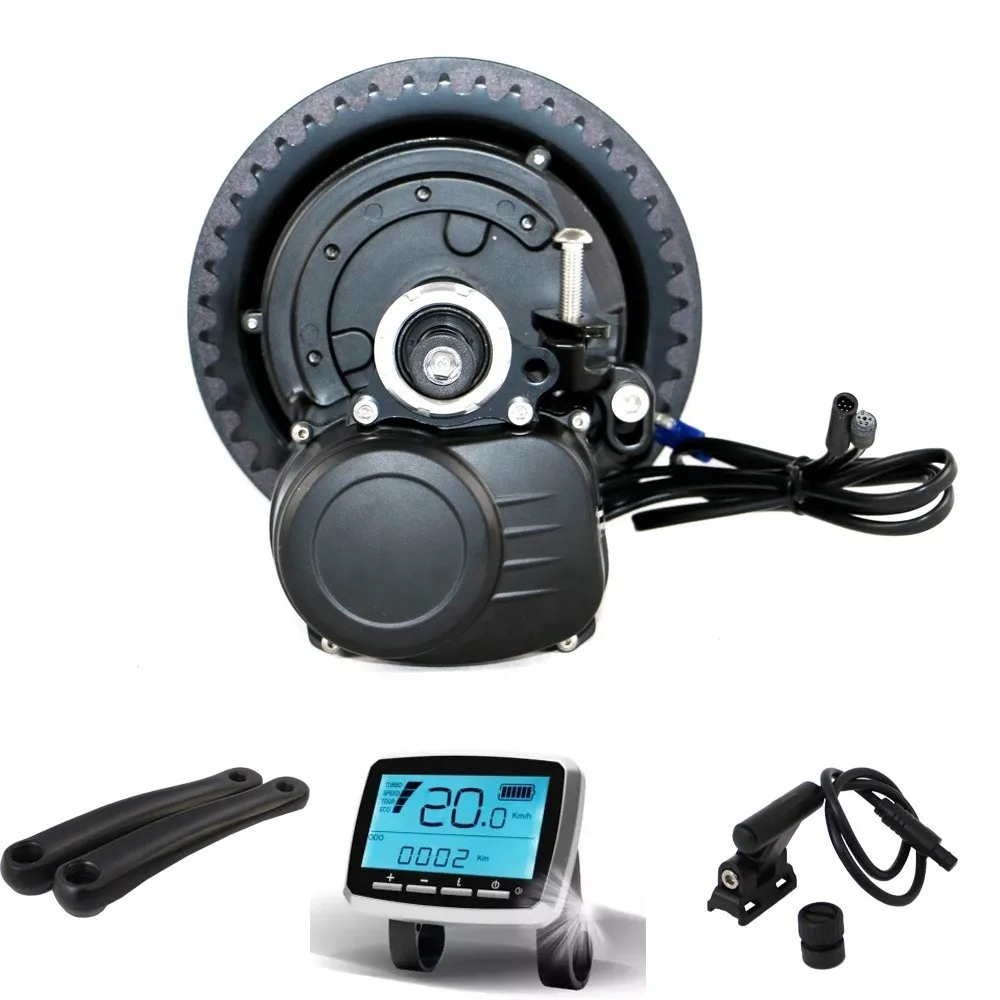

TSZD2 mid motor kit packing list:

1 mid motor(bb68mm)
1 VLCD5 display
1 Thumb throttle
1 Torque sensor
1 Chain wheel/ chain cover(44T)
2 Cranks
2 Brave levers

Warranty 2 years for motor, half year for other parts.

Specification
TSZD2 36V 250w mid drive central electric bike motor conversion kit
Motor
250w
Construction
Brushless Geared Motor
Voltage
36v
Rpm
100-140
Max Torque
60N.m
IP Code
65
Efficiency
80%
Opereting Temperature
-20-45℃
Bottom bracket
68mm
Chain wheel
44T
Display
VLCD5 display
Weight
7kg
Product Details Show

Mid Motor


Bafang powerful mid motor, max torque is 80N.m, low noise and environmental. We have bottom bracket 68mm for you, besides, the whole kit includes nuts and screws.


VLCD5 display


LCD display looks fashion and have more functions.Set relevant parameters, like rim size,speed limited,password.... When you cycling, it also can tell you the speed,time,range,temperature...

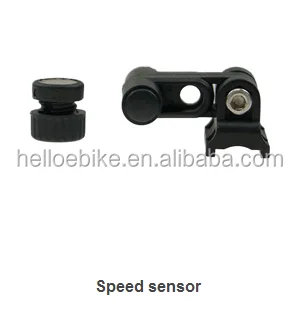

Torque sensor


With a magnet, the speed sensor records your bike speed and indicate your speed to your display.


Thumb throttle


Twist the thumb throttle, you will get a powerful and wonderful feeling of speed, different twisting angles, different speed. Speed depends on you!


Brake levers


Using your brake and make your bike stop from flying and cut off the whole electric motor system. Slow down and enjoy the beautiful scenery around you.


Thank you for your kind reading, should you have any requirements, please contact with me, you will get prompt reply!

Related Products

If you have any requirements, pls feel free to let me know.

Why Choose Us
FAQ

Q: My bike bracket bottom is 73mm .can I use BBS01 or BBS02 ?
A:Yes , bb for bbs01 and bbs02 is 68mm,but it can work with bb73mm.

Q: My bike bracket bottom is 100mm .can I choose BBS01 or BBS02 ?
A:Yes , we can extend the bracket bottom length to 100mm .

Q.How many sets are available for bafang mid motor kit wholesale price ?
A. more than 20 sets , we can offer the wholesale price for MMG31,MMG32, MMG33 .

Q:Do you have stock?
A:We always keep some ready stock for this mid motor kits,Please let me know what quantity and which model you want,thus I could check properly for you.

Q:What type of connector do you use for the battery?
A:Anderson connector.

Q: Can i have a user manual of Bafang mid motor kits?
A: Yes, we will send you a user manual with the goods.

Q:Does it come with the controller?
A: Everything you need (except for battery) comes with this kit. Depending on how you are going to use it may require splicing some wires, but that's about all.

Q: What should i do when an error code is displayed?
A: Please check the code list in first,something errors can be solved simply. Please contact our service technician if the user cannot remove the error.


Thank you for your kind reading, should you have any requirements, please send an inquiry to me, you will get prompt reply!
