Canted coil spring machine CNC connector spring coiling machine spiral spring forming machine coiler

$29,600.00 / Set | 1 Set (Min. Order)
Model Number:
GJ-20A
$29,600.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Energy & Mining
Place of Origin:
Guangdong, China
Brand Name:
Guang Jin CNC
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Warranty:
1 Year
Machine Type:
Spring Coiling Machine
Feature:
produced canted coil spring
Usage:
compression/ torsion/ extension spring
Application:
wire/ stainless steel/ cooper/ aluminium wire
Certification:
CE
Wire feed speed:
0-150m/min
Voltage:
customized
Wire diameter:
0.15-2mm
Type:
CNC
Bearing:
Sweden SKF
Dimension:
540*800*1300mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
900X650X1400 cm
Single gross weight:
850.0 kg
Package Type:
Machine is put on the pallet, then wrapped up with plastic film, and packed outside by wooden case.
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description

What is your mechanical advantage?

1. Wire feeder straight line accuracy ±0.01mm/ 100mm; wire feeder axis beating±0.01mm/ 100mm; Gear precision ±0.012mm/ 100mm.

2. It can make contact spring, extension spring.

Canted coil spring machine CNC cspring coiling machine spiral spring forming machine coiler

Description

1. Modifying processing program without downtime.

2. Machine speed can be changed by turning the hand wheel in any time.

3. Precision is 0.15-2mm, widely wire size range than traditional machines.

4. Cam, OD lever scale and CNC programming can adjust spring outside diameter.

5. It can make compression spring, middle hook tension spring, simple torsion spring.

6. Leading level of canted coil springs.

Parameters

Model

GJ-20A

Axis Count

4 axis

Wire Size Range

Φ0.15Φ2mm

Max Feeding Length

Unlimited

Wind direction

Right and Left Hand

Max Feeding Speed

0~150m/min

Min Setting Value

0.01mm

Max Setting Value

9999.99mm

Outside Diameter

≤35.00mm

Cam Min Seting Value

0.1°

Cam Max Setting Value

359.9°

Wire Feed Servo Motor

2kw

Cutter servo motor

1.5kw

Pitch Servo motor

1.5kw

Cam Motor

1.0kw

Dimension(LxWxH)

540*800*1300mm

Weight

650kg

Samples

Oil seal spring

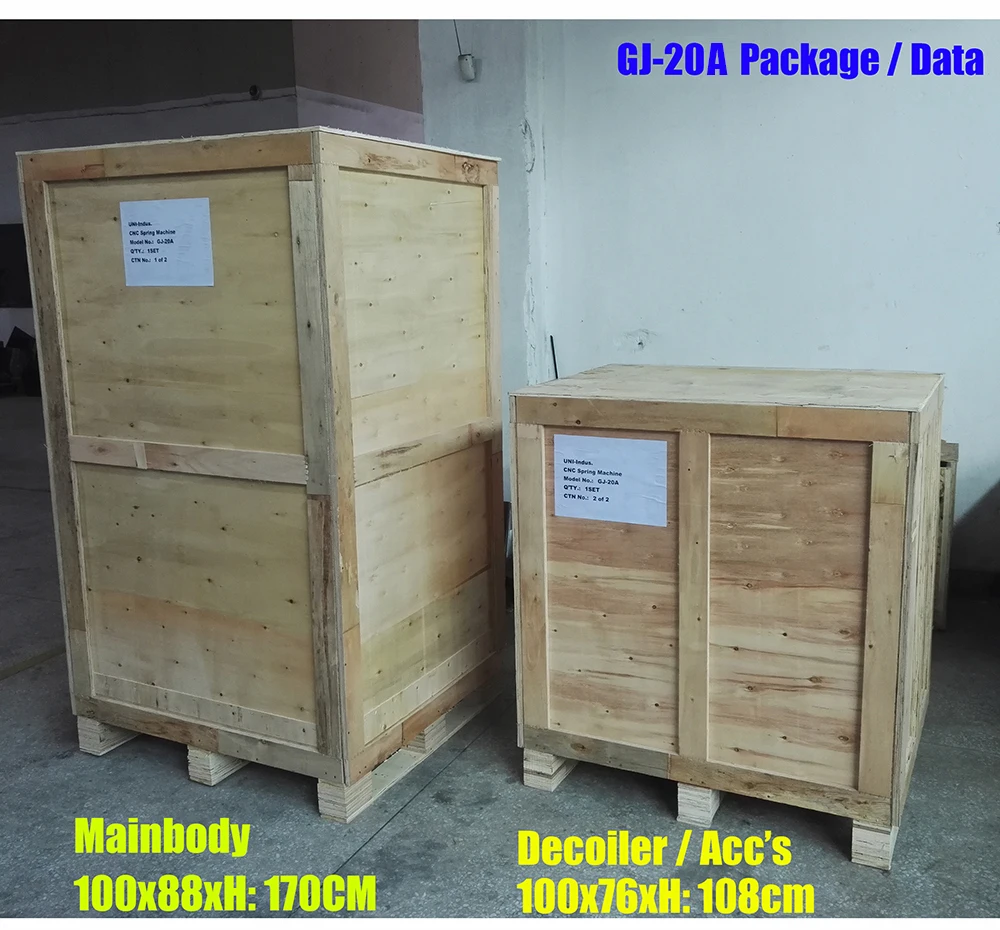

Package
Size 540*800*1300mm
Weight800kg
PackingMachine is put on the pallet, then wrapped up  with plastic film, and packed outside by wooden case.
About us

Guangjin CNC, 15 years spring machine factory. We have 14 years experience of 2 engineers who are professional in production, R & D, design and service. Customers have Midea Group, Chint Group, overseas etc.. Help to solve problem of high difficulty springs, obtain more market share.



Factory





Customers visit us



Exhibition

Certificate

Business License, CE

Patent Certificate
