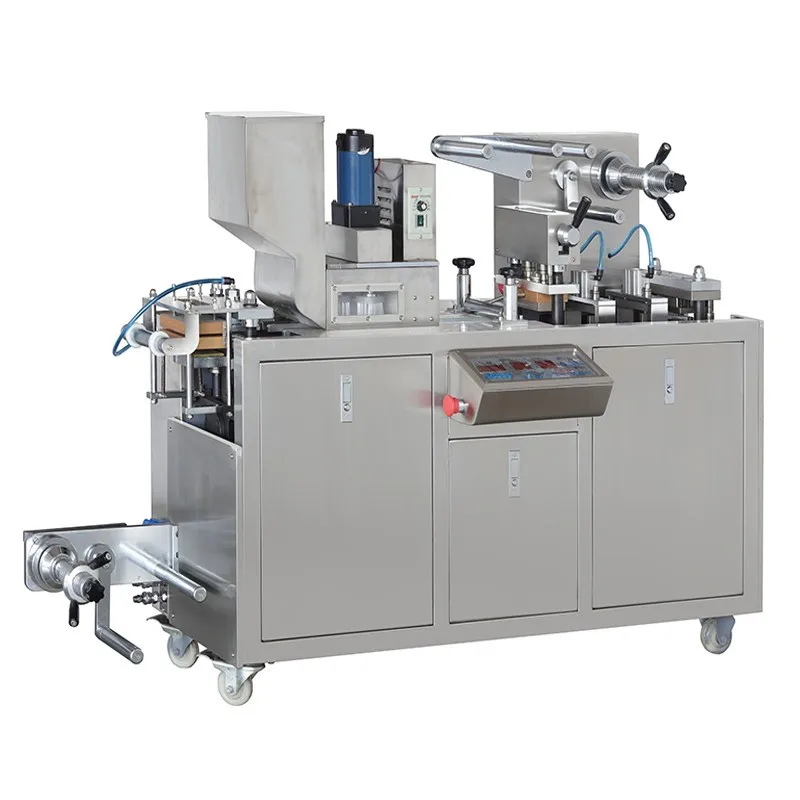

Capsule Pill Tablet Automatic DPP-80 ALU PVC Pharmaceutical Blister Packaging Machine

FOB Reference Price:Get Latest Price
$4,100.00 - $4,800.00 / Sets | 1 Set/Sets (Min. Order)
Power:
0.75KW
Model Number:
YTK-DPP80
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 5 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Automatic Grade:
Automatic
Dimension(L*W*H):
1150*500*950MM
Type:
Blister Packaging Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Condition:
New
Application:
Food, Commodity, Medical, Chemical
Driven Type:
Electric
Voltage:
380/220V
Place of Origin:
Guangdong, China
Brand Name:
YTK
Weight:
280KG, Net weight:480kg
Certification:
CE
After-sales Service Provided:
Video technical support, Online support
Package materials:
Pvcplastic ptp aluminum
Standard plate:
80*57MM(For the user choice)
Punching frequency::
30 times/min
pvc rigid sheet:
Width: 50-105mm thick: 0.2-0.25mm
PTP aluminum foil:
Width: 50-105mm thick: 0.02mm
Noise index:
< 75dBA
Dialysis Paper:
50*100g*110mm
Mould cooling:
Tap water or recycling water
Air pressure:
0.4-0.6Mpa
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
export standard package
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 5 10 To be negotiated
Video Description
Product Description
Product Parameters
Model
YTK-DPP/B-80
Punch frequency
10-20times/min
Production capacity
2400plates/hour
Max.Forming area & Depth
105*70(standard depth ≤15mm),Max.depth 25mm
Standard stroke range
30-80mm (can be designed)
Standard plate size
80*70mm (can be designed)
Air pressure
0.4-0.6Mpa
Compressed air required
Air compressor ≥0.3m3 /min
Total power supply
220v 50hz 2.8kw
Main motor
0.75kw
PVC hard film
0.15-0.5*110mm
PTP Aluminum Film
0.02-0.035*110mm
Dialysis Paper
50*100g*110mm
Mould cooling
Tap water or recycling water
Overall dimension
1840*900*1300 (mm)
Weight
Net weight:480kg
Noise index
< 75dBA
Features
1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement.
3. It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
Application

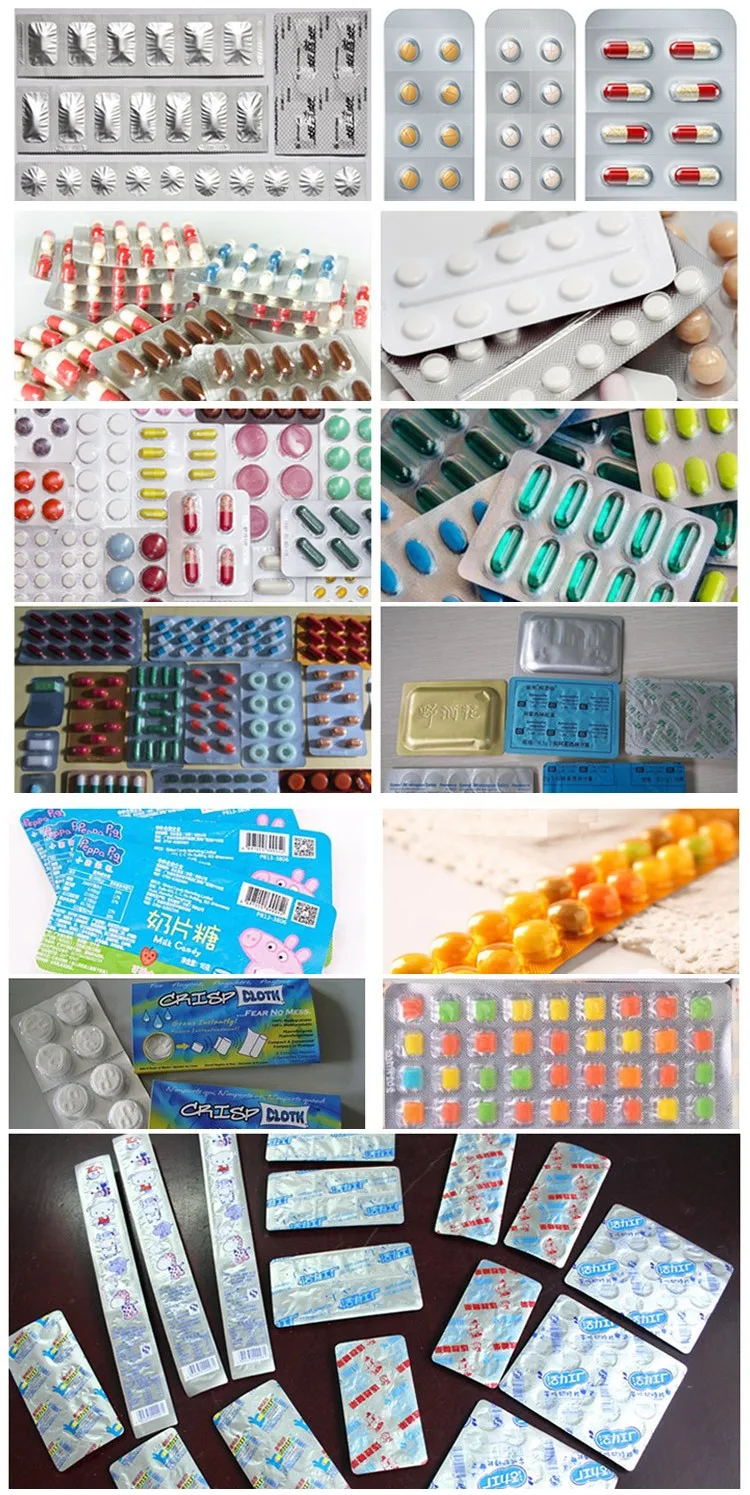

It is suitable for packaging of all kinds of tablet , capsule , pill , gum , candy or other solid product blister packaging for pharma , food , cosmetic and daily use product.
