China Highly accurate Thread connection electromagnetic flow meter liquid flow meter

$300.00 / Set | 1 Set (Min. Order)
Material:
ss
Accuracy:
0.5%
$300.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
AFT
Model Number:
AFTLD
Type:
Variable Area Water Flowmeters
Liner:
thread connection electromagnetic beer water flow meter
Accuracy:
0.2% 0.5%
Output:
4-20mA /RS485/HART/PROFIBUS DP
Medium:
water;drink water;acid water;milk;beer
Connection:
Flange,Clamping, thread, clamps
Protection grade:
IP65 / IP 68(optional)
Power supply:
220VAC/ 24VDC
Material:
carbon steel
Ambient temperature:
-25~ +150℃
Product Name:
China Highly accurate Thread connection electromagnetic flow meter

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X40X50 cm
Single gross weight:
20.0 kg
Package Type:
China Highly accurate Thread connection electromagnetic flow meter liquid flow meter: Each of our meter after factory calibration, according to different size do packaging, usually, below 100 mm flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of steam box packaging. We will ensure that each flow meter, safe to reach your hands
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Product Description


Product advantage

The precision is high.
Super large capacitance,
anti high voltage 450V,
PHILPS military level CPU,
independent AD chip,
EMC standard anti-jamming.

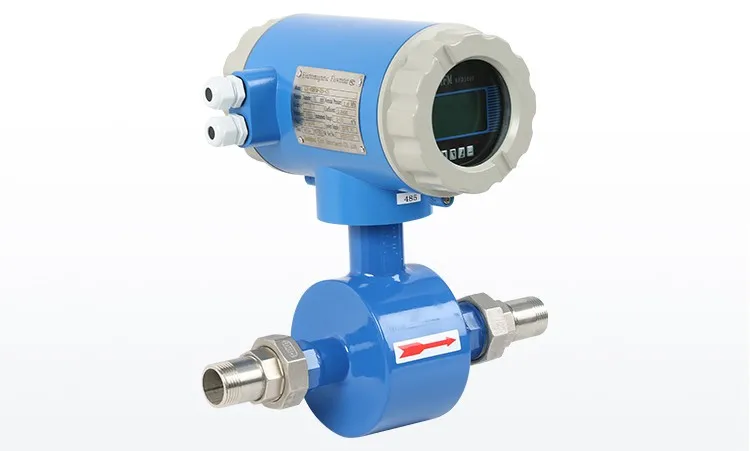

China Highly accurate Thread connection electromagnetic flow meter liquid flow meter

AFTLD series of intelligent electromagnetic flow meter is a high performance, high reliability flowmeter for measuring the volumetric flow of conductive liquids and slurries in closed conduits. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy,
Papermaking, water supply and drainage, food, medicine and other industries.
Product Name
China Highly accurate Thread connection electromagnetic flow meter liquid flow meter
Main power
AC220V 50HZ / DC24V
Power consumption
<15W (And set with sensor supporting power consumption )
Display and push buttons
The big screen LCD display with back lighting can display the instantaneous flow ,total flow and percentage of flow as well as alarm display ,four thin-film touch nubs ,which is used to data set .
Accumulator
Forward total quantity ,reverse total quantity









Output signal

Analog output
Bi-direction with two ways ,Isolation 0-10mA/4-20mA
Load resistor:0-10Ma;0-1.5KΩ;4-20Ma;0-750Ω
Frequency output
Forward & reverse flow output with frequency range set between 1-5000Hz.The external voltage must be lower than 35V and the max output and the max output current is 50Ma when the transistor is turned on


Alarm output
Two outputs from the collectors of photoelectric isolate transistors are for alarm signals .The external voltage must be lower than 35V and the max output current is 250Ma when the transistor is turned on.Alarm status:Activates when the measured pipes are empty ,the excitation circuits are broken or the volume of flow rate exceeds the value designed limits.



Pulse output
For pulse output in forward and reverse flow measurement ,upper frequency of pulse output can be up to 5000 CP/S relevant value of pulse is from 0.0001 to 1.0 M3/P .The width of pulse can be set to 20ms or squired wave from automatically.The collector of transistor with photoelectric is open circuited.The external voltage must be lower than 35 V and maximum output current is 250Ma when the transistor is turned on .
Accuracy
±0.5% of the value displayed ,±0.3% or ±0.2% are selectable.
Damping time constant
Continuous variable from 0-100 s (90%)can be selected by group
Communication
RS232 ,RS485 or HART Communication are selectable ,with lighting resistance
Power failure
An anti-failure clock is designed in the flow meter which can save the power failure records for 16 times (10 years)
Protection class
IP65
Ex-proof Mark
Exd IIBT4
Liner material
Liner material
Applications


PTFE
1.The most steadiest material in plastics which is resistance to boiling hydrochloric acid ,vitriol and aqua regia as well as strong and organic impregnates.
2.Not be perfect in abrasion resistance

Strong corrosive mediums such as strong acid and alkali
PTF
Having the same abration resistance with PTFE .Having strong ability of load pressure resistance.
Applicable in state of load pressure

F46
1. Having the same abration resistance with PTFE.
2.Resistance for low abration.3.Having strong resistance to load pressure
1.The same as PTFE
2.Applicable in medium of low abrasion

Neoprene
Be of good elasticity ,retractility and abration resistance 2.Be resistance to low acid ,alkali and salt but not for oxidation medium
Water,sewage and slurry ,mineral serosity of low abration.


Polyurethane
1.Be good of abration resistibility (equal to 10 times of caoutchouc)
2.Not be perfect in acid/alkali resistance
3.Can;t be used for water mixted with organic impregnants

Applicable in mineral serosity,slurry and coal slurry of high abration.
Product Details


1.LCD display, display Cumulative flow,Instantaneous flow, Forward flow, Reverse flow
2.Units: L/h, L/m, L/s, m3/h, m3/m, m3/s, GPM
3.Language: English, Italian, Spanish, Russian, Japanese, Korean, etc.

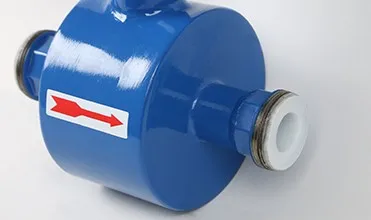

Multiple medium measurements.
It can resist acid, alkali, salt corrosion.

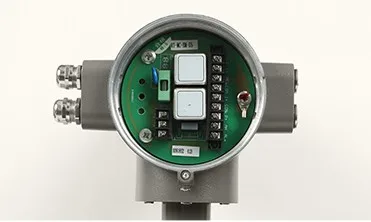

1. Circuit board undergoes aging test and vibration test
2. Surge protection device

Each of our meter after factory calibration, according to different size do packaging, usually, below 100 mm flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of steam box packaging. We will ensure that each flow meter, safe to reach your hands.

Project Case
About Us

Kaifeng AFT Instrument Co., Ltd. specializes in the R&D, design, manufacture, sales, and service of electromagnetic flowmeters. It is a high-tech science and technology company. The electromagnetic flowmeters produced by our company have complete specifications and various forms. Can meet the different needs of different occasions, according to user requirements design. Electromagnetic flow meter is widely used in chemical, environmental protection, urban water supply and drainage, electricity, water conservancy, metallurgy, pharmaceuticals, sugar, petroleum, papermaking and other fields.
Begin with customer requirements and finally customer satisfaction. Your request is our goal, our enthusiasm hopes to carry out fruitful cooperation with customers at domestic and abroad, and to produce the best electromagnetic flow meter products for the needs of users. We sincerely invite new and old customers to visit us and negotiate cooperation.

Our company has strict quality control from product design,
raw material procurement and processing, manufacturing and assembly, inspection and verification to every stage of product release, scientific management, strict process, advanced equipment and Professional team as a guarantee of quality products.
Certificate

Warmly welcome customers to visit our company and look forward to our cooperation.
