China Supplier CALT Metal Bellow Flexible 8mm bore Shaft Coupling Coupler

Feedback Ratings
  • 1-9 Pieces
    $12.00
  • 10-49 Pieces
    $10.00
  • >=50 Pieces
    $9.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Structure:
Universal
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Material:
Aluminium
Brand Name:
CALT
Place of Origin:
Shanghai, China (Mainland)
Model Number:
GH5 series
Type:
Flexible Coupling
Application:
CNC motor, 3d printer accesories
Customize:
Accept Special Customize
Outer dia:
19 mm
Bore Size:
8 mm
Guarantee:
1 year
Length:
30 mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
8X5X5 cm
Single gross weight:
0.7 kg
Package Type:
Standard Strong Export Carton Box
Lead Time :
5
Product Description

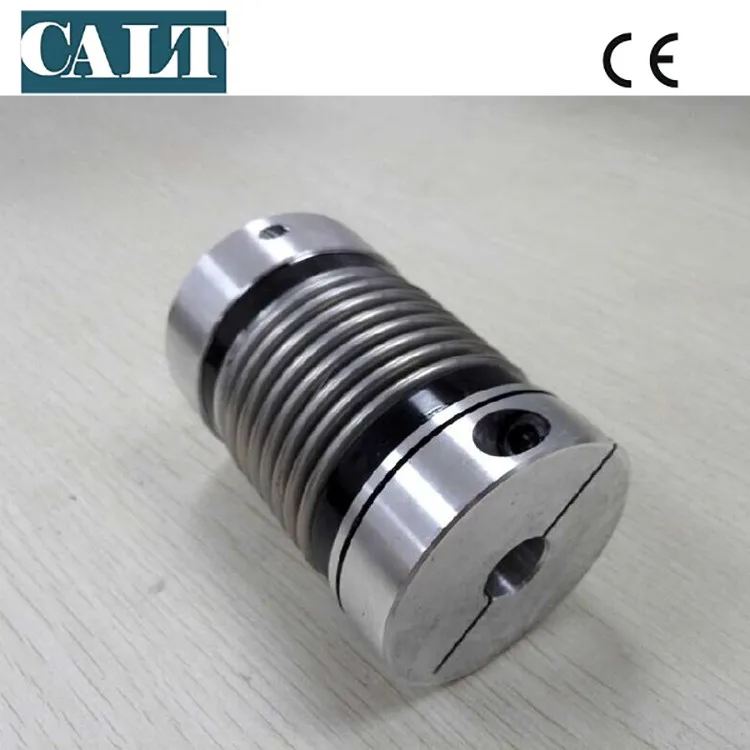

China Supplier CALT Metal Bellow Flexible 8mm bore Shaft Coupling Coupler


Features:

●light weight, small size, gap-free, compact and reliable connection;

● main body is stainless steel bellows elastomer;

● with function of anti-oil corrosion;

● absorb vibration, compensate for radial, angular deviation and Zero Backlash;

● Suitable for encoders, screw drive;

Measurement, control, information systems, and other industrial machinery;

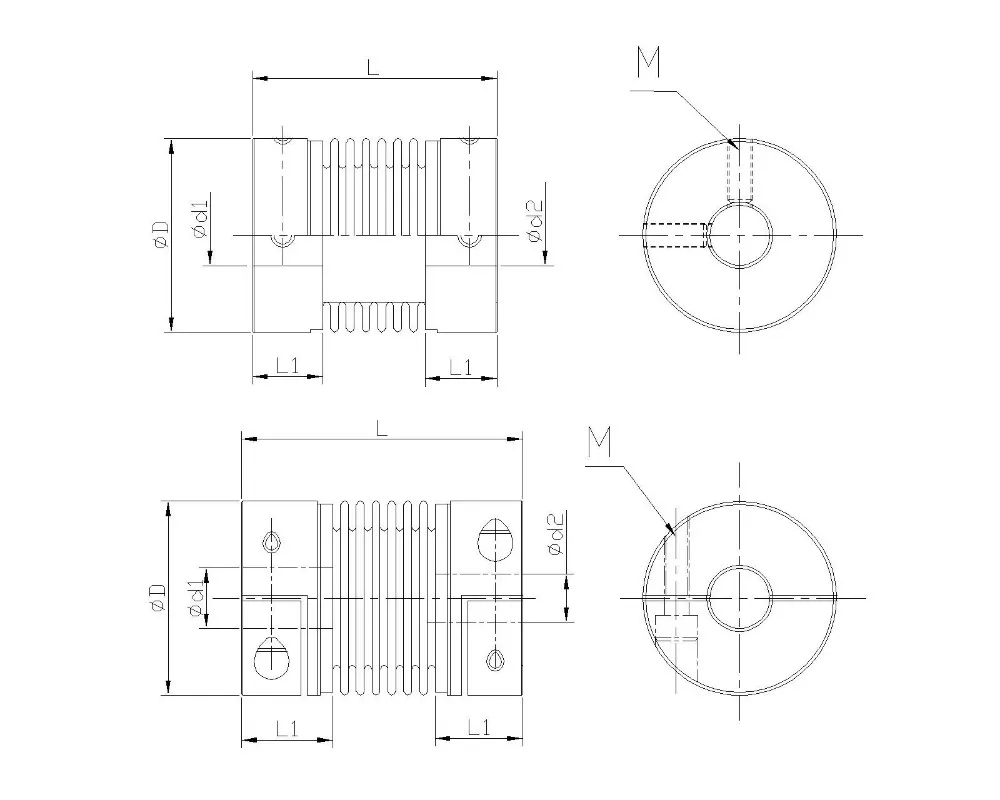

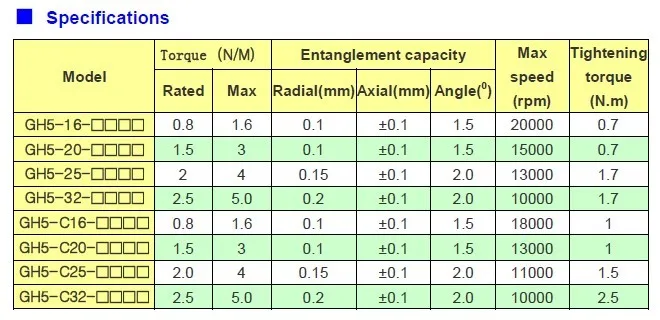

Ordering example:

● GH5-C20-□ □ □ □

● GH5 serial number.

● C20 outer diameter 20mm. Clamping fixed

● □ □ □ □ both sides of the aperture

● Note: serial number without C as the top tight fixed



Other Coupling.

For we are manufacturer, and we are able to accept your customize. Please check the picture bellowing and email us the model you need, we will send the datasheet to you soon.

Related Products

Solid shaft type GHS38 Series.

Widely used in automatic control, automatic measurement, as the angle and speed sensors.


ASIC devices internal, good reliability, long life, anti-jamming performance. Stainless steel shaft has a higher stability and protection.Metal shell is more solid and anti-impact. Bearing load heavy, anti-oil and water

Servo-motor Encoder GSM48 Series.

Widely used in the field of automatic control AC servo unit, particularly suitable for use in servo motor supporting.


Internal ASIC devices, high reliability, long life, strong anti-interference. Wide range of resolutions, and does not require signal conditioning.  With A, B, Z and U, V, W six-channel signal output can be connected with standard line driver (26LS31) RS422, can provide 12 output signal, and is compatible with TTL

Hollow Shaft Type GHH100 series.

Used in automatic control, measurement, robot X-Y working platform, printing and packaging.


Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.

Draw-wire Position Sensor CESI series.

compact size, rugged construction, easy to install

economic cost, and cost savings for customers
Various signals output optional: push-pull, TTL, open collector and so on


The cylinders, testing machines and other industry has achieved large-scale applications, reliability

Manual Pulse Generator TM1469 series.

For CNC machine origin correction and signal split.


 Full plastic housing, high dielectric strength, the axis transfer switch and Oil Pollution Prevention seal design.

Our Company

Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. has specialized in encoder, sensor, motor and related products for many years, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.

Our Factory
Packing & Delivery

Packing Details  : carton packed for each encoder or items, and then pack with thick carton for shipping.

Delivery Details : 3-4 days after full payment in regular product, and 7-10days for customized type. and according to quantities.

1. Rotary encoder pack box 2 layers.
2. All packed good
3. Encoder module disc in plastic box
4. Ziplock packed for flexible coupling
5. Rotary encoder packed well
6. Packed with good conditions with shipping mark.
