Sheet / Plate Rolling
Maximum crimp width:
Plate yield limit:
The upper roller diameter:
Under the roller center distance:
Hydraulic motor power:
Packaging & Delivery
Wooden packaging for rolling machine
1 - 1
To be negotiated

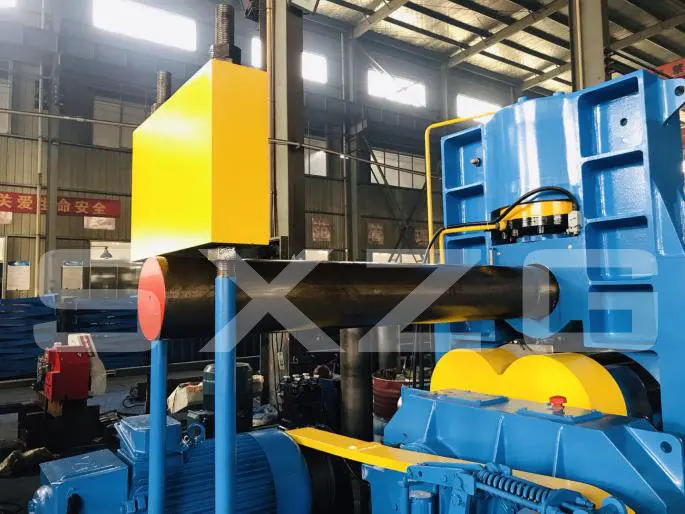

W11S 3 Roller hydraulic Rolling Machine

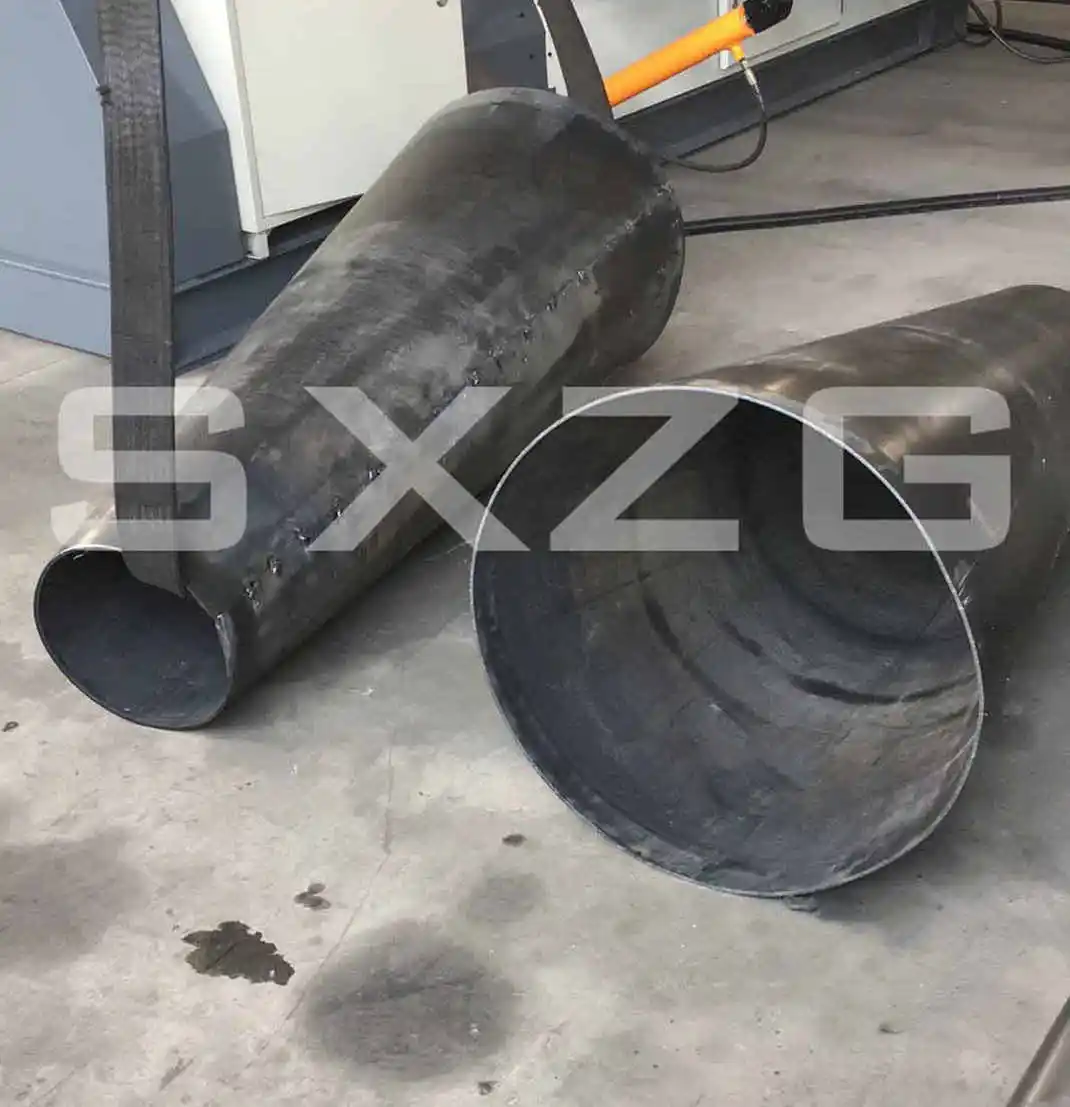

W11S 3 Roller hydraulic Rolling Machine is a special equipment to roll the plate into curve,cylinder,conical in the principle of three point circle. The action as below: Top roller move by vertical. Power: hydraulic oil tank. Role: put the pressure on the plate to make the plate bending deformation. Top roller move by horizontal. Power: electromotor. Role: adjust the horizontal distance between the top and bottom roller to make the top and bottom roller position in asymmetrical to pre-pend the sheet edge and decline the length of the flat zone Bottom roller rotate. Power: electromotor. Role: supply the torque for bending plate. Opening device drop down and reset. Power: hydraulic oil tank. Role: take out the finished workpiece.

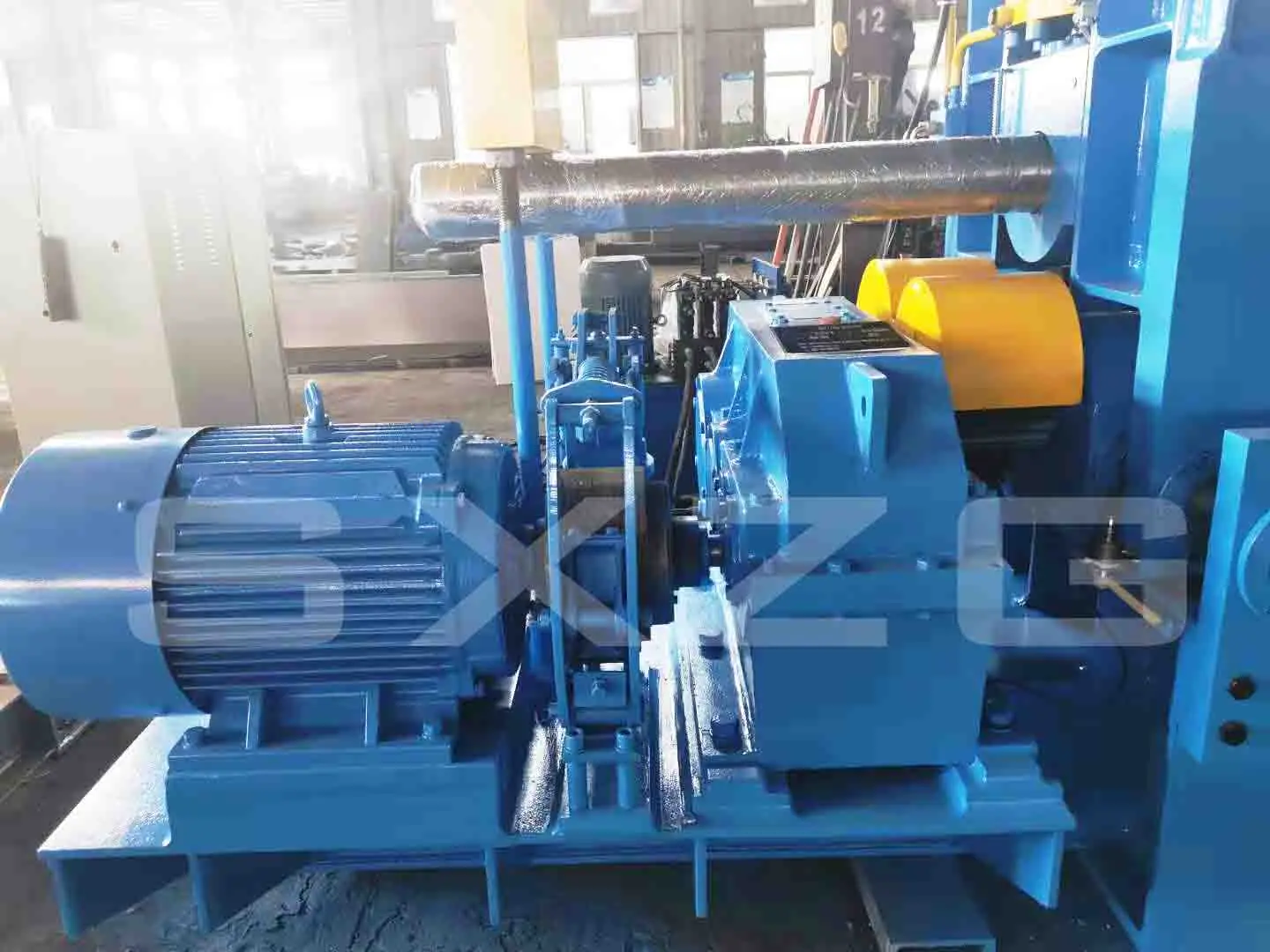

Electronic rolling machine

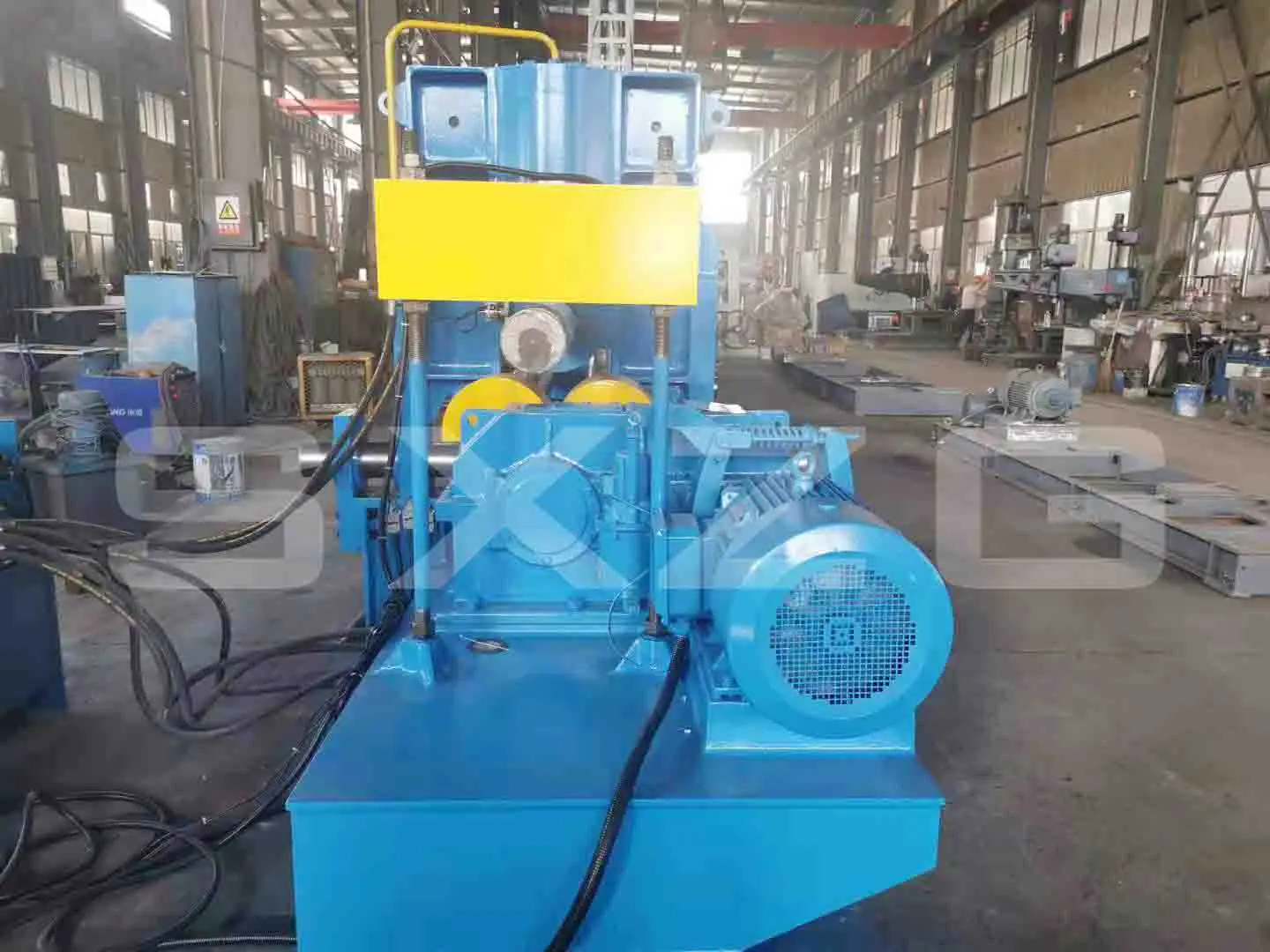

Rolling bending machine

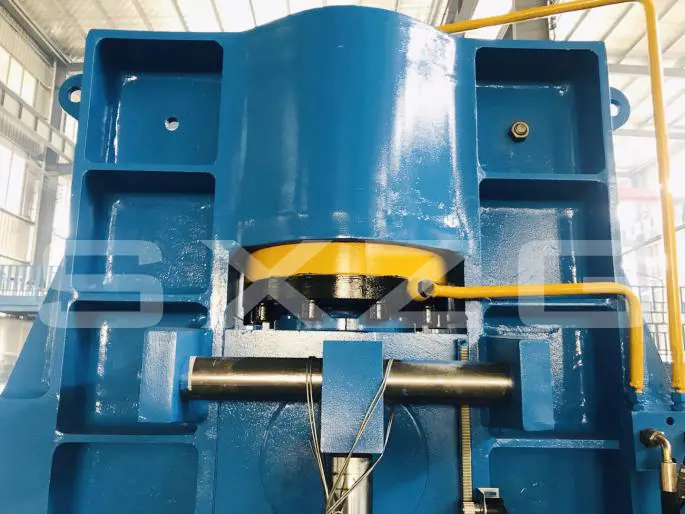

The vertical elevation is hydraulic driving, which is achieved bu the action of the oil in the hydraulic cylinder on the position

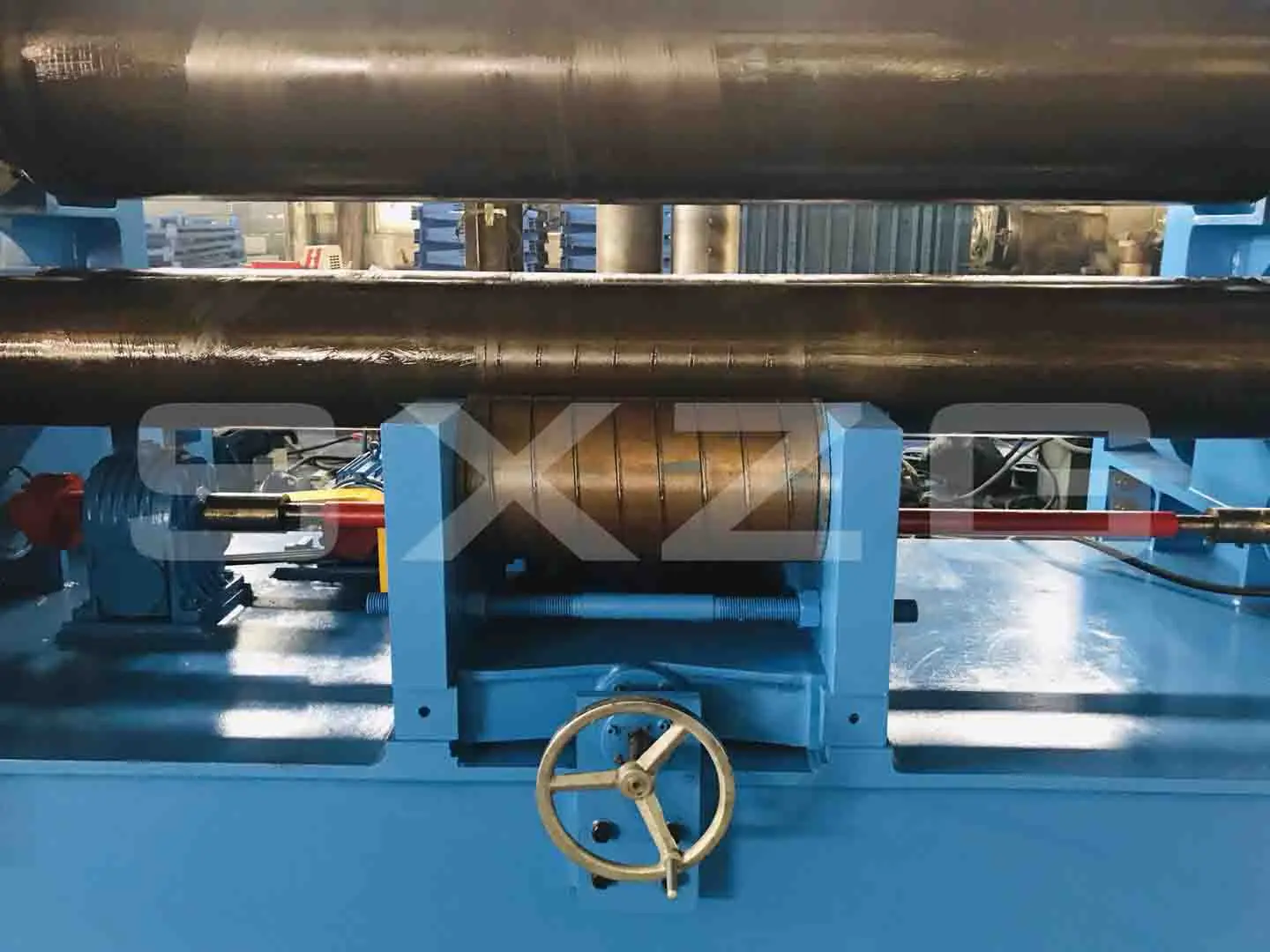

The horizontal shift is achieved through the torques from the lead screw cabinet ,worm and the structure of screw and worm.

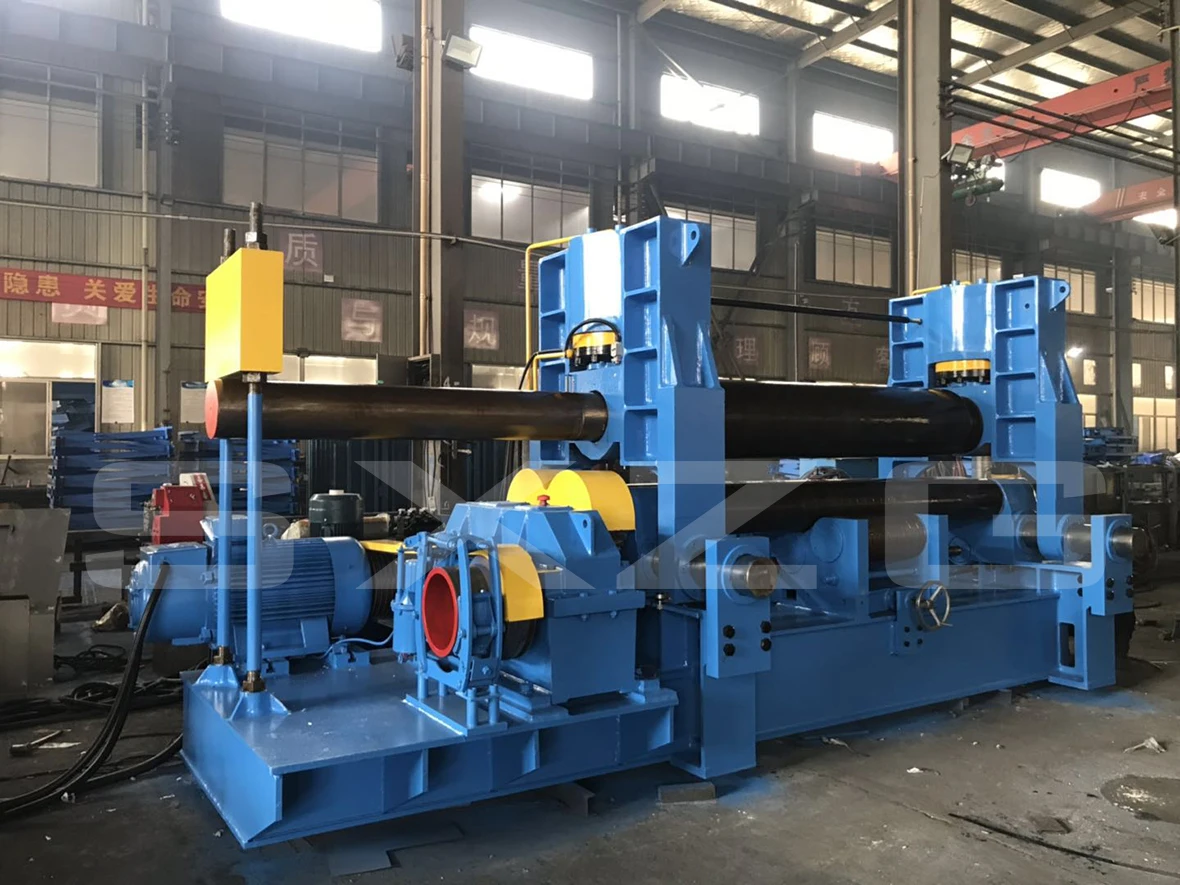

Plate bending rolls

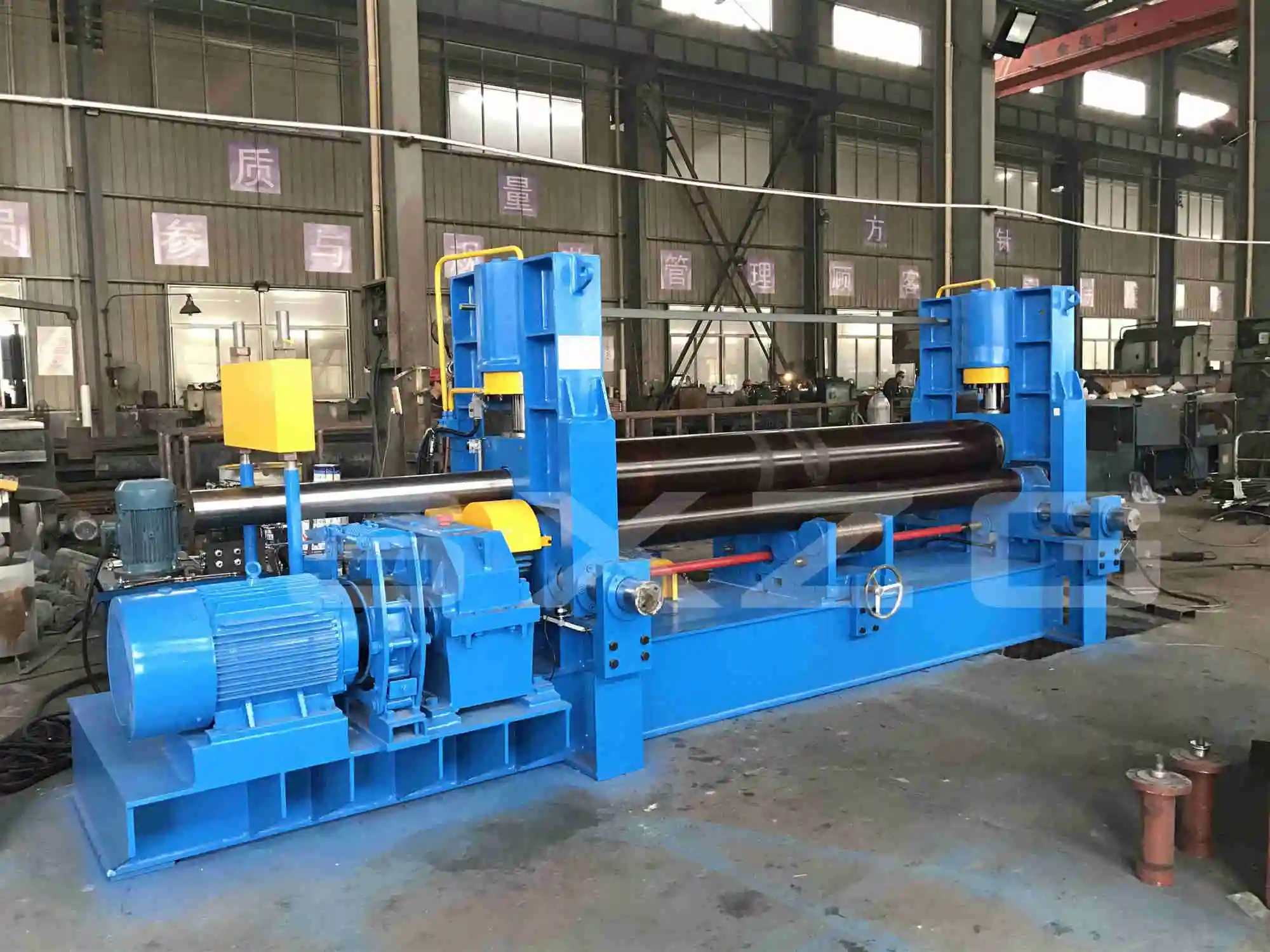

Plate bending rollers
Hydraulic drop-end for easy removal finished ferrule

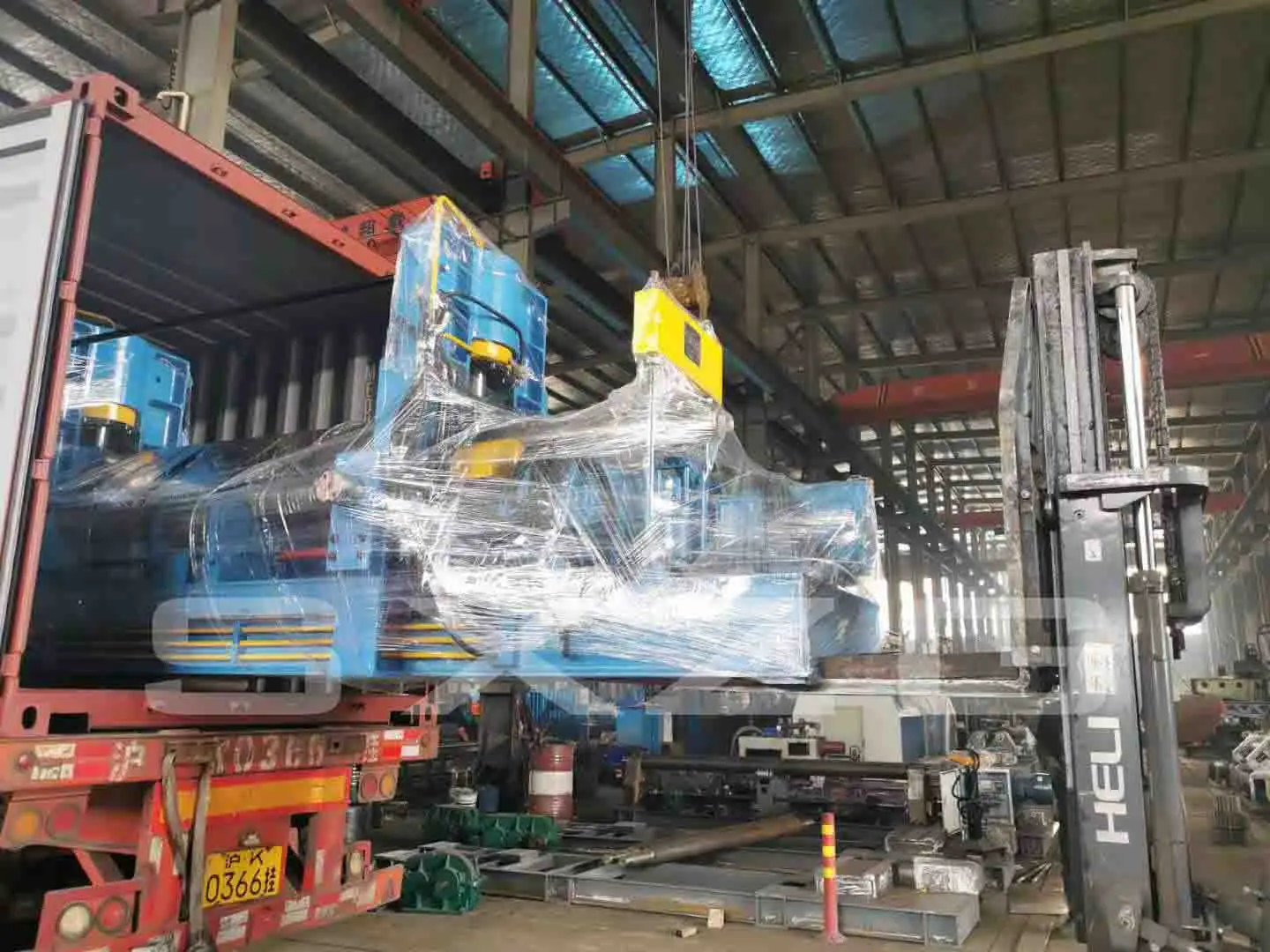

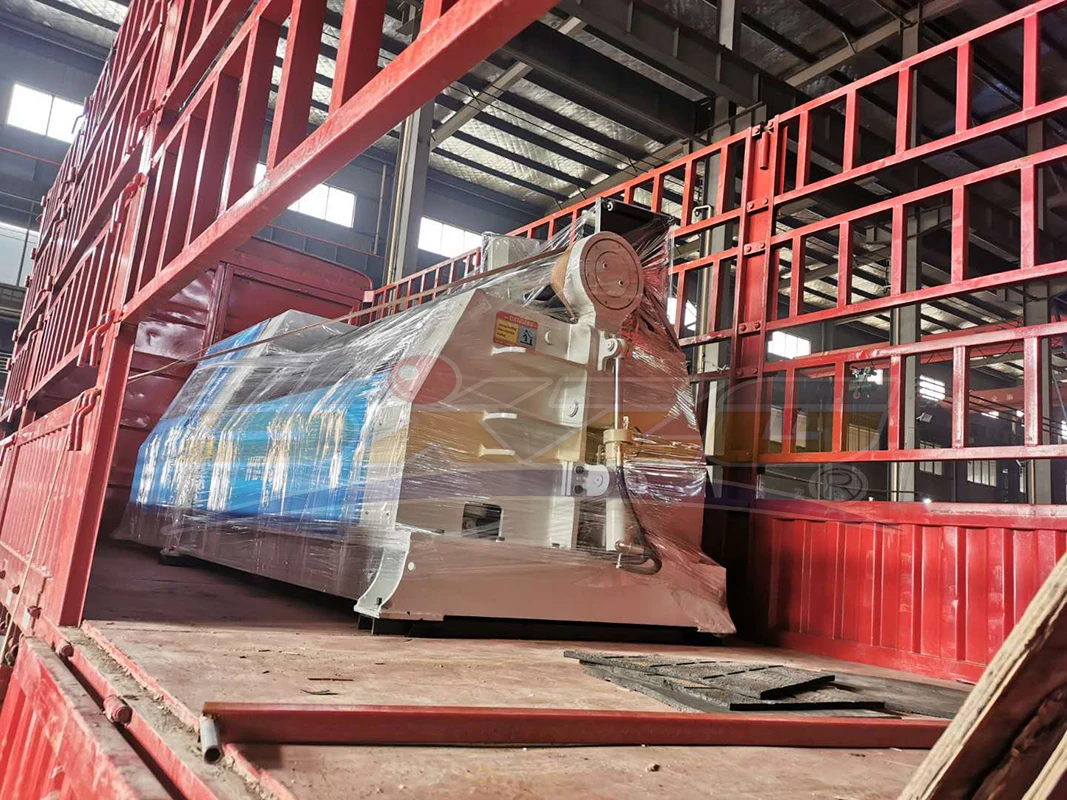

Packaging and Delivery
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer of pipe tube processing.
Q2: How long is your delivery time? A2: The standard model is 30 working days
Q3: How to choose the model of machines? A3: -The width of plate -The thickness of plate -Plate material
Q4: What is your term of payment ? A4: 30% T/T in advance, the balance before shipment.
1. Company name: Anhui Sanxin Heavy Industry Machinery manufacturing Co.,ltd
2. Brand: SXZG
3. Address: Bowang Industril Park, Ma’anShan City, Anhui Province, China
